Uber Beige Upgrades

Discussion in 'Apple Collectors' started by im_to_hyper, Jun 5, 2006.

  1. im_to_hyper macrumors 65816

    im_to_hyper

    Joined:
    Aug 25, 2004
    Location:
    Glendale, California, USA
    #1
    This isn't quite a collector's issue, but more of a tinkerer's type of thing.

    For some reason, I got obsessed with upgrading the old Macs I have laying around my house, and was given money by a friend to upgrade them so he could use one or two.

    Here is how things stand as of right now... I have the "before" specs listed, followed by the "after" specs.

    Before:

    Beige G3
    G3 266MHz (O/C'd to 300MHz)
    64MB RAM
    20GB HD
    CD-ROM
    ZIP
    2MB internal graphics
    OS X 10.1

    After:

    Bright Silver Case G4
    G4 500MHz
    512MB (Possibly 768MB RAM)
    60GB HD
    Superdrive 2x
    ZIP
    32MB PCI Graphics Card (Hopefully 64MB if someone here has one)
    PCI USB/FireWire
    HOPEFULLY: PCI Wireless
    New PRAM battery
    OS X 10.3 for sure, Hopefully 10.4 if it will work.

    So, overall, it is taking a pretty old computer and turning it into something pretty nice for someone to use basic iMovie editing with and browse the web.

    I still need the RAM, Graphics, USB/FireWire and Wireless. Superdrive is still "iffy" as well.

    Anyone else doing something like this at all?

    Lets turn this into the "uber upgrade thread!"

  2. RacerX macrumors 65832

    Joined:
    Aug 2, 2004
    #2
    The one I'm using as my main system now started out as...
    Beige G3 Mini Tower original configuration:
    G3 at 266 with 512k of L2
    128 MB of memory
    onboard ATI Rage graphics with 6 MB of VRAM
    6 GB hard drive (onboard ATA bus 1)
    24x CD-ROM (bay 1, onboard ATA bus 2)
    Zip drive (bay 2, onboard SCSI)​
    Current configuration:
    G4 at 533 MHz with 1 MB of L2
    640 MB of memory
    ATI Radeon 7000 with 32 MB of VRAM (PCI slot 1)
    onboard ATI Rage graphics with 6 MB of VRAM (not in use)
    Tempo UltraATA66 card (PCI slot 2)
    80 GB hard drive (UltraATA66 bus 1)
    24x CD-ROM (bay 1, onboard ATA bus 1)
    6x DVD-ROM (bay 2, onboard ATA bus 2)
    USB card (PCI slot 3)
    -soon- 8x CDR (bay 3, onboard SCSI)​
    And the bottom of the case has enough room for two more internal hard drives (though the card will except up to 4 drives), so it still has room to grow a little.

    I was actually given two Beige G3s and took the best parts of both and put them together in one system and then sold off the remaining parts to pay for the remaining upgrades.

    I'm thinking about replacing the USB card with a USB 2.0 or USB 2.0/Firewire combo card, but the thing is that the card I have now works with iTunes nicely. Given that, I may just stick with what I have.

  3. Pancake macrumors regular

    Pancake

    Joined:
    Apr 7, 2003
    Location:
    Anchorage, Alaska
    #3
    I just woke up, so maybe my brain isn't at speed, but I can't figure out how your USB card works with iTunes?:confused:

  4. QCassidy352 macrumors G3

    QCassidy352

    Joined:
    Mar 20, 2003
    Location:
    Bay Area
    #4
    nice upgrades guys! I always wanted to do that with my old beige G3 (266) but every time I was going to I started looking at prices and always came to the conclusion it wasn't worth it. Still, great to see those old G3s alive and kicking with some nice specs. :)

  5. MoparShaha macrumors 68000

    MoparShaha

    Joined:
    May 15, 2003
    Location:
    San Francisco
    #5
    I'm guessing iPod.

  6. Eidorian macrumors Penryn

    Eidorian

    Joined:
    Mar 23, 2005
    Location:
    Indianapolis
    #6
    PCI Extreme is a godsend even if it causes the occasional video crash. :cool:

  7. macEfan macrumors 65816

    macEfan

    Joined:
    Apr 7, 2005
    Location:
    Forbidden, you do not have access to that server
    #7
    Yeah, the beige g3s are great little machines.

    Mine:

    g3 300 mhz ( I don't know how to over clock it:eek: )
    512mb PC 66 ram
    10gb main hard drive
    40gb secondary hard drive
    DVD drive
    Firewire/USB combo card
    10/100 network card
    Radius 8mb graphics card with VGA and Svideo out
    Running OS X.2 as my itunes server :D

    Just dont forget that the OS must be on the first 8gb partition (unless you have an IDE controller card)

  8. DougTheImpaler macrumors 6502a

    Joined:
    Feb 28, 2006
    Location:
    Central Illinois
    #8
    My beige G3 upgrade is not "uber" but it's not bad.

    Original specs:

    233MHz (Rev A with the crappy ROM that doesn't like slave drives), 32MB RAM, 4GB hard drive, standard 2MB graphics, OS 8.1

    Current specs:

    G3 333, 576MB RAM (2x256, 1x64), 120GB hard drive. Added 3 PCI cards:

    Voodoo4 PCI Mac Edition (didn't buy a Voodoo5 because I didn't think it'd fit)
    Sonnet ATA/66 card
    Daystar USB 2-port card

    The ATA card has a 40GB hard drive attached. I've also got an ATi Xclaim TV tuner for watching TV. It's running 9.1, as that's the latest OS that seems to work with OpenGL and the Voodoo, since it's not compatible with OpenGL 1.2.1 or later. I could go through the trouble of manually disabling/installing OpenGL versions that are older, but I'm happy with this setup. It watches TV and plays some older games, and GLIDE games like Diablo II run very nicely on it.

    Come to think of it, aside from the CPU (which is going to cost a hefty penny to go beyond a 333MHz G3) it's actually pretty nicely upgraded.

    A nice upgrade from the PowerMac 5500/225 I had with the Apple TV card.

  9. 4JNA macrumors 68000

    4JNA

    Joined:
    Feb 8, 2006
    Location:
    looking for trash files
    #9
    beige crazy...

    ok. hate to haul out the stuff from 'back in the day', but this thread made me go to the basement with the camera. before x, in the myst of 'os 9' time, i thought it would be cool to have more space, more drives, and a stand up case. didn't know that you could modify peecee power supplies, so i drilled like 50 holes in the 'side' cover of the g3 power supply, mounted it sideways in the atx case, and added the rest of the beige goodies, to include the floppy with cutout coverplate to match. wow, what a lot of work! ran great, amazed my friends, now collecting dust. all the 'cool' parts moved on to b&w upgrades. thanks for the trip down memory lane...:eek:
    View attachment 49715

    View attachment 49716

  10. im_to_hyper thread starter macrumors 65816

    im_to_hyper

    Joined:
    Aug 25, 2004
    Location:
    Glendale, California, USA
    #10
    Actually, if you search Ebay you can find ZIF processors for not too much. This is the one I am using in mine. I have bought from this seller before, and all their products work great.

    450MHz G4 LINK HERE

    Here is a nice little site that includes the jumper chart for overclocking, and the pin settings, and a general guide on how to overclock.

    Linkety: Here

  11. Pierre Films macrumors member

    Pierre Films

    Joined:
    Nov 6, 2004
    #11
    You're not the only one ;)

    I love the Beige G3's...infact its my main desktop. It too has been upgraded :)

    Beige G3 MiniTower:

    1Ghz G4 Sonnet
    768Mb RAM
    80Gb HD
    ATI Radeon 9200 128mb PCI
    Mac OS X 10.4.6 & Mac OS 9.2

    Looking for a USB2.0/Firewire card for it and perhaps a SuperDrive now that OWC has lowered the prices even more.

    Pierre Films [​IMG]

  12. RacerX macrumors 65832

    Joined:
    Aug 2, 2004
    #12
    Frankly, I wasn't curious enough about the how to look into it any further... my iPod shuffle works with the card, which is good enough for me. :D

  13. im_to_hyper thread starter macrumors 65816

    im_to_hyper

    Joined:
    Aug 25, 2004
    Location:
    Glendale, California, USA
    #13
    HA!

    I believe he meant, what relationship is there between the card and iTunes... what bearing would a piece of hardware have on the overall operation of iTunes.

    Anyway, it is cool to see so many people with great upgrades!

    I will update my post with some pictures, soon.

    Keep 'em coming here!

  14. RacerX macrumors 65832

    Joined:
    Aug 2, 2004
    #14
    Oh... I thought he was wondering how it got around the only compatible with built in USB part of iPods. :rolleyes: Which I'm not sure about.

  15. im_to_hyper thread starter macrumors 65816

    im_to_hyper

    Joined:
    Aug 25, 2004
    Location:
    Glendale, California, USA
    #15

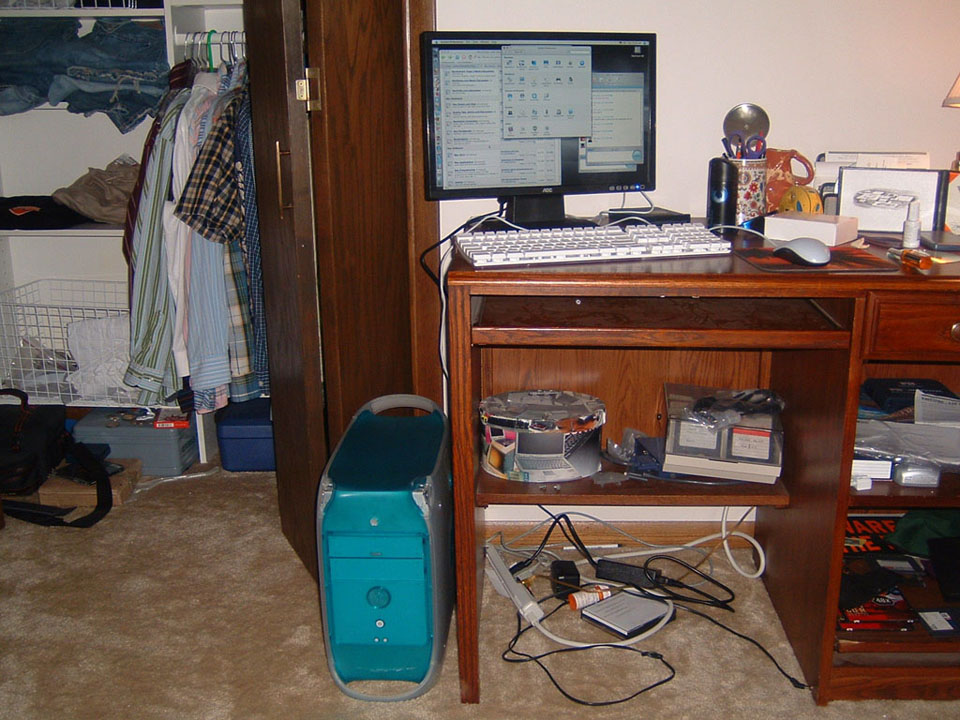

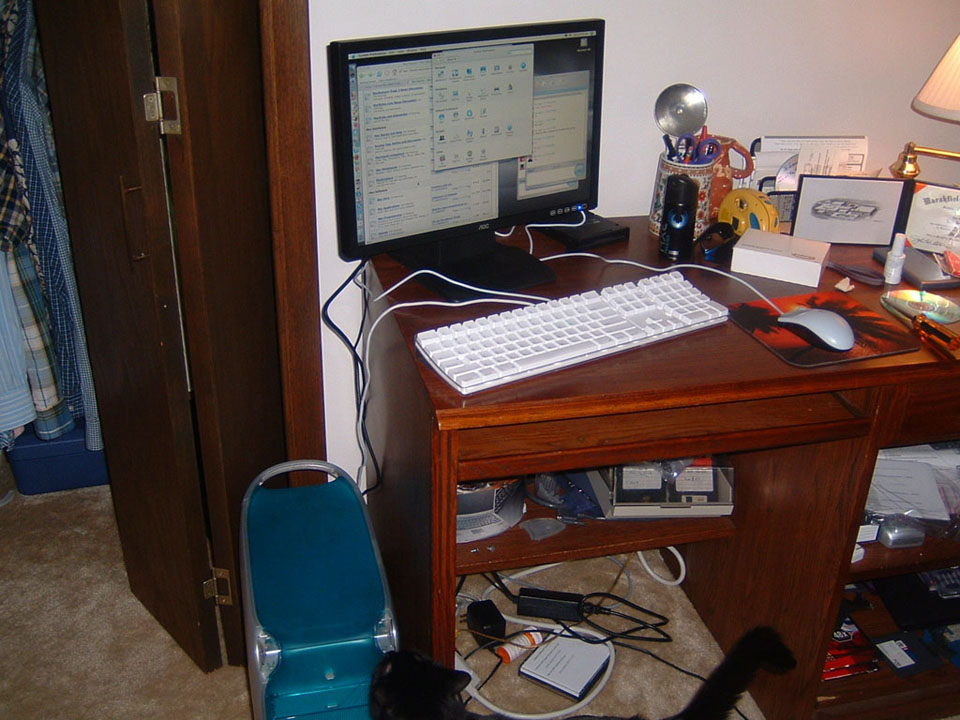

    Here is a setup that was just hooked up today:

    Specs:

    1GHz G4 ZIF upgrade
    768MB RAM
    120GB HD
    Superdrive
    32MB ATI Card w/DVI
    19" AOC Widescreen DVI monitor @ 1440x900 resolution
    New white Apple Keyboard
    Logitech USB two-button mouse

    Had to take of the front holder handle, since it was cracked. I need to find a new one.

    EDIT: Wow! That desk sure looks dirty. Didn't realize it looks like that, in all honesty!


    Attached Files:

  16. Maxwell Smart macrumors 6502a

    Maxwell Smart

    Joined:
    Jan 29, 2006
    #16
    You should move the rear handle to the front of the machine until you get a replacement :D

  17. im_to_hyper thread starter macrumors 65816

    im_to_hyper

    Joined:
    Aug 25, 2004
    Location:
    Glendale, California, USA
    #17
    Ah, good idea, I suppose.

    It has been running for a day now -- its a pretty nice computer. Really like the widescreen, too! A 32MB card can drive that without any problems.

  18. ReanimationLP macrumors 68030

    ReanimationLP

    Joined:
    Jan 8, 2005
    Location:
    On the moon.
    #18
    PM me if you need a handle and some more RAM. I have lots of 256MB modules and plenty of handles for the Blue G3s.

  19. madmax_2069 macrumors 6502a

    madmax_2069

    Joined:
    Aug 17, 2005
    Location:
    Springfield Ohio
    #19
    my Beige G3 AIO spec's are in my sig.

    now to get ahold of a Yikes G4 case, PSU, and front board, cause i want to build my Yikes system up now

  20. RedTomato macrumors 68040

    RedTomato

    Joined:
    Mar 4, 2005
    Location:
    .. London ..
    #20
    I installed 900GB of drive space into my G3 B+W yesterday.

    That's about 7 times more than the next largest poster in this thread.

    I rule.

    In an Uber Upgrade thread.

    Oh the humanity!

    (Ok so it's not a beige G3 but let me enjoy my moment of glory :)

    ..RedTomato..

    Dirty details:

    B+W G3, brought for £50 last Xmas inc 1GB ram 12GB drive
    RocketRaid 2220 card (8 port SATA) cheap off ebay
    3x300GB Maxtor Sata in RAID5

    I plan on adding more 300GB drives after building or taking a drive cage from a spare PC.

    Not sure if the power supply can take it tho, each 300GB drive is 1.5 amps on the 12v line, + 0.5 amps each for fan, mobo, graphics card, original 12GB drive and maybe another 1.5 amps for the G3 processor. That's 8amps in total, and the power unit states a maximum of 8 amps on the 12v line.

  21. livingfortoday macrumors 68030

    Joined:
    Nov 17, 2004
    Location:
    The Msp
    #21
    Well, I can't compare to the mad upgrades in this thread, but since I OC'd my Beige today, I figured I'd post specs.

    Beige G3
    366Mhz (from 300Mhz - gonna try for 400Mhz soon)
    544MB RAM
    40GB HD

    Edit: Okay, 400Mhz won't boot, but it's stable at 385Mhz now.

  22. Anonymous Freak macrumors 601

    Anonymous Freak

    Joined:
    Dec 12, 2002
    Location:
    Cascadia
    #22
    My main beige (tower):
    G4/400, 384MB RAM, 60 GB hard drive + original 4 GB, ATI Radeon 7000 PCI, 2x SuperDrive , combo FW/USB2/ATA133 card, and an 802.11g card.

    Also have a mostly stock 233MHz desktop. It's only additions is a Radeon 7000 and a USB card.

    My B&W has:
    G4/500, 448MB RAM, 80 GB hard drive, ATI Radeon PCI (not 7000, the original is faster,) 8x SuperDrive (pulled from an eMac that had a 16x +DL +RAM drive put in,) Gigabit Ethernet card. And a serial port adapter (takes the modem out and puts in an old-style mini-DIN-8 RS-422 serial port.) Out of irony, I have an old ADB keyboard (original Extended,) and mouse; plus an old beige 17" 1710 monitor, beige AppleDesign speakers, and had my Newton connected through the serial port before it (the Newton) died.

  23. livingfortoday macrumors 68030

    Joined:
    Nov 17, 2004
    Location:
    The Msp
    #23
    To you who have G4's in your beiges, are you using upgrade cards, or do certain types of G4's pulled from other Powermacs work in them?

  24. Anonymous Freak macrumors 601

    Anonymous Freak

    Joined:
    Dec 12, 2002
    Location:
    Cascadia
    #24
    One is a Sonnet upgrade, the other is a pull from a PMac G4. The pull is in the beige, the Sonnet is in the B&W. (The B&W can have firmware problems with G4s, so I made sure to run the Sonnet firmware update before trying it. The beige generally doesn't have any firmware issues.)

  25. livingfortoday macrumors 68030

    Joined:
    Nov 17, 2004
    Location:
    The Msp
    #25
    Ok, cool. I'd read that the Beige couldn't handle pulls from G4 towers, since the bus on those processors was 100Mhz versus the 66Mhz in the Beige. Could you point me to a site, or do you know off the top of your head which G4's could be pulled and put in place of the G3 in the beige? I can't seem to find definitive answers anywhere, and the one G4 processor I have definitely won't fit.

    Thanks.
