What adapter am I looking for?

Discussion in 'Mac Accessories' started by mikemodena, Nov 25, 2005.

  1. mikemodena macrumors 6502a

    mikemodena

    Joined:
    May 30, 2005
    Location:
    Connecticut
    #1

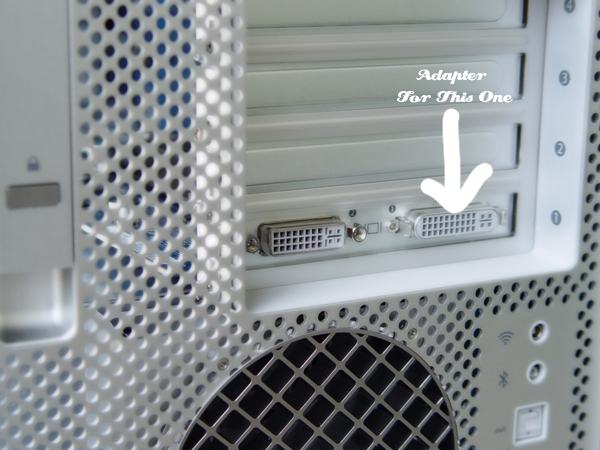

    Hey guys.. I'm looking to get another 17" LCD and I already have the smaller DVI port taken up with the DVI to VGA adapter, but what adapter do I need to convert the other port with the lip looking thing to VGA? I've seen it done.. but not sure what I'm looking for.. I've attached a picture

    Edit: Sorry if this is another topic, I would have searched but I'm not sure what it's called to even search for it :confused:


    Attached Files:

  2. RGunner macrumors 6502a

    RGunner

    Joined:
    Jul 3, 2002
    Location:
    Midnight Sun
    #2
    Pretty easy to find.

    That connector is called the ADC connector (it holds Power, USB and Digital data for the Apple "clear" displays). The correct dongle will be called an ADC-VGA (if running an older VGA display), or an ADC-DVI for the newer Digital displays (what Apple currently sells).

    Either adapter can be found at your local CompUsa or at Apple Online.

  3. RGunner macrumors 6502a

    RGunner

    Joined:
    Jul 3, 2002
    Location:
    Midnight Sun
    #3
    Nothing in this message.

    (delete me please Mods, message registered twice...)

  4. Chundles macrumors G4

    Chundles

    Joined:
    Jul 4, 2005
    #4
    I'm pretty sure that's an ADC connection (Apple proprietary connection that carries DVI video, power and USB signals to the older cinema displays), you'll need a DVI LCD monitor to plug it into and an ADC to DVI adapter.

    You may be able to get them from the Apple store online but I'm not too sure, they are pretty expensive if I recall.


    Anybody else with more knowledge want to pipe up? I'm not 100% sure on this.

    EDIT: Yeah, that guy up there is right. Do what he says.

  5. Laser47 macrumors 6502a

    Laser47

    Joined:
    Jan 8, 2004
    Location:
    Maryland
  6. mikemodena thread starter macrumors 6502a

    mikemodena

    Joined:
    May 30, 2005
    Location:
    Connecticut
  7. CTYankee macrumors 6502

    Joined:
    Jul 18, 2002
    #7
    BTW...can you connect a DVI - VGA adapter to one of these and use a VGA CRT?

    ADC-DVI-VGA??

  8. quidire macrumors 6502

    quidire

    Joined:
    Aug 11, 2004
    Location:
    Washington DC (in Kalorama Triangle)
    #8
    I'm curious about this as well; someone else mentioned a ADC-VGA adapter. Is there such a device?

  9. jeremy.king macrumors 603

    jeremy.king

    Joined:
    Jul 23, 2002
    Location:
    Fuquay Varina, NC
    #9
    My friend Google thinks so.
