What are these slots in my PowerMac G5?

Discussion in 'PowerPC Macs' started by simplymuzik3, Apr 2, 2009.

  1. macrumors 6502a

    Joined:
    Jan 29, 2009
    #1

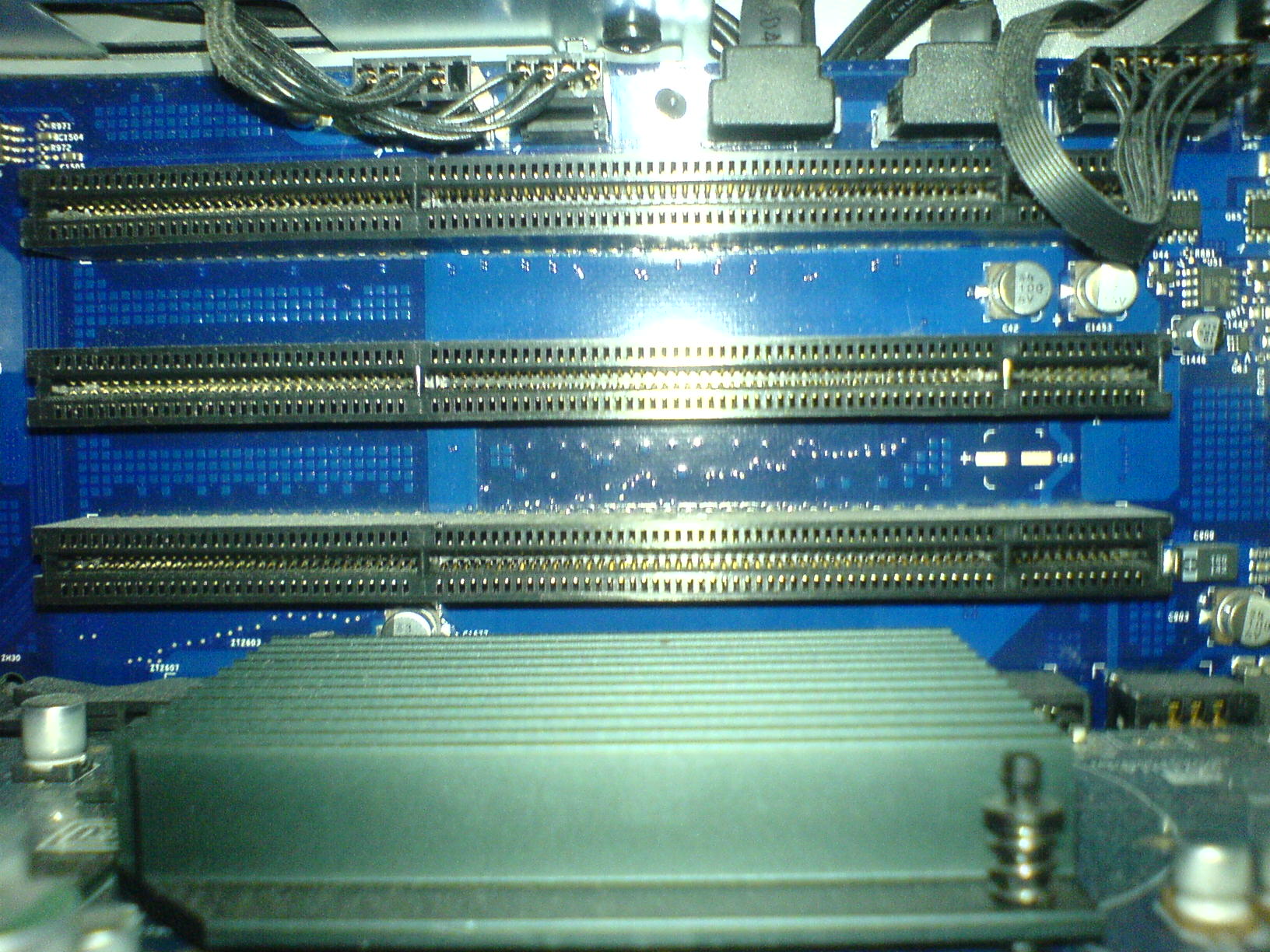

    okay, please help me! I dont know what kind of slots these are. I dont think they're pci, becasue i tried putting in a PCI USB 2.0 card, and it wouldnt fit. The same USB card fits in my powermac g4. I dont know much about pci-x so im not sure if its that. btw, my powermac g5 is the june 2004 1.8ghz, 4 RAM slots. Can someone please help me figure out which kinds of slots these are! thanks :D

    EDIT: If the slots are PCI-X is it backwards compatible with any other type of pci cards?


    Attached Files:

  2. macrumors regular

    Joined:
    Oct 4, 2007
    #2
    These are (parallel) PCI-X slots, and they are not compatible with the new PCI Express slots (serial, aka PCIe) that Apple has been using since the PowerMac G5 Quad. Old parallel PCI cards however should work with these slots.

    Hope this helps.

  3. macrumors 68000

    Joined:
    Sep 27, 2004
    Location:
    Knoxville, TN (USA)
    #3
    Wirelessly posted (iPhone: Mozilla/5.0 (iPhone; U; CPU iPhone OS 2_2_1 like Mac OS X; en-us) AppleWebKit/525.18.1 (KHTML, like Gecko) Version/3.1.1 Mobile/5H11 Safari/525.20)

    The June 2004 1.8 is suppose to have standard PCI slots. The 2.0 and 2.5 had PCI-X slots. If you do have X slots, it should work. They are suppose to be "fully backwards compatible."

  4. thread starter macrumors 6502a

    Joined:
    Jan 29, 2009
    #4
    Im 100% sure that i have june 2004, and I also thought they were supposed to have PCI slots. But you are saying that I can only use pci-x and parallel PCI cards? right? so no standard pci cards will work?(unless they are parallel PCI?) Sorry for all the questions, I just didnt know where else to get good information like this site :D

  5. macrumors demi-god

    xraydoc

    Joined:
    Oct 9, 2005
    Location:
    192.168.1.1
    #5
    While there are some compatibility issues with much older PCI cards, virtually any PCI card that works in a G4 works in the PCI-X slots of a G5.

    PCI-X slots are backwards compatible with regular PCI cards.

    If your card didn't fit, you weren't putting it in correctly.

    I've got a FireWire 800 PCI card and USB 2.0 PCI card that I've moved between a Gigabit Ethernet G4 and a 2.5GHz PCI-X G5 without any problems.

  6. macrumors 68040

    Designer Dale

    Joined:
    Mar 25, 2009
    Location:
    Folding space
    #6
  7. thread starter macrumors 6502a

    Joined:
    Jan 29, 2009
    #7
    I tried puttin in an old USB 2.0 card, but its too short to reach the slot, so it keeps hitting the logic board. If I buy a new one, I think I should be fine. Thanks for all the help!
