What could have caused this damage?

Discussion in 'MacBook Pro' started by gwelmarten, Feb 1, 2013.

  1. macrumors 6502

    Joined:
    Jan 17, 2011
    Location:
    England!
    #1
    Hi There

    I use a retina MacBook Pro at University on a daily basis. For the last 3 months, I've been suffering from the relatively well documented issue where the screen connected via HDMI may flicker off an on.

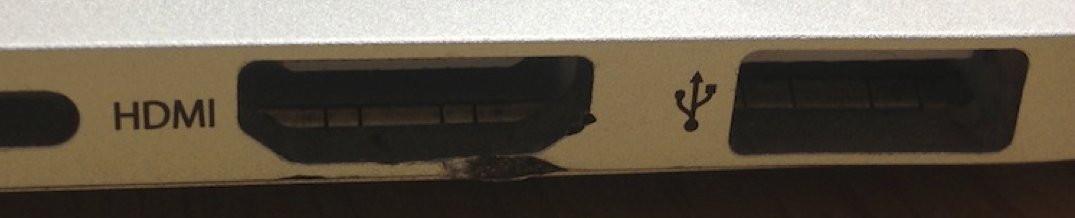

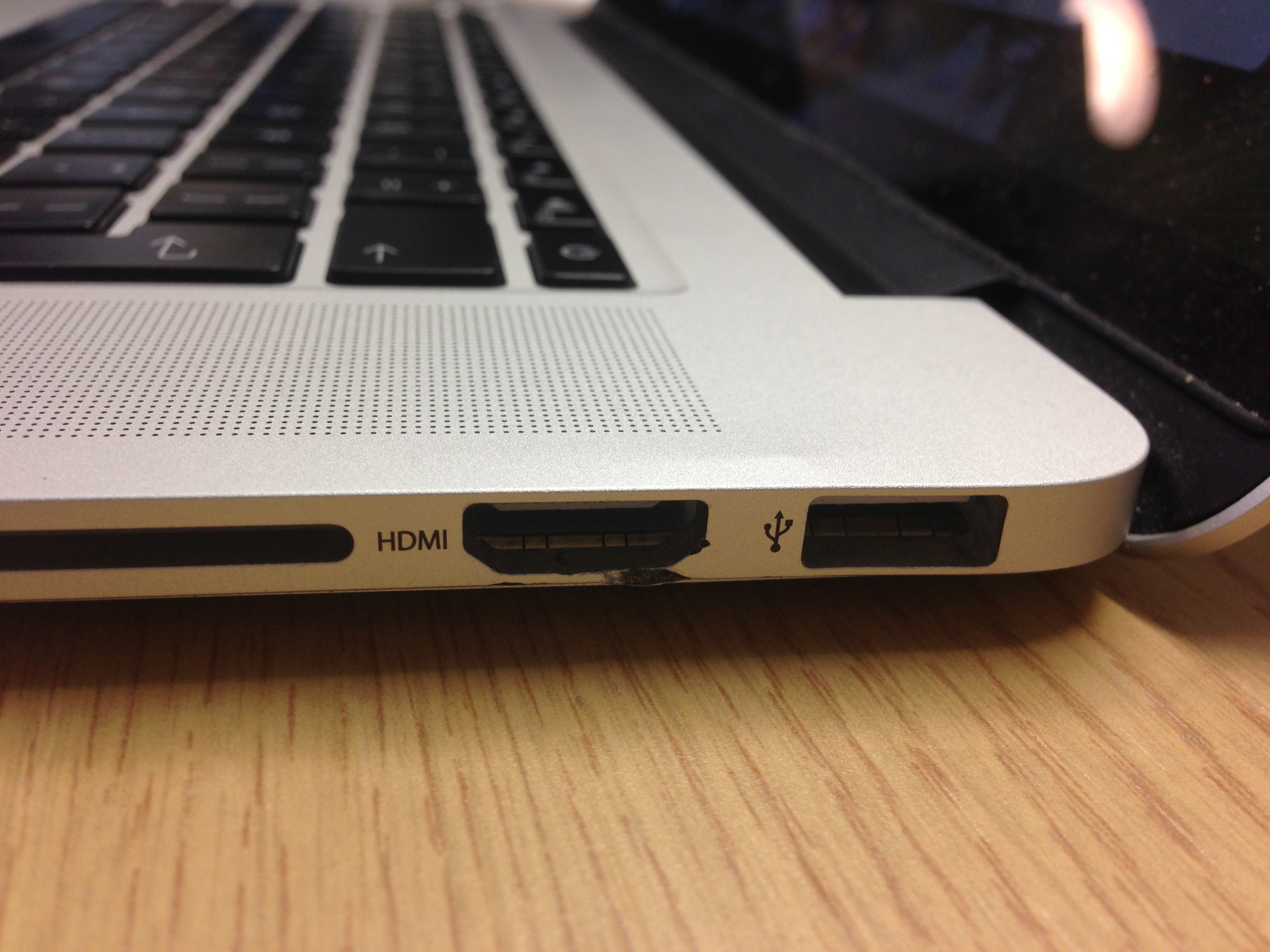

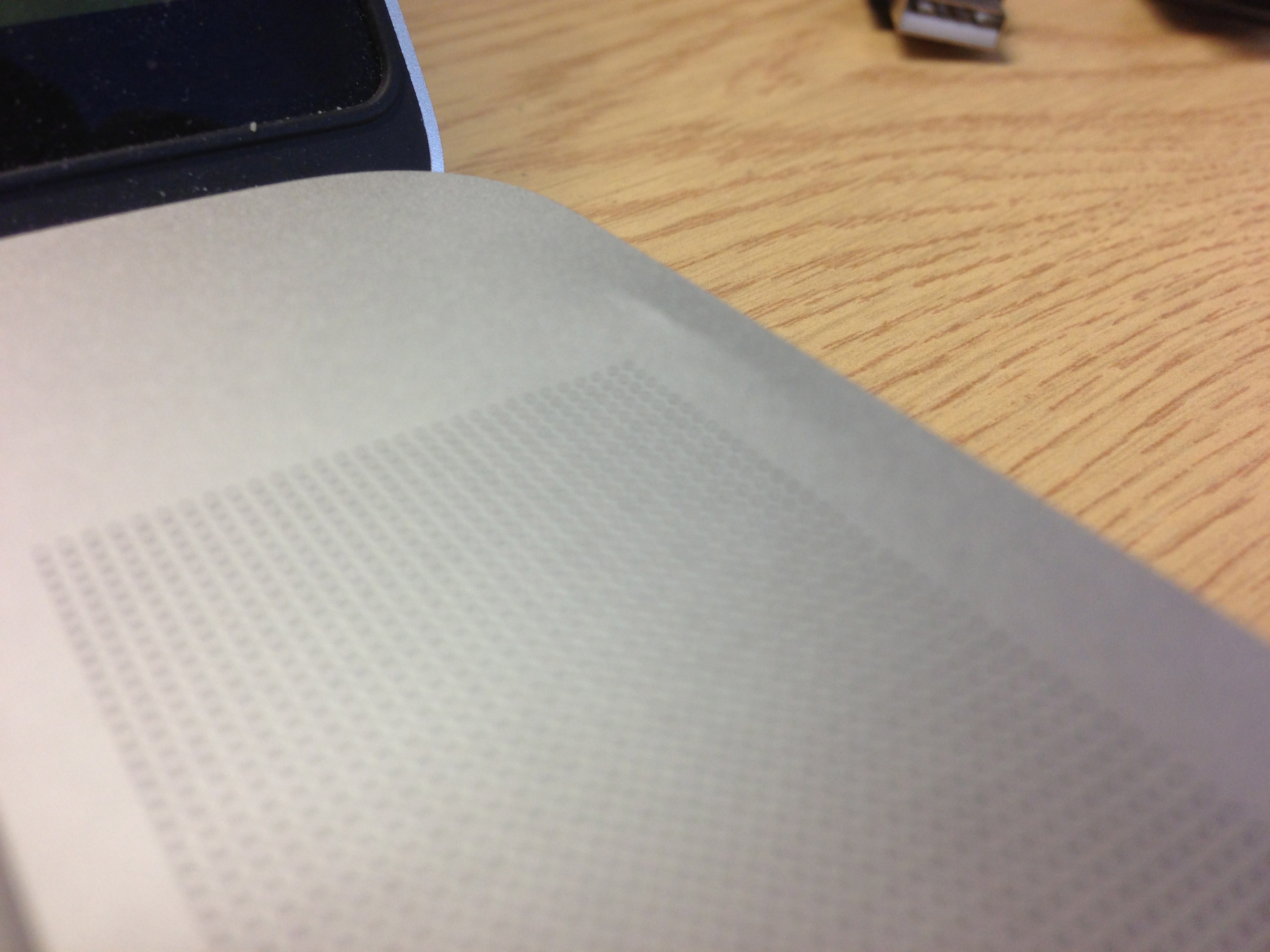

    What I've noticied this morning is that since Wednesday, this damage has occurred around the HDMI port. Notice, the ruckeling on top and the black chips around the port. Since it's stayed on a clear desk for almost all of that time, with one trip out in laptop backpack where it didn't come out, I just can't think the damage was done physically as there was no opportunity when that side of the laptop would come into contact with anything hard. Last night I was rendering a very large video which got my computer very hot for about 20 minutes in iMovie. Is it possible that the heat generated from the CPU could have caused this ruckeling or that anything else caused the damage?

    Thanks


    Attached Files:

  2. macrumors 603

    justperry

    #2
    Someone physically moved the HDMI connector downwards, or you did which I doubt or someone else (On purpose) while you were not there, you can clearly see the bulge on top, the connecter has been forcely moved down when it was inside the socket, that's why it's also damaged under the socket.

  3. macrumors 6502

    cookiesnfooty

    Joined:
    Jul 1, 2009
    Location:
    Harrogate
    #3
    That's what I was thinking :(

  4. thread starter macrumors 6502

    Joined:
    Jan 17, 2011
    Location:
    England!
    #4
    Hi - Good idea, but the only starts at the edge of the HDMI socket and maxes out about 2cm from the HDMI socket. Also, the cable has a round thick bit behind the plug, so when I just tried that the cable doesn't actually go down more than a fraction of a mm, because the screen is on a desk so it's only plugged in via HDMI on the desk. So the cable can't actually go enough to cause damage.

    ----------

    Also, how could this have caused the black damage beneath? Isn't it solid aluminium? Why would there be black on the surface?

  5. macrumors 68020

    Joined:
    Jun 29, 2009
    Location:
    California
    #5
    Honestly looks like the cable plug sparked.

  6. thread starter macrumors 6502

    Joined:
    Jan 17, 2011
    Location:
    England!
    #6
    What do you mean? That the HDMI plug sparked and caused it to ruckle? Is that possible?

  7. macrumors 603

    justperry

    #7
    Or maybe someone flipped it of the desk while you were away.

    Btw, your screen shots are too big for me to have a better look, I am on a limited internet connection(capped) so better make them smaller next time, 200 kb is more than enough.

  8. thread starter macrumors 6502

    Joined:
    Jan 17, 2011
    Location:
    England!
    #8
    I do appreciate it could have been malicious (or even me, without knowing), but as it's kept in a locked room when I'm not there, it happeneded within the last 2 days so I know I didn't leave it out somewhere and that I don't use it off the desk with the cable plugged in, I'm really thinking about if any hardware could have gone wrong. But it seems not from posts so far!

  9. thread starter macrumors 6502

    Joined:
    Jan 17, 2011
    Location:
    England!
    #9
    Sorry - here are some smaller ones.


    Attached Files:

  10. macrumors 603

    justperry

    #10
    Aluminium won't bend like this without force.

  11. macrumors regular

    Joined:
    Oct 5, 2011
    #11
    at first I thought the black marks were from scorching, like the port/cable was sparking and causing heat.

    But the physical mark at the top looks to be exactly that, a physical mark. IE, as suggested, it has been dropped/bent.

    Looks bad :(

  12. thread starter macrumors 6502

    Joined:
    Jan 17, 2011
    Location:
    England!
    #12
    Is it possible to get an example of this so I can look at this possibility more? Or more info?

  13. macrumors 601

    Joined:
    Mar 14, 2008
    #13
    Agreed, and to do that to the HDMI port it took quite a bit of it. Someone has tried to very forcibly rip the HDMI cord out by yanking it down instead of out.

  14. macrumors 603

    justperry

    #14
    Thanks, and I magnified them, I really do think it dropped or something similar, but I do find the bulge on top a bit odd.

    Click to enlarge.

    Edit: You can also see the bottom lid is crooked.


    Attached Files:

  15. macrumors 6502a

    Joined:
    Sep 10, 2012
    #15
    RE: take off the back cover...

    Hi gwelmartin,

    I think you need to take the back plate off and take a look inside at the HDMI plug. This should tell you if the plug itself is scorched and if the blackening is extensive and related to a short in the plug or if it is related to physical damage. It is hard to image heat alone doing the physical damage to the top surface of the laptop, as aluminum is such a good heat conductor. In other words, heating the aluminum should not have caused it to bend like this. More likely either some internal component has "expanded" from heat and thus bent the upper surface or the HDMI plug was forcefully moved bending the upper surface.

    Good luck,
    Switon

  16. macrumors 603

    justperry

    #16
    Hi Switon.

    If a short was the problem there is much more heat needed to give such a bulge on the top and if this was the case I think the Laptop would be damaged beyond repair.

    I think it fell of the desk and then it got a short inside the connector, there is just no way a normal short(as in time) short circuit would give this result.

  17. macrumors 6502a

    Joined:
    Sep 10, 2012
    #17
    RE: short shorts...

    Hi justperry,

    I agree that normal heat, such as rendering an iMovie for 20 minutes as the OP suggests, would never bend the upper surface of the laptop, especially since aluminum is such a good heat conductor and would disperse the heat faster than it could build up enough to cause the bend. So I agree that there most likely was some physical event that caused the upper surface to bend. My only question is whether the physical force came from physically moving the HDMI plug or if it came from some internal component "expanding" and bending the upper surface. The component's expansion most like would be caused by a short circuit. Short circuits do not necessarily have to be "short", in time that is...they can last for a longer interval. From personal experience, just a month ago, a short circuit in the dashboard of a vehicle caused a fire that burnt the entire dashboard and interior of the car and completely drained the car battery.

    I would like to also have a photo of the HDMI cable's male plug end, just like the photo of the laptop's HDMI female plug. Is the "black" from the HDMI cable's plug, or is it from scorching? Does the cable's plug show the same type of damage as the laptop? I was especially curious about the small black smudge at the left-hand side below the HDMI plug that appears to be disconnected from the HDMI plug's hole and also appears to be associated with the joint between the laptop's upper case and its back panel. Is this damage from the "inside" leaking out, or damage on the "outside". Therefore I suggest that the laptop be opened in order to determine the extent of internal damage.

    Regards,
    Switon

  18. macrumors 68030

    Joined:
    Oct 21, 2012
    #18
    It's been dropped - you can see that the metal to the right of the HDMI socket is *chipped* not bent. And if you look closely, the bottom of the USB port is bent too.

    As for the top bend, that's normal for this construction - the thicker edge will physically bend, which will "crease" the top bit.

  19. macrumors 603

    Joined:
    Aug 3, 2006
    Location:
    Oregon
    #19
    HDMI doesn't carry enough current to spark and leave a mark like that.

    The damage looks like it is from a drop.

  20. macrumors 601

    Joined:
    Aug 27, 2012
    #20
    That scuff... looks is it was dropped right on the HDMI port.

  21. macrumors 6502a

    duervo

    Joined:
    Feb 5, 2011
    #21
    I'd have to agree that it was dropped. It's what looks like a chipped section on right edge of the HDMI port that leads me to believe this.

    I believe it was dropped while an HDMI cable was plugged into it (trip over the HDMI cable, maybe?)

    System falls on floor, and the resulting damage causes a short circuit in the I/O board, in turn causing the magic smoke marks on the bottom part of the HDMI port.

  22. macrumors 6502

    Joined:
    Sep 3, 2009
    Location:
    CT
    #22
    seems like something either a fat cat or a kid fooling around might do :( sorry for your ruckle!

  23. macrumors 68040

    Joined:
    Jul 11, 2009
    #23
    That's impact damage, without question.


Share This Page
