What is this thing?

Discussion in 'Macintosh Computers' started by Chrispy, Nov 24, 2005.

  1. Chrispy macrumors 68020

    Chrispy

    Joined:
    Dec 27, 2004
    Location:
    Avon, IN
    #1

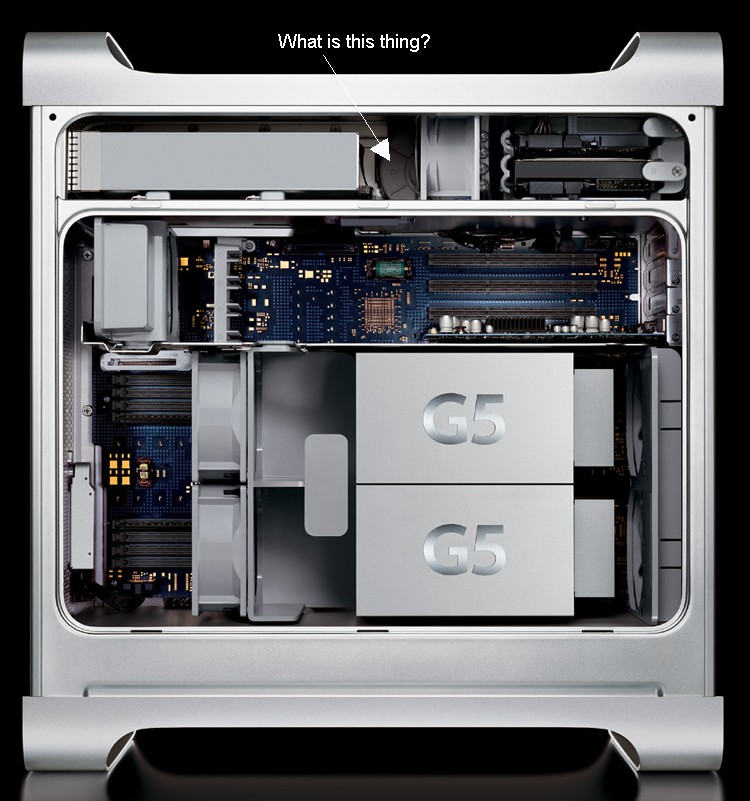

    Hey all. This is a strange question but something that has been driving me nuts. I have a PM Dual 1.8 and I am pretty sure I have a general idea of what all the internal parts are... except for one. What is that roundish thing behind the hard drive cooling fan? I have attached a pic so you can see what I'm talking about. Does anyone know what that thing does or what it is? Thanks


    Attached Files:

  2. GoCubsGo macrumors Nehalem

    GoCubsGo

    Joined:
    Feb 19, 2005
  3. Blue Velvet Moderator emeritus

    Joined:
    Jul 4, 2004
  4. Laser47 macrumors 6502a

    Laser47

    Joined:
    Jan 8, 2004
    Location:
    Maryland
  5. Eidorian macrumors Penryn

    Eidorian

    Joined:
    Mar 23, 2005
    Location:
    Indianapolis
    #5
    So we have a blower perpendicular to the the hard drive fans?

  6. Dreadnought macrumors 68020

    Dreadnought

    Joined:
    Jul 22, 2002
    Location:
    Almere, The Netherlands
    #6
    Yeah, what is that thing, was wondering also, have the same machine.

  7. Chrispy thread starter macrumors 68020

    Chrispy

    Joined:
    Dec 27, 2004
    Location:
    Avon, IN
    #7
    So does it have moving parts in it? I think mine makes a strange squeak every now and then haha. I have tried stopping all the fans one by one when it does it to pinpoint which fan is making the sound but it seems to be coming from that thing haha. The noise happens on a very very rare basis so it does not really bother me but I was curious. I have Applecare so if I wanted to be a stooge I could have Apple replace it ;)

  8. Danksi macrumors 68000

    Danksi

    Joined:
    Oct 3, 2005
    Location:
    Nelson, BC. Canada
    #8
    .. turbo charger from a Mini-Cooper S :rolleyes:

    Speaker?

    Damn - As desktops go, the PowerMac looks great.

  9. devilot Moderator emeritus

    devilot

    Joined:
    May 1, 2005
    #9
    Maybe except it would be a supercharger. ;)

  10. Danksi macrumors 68000

    Danksi

    Joined:
    Oct 3, 2005
    Location:
    Nelson, BC. Canada
    #10
    Yes, you are correct. :eek:

  11. Josh396 macrumors 65816

    Josh396

    Joined:
    Oct 16, 2004
    Location:
    Peoria/Chicago, IL
    #11
    That's what I was thinking.

  12. Makosuke macrumors 603

    Joined:
    Aug 15, 2001
    Location:
    The Cool Part of CA, USA
    #12
    Hmm... never noticed that before, but in any case, it's not the speaker--that's to the right of the PCI-zone fan.

    After breaking out a flashlight I'm guessing that it's a blower either forcing air down behind the motherboard to keep it cool, or sucking air up from behind it and venting out the back past the drives. It's shaped like a blower, and there's power going to it, and it has what appears to be an inlet or outlet on the back end (behind the hard drives near the top). Plus, there should be 9 fans in my DP, and I can only find 8 (2 on each end of the processors, 2 in the PSU, 1 PCI zone, 1 drive zone) if I don't count it, so unless there's one I'm missing (somewhere in the PSU?) that's what it's got to be.

    I can't get past my drives to check if there's any airflow and if so which way it's going, but the fact that there's no dust on the "vent" I can see indicates that it's probably sucking up from below and blowing out the back, if that's what it does at all. That'd make more sense in terms of airflow anyway, as it'd match the direction of the drive zone fan. Either that, or it never runs.

  13. Chrispy thread starter macrumors 68020

    Chrispy

    Joined:
    Dec 27, 2004
    Location:
    Avon, IN
    #13
    Well said Makosuke! You gave a very logical explanation for what it very well may be. That would make sense too as I don't hear the squeak all that often. I would guess that fan only comes on to move air out from behind the logicboard every now and then... don't see that on many PCs haha. Apple really thought of everything on these G5s I guess :)

  14. Makosuke macrumors 603

    Joined:
    Aug 15, 2001
    Location:
    The Cool Part of CA, USA
    #14
    One more piece of evidence arguing that it's a logic-board-rear cooling blower: I just checked and among the many temperature sensors on my G5 is one specifically for "Main Logic Board Backside". No need to monitor the temp if it isn't cooled...

  15. Will Cheyney macrumors 6502a

    Will Cheyney

    Joined:
    Jul 13, 2005
    Location:
    United Kingdom
  16. kretzy macrumors 604

    kretzy

    Joined:
    Sep 11, 2004
    Location:
    Canberra, Australia
    #16
    Or perhaps some kind of hypnotic control emitter which converts people into Mac fanboys? :D

  17. Laser47 macrumors 6502a

    Laser47

    Joined:
    Jan 8, 2004
    Location:
    Maryland
    #17
    Apple likes putting temperature sensors for everything, for instance on my ibbok there is a temperature sensor for the battery, memory, gpu, and the processor.
    Also, i think it was Hardware Monitor where when you look at the list of fans it lists one as a blower.
