Where is the AirPort located in the latest version of iBook G4?

Discussion in 'PowerPC Macs' started by not28, Apr 3, 2006.

  1. macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #1
    My Airport somehow came dislodged after I got the logic board replaced, causing kernel panics a la mode. I took it back to the store where they reconnected it, and just now it crashed twice. So I pinched the sides and corners of the iBook (as if I were pushing it back together) and it's working perfectly!

    So this question is directed toward somebody who is familiar with the internal architecture of the latest revision iBook G4. Where is the internal AirPort Extreme located? That way I'll know exactly where to pinch it if it gives me more problems. I'm also looking into getting a better laptop case because I feel that the problem is partly due to the way I'm carrying it around. Thanks for your help.

  2. macrumors 68040

    California

    Joined:
    Aug 21, 2004
    #2
    :confused:

    Well, try looking up the internal structure of the iBook on pbfixit.com.

  3. macrumors 65816

    Sweetfeld28

    Joined:
    Feb 10, 2003
    Location:
    Buckeye Country, O-H
    #3
    Start by looking here, i think this may help you:

    http://www.ifixit.com/Guide/84.2.0.html

    hope that helps. Ryan


    Edit: hey Cali they changed the domain name to ifixit.com since the new books are no longer called PB's.

  4. macrumors 603

    iSaint

    Joined:
    May 26, 2004
    Location:
    South Mississippi y'all, near the water!
    #4
    The Airport Extreme card is under the keyboard. Check out your iBook Getting Started manual for details on how to access it. You can also download a copy here.

    If you've just received it from repair, I would suggest taking it back again until it works flawlessly!

  5. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #5
    Thanks for the links, but they don't have the same iBook model I do. Mine has an airport extreme card that is completely internal, not located underneath the keyboard. Any other sites where I could find out?

  6. macrumors 603

    iSaint

    Joined:
    May 26, 2004
    Location:
    South Mississippi y'all, near the water!
    #6
    There's nothing on the Apple web site that says any iBook G4 AE card is any different from another. The link for upgrading your iBook with an Airport Extreme card is here.

    The link for upgrades and DIY repairs on Apple's site is here.

    Someone correct me if I'm wrong...

  7. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #7
    That's what the Apple store employee thought, too. Then he flipped up the keyboard, went into the back room, came back out, and told me with an empty stare that I don't have the kind of iBook with a removable Airport so I'll have to leave it with them. It just crashed two more times, so I'm going to email Apple and take it back to the store.

  8. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #8

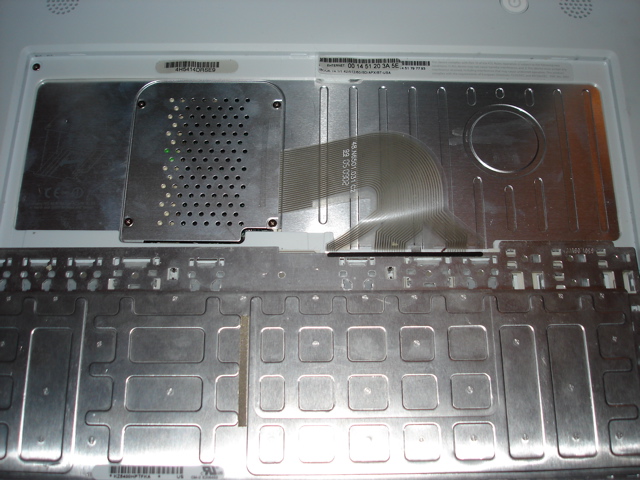

    Here's a photo I just took to show that I'm not completely out of my mind. See, nooooo airport to be found. It's hidden!


    Attached Files:

  9. macrumors 65816

    Sweetfeld28

    Joined:
    Feb 10, 2003
    Location:
    Buckeye Country, O-H
    #9
    well, whats under that grill with the screwsin it? RAM? i would take that off to see what is under that, maybe you will be able to see it?

  10. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #10
    Already did that, too. That's where the RAM is located. Not much room for anything else. Think I'll just contact Apple.

  11. macrumors 65816

    Sweetfeld28

    Joined:
    Feb 10, 2003
    Location:
    Buckeye Country, O-H
  12. macrumors 6502a

    Laser47

    Joined:
    Jan 8, 2004
    Location:
    Maryland
    #12
    The airport is internal and is combined with the bluetooth module.
    If the card really is dislodged your bluetooth should stop working aswell
    It looks like this
    [​IMG]
    And plugs into the first black connector from the left on the top of this picture, right above the GPU (The chip on the left)
    [​IMG]

  13. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
  14. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #14
    thank you thank you thank you thank you!!!
    I'll try my bluetooth connection and see if it panics.

  15. macrumors 6502a

    Laser47

    Joined:
    Jan 8, 2004
    Location:
    Maryland
    #15
    Also judging by the picture it looks like the card is located right beneath the bottom left of the keyboard.

  16. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #16
    Alright, Bluetooth works fine. Synced up my phone and everything. This problem is driving me nuts. Do you think it's possible that just the Airport component is on the fritz? Part of me wants to take this freakin' thing apart and see what's going on.

  17. macrumors 6502a

    Laser47

    Joined:
    Jan 8, 2004
    Location:
    Maryland
    #17
    That might just be the problem, take it in and see if you can get a replacement.
    Also have you tried the apple hardware test, IIRC it tests the airport card aswell. To get to it insert the restore DVD (either 1 or 2, I forgot) and hold the option key on startup and select the Hardware test at the boot select screen.

  18. macrumors 68040

    California

    Joined:
    Aug 21, 2004
    #18
    What makes you think its an Airport problem in the first place. Sounds like this thing was dropped. I had an ibook G4 1.42ghz and it worked GREAT. Repair permissions, etc., and let us know what's going on. Personally, I'd back up and zero out the drive or firewire start from an external drive to try to ascertain the problem. If it is a logic board, you'll find out soon enough.

  19. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #19
    Hmm thanks, I'll try the hardware test. I can't go without a laptop again, so I'll wait until Easter break to take it in. I'll try to explain my findings as best as I can. Thanks a lot for your help. Much appreciated!

  20. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #20
    Simple enough. Because it was never dropped. Because it crashes when I enable Airport. Because it doesn't when it's disabled. Because I've already re-installed OS X, repaired Hard Disk, repaired permissions, etc. I've researched this problem pretty extensively. And the logic board was replaced about a week before this airport jazz started happening, so my initial thought was that whoever replaced it didn't connect something right. Why is this even an issue?

  21. thread starter macrumors member

    Joined:
    Oct 4, 2005
    Location:
    Pittsburgh
    #21
    Well, I performed an extensive hardware test and everything passed with flying colors. This is driving me crazy. I'll contact Apple. Maybe the card just needs to be replaced. Thanks for the help, everyone.
