Where is the video card power supply connector on the motherboard?

Discussion in 'PowerPC Macs' started by phyrexia, Aug 26, 2011.

  1. macrumors 6502a

    Joined:
    Sep 3, 2010
    #1
    I cannot seem to locate it. My PowerMac had a 6600LE so it didn't come with the cable. Now I've purchased a 7800GT and I'm trying to make a cable but I don't know where it plugs into the board. I already have a cable with the PCIE connector on the video card.

    Thanks!

  2. raysfan81, Aug 26, 2011
    Last edited: Aug 26, 2011

    macrumors 6502a

    raysfan81

    Joined:
    Oct 6, 2009
    Location:
    North Carolina
    #2
    I was wrong sorry.

  3. macrumors 6502

    reddrag0n

    Joined:
    Oct 1, 2007
    Location:
    Canada
    #3

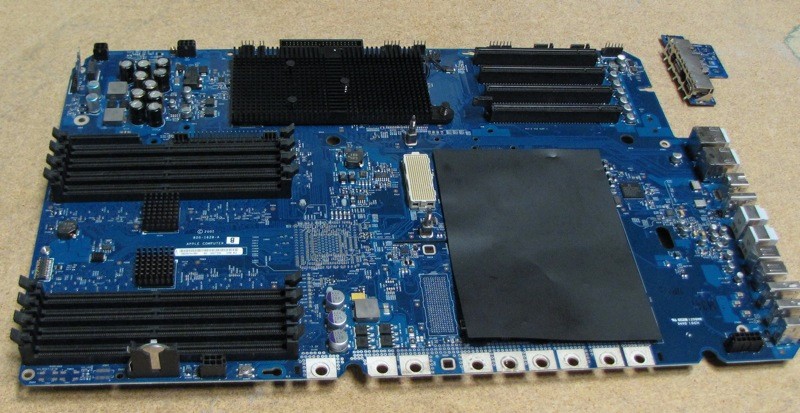

    if memory serves me,you will need the PCI-E power cable and according to this picture, you plug it in near the upper left on the logicboard.
    [​IMG]

  4. thread starter macrumors 6502a

    Joined:
    Sep 3, 2010
    #4
    thanks reddrag0n.

    raysfan, given my previous experience i would agree with you but the G5 doesn't have a big bundle of cables coming out of the PSU like a PC does.

  5. macrumors 6502

    reddrag0n

    Joined:
    Oct 1, 2007
    Location:
    Canada
    #5
    this is right from apple
    from their late 2005 service manual

    [​IMG]
    [​IMG]
    [​IMG]
