Xcode cannot find header file?

Discussion in 'Mac Programming' started by tennis.music, Feb 27, 2008.

  1. macrumors newbie

    Joined:
    Nov 10, 2006
    #1
    I use Xcode2 on Mac OS X 10.4, and program c++ with GSL library.
    The GSL header files are in /opt/local/include/gsl/gsl_xxx.h
    I also edit the settings of "Header Search Path" to be /opt/local/include
    and type
    # include <gsl/gsl_xxx.h>
    in my program.
    But Xcode2 still cannot locate the file.

    I am very sure the file is there and I didn't type it wrong. Sometimes Xcode2 can find it and build my program successfully, sometimes not. Looks completely random.

    I am so tired of Xcode2. Can someone save me?

  2. macrumors 6502a

    yeroen

    Joined:
    Mar 8, 2007
    Location:
    Cambridge, MA
    #2
    Try putting a trailing "/" at the end of /opt/local/include in the header search path. It sounds stupid, I know, but I've had this issue with gcc compiler flags in my makefiles before.

  3. thread starter macrumors newbie

    Joined:
    Nov 10, 2006
    #3
    I have tried, still not working.
    I even try #include "gsl/gsl_rng.h" rather than #include <gsl/gsl_rng.h> .
    I can't get it work.
    The most interesting things is, it was working before. When I look at those working project's settings, the "user header searching path" is empty.

  4. macrumors newbie

    Joined:
    Jan 20, 2009
    Location:
    Pretoria, South Africa
    #4
    Xcode cannot find header file?

    I have the same problem, just different files to access.

    My project is in:
    /Users/<username>/Development/testlibxmlxx

    The header file (libxml++.h) I want to include is in:
    /opt/local/include/libxml++-1.0/libxml++

    My Header Search Paths in XCode is set to:
    /opt/local/include/libxml++-1.0/**

    In my CPP file I have:
    #include <libxml++/libxml++.h>

    When I compile I get the error:
    "error: libxml++/libxml++.h: No such file or directory"

    If the include line is as follows I get:
    #include <libxml++/libxml++.h>
    "error: libxml++.h: No such file or directory"

    I am new to programming on the Mac with XCode, so sometimes I do not understand how things fit together.

    Anyone with ideas?

  5. macrumors 6502a

    Joined:
    Dec 4, 2006
    Location:
    Katy, Texas
    #5
    I fight with this myself. I tried including the "ruby.h" header yesterday and could not get it to work.

    I have two books on Xcode, and I don't think either do it justice for describing how to use and leverage it. Both books take on a "follow-the-bouncing-ball sample project" approach, and don't, IMHO, spend enough time on the underlying architecture of the IDE so that you can figure things out for yourself. I'll be watching this resurrected thread.

  6. macrumors 68030

    Catfish_Man

    Joined:
    Sep 13, 2001
    Location:
    Portland, OR
    #6
    Xcode has an underlying architecture? Could fooled me :mad:

  7. macrumors newbie

    Joined:
    Jan 20, 2009
    Location:
    Pretoria, South Africa
    #7
    I have 3 books here:
    Step into Xcode
    Mac OS X Internals
    Cross-Platform Development in C++

    The problems I have are not mentioned in any of these books. :confused:

    It is quite frustrating to work like this. I come from a Windows environment, where these type of things simply do not happen. Maybe I just knew Windows inside out! Coming over to Mac has been a very frustrating process, and leading the pack of frustration is Xcode. :mad:

    Of course, with all this ranting and raving, I still do not have a solution, like so many others it seems! :(

  8. macrumors G5

    gnasher729

    Joined:
    Nov 25, 2005
    #8
    XCode 3 has been out for ages.

    <these quotes> are for system header files.
    "these quotes" are for user header files.

    There is probably an option to use the header search path for all include files.

    The usual method to get this working is to start with something that works and modify it until you get what you want. Remember that 99% of the time it is some stupid mistake or something you don't understand that keeps it from working.

  9. macrumors newbie

    Joined:
    Jan 20, 2009
    Location:
    Pretoria, South Africa
    #9
    I use Xcode 3 and whether I use <> for include files or "", the result is the same. :eek:

    I am also using a test project with one .cpp file as follows:

    #include <CoreFoundation/CoreFoundation.h>

    #include <libxml++.h>
    //Here I also used:
    //#include <libxml++/libxml++.h>
    //#include "libxml++.h"
    //#include "libxml++/libxml++.h"

    int main (int argc, const char * argv[]) {
    // insert code here...
    CFShow(CFSTR("Hello, World!\n"));
    return 0;
    }

    This is the only code I have.

    You can see in my post from above that I have set the Header Search Paths in Xcode. :cool:

  10. Moderator emeritus

    kainjow

    Joined:
    Jun 15, 2000
    #10
    He's still on 10.4, and Xcode 3 requires 10.5.

  11. macrumors newbie

    Joined:
    Jan 20, 2009
    Location:
    Pretoria, South Africa
    #11
    Can it be true that there are no :apple: experts out there willing to help with this issue? :eek:

  12. macrumors 68030

    Catfish_Man

    Joined:
    Sep 13, 2001
    Location:
    Portland, OR
    #12
    There are, but we all hated Xcode 2 as well. 3 is much nicer.

  13. macrumors 6502a

    Joined:
    Dec 4, 2006
    Location:
    Katy, Texas
    #13
    OK, I'm on 3. Tell me!!

  14. macrumors 68030

    Catfish_Man

    Joined:
    Sep 13, 2001
    Location:
    Portland, OR
    #14
    Not completely certain this would work, but you could potentially use dtrace to watch for stat() and open() calls, and filter the output based on the filename in question. That could give you an idea of what path(s) it is looking for the header at, which might indicate what's going wrong.

  15. macrumors G5

    gnasher729

    Joined:
    Nov 25, 2005
    #15
    You'll probably need some basic debugging techniques.

    Fact: You think it should work, but it doesn't work. So something is wrong somewhere. Most likely something you did, because otherwise there would be more people complaining. All you need to find is: What is wrong?

    Start with something that works, then change it until it breaks, and find out why.

    Start by including the full path:

    #include "/opt/local/include/libxml++-1.0/libxml++/libxml++.h".

    If that doesn't work: Start terminal, type

    ls /opt/local/include/libxml++-1.0/libxml++

    That should list the files in the directory. If libxml++.h isn't there, that's your problem. If the directory doesn't exist, try

    ls /opt/local/include/libxml++-1.0

    and so on. If that's the problem, fix it.

    Move the file to some source directory. Check if it works. Try a header file in some different directory. Maybe it's the unusual characters (+ and -) in the path.

  16. macrumors newbie

    Joined:
    Jan 20, 2009
    Location:
    Pretoria, South Africa
    #16
    I do use Xcode 3 on Mac OS X 10.5. :D

    The file definitely exists in the folder I specified above. :cool:

    When I #include <complete header file path> then Xcode can't find the header files included by libxml++.h. :confused:

    libxml++.h belongs to the libxmlxx (libxml C++) library and looks as follows:

    Code:
    #ifndef __LIBXMLCPP_H
    #define __LIBXMLCPP_H

    #include <libxml++/exceptions/internal_error.h>
    #include <libxml++/exceptions/parse_error.h>
    #include <libxml++/parsers/domparser.h>
    #include <libxml++/parsers/saxparser.h>
    #include <libxml++/nodes/node.h>
    #include <libxml++/nodes/commentnode.h>
    #include <libxml++/nodes/element.h>
    #include <libxml++/nodes/entityreference.h>
    #include <libxml++/nodes/textnode.h>
    #include <libxml++/attribute.h>
    #include <libxml++/document.h>

    #endif //__LIBXMLCPP_H

    So, that is my situation.

    Lastly, as you all can see, my test project only has one source file as follows:
    Code:
    #include <CoreFoundation/CoreFoundation.h>

    #include <libxml++/libxml++.h>

    int main (int argc, const char * argv[]) {
        // insert code here...
        CFShow(CFSTR("Hello, World!\n"));
        return 0;
    }

    How much simpler can it get? :eek:

    Cheers!

  17. macrumors G5

    gnasher729

    Joined:
    Nov 25, 2005
    #17
    Is "Always search user paths" turned on?

    Did you try to include the file with "quotes" instead of <quotes> ?

  18. Moderator emeritus

    kainjow

    Joined:
    Jun 15, 2000
    #18
    Are you sure you're editing the build configuration that's active? For example you could be editing the Release config but still be on Debug, or vise versa, which would continue to give you the problem.

  19. macrumors member

    Joined:
    Aug 5, 2003
    Location:
    Scheßlitz, Oberfranken, Bavaria, Germany
    #19
    Hi,

    the only thing you have to do is adding the *.h files to your project.
    Go to Projects -> "Edit Project Settings" and enter the search path at the item "Header Search Path"

    Works perfectly under Xcode 3.1.2 ;-)

    Best regards
    Peter

  20. macrumors 6502a

    Joined:
    Dec 4, 2006
    Location:
    Katy, Texas
    #20
    OK, mine is working. Part of my issue was I could not find the proper path. I settled on /usr/lib/ruby/1.8/universal-darwin9.0/ruby.h.

    Now, I have a good compile. Now, time to tackle the link errors.

    Perhaps I ought best think and position Xcode (besides an editor and project manager and a help and reference system) as a GUI front end to the gcc command. Duh.

    Thanks.

  21. macrumors member

    Joined:
    Aug 5, 2003
    Location:
    Scheßlitz, Oberfranken, Bavaria, Germany
    #21
    Hi,

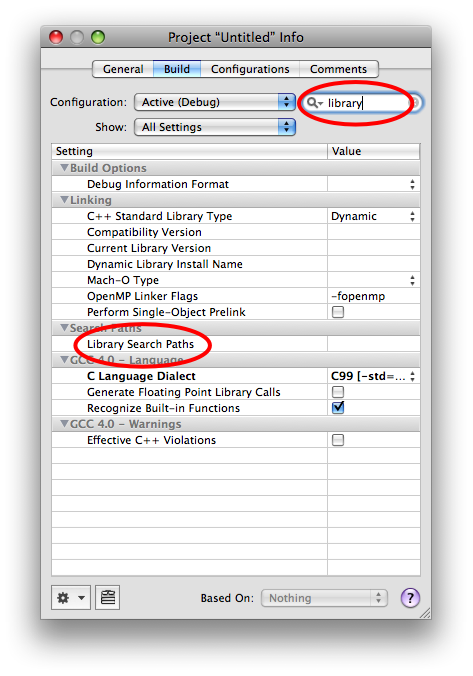

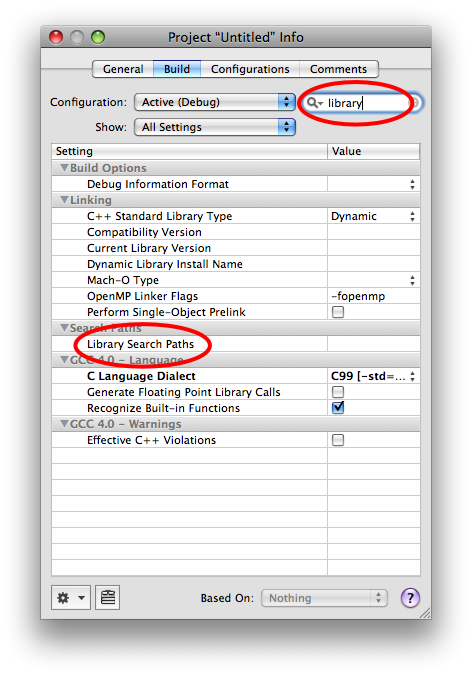

    setting up a search path for libs can be done in the same way as setting up a search path for *.h files.

    Best regards
    Peter


    Attached Files:

  22. macrumors 6502a

    Joined:
    Dec 4, 2006
    Location:
    Katy, Texas
    #22

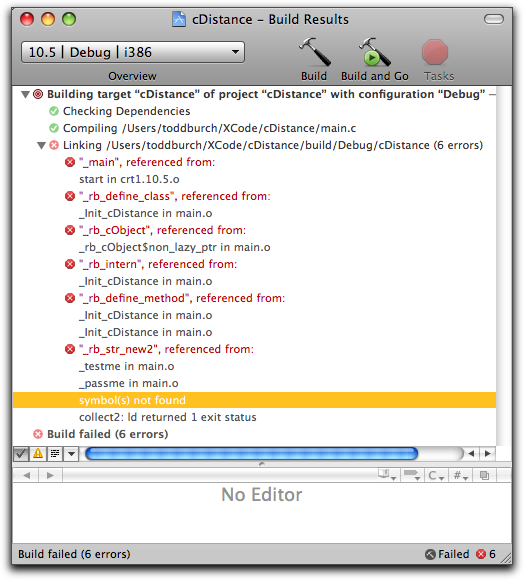

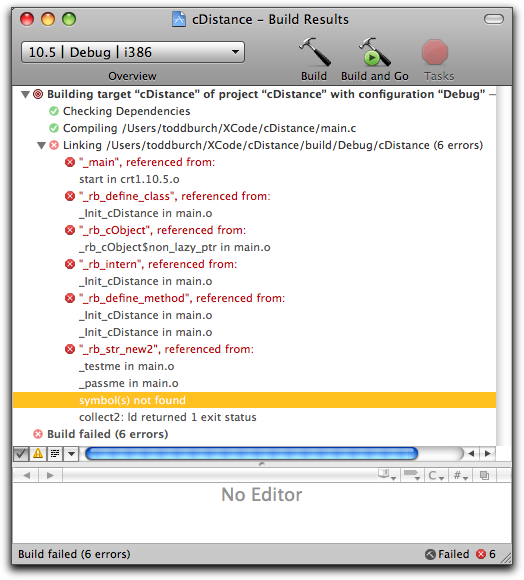

    I've taken a stab at that, and no joy yet. Building a Ruby extension, outside of Xcode, works fine. The output of the extconf.rb is a Makefile, and the output of the Makefile is this:
    Code:
    todd-burchs-computer:cDistance toddburch$ ruby extconf.rb
    creating Makefile
    todd-burchs-computer:cDistance toddburch$ make
    gcc -I. -I/System/Library/Frameworks/Ruby.framework/Versions/1.8/usr/lib/ruby/1.8/universal-darwin9.0 -I/System/Library/Frameworks/Ruby.framework/Versions/1.8/usr/lib/ruby/1.8/universal-darwin9.0 -I.  -fno-common -arch ppc -arch i386 -Os -pipe -fno-common  -c main.c
    cc -arch ppc -arch i386 -pipe -bundle -undefined dynamic_lookup -o cDistance.bundle main.o -L"." -L"/System/Library/Frameworks/Ruby.framework/Versions/1.8/usr/lib" -L. -arch ppc -arch i386    -lruby  -lpthread -ldl -lm
    todd-burchs-computer:cDistance toddburch$

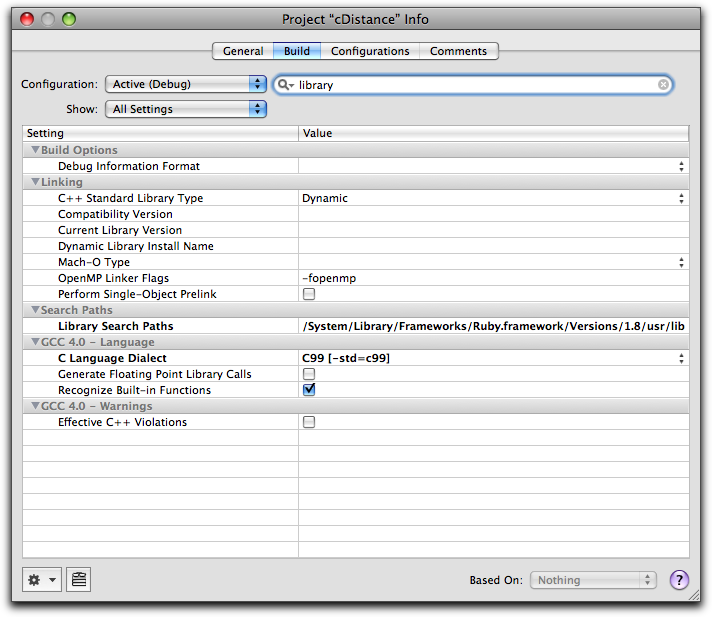

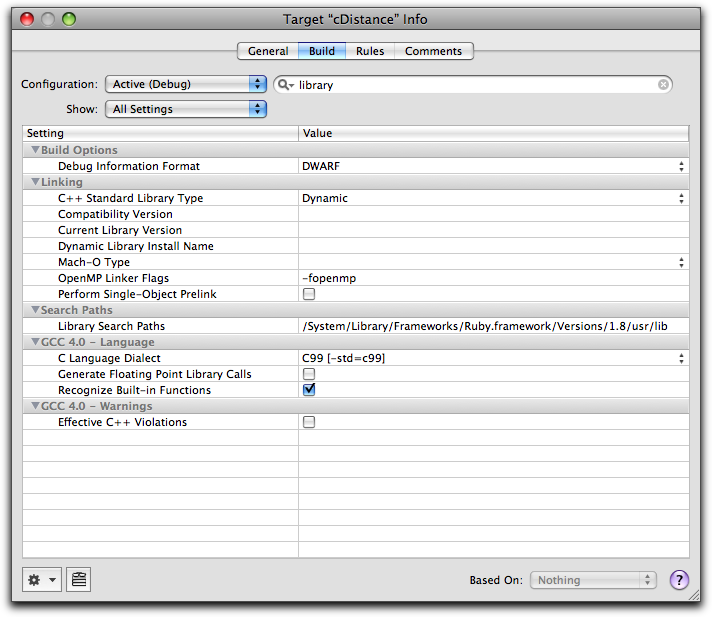

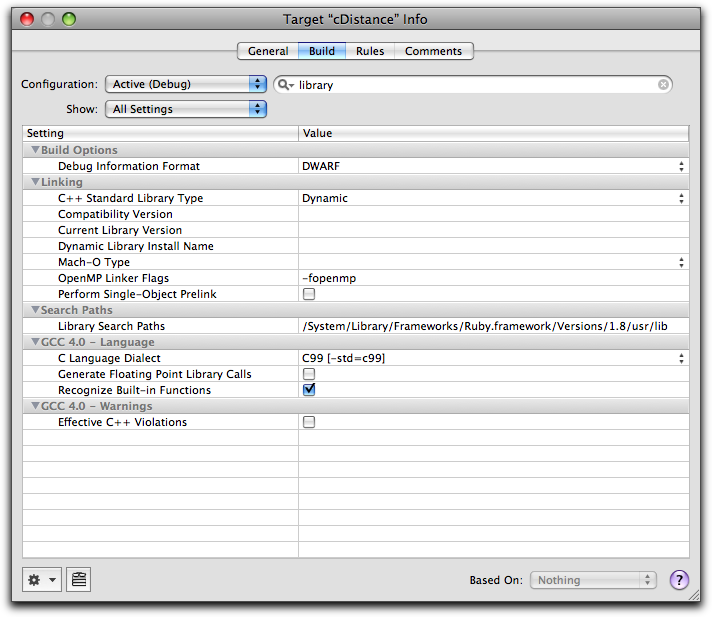

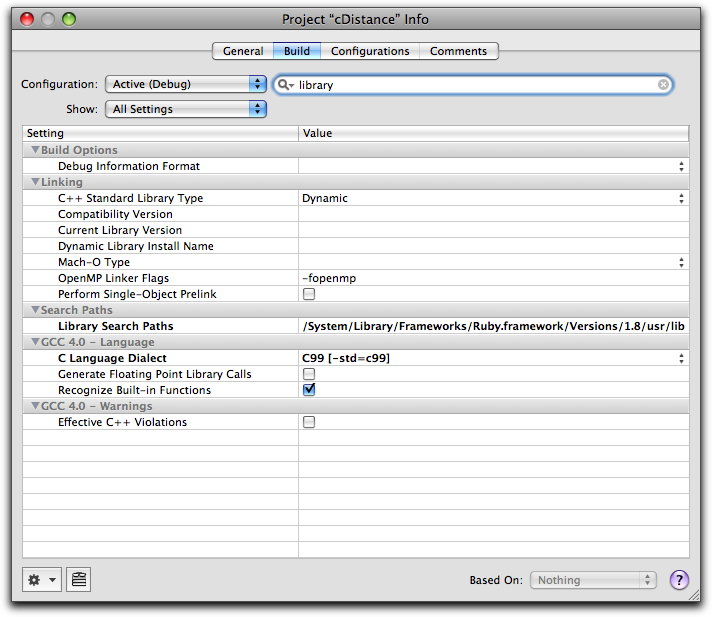

    I've tried adding /System/Library/Frameworks/Ruby.framework/Versions/1.8/usr/lib to the Library search Path as you suggested, but the link continues to fail on the external references.

    I have a friend that writes Ruby extensions with Xcode, but I think he has changed his Build system to leverage extconf.rb and make. I'm still reading up on how to do this. I've asked for him to create a YouTube video on his setup, but that hasn't happened yet. He said is able to use the debugger and profiler with his setup. That would be great.


    Attached Files:

  23. macrumors member

    Joined:
    Aug 5, 2003
    Location:
    Scheßlitz, Oberfranken, Bavaria, Germany
    #23
    @toddburch Maybe you should have a closer look at the documentation of Xcode? A search for "Xcode ruby extension" gives 42 hit at developer.apple.com!

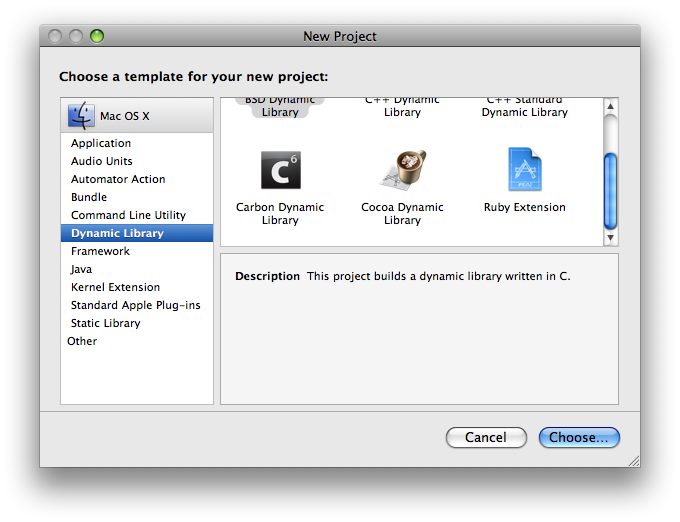

    In addition, you can set up a new project create a ruby extension ...


    Attached Files:

  24. macrumors 6502a

    Joined:
    Dec 4, 2006
    Location:
    Katy, Texas
    #24
    Ah yes. I didn't know all that was available. Thanks!

  25. macrumors newbie

    Joined:
    May 30, 2009
    #25
    I think I can (if very late). I had the same problem as you, and found your post via google search. Posting this response for the next person who does that.

    Make sure you are editing your Target's settings, and not your Project's or executable's settings. I have the same version of XCode as you, and my Target inherits "User Header Search Path" from the Project, but not "Header Search Path". I had to enter it directly into the target.

    I am betting they fixed this for newer versions of XCode (which you and I do not have).
