Xserve G5 2,3GHz Power Supply Pin-out?

Discussion in 'PowerPC Macs' started by Cox Orange, May 18, 2013.

  1. macrumors 68000

    Joined:
    Jan 1, 2010
    #1
    Hi,

    I could get a cheap Xserve G5 2,3GHz with only a broken PSU. Is there a Pin-out chart or ATX-conversion article somewhere, I did not find? Or is it not possible to convert an ATX-PSU with the same little effort like for a PowerMac G4 (despite the formfactor)?

  2. macrumors 6502a

    Joined:
    Oct 26, 2007
    Location:
    Sydney, Australia.
    #2

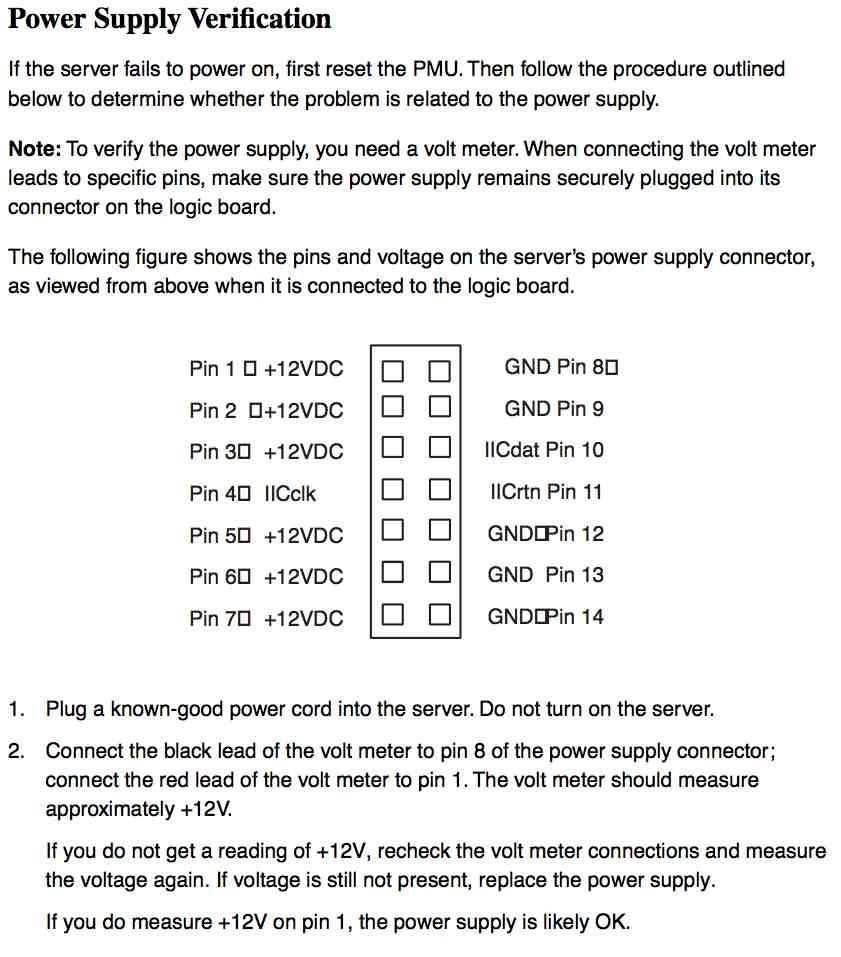

    This screengrab is from the Apple Service manual for G5 Xserves.


  3. thread starter macrumors 68000

    Joined:
    Jan 1, 2010
    #3
    Thank you very much!

    Now, I have to know what of the inter ICs is 3,3V and 5V... :( I am more of that "put A there and B there" type of guy ;)
