gjarold

macrumors regular
Original poster
Nov 14, 2007
123
0
I have a early 2009 mac pro 4,1 which has dual gt120 cards inside of it. So I have a total of four video outs (2x DP and 2x DVI).

Very happy with these slim, silent cards - the problem is that they won't drive a newer 4k display.

I *still require* four video outs ... but I don't have high demands for GPU/graphics ... I would love to use a single-slot card with nothing but displayport ports. Fanless would be a bonus ...

Does that exist ?

Is there a single slot card, with dual 4k@60 DP ports (v1.4) that I can use in my mac pro ?

Again, fanless would be a bonus, but the real issue is being single slot since I need other slots free for PCIe SSD and USB3 card ....

Thanks.


mikas

macrumors 6502a
Sep 14, 2017
890
646
Finland
The first slot is double slot, so installing a single slot card in it does not give any benefit with the number of slots available. You certainly can have four monitors and two slots still available. I think you can get six monitors and two slots available. Maybe a lot more, if you want to examine and modify a little bit.

There are examples of these configurations seen around this great forum. These posts there are why I started my own experiments. Thank You to all pioneers here.

In my tests I used the configuration seen as an attachment. 2xAMD, RX570/RX460 cards, nVidia GT120, Kingston HyperX Predator 480GB. That means 8 monitors and a pretty fast PCIe SSD. Now I have reverted to only 3 monitors, and a PCIe SSD. One slot still empty and available, maybe for my Inateck 4006 USB 3.0.

edit. Oops. Omitted the "fanless" part, sorry..


Attachments

  • PCIe_full.jpg
    195.7 KB · Views: 384
Last edited:

joebclash

macrumors regular
Jun 14, 2016
209
119
I have a early 2009 mac pro 4,1 which has dual gt120 cards inside of it. So I have a total of four video outs (2x DP and 2x DVI).

Very happy with these slim, silent cards - the problem is that they won't drive a newer 4k display.

I *still require* four video outs ... but I don't have high demands for GPU/graphics ... I would love to use a single-slot card with nothing but displayport ports. Fanless would be a bonus ...

Does that exist ?

Is there a single slot card, with dual 4k@60 DP ports (v1.4) that I can use in my mac pro ?

Again, fanless would be a bonus, but the real issue is being single slot since I need other slots free for PCIe SSD and USB3 card ....

Thanks.

Have you looked into FirePro W7000? I believe a few people on this board uses them. I have a uad card in slot 2. It gets very hot. I don't like my video card so near my uad card. I also been looking for a good single slot card.

  • Like
Reactions: devon807

ssgbryan

macrumors 65816
Jul 18, 2002
1,488
1,420
a GTX 1030 will drive a 4k panel.

Not great for gaming but it is a 2Gb card designed for use for home theater, hence the 4k panel capability.

As an added bonus, they are pretty cheap ($70 - $80). They also come fanless.


devon807

macrumors 6502
Dec 31, 2014
372
95
Virginia
Have you looked into FirePro W7000? I believe a few people on this board uses them. I have a uad card in slot 2. It gets very hot. I don't like my video card so near my uad card. I also been looking for a good single slot card.
I agree, the W7000 seems like a good GPU


gjarold

macrumors regular
Original poster
Nov 14, 2007
123
0
Have you looked into FirePro W7000? I believe a few people on this board uses them. I have a uad card in slot 2. It gets very hot. I don't like my video card so near my uad card. I also been looking for a good single slot card.

Wow - thank you - although it is not fanless, I think that is exactly what I am looking for.

I see that these are displayport v1.2a, and I see that the table here:

https://en.wikipedia.org/wiki/DisplayPort#Resolution_and_refresh_frequency_limits_for_DisplayPort

shows that DP v1.2a can drive 3840x2160 @ 60hz.

So I should not have any flicker/refresh issues @ full 4K, correct ?


devon807

macrumors 6502
Dec 31, 2014
372
95
Virginia

MisterAndrew

macrumors 68030
Sep 15, 2015
2,890
2,378
Portland, Ore.
The WX 7100 is theoretically supported in 10.13 (based on the device ID). Basically pro version of RX 480.

Update: The WX 7100 card's device ID needs to be changed from 67c4 to 67c0 (either faked or in the VBIOS) in order for the AMD9520Controller.kext driver to load.

Last edited:

gjarold

macrumors regular
Original poster
Nov 14, 2007
123
0
The WX 7100 is theoretically supported in 10.13 (based on the device ID). Basically pro version of RX 580.

Can I use the WX7000, on a mac pro 4,1, running El Capitan, without having to upgrade my mac pro firmware ?


Fl0r!an

macrumors 6502a
Aug 14, 2007
909
530
Not sure why you'd want a single-slot GPU, I'd rather replace both GT120 by a more modern one. Starting with Kepler generation, all consumer level Nvidia GPUs support up to 4 concurrent displays including 4K on DP (only on models with enough ports obviously), some AMD cards even support up to 6 displays.

I don't see the need for a workstation level GPU, even old AMD HD 7xxx GPUs for <$100 would do what you want.

  • Like
Reactions: h9826790

MIKX

macrumors 68000
Dec 16, 2004
1,815
691
Japan

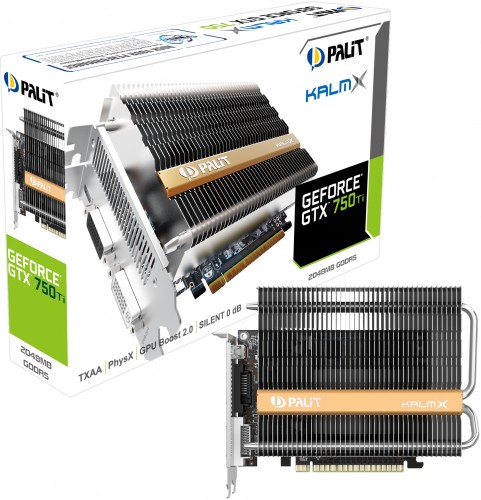

I think there is "fanless" Nvidia 750Ti .. . according to Netkas, the ROM God.


Naimfan

Suspended
Jan 15, 2003
4,669
2,017
The WX 7100 is theoretically supported in 10.13 (based on the device ID). Basically pro version of RX 580.

Question - based on relative scores in Passmark, the RX 580 (~8250) is substantially faster than the WX 7100 (~5300). How would the WX 7100 be the "pro" version of the RX-580?


Fl0r!an

macrumors 6502a
Aug 14, 2007
909
530
Question - based on relative scores in Passmark, the RX 580 (~8250) is substantially faster than the WX 7100 (~5300). How would the WX 7100 be the "pro" version of the RX-580?
You don't buy a workstation grade GPU because of it's raw processing power, consumer GPUs are always faster (at least in terms of single precision TFLOPs). You buy it because of its superior software/driver support, performance optimizations in professional CAD applications or ECC VRAM.


Naimfan

Suspended
Jan 15, 2003
4,669
2,017
You don't buy a workstation grade GPU because of it's raw processing power, consumer GPUs are always faster (at least in terms of single precision TFLOPs). You buy it because of its superior software/driver support, performance optimizations in professional CAD applications or ECC VRAM.

Ah! That makes sense. Thank you.

I was imagining it would be analogous to the comparison between something like an i7 and Xeon CPU.


gjarold

macrumors regular
Original poster
Nov 14, 2007
123
0

William Payne

macrumors 6502a
Jan 10, 2017
931
360
Wanganui, New Zealand.
Just to help people answering your question, do you need the Boot Screen? And how much fiddling are you willing to do to make something work?

Or do you want it to be plug and play like it would be if it was an official Apple card?


ssgbryan

macrumors 65816
Jul 18, 2002
1,488
1,420
I don't know why these folks keep pushing high end cards when the OP has stated that his graphics requirements aren't high. You don't need a $400+ card to drive a 4k monitor.

A GTX 1030 is designed specifically to push 4k panels and it is around $70 - 80.


William Payne

macrumors 6502a
Jan 10, 2017
931
360
Wanganui, New Zealand.
I don't know why these folks keep pushing high end cards when the OP has stated that his graphics requirements aren't high. You don't need a $400+ card to drive a 4k monitor.

A GTX 1030 is designed specifically to push 4k panels and it is around $70 - 80.

The issues is. He wanted 4 display ports with a single slot. Low end geforce cards are limited in that area.

  • Like
Reactions: h9826790

gerardomare1

macrumors newbie
Jan 19, 2013
29
2
hello
Is the 1030 enough to use Adobe Lightroom. I have 1 gt120 Mac Pro 4,1 to 5,1 and 24 gb ram. Im going to see any difference?
thanks a lot


ssgbryan

macrumors 65816
Jul 18, 2002
1,488
1,420
The 1030 is a 2Gb card - I am sure you will see a difference.

10x the Cuda cores: 384 Cuda cores (same as GT 640)
2x Base clock speed 1227Mhz
2 - 4x memory (2Gb)
Supports OpenGL 4.5
Max Resolution: 7680x4320@60 Hz aka 8K (using both display ports)
30 watt power draw.

I've been following the threads over at insanely Mac and tonymacx86.

The 1030 isn't a gaming card (although it seems acceptable at medium resolutions at 1080p).

I am getting 2 of them on Dec 26. 1 for my 1,1 (I'm turning it into a HTPC), and I'll replace my Apple 5770 in my 4,1 with the other.


MisterAndrew

macrumors 68030
Sep 15, 2015
2,890
2,378
Portland, Ore.
Right, but what about El Capitan ? I checked the official page for the firepro w7000:

http://www.amd.com/en-us/products/graphics/workstation/firepro-3d/7000

... and in the specs it only mentions what versions of Windows it will work for - no mention of OSX.

So I am wondering if it will work in El Cap ... so I can avoid firmware upgrades, etc.

You'll have to search for the device ID for the card you want to install in OS X's drivers. If the card didn't exist when El Capitan was a current OS then the answer is no.


PowerMac G4 MDD

macrumors 68000
Jul 13, 2014
1,900
277
If you want a high-end GPU but don't want the noise, there are 3rd-party fan-less heatsinks which you can attach to them; however, those kits don't fit certain models.

Keep in-mind that modern GPUs are normally inaudible, due to the fact that their fans don't spin until the card reaches a heat threshold; and, even once they're running, they're either silent or barely detectable. In my experience, I've noticed that NVIDIA cards are generally the quietest (although, it can depend upon the brand of the cooler). Fan-blower cards are generally louder, so avoid those - go with a card whose cooler has an open-blade design and, preferably, dual fans.

A potent card for its age is the GTX 660. While its fans run constantly, they're totally inaudible. They're both extremely quiet and utterly drowned out by the noise produced by the case fans. My GTX 1060 was also inaudible and had the start-stop fan feature; however, I forfeited that card for other reasons. (10xx cards are glitchy under OSX.)


gerardomare1

macrumors newbie
Jan 19, 2013
29
2
Hi, thanks for the info



The 1030 is a 2Gb card - I am sure you will see a difference.

10x the Cuda cores: 384 Cuda cores (same as GT 640)
2x Base clock speed 1227Mhz
2 - 4x memory (2Gb)
Supports OpenGL 4.5
Max Resolution: 7680x4320@60 Hz aka 8K (using both display ports)
30 watt power draw.

I've been following the threads over at insanely Mac and tonymacx86.

The 1030 isn't a gaming card (although it seems acceptable at medium resolutions at 1080p).

I am getting 2 of them on Dec 26. 1 for my 1,1 (I'm turning it into a HTPC), and I'll replace my Apple 5770 in my 4,1 with the other.
