MP 1,1-5,1 Can't get 5k on Dell UP2715k with Mac Pro 5.1 and AMD Radeon Rx5700xt

fuinhu · Feb 26, 2023

I'm using two DisplayPort cables but i cant get past 3840x2160.

The Mac Pro specs are the following:

4.1 flashed to 5.1
latest bootROM
Dual Xeons E5520
128gb RAM ECC
XFX AMD Radeon RX5700XT 8gb Triple Ventilation
OWC Accelsior M2 with a Crucial P3 1Tb

I'm running Catalina with all the updates, using Martin Lo package of OpenCore 0.8.8 with the following boot-args:

enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -no_compat_check no32exec=0

Faking the SMBios to a MacPro 6,1 because i read somewhere that MST had somehting to do with the board ID

I already tried disabling WEG, lilu and RadeonBoost but it didnt make any difference.

Heres a copy of AGDC diagnose:

### Start: GPUWrangler #######################################################

Stats: GPUCAdded:1 GpuAdded:1 Eject:0/f0/fd0/c0 Remove:0/t0 Un:0

gpu 0xdb91 flags 0xbe000020 (DG,published,driversStarted,hasGPUC,quiet,pubSched,pubArmed) vid.did=1002.731f b:d:f=7:0:0

gpu 0xdb91 pci 0x100000205 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0

gpu 0xdb91 agdc 0x10000050d /AMDRadeonX6000_AmdAgdcServices

gpu 0xdb91 gpuc 0x100000465 /AMDRadeonX6000_AmdGpuWrangler

gpu 0xdb91 agdpclient 0x10000050f /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl

gpu 0xdb91 accel 0x10000048e /AMDRadeonX6000_AMDNavi10GraphicsAccelerator

gpu 0xdb91 fb0:0 0x1000004a6 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0

gpu 0xdb91 fb1:1 0x1000004a8 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1

gpu 0xdb91 fb2:2 0x1000004aa /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2

gpu 0xdb91 fb3:3 0x1000004ac /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3

### End: GPUWrangler (took 0.110 sec) ########################################

### Start: EFIDisplayInfo ####################################################

Not present

Dumping EFI data for GPU Path IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0

### End: EFIDisplayInfo (took 0.108 sec) #####################################

### Start: Mux ###############################################################

### End: Mux (took 0.001 sec) ################################################

### Start: Ports #############################################################

### Start: AGDC[1] 0x10000046c ###############################################

IOService:/IOResources/AppleGPUWrangler

Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)

### End: AGDC[1] 0x10000046c (took 0.002 sec) ################################

### Start: AGDC[2] 0x100000465 ###############################################

IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler

Vendor: AMD [00001002]: GPURoot [7 30000] (0)

### End: AGDC[2] 0x100000465 (took 0.002 sec) ################################

### Start: AGDC[3] 0x10000050d ###############################################

IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices

See 0x10000050f

### End: AGDC[3] 0x10000050d (took 0.001 sec) ################################

### Start: AGDC[4] 0x10000050f ###############################################

IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl

Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)

FBs: 4, Ports: 0x1e mst:0xe ddc:0x1e aux:0xe, Streams: dp:6 dvi:4 mst:6 max:6

Framebuffers:

* 0: Address: 1.0 Stream: Enabled Group: -1 Online Assoc'd MayGroup

1: Address: 0.0 Stream: Not Associated Group: -1 MayGroup

2: Address: 0.0 Stream: Not Associated Group: -1 MayGroup

3: Address: 0.0 Stream: Not Associated Group: -1 MayGroup

Port Capabilities:

* 1: AUX, DDC, MST

2: AUX, DDC, MST

3: AUX, DDC, MST

4: DDC

Connections:

* 1: [DP 1.2 4 x HBR2] Status: [4 x HBR2 7777] caps [features 0x101141b, p_encoding 0xd] Sink OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0 FW Version: 0.0

2:

3:

4:

## Register Dump Port 1 - Start ##

000000: 0x12 0x14 0xc4 0x01 0x01 0x00 0x01 0x83 0x02 0x02 0x06 0x00 0x00 0x00 0x00 0x00

Reg: 000000: 12 : DPCD_REV: 1.2

Reg: 000001: 14 : MAX_LINK_RATE: HBR2

Reg: 000002: c4 : MAX_LANE_COUNT: 4, TPS3_SUPPORTED: 1, ENHANCED_FRAME_CAP: 1

Reg: 000003: 01 : MAX_DOWNSPREAD: 0.5% down, NO_AUX_HANDSHAKE_LINK_TRAINING: 0

Reg: 000004: 01 : NORP: 1

Reg: 000005: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0

Reg: 000006: 01 : MAIN_LINK_CHANNEL_CODING: ANSI 8B/10B

Reg: 000007: 83 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 3, MSA_TIMING_PAR_IGNORED: 0, OUI: 1

Reg: 000008: 02 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 1, ASSOCIATED_TO_PRECEDING_PORT: 0

Reg: 000009: 02 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 96

Reg: 00000a: 06 : RECEIVE_PORT1_CAP_0:

Reg: 00000b: 00 : RECEIVE_PORT1_CAP_1:

Reg: 00000c: 00 : I2C Speed:

Reg: 00000d: 00 : eDP_CONFIGURATION_CAP: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0

Reg: 00000e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO

Reg: 00000f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0

000020: 0x00 0x00 0x00

Reg: 000020: 00 : FAUX_CAP: FAUX_CAP: 0

Reg: 000021: 00 : MSTM_CAP: MST_CAP: 0

Reg: 000022: 00 : NUMBER_OF_AUDIO_ENDPOINTS: 0

000060: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00

Reg: 000060: 00 : DSC Support: 0

Reg: 000061: 00 : DSC Algorithm revision: 0

Reg: 000062: 00 : DSC RC Buffer Block size: 0

Reg: 000063: 00 : DSC RC Buffer size: 0

Reg: 000064: 00 : DSC slice Capabilities 1 : 0

Reg: 000065: 00 : DSC Line buffer bit depth: 0

Reg: 000066: 00 : DSC Block prediction support: 0

Reg: 000067: 00 : DSC Maximum bit per pixel: 0

Reg: 000068: 00 : DSC Maximum bit per pixel: 0

Reg: 000069: 00 : DSC Decoder color format capabilities: 0

Reg: 00006a: 00 : DSC decoder color depth capabilities: 0

Reg: 00006b: 00 : DSC Peak Throughput: 0

Reg: 00006c: 00 : DSC Maximum Slice width: 0

Reg: 00006d: 00 : DSC Slice capabilities 2: 0

Reg: 00006e: 00 : Reserved: 0

Reg: 00006f: 00 : DSC Bits per pixel increment: 0

000090: 0x00

Reg: 000090: 00 : FEC Capability: 0x0

000080: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00

Reg: 000080: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000081: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000082: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000083: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000084: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000085: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000086: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000087: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000088: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 000089: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 00008a: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 00008b: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 00008c: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 00008d: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 00008e: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

Reg: 00008f: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0

000100: 0x14 0x84

Reg: 000100: 14 : LINK_BW_SET: HBR2

Reg: 000101: 84 : LANE_COUNT_SET: LANE_COUNT_SET 4, ENHANCED_FRAME_EN: 1

000107: 0x10

Reg: 000107: 10 : DOWNSPREAD_CTRL: SPREAD_AMP: 1, MSA_TIMING_PAR_IGNORE_EN: 0

00010a: 0x00

Reg: 00010a: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0

000111: 0x00

Reg: 000111: 00 : MSTM_CTRL: UPSTREAM_IS_SRC:0 UP_REQ_EN:0 MST_EN:0

000120: 0x08

Reg: 000120: 08 : FEC Configuration: 0x8

000160: 0x00

Reg: 000160: 00 : DSC Enable: 0x0

000200: 0x41 0x04 0x77 0x77 0x01 0x03 0x66 0x66

Reg: 000200: 41 : SINK_COUNT: SINK_COUNT 1, CP_READY: 1

Reg: 000202: 77 : LANE0: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1

Reg: 000202: 77 : LANE1: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1

Reg: 000203: 77 : LANE2: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1

Reg: 000203: 77 : LANE3: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1

Reg: 000205: 03 : SINK_STATUS: RECEIVE_PORT_0_STATUS: 1, RECEIVE_PORT_1_STATUS: 1

Reg: 000206: 66 : LANE0: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1

Reg: 000206: 66 : LANE1: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1

Reg: 000207: 66 : LANE2: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1

Reg: 000207: 66 : LANE3: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1

00020f: 0x00

Reg: 00020f: 00 : DSC Status: 0

000280: 0x00

Reg: 000280: 00 : FEC Status: 0

00042f: 0x00

Reg: 00042f: 00 : DISPLAY_ROTATION: 0x0

002200: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00

Reg: 002200: 00 : DPCD_REV: 0.0

Reg: 002201: 00 : MAX_LINK_RATE: ???

Reg: 002202: 00 : MAX_LANE_COUNT: 0, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 0

Reg: 002203: 00 : MAX_DOWNSPREAD: None, NO_AUX_HANDSHAKE_LINK_TRAINING: 0

Reg: 002204: 00 : NORP: 0

Reg: 002205: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0

Reg: 002206: 00 : MAIN_LINK_CHANNEL_CODING_SET: ??

Reg: 002207: 00 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 0, OUI: 0

Reg: 002208: 00 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 0, ASSOCIATED_TO_PRECEDING_PORT: 0

Reg: 002209: 00 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 32

Reg: 00220a: 00 : RECEIVE_PORT1_CAP_0:

Reg: 00220b: 00 : RECEIVE_PORT1_CAP_1:

Reg: 00220c: 00 : I2C Speed:

Reg: 00220d: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0

Reg: 00220e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO

Reg: 00220f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0

068028: 0x01

Reg: 068028: 01 : HDCP_CAPABLE: 1, REPEATER: 0

06921d: 0x00 0x00 0x00

Reg: 06921d: 00 : VERSION: 0

Reg: 06921f: 00 : HDCP_CAPABLE: 0, REPEATER: 0

069330: 0x00 0x00

Reg: 069330: 00 : HDCP_Depth: 0

Reg: 069331: 00 : HDCP_count: 0 HDCP2_0 Downstream: 0 HDCP1 Downstream: 0

069493: 0x00

Reg: 069493: 00 : Ready: 0 , H' Available: 0, Pairing_available: 0 , Reauth_req: 0, Link Integrity: 0

## Register Dump Port 1 - End ##

## EDID Dump Port 1 - Start ##

// EDID Dump: device, 384 bytes, OK

uint8_t EDID_DEL_10ac_40b6[] = {

/* 000: */ 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00,

/* 008: */ 0x10, 0xac, 0xb6, 0x40, 0x53, 0x30, 0x35, 0x30,

/* 010: */ 0x20, 0x1a, 0x01, 0x04, 0xb5, 0x3c, 0x22, 0x78,

/* 018: */ 0x3a, 0x72, 0x25, 0xac, 0x50, 0x33, 0xb7, 0x26,

/* 020: */ 0x0b, 0x50, 0x54, 0x21, 0x08, 0x00, 0x81, 0x00,

/* 028: */ 0xb3, 0x00, 0xd1, 0x00, 0xa9, 0x40, 0x81, 0x80,

/* 030: */ 0xd1, 0xc0, 0x01, 0x01, 0x01, 0x01, 0x56, 0x5e,

/* 038: */ 0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,

/* 040: */ 0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,

/* 048: */ 0x00, 0x00, 0x00, 0xff, 0x00, 0x33, 0x44, 0x38,

/* 050: */ 0x46, 0x38, 0x36, 0x38, 0x41, 0x30, 0x35, 0x30,

/* 058: */ 0x53, 0x0a, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x44,

/* 060: */ 0x45, 0x4c, 0x4c, 0x20, 0x55, 0x50, 0x32, 0x37,

/* 068: */ 0x31, 0x35, 0x4b, 0x0a, 0x00, 0x00, 0x00, 0xfd,

/* 070: */ 0x00, 0x1d, 0x4b, 0x1f, 0xb4, 0x36, 0x01, 0x0a,

/* 078: */ 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x02, 0xe9,

/* 080: */ 0x02, 0x03, 0x0c, 0xf1, 0x23, 0x09, 0x07, 0x07,

/* 088: */ 0x83, 0x01, 0x00, 0x00, 0x4d, 0xd0, 0x00, 0xa0,

/* 090: */ 0xf0, 0x70, 0x3e, 0x80, 0x50, 0x20, 0x65, 0x0c,

/* 098: */ 0x55, 0x50, 0x21, 0x00, 0x00, 0x18, 0x56, 0x5e,

/* 0a0: */ 0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,

/* 0a8: */ 0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,

/* 0b0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0b8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0c0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0c8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0d0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0d8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0e0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0e8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0f0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 0f8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x34,

/* 100: */ 0x70, 0x12, 0x79, 0x00, 0x00, 0x12, 0x00, 0x16,

/* 108: */ 0x82, 0x10, 0x10, 0x00, 0xff, 0x09, 0x3f, 0x0b,

/* 110: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x44, 0x45, 0x4c,

/* 118: */ 0xb6, 0x40, 0x53, 0x30, 0x35, 0x30, 0x03, 0x00,

/* 120: */ 0x3c, 0x4c, 0xd0, 0x00, 0x84, 0xff, 0x0e, 0x9f,

/* 128: */ 0x00, 0x2f, 0x80, 0x1f, 0x00, 0x6f, 0x08, 0x3d,

/* 130: */ 0x00, 0x02, 0x00, 0x04, 0x00, 0x10, 0x5d, 0x00,

/* 138: */ 0x04, 0xff, 0x09, 0x9f, 0x00, 0x2f, 0x80, 0x1f,

/* 140: */ 0x00, 0x3f, 0x0b, 0x28, 0x00, 0x02, 0x00, 0x09,

/* 148: */ 0x00, 0xc4, 0xbc, 0x00, 0x04, 0xff, 0x09, 0x9f,

/* 150: */ 0x00, 0x2f, 0x80, 0x1f, 0x00, 0x3f, 0x0b, 0x51,

/* 158: */ 0x00, 0x02, 0x00, 0x09, 0x00, 0x07, 0x00, 0x0a,

/* 160: */ 0x08, 0x81, 0x00, 0x08, 0x04, 0x00, 0x04, 0x02,

/* 168: */ 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 170: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,

/* 178: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xd5, 0x90

};

## EDID Dump Port 1 - End ##

## Display Connection Stats Dump Port 1 - End ##

Display mfgName: DEL, productID: 0x40b6

Time to EDID read: 961

Time to link train: 2560192

Link training duration: 18677

Link training status: 1

Link training count: 3

HDCP status: 0

HDCP retry count: 1

EFI w/a data: 0x0

## Display Connection Stats Dump Port 1 - End ##

### End: AGDC[4] 0x10000050f (took 0.307 sec) ################################

### End: Ports (took 0.309 sec) ##############################################

### Start: Metrics ###########################################################

Display Metric Tool Version: 1.2

Display Metric Plugin Version: 1.2 AGDC Version: 5.2.6

Dumping Metric Logs: currentlog(30) logsize(32768) numberlogs(819)

Total lines: 31

2023-02-25 12:57:34.203186-0800: kAGDCPluginMetricsPowerOff(411e) GPU:0xdb91 Port: 0 Will

2023-02-25 12:57:34.207431-0800: kAGDCPluginMetricsPowerOn(411f) GPU:0xdb91 Port: 0 Did

2023-02-25 12:57:34.951434-0800: kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0

2023-02-25 12:57:34.952396-0800: kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgNameEL mfgID:0x10ac productID:0x40b6

2023-02-25 12:57:34.966986-0800: kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0

2023-02-25 12:57:34.967963-0800: kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgNameEL mfgID:0x10ac productID:0x40b6

2023-02-25 12:57:37.511626-0800: kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1

2023-02-25 12:57:37.530303-0800: kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)

2023-02-25 12:57:37.533297-0800: kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1

2023-02-25 12:57:47.537141-0800: kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2

2023-02-25 12:57:48.618447-0800: kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 1 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3

2023-02-25 12:57:48.619335-0800: kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 1 Latency(in microsecond) 1155

2023-02-25 12:57:48.633983-0800: kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled

2023-02-25 12:57:48.634000-0800: kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1

2023-02-25 12:58:26.466231-0800: kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1

2023-02-25 12:58:26.481130-0800: kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)

2023-02-25 12:58:26.481386-0800: kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1

2023-02-25 12:58:36.485128-0800: kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2

2023-02-25 12:58:37.583757-0800: kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 1 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3

2023-02-25 12:58:37.584650-0800: kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 1 Latency(in microsecond) 1273

2023-02-25 12:58:37.601778-0800: kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled

2023-02-25 12:58:37.601794-0800: kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1

2023-02-25 12:58:42.519414-0800: kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1

2023-02-25 12:58:42.534387-0800: kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)

2023-02-25 12:58:42.534894-0800: kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1

2023-02-25 12:58:52.539582-0800: kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2

2023-02-25 12:58:53.615744-0800: kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 1 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3

2023-02-25 12:58:53.616648-0800: kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 1 Latency(in microsecond) 1205

2023-02-25 12:58:53.640711-0800: kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled

2023-02-25 12:58:53.640727-0800: kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1

### End: Metrics (took 0.003 sec) ############################################

### Start: displaypolicyd ####################################################

running 205 sec (started Sat Feb 25 12:57:30 2023, now Sat Feb 25 13:00:55 2023)

boardID: Mac-F60DEB81FF30ACF6

featureMask: 0x100204

platformFlags: 0

extraSupportFlags: 0

wranglerFlags: 0x44

launcher[0]: name '7:0:0', state 1, managerState 1, vendor class/id/version 0x5 0x106b 0x10000

gpu[0]: index=0 state=0x5 (Published) events=() dispPolicyState=0x1 (Managed) dispPolicyLaunchIndex=0

gpu 0xdb91 flags 0x9e000020 (DG,published,driversStarted,hasGPUC,pubSched,pubArmed)

gpu 0xdb91 pci 0x100000205 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0

gpu 0xdb91 agdc 0x10000050d /AMDRadeonX6000_AmdAgdcServices

gpu 0xdb91 gpuc 0x100000465 /AMDRadeonX6000_AmdGpuWrangler

gpu 0xdb91 agdpclient 0x10000050f /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl

gpu 0xdb91 accel 0x10000048e /AMDRadeonX6000_AMDNavi10GraphicsAccelerator

gpu 0xdb91 fb0:0 0x1000004a6 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0

gpu 0xdb91 fb1:1 0x1000004a8 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1

gpu 0xdb91 fb2:2 0x1000004aa /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2

gpu 0xdb91 fb3:3 0x1000004ac /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3

Version: 5.2.6, Max: 512, counter: 176, calendar sync: 0x5f58c7e7fa4cc/0x97cdfe

GTRACEDATASTREAM traceData = {

{ 0x67547261, 0x63654461, 0x74614475, 0x6d700000, 0x102, 512, 176, 5, 2, 6, 6, 56, 1677358650074316, 9948670 },

{

{ 9945885294, 0x0, 391, 38, 0, 0, 0x0, 0x0, 0x0 },

{ 10677887215, 0x0, 743, 88, 56, 0, 0x0, 0x4, 0x0 },

{ 11108543952, 0x0, 521, 72, 73, 0, 0x1, 0xdb91, 0x0 },

{ 11109000132, 0x0, 70, 71, 73, 0, 0x20001, 0xdb91, 0x0 },

{ 11109078875, 0x0, 70, 71, 73, 0, 0x90002, 0xdb91, 0x0 },

{ 11109099034, 0x0, 70, 71, 73, 0, 0x40009, 0xdb91, 0x0 },

{ 11109117537, 0x0, 70, 71, 73, 0, 0x50004, 0xdb91, 0x0 },

{ 11109136610, 0x0, 81, 77, 73, 0, 0x60000, 0xdb91, 0x0 },

{ 13787586648, 0x0, 521, 72, 73, 0, 0x10000002, 0xdb91, 0x0 },

{ 13787690017, 0x0, 81, 77, 73, 0, 0x70006, 0xdb91, 0x0 },

{ 13788006481, 0x0, 273, 78, 79, 0, 0x10000050f, 0x1, 0x0 },

{ 13788097338, 0x0, 293, 78, 62, 0, 0x10000050f, 0x0, 0x0 },

{ 13788320892, 0x0, 316, 78, 79, 0, 0x10000050f, 0x3, 0x0 },

{ 13788321037, 0x0, 151, 80, 61, 0, 0x10000050f, 0x1, 0x0 },

{ 13788321263, 0x0, 81, 77, 73, 0, 0x10007, 0xdb91, 0x0 },

{ 13789615122, 0x10000050f, 762, 31, 0, 0, 0x0, 0x0, 0x0 },

{ 13830574514, 0x10000050f, 988, 26, 0, 0, 0x0, 0x0, 0x0 },

{ 13830590416, 0x10000050f, 997, 33, 0, 0, 0x0, 0x0, 0x0 },

{ 14101115380, 0x10000050f, 1003, 34, 0, 0, 0x0, 0x0, 0x0 },

{ 14224830033, 0x10000050f, 6251, 13, 52, 46, 0x0, 0x2, 0x0 },

{ 14224842712, 0x10000050f, 6251, 13, 52, 46, 0x1, 0x2, 0x0 },

{ 14224854268, 0x10000050f, 6251, 13, 52, 46, 0x2, 0x2, 0x0 },

{ 14224865662, 0x10000050f, 6251, 13, 52, 46, 0x3, 0x2, 0x0 },

{ 14229267242, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000000, 0x0 },

{ 14229270783, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },

{ 14229271956, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },

{ 14229272928, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },

{ 14229274058, 0x10000050f, 187, 9, 47, 64, 0x0, 0xf, 0x0 },

{ 14229275359, 0x10000050f, 199, 10, 0, 0, 0x0, 0x0, 0x0 },

{ 14229278637, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },

{ 14229280815, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },

{ 14229282813, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },

{ 14229391121, 0x10000050f, 155, 42, 53, 0, 0x1, 0x5, 0x0 },

{ 14229391785, 0x10000050f, 190, 41, 61, 61, 0x1, 0x1, 0x0 },

{ 14229391938, 0x10000050f, 1642, 25, 58, 0, 0x1, 0x0, 0x0 },

{ 14229465467, 0x10000050f, 155, 42, 53, 0, 0x0, 0x5, 0x0 },

{ 14229465740, 0x10000050f, 190, 41, 61, 61, 0x0, 0x0, 0x1 },

{ 14229465943, 0x10000050f, 1642, 25, 58, 0, 0x0, 0x1, 0x0 },

{ 14229509201, 0x0, 228, 1, 43, 0, 0x2, 0xa, 0x0 },

{ 14229542327, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },

{ 14230258868, 0x10000050f, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },

{ 14230259310, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x0 },

{ 14230320415, 0x10000050f, 412, 37, 60, 49, 0x1, 0x1, 0x0 },

{ 14231262693, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },

{ 14231262971, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },

{ 14234878891, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },

{ 14235747882, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },

{ 14235748087, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },

{ 14236695604, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },

{ 14236695874, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },

{ 14237607899, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },

{ 14238463020, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },

{ 14239353521, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },

{ 14240371308, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },

{ 14241219992, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },

{ 14242047930, 0x0, 46, 39, 0, 0, 0x1, 0x0, 0x0 },

{ 14242049238, 0x10000050f, 155, 42, 53, 0, 0x0, 0x6, 0x0 },

{ 14242261800, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },

{ 14243228657, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },

{ 14529359335, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },

{ 14530349162, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc000e0000, 0x0 },

{ 14531428401, 0x10000050f, 5447, 6, 46, 0, 0x1, 0x100000000, 0x0 },

{ 14531439681, 0x10000050f, 544, 36, 59, 70, 0x1, 0x0, 0x0 },

{ 14531441455, 0x10000050f, 582, 36, 51, 0, 0x1, 0x1, 0x0 },

{ 14531480393, 0x0, 228, 1, 43, 0, 0x3, 0x1f4, 0x0 },

{ 14531566919, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x200000000, 0x0 },

{ 14531567636, 0x10000050f, 544, 36, 59, 70, 0x2, 0x0, 0x0 },

{ 14531643589, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },

{ 14531644089, 0x10000050f, 544, 36, 59, 70, 0x3, 0x0, 0x0 },

{ 14531717959, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },

{ 14531718425, 0x10000050f, 544, 36, 59, 70, 0x4, 0x0, 0x0 },

{ 14531737295, 0x10000050f, 1312, 32, 0, 0, 0x0, 0x0, 0x0 },

{ 14531894546, 0x10000050f, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },

{ 14531895007, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },

{ 14532768498, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },

{ 14532768897, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },

{ 14536356135, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },

{ 14537213900, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },

{ 14537214150, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },

{ 14538121932, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },

{ 14538122203, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },

{ 14539037840, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },

{ 14539904464, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },

{ 14540803960, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },

{ 14541804464, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },

{ 14542673978, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },

{ 14543693665, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },

{ 14544674372, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },

{ 14544936893, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },

{ 14545921478, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc000e0000, 0x0 },

{ 14546987254, 0x10000050f, 5368, 5, 46, 0, 0x1, 0x100000000, 0x0 },

{ 14547054347, 0x10000050f, 544, 36, 59, 70, 0x1, 0x0, 0x0 },

{ 14547132448, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x200000000, 0x0 },

{ 14547132976, 0x10000050f, 544, 36, 59, 70, 0x2, 0x0, 0x0 },

{ 14547208064, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },

{ 14547208563, 0x10000050f, 544, 36, 59, 70, 0x3, 0x0, 0x0 },

{ 14547286224, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },

{ 14547286696, 0x10000050f, 544, 36, 59, 70, 0x4, 0x0, 0x0 },

{ 14547307084, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 14547347954, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 14786026170, 0x10000050f, 1325, 28, 0, 0, 0x0, 0x0, 0x0 },

{ 14786104576, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },

{ 14786107114, 0x0, 270, 17, 55, 0, 0x0, 0x10000050f, 0x0 },

{ 14786107909, 0x0, 282, 17, 55, 67, 0x0, 0x10000050f, 0x1 },

{ 14786108270, 0x0, 328, 16, 0, 0, 0x1, 0x0, 0x0 },

{ 15031236467, 0x0, 46, 39, 0, 0, 0x2, 0x0, 0x0 },

{ 15031238231, 0x10000050f, 155, 42, 53, 0, 0x0, 0xa, 0x0 },

{ 15031265572, 0x10000050f, 113, 8, 46, 63, 0x100, 0x100000000, 0x0 },

{ 15031277444, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 15036786921, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 15036787871, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 15036802875, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },

{ 15041416244, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000600, 0x0 },

{ 15041703846, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000001, 0x200020000000000 },

{ 15041711032, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },

{ 15041712451, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },

{ 15041713563, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },

{ 15041714944, 0x10000050f, 187, 9, 47, 64, 0x0, 0xf, 0x0 },

{ 15041716109, 0x10000050f, 199, 10, 0, 0, 0x0, 0x0, 0x0 },

{ 15041719488, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },

{ 15041721718, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },

{ 15041723778, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },

{ 15041730590, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 15287312574, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 15287325572, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 15287397371, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },

{ 15292065347, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000600, 0x0 },

{ 15296598335, 0x10000050f, 3517, 81, 83, 0, 0x1, 0x0, 0x0 },

{ 15296701570, 0x10000050f, 3541, 82, 83, 0, 0x0, 0x0, 0x0 },

{ 15296776455, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000001, 0x201020000000414 },

{ 15296783435, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },

{ 15296784661, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },

{ 15296785711, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },

{ 15296787021, 0x10000050f, 187, 9, 47, 64, 0x0, 0xf, 0x0 },

{ 15296788172, 0x10000050f, 199, 10, 0, 0, 0x3000100000001, 0x0, 0x0 },

{ 15296794879, 0x10000050f, 113, 8, 46, 63, 0x100, 0x100000000, 0x0 },

{ 15296800869, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },

{ 15296803345, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },

{ 15296805403, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },

{ 15296811162, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 15459659298, 0x10000050f, 1610, 14, 53, 0, 0x0, 0x2, 0x0 },

{ 15459686779, 0x10000050f, 155, 42, 53, 0, 0x0, 0x2, 0x0 },

{ 15459852624, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000001, 0x201020000000414 },

{ 15459859782, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },

{ 15459861048, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },

{ 15459862063, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },

{ 15459863181, 0x10000050f, 187, 9, 47, 64, 0x1, 0xe, 0x0 },

{ 15459864266, 0x10000050f, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },

{ 15459871895, 0x10000050f, 113, 8, 46, 63, 0x100, 0x100000000, 0x0 },

{ 15459878168, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },

{ 15459880799, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },

{ 15459882982, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },

{ 15459909760, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 15538267386, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 15538268706, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 15538310932, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 15788856924, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 15788858496, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 15788884746, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 16038656339, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 16038658169, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 16038685633, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 16290321387, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 16290323093, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 16290360567, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 16551526603, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 16551528535, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 16551578565, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

{ 16801300649, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },

{ 16801302236, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },

{ 16801316976, 0x10000050f, 155, 42, 53, 0, 0x0, 0x8, 0x0 },

{ 16801333625, 0x10000050f, 435, 40, 60, 49, 0x1, 0x0, 0x10001 },

{ 16801333925, 0x10000050f, 435, 40, 60, 49, 0x2, 0x0, 0x0 },

{ 16801334264, 0x10000050f, 435, 40, 60, 49, 0x3, 0x0, 0x0 },

{ 16801334435, 0x10000050f, 435, 40, 60, 49, 0x4, 0x0, 0x0 },

{ 16801335730, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },

}

};

### End: displaypolicyd (took 0.005 sec) #####################################

### Start: Devices ###########################################################

### Start: AGDC[1] 0x10000046c ###############################################

IOService:/IOResources/AppleGPUWrangler

Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)

### End: AGDC[1] 0x10000046c (took 0.001 sec) ################################

### Start: AGDC[2] 0x100000465 ###############################################

IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler

Vendor: AMD [00001002]: GPURoot [7 30000] (0)

### End: AGDC[2] 0x100000465 (took 0.001 sec) ################################

### Start: AGDC[3] 0x10000050d ###############################################

IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices

See 0x10000050f

### End: AGDC[3] 0x10000050d (took 0.001 sec) ################################

### Start: AGDC[4] 0x10000050f ###############################################

IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl

Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)

--BEGIN Device Dump--

Link Count 4

Initialized YES

Enabled YES

Hw Ready YES

Hw Attached YES

Framebuffers Enabled 4 of 4

Mapped Framebuffers 0

Asic Info DICT 22

ID: Family Id 143

ID: Device Id 0x731f

ID: HW Revision 0x2

ID: PCI Revision Id 0xc1

ID: Emulated Revision 3

IS eGPU NO

PCI Address 7:0:0

FB Loc Base 0x8000000000

FB Loc Top 0x81FFFFFFFF

FB Offset 0

MEM SIZE: FB Size 8176 MB

MEM SIZE: FB Aperture 256 MB

MEM SIZE: Reg Aperture 512 KB

MEM CONFIG: VRAM Type GDDR6

MEM CONFIG: VRAM Width 256

BRANDING: Family Name Radeon RX

BRANDING: Device Name 5700 XT

BRANDING: Model Name Radeon RX 5700 XT

DAL Caps DICT 10

MAX Links 4

MAX Streams 6

MAX Audios 6

MAX Downscale Ratio 2.0

MAX Cursor Size 256

I2C Speed 100 KHz

linear pitch align 64

dcc_const_color NO

dual_link_dvi NO

dsc_support YES

Power Play DICT 13

Is Supported YES

Is Initialized YES

Is Enabled YES

Current Level (SW) 0

Current Level (HW) 0

HW TDP Limit 180

TDP Table Count 16

Vram Reserved Size 1048576

Vram Reserved Used 69632

Vram Reserved Offset 0x8000300000

Version SMU 0x2a3400

Version PPLIB 2.775

Atom Bios DICT 5

Crystal Freq 100000 KHz

Boot Display Clock 625000 KHz

BIOS Image Size 65536

Part Number 113-180W2NAVI10XT8GD

FW Reserved Size 0 KB

Link@0 DICT 23

Link Index 0

Status: Initialized YES

Status: Enabled YES

Status: Training NO

Status: Ignored NO

Status: Ignored Panel Timing NO

Feature: Internal NO

Feature: Built-In NO

Feature: Fixed NO

Last Event None

Stream State ENABLED

Active Signal Type DP SST

Engine ID DIG_E

Transmitter ID UNIPHY_E

HPD ID HPD_6

DDC Channel DDC_6

Connector ID 19:1:3

Connector Type Display Port

Connected Status Link0 DICT 6

Link Index 0

Connected YES

Signal Type DP SST

Reported Lane Count 4

Reported Link Rate 54000

Reported Link Spread 16

Active Status Link0 DICT 6

Link Index 0

Connected YES

Signal Type DP SST

Reported Lane Count 4

Reported Link Rate 54000

Reported Link Spread 16

Connected DP Config Link0 DICT 13

DPCD Revision 0x12

Link Rate 54000 (max:54000)

Lane Count 4 (max:4)

CR Time 100 uSec

EQ Time 400 uSec

EQ Pattern TPS:3

Voltage Level:0

Pre-Emphasis Level:0

Downspread Disabled

Scrambler Disabled

Enhanced Framing Enabled

MST Enabled NO

Sleep Value 0

Active DP Config Link0 DICT 13

DPCD Revision 0x12

Link Rate 54000 (max:54000)

Lane Count 4 (max:4)

CR Time 0 uSec

EQ Time 0 uSec

EQ Pattern TPS:0

Voltage Level:2

Pre-Emphasis Level:1

Downspread Enabled

Scrambler Disabled

Enhanced Framing Enabled

MST Enabled NO

Sleep Value 0

Link@1 DICT 23

Link Index 1

Status: Initialized YES

Status: Enabled YES

Status: Training NO

Status: Ignored NO

Status: Ignored Panel Timing NO

Feature: Internal NO

Feature: Built-In NO

Feature: Fixed NO

Last Event None

Stream State DISABLED

Active Signal Type NONE

Engine ID DIG_C

Transmitter ID UNIPHY_C

HPD ID HPD_2

DDC Channel DDC_2

Connector ID 19:2:3

Connector Type Display Port

Connected Status Link1 DICT 6

Link Index 1

Connected NO

Signal Type NONE

Reported Lane Count 0

Reported Link Rate 0

Reported Link Spread 0

Active Status Link1 DICT 6

Link Index 0

Connected NO

Signal Type NONE

Reported Lane Count 0

Reported Link Rate 0

Reported Link Spread 0

Connected DP Config Link1 DICT 13

DPCD Revision 0

Link Rate 0 (max:0)

Lane Count 0 (max:0)

CR Time 0 uSec

EQ Time 0 uSec

EQ Pattern TPS:0

Voltage Level:0

Pre-Emphasis Level:0

Downspread Disabled

Scrambler Disabled

Enhanced Framing Disabled

MST Enabled NO

Sleep Value 0

Active DP Config Link1 DICT 13

DPCD Revision 0

Link Rate 0 (max:0)

Lane Count 0 (max:0)

CR Time 0 uSec

EQ Time 0 uSec

EQ Pattern TPS:0

Voltage Level:0

Pre-Emphasis Level:0

Downspread Disabled

Scrambler Disabled

Enhanced Framing Disabled

MST Enabled NO

Sleep Value 0

Link@2 DICT 23

Link Index 2

Status: Initialized YES

Status: Enabled YES

Status: Training NO

Status: Ignored NO

Status: Ignored Panel Timing NO

Feature: Internal NO

Feature: Built-In NO

Feature: Fixed NO

Last Event None

Stream State DISABLED

Active Signal Type NONE

Engine ID DIG_D

Transmitter ID UNIPHY_D

HPD ID HPD_1

DDC Channel DDC_1

Connector ID 19:3:3

Connector Type Display Port

Connected Status Link2 DICT 6

Link Index 2

Connected NO

Signal Type NONE

Reported Lane Count 0

Reported Link Rate 0

Reported Link Spread 0

Active Status Link2 DICT 6

Link Index 0

Connected NO

Signal Type NONE

Reported Lane Count 0

Reported Link Rate 0

Reported Link Spread 0

Connected DP Config Link2 DICT 13

DPCD Revision 0

Link Rate 0 (max:0)

Lane Count 0 (max:0)

CR Time 0 uSec

EQ Time 0 uSec

EQ Pattern TPS:0

Voltage Level:0

Pre-Emphasis Level:0

Downspread Disabled

Scrambler Disabled

Enhanced Framing Disabled

MST Enabled NO

Sleep Value 0

Active DP Config Link2 DICT 13

DPCD Revision 0

Link Rate 0 (max:0)

Lane Count 0 (max:0)

CR Time 0 uSec

EQ Time 0 uSec

EQ Pattern TPS:0

Voltage Level:0

Pre-Emphasis Level:0

Downspread Disabled

Scrambler Disabled

Enhanced Framing Disabled

MST Enabled NO

Sleep Value 0

Link@3 DICT 23

Link Index 3

Status: Initialized YES

Status: Enabled YES

Status: Training NO

Status: Ignored NO

Status: Ignored Panel Timing NO

Feature: Internal NO

Feature: Built-In NO

Feature: Fixed NO

Last Event None

Stream State DISABLED

Active Signal Type NONE

Engine ID DIG_A

Transmitter ID UNIPHY_A

HPD ID HPD_4

DDC Channel DDC_4

Connector ID 12:1:3

Connector Type HDMI

Connected Status Link3 DICT 6

Link Index 3

Connected NO

Signal Type NONE

Reported Lane Count 0

Reported Link Rate 0

Reported Link Spread 0

Active Status Link3 DICT 6

Link Index 0

Connected NO

Signal Type NONE

Reported Lane Count 0

Reported Link Rate 0

Reported Link Spread 0

Connected DP Config Link3 DICT 13

DPCD Revision 0

Link Rate 0 (max:0)

Lane Count 0 (max:0)

CR Time 0 uSec

EQ Time 0 uSec

EQ Pattern TPS:0

Voltage Level:0

Pre-Emphasis Level:0

Downspread Disabled

Scrambler Disabled

Enhanced Framing Disabled

MST Enabled NO

Sleep Value 0

Active DP Config Link3 DICT 13

DPCD Revision 0

Link Rate 0 (max:0)

Lane Count 0 (max:0)

CR Time 0 uSec

EQ Time 0 uSec

EQ Pattern TPS:0

Voltage Level:0

Pre-Emphasis Level:0

Downspread Disabled

Scrambler Disabled

Enhanced Framing Disabled

MST Enabled NO

Sleep Value 0

Framebuffer@0 DICT 19

FB Index 0

FB Online YES

Status: Started Yes

Status: Opened No

Status: Enabled Yes

Status: PageFlipEnabled Yes

Status: ConsoleDisplay No

Status: FixedDisplay No

Status: Mapped No

WSAA State "Accelerated"

Power State Wake

IOP Supported YES

Current Config FB0 DICT 8

FB ID 0

Sleep State 0x2

Flags: SingleLinkValid SET

Flags: DPLinkConfigValid SET

Flags: ScanoutResourceConfig SET

Sink 1.0

Scanout Count 1

Display Path (Active) FB0 DICT 21

surface_address 0x600000

surface_bytes 15728640

bytes_per_row 10240

bits_per_pixel 32

bits_per_component 10

Is Connected YES

Is Online YES

Is SW Scaled NO

WSAA State "Accelerated"

SW Src Viewport 2560x1440 @ {0,0}

SW Dst Viewport 2560x1440 @ {0,0}

Stream Count 1

FB Index 0

Group Index 0

Mode Id 0x80003000

Depth Index 2

HW Src Viewport 2560x1440 @ {0,0}

HW Dst Viewport 2560x1440 @ {0,0}

Underscan 100 % - {75:100}

Stream@0 FB0 DICT 11

Stream ID 0

Is Enabled YES

Is DPMS Off NO

Change Flags 0

Option Flags 0

Sink Address 0.0

HW Src Viewport 2560x1440 @ {0,0}

HW Dst Viewport 2560x1440 @ {0,0}

Timing FB0 DICT 24

Display Mode 80003000

Refresh Rate (Calculated) 60 Hz

Refresh Rate (Stored) 0.0 Hz

Window (Active) 2560 x 1440

Window (Scaled) 0 x 0

Scaled Inset 0 x 0

Pixel Clock 241500000 Hz

Scaler Flags 0

Signal Config 0x2

Blanking 160 x 41

Border {left,right} {0, 0}

Border {top,bottom} {0, 0}

Sync Offset (h, v) 48 x 3

Sync Pulse Width (h, v) 32, 5

Sync Config (h, v) + x -

Num Links 2

VB Extension 0

OUTPUT: Pixel Encoding 1 (RGB444)

OUTPUT: Bits Per Color Component 4 (10 bpc)

OUTPUT: Colorimetry 1 (RGB)

OUTPUT: Dynamic Range 1 (SDR)

DSC: Num Slices 0 x 0

DSC: Slice Dimensions 0 x 0

DSC: Compressed BPP 0 bits, (0 bits*16) )

IOPresenter FB0 DICT 11

FB Index 0

Waiting On VBlank 0

Waiting on VUpdate 0

Outstanding 0

Am I Busy NO

Enabled YES

Expected V.Blank 1

Expected V.Update 0

Metric Data FB0 DICT 5

Last Transaction Type 0x5

Last Transaction Timestamp 214406404477

Transaction Counter 1554

Last V.Blank Timestamp 215251895891

Last V.Update Timestamp 215252357603

Framebuffer@1 DICT 17

FB Index 1

FB Online NO

Status: Started Yes

Status: Opened No

Status: Enabled Yes

Status: PageFlipEnabled Yes

Status: ConsoleDisplay No

Status: FixedDisplay No

Status: Mapped No

WSAA State "Accelerated"

Power State Wake

IOP Supported YES

Display Path (Active) FB1 DICT 20

surface_address 0x600100

surface_bytes 0

bytes_per_row 0

bits_per_pixel 32

bits_per_component 8

Is Connected NO

Is Online NO

Is SW Scaled NO

WSAA State "Accelerated"

SW Src Viewport 1x1 @ {0,0}

SW Dst Viewport 1x1 @ {0,0}

Stream Count 0

FB Index 1

Group Index 0

Mode Id 0x3000

Depth Index 1

HW Src Viewport 1x1 @ {0,0}

HW Dst Viewport 1x1 @ {0,0}

Underscan 100 % - {100:100}

Timing FB1 DICT 24

Display Mode 3000

Refresh Rate (Calculated) 0 Hz

Refresh Rate (Stored) 0.0 Hz

Window (Active) 1 x 1

Window (Scaled) 0 x 0

Scaled Inset 0 x 0

Pixel Clock 0 Hz

Scaler Flags 0

Signal Config 0

Blanking 0 x 0

Border {left,right} {0, 0}

Border {top,bottom} {0, 0}

Sync Offset (h, v) 0 x 0

Sync Pulse Width (h, v) 0, 0

Sync Config (h, v) - x -

Num Links 0

VB Extension 0

OUTPUT: Pixel Encoding 0 (n/a)

OUTPUT: Bits Per Color Component 0 (n/a)

OUTPUT: Colorimetry 0 (n/a)

OUTPUT: Dynamic Range 0 (n/a)

DSC: Num Slices 0 x 0

DSC: Slice Dimensions 0 x 0

DSC: Compressed BPP 0 bits, (0 bits*16) )

IOPresenter FB1 DICT 10

FB Index 1

Waiting On VBlank 0

Waiting on VUpdate 0

Outstanding 0

Am I Busy NO

Enabled YES

Expected V.Blank 0

Expected V.Update 0

Metric Data FB1 DICT 5

Last Transaction Type 0

Last Transaction Timestamp 0

Transaction Counter 0

Last V.Blank Timestamp 0

Last V.Update Timestamp 0

Framebuffer@2 DICT 17

FB Index 2

FB Online NO

Status: Started Yes

Status: Opened No

Status: Enabled Yes

Status: PageFlipEnabled Yes

Status: ConsoleDisplay No

Status: FixedDisplay No

Status: Mapped No

WSAA State "Accelerated"

Power State Wake

IOP Supported YES

Display Path (Active) FB2 DICT 20

surface_address 0x600200

surface_bytes 0

bytes_per_row 0

bits_per_pixel 32

bits_per_component 8

Is Connected NO

Is Online NO

Is SW Scaled NO

WSAA State "Accelerated"

SW Src Viewport 1x1 @ {0,0}

SW Dst Viewport 1x1 @ {0,0}

Stream Count 0

FB Index 2

Group Index 0

Mode Id 0x3000

Depth Index 1

HW Src Viewport 1x1 @ {0,0}

HW Dst Viewport 1x1 @ {0,0}

Underscan 100 % - {100:100}

Timing FB2 DICT 24

Display Mode 3000

Refresh Rate (Calculated) 0 Hz

Refresh Rate (Stored) 0.0 Hz

Window (Active) 1 x 1

Window (Scaled) 0 x 0

Scaled Inset 0 x 0

Pixel Clock 0 Hz

Scaler Flags 0

Signal Config 0

Blanking 0 x 0

Border {left,right} {0, 0}

Border {top,bottom} {0, 0}

Sync Offset (h, v) 0 x 0

Sync Pulse Width (h, v) 0, 0

Sync Config (h, v) - x -

Num Links 0

VB Extension 0

OUTPUT: Pixel Encoding 0 (n/a)

OUTPUT: Bits Per Color Component 0 (n/a)

OUTPUT: Colorimetry 0 (n/a)

OUTPUT: Dynamic Range 0 (n/a)

DSC: Num Slices 0 x 0

DSC: Slice Dimensions 0 x 0

DSC: Compressed BPP 0 bits, (0 bits*16) )

IOPresenter FB2 DICT 10

FB Index 2

Waiting On VBlank 0

Waiting on VUpdate 0

Outstanding 0

Am I Busy NO

Enabled YES

Expected V.Blank 0

Expected V.Update 0

Metric Data FB2 DICT 5

Last Transaction Type 0

Last Transaction Timestamp 0

Transaction Counter 0

Last V.Blank Timestamp 0

Last V.Update Timestamp 0

Framebuffer@3 DICT 17

FB Index 3

FB Online NO

Status: Started Yes

Status: Opened No

Status: Enabled Yes

Status: PageFlipEnabled Yes

Status: ConsoleDisplay No

Status: FixedDisplay No

Status: Mapped No

WSAA State "Accelerated"

Power State Wake

IOP Supported YES

Display Path (Active) FB3 DICT 20

surface_address 0x600300

surface_bytes 0

bytes_per_row 0

bits_per_pixel 32

bits_per_component 8

Is Connected NO

Is Online NO

Is SW Scaled NO

WSAA State "Accelerated"

SW Src Viewport 1x1 @ {0,0}

SW Dst Viewport 1x1 @ {0,0}

Stream Count 0

FB Index 3

Group Index 0

Mode Id 0x3000

Depth Index 1

HW Src Viewport 1x1 @ {0,0}

HW Dst Viewport 1x1 @ {0,0}

Underscan 100 % - {100:100}

Timing FB3 DICT 24

Display Mode 3000

Refresh Rate (Calculated) 0 Hz

Refresh Rate (Stored) 0.0 Hz

Window (Active) 1 x 1

Window (Scaled) 0 x 0

Scaled Inset 0 x 0

Pixel Clock 0 Hz

Scaler Flags 0

Signal Config 0

Blanking 0 x 0

Border {left,right} {0, 0}

Border {top,bottom} {0, 0}

Sync Offset (h, v) 0 x 0

Sync Pulse Width (h, v) 0, 0

Sync Config (h, v) - x -

Num Links 0

VB Extension 0

OUTPUT: Pixel Encoding 0 (n/a)

OUTPUT: Bits Per Color Component 0 (n/a)

OUTPUT: Colorimetry 0 (n/a)

OUTPUT: Dynamic Range 0 (n/a)

DSC: Num Slices 0 x 0

DSC: Slice Dimensions 0 x 0

DSC: Compressed BPP 0 bits, (0 bits*16) )

IOPresenter FB3 DICT 10

FB Index 3

Waiting On VBlank 0

Waiting on VUpdate 0

Outstanding 0

Am I Busy NO

Enabled YES

Expected V.Blank 0

Expected V.Update 0

Metric Data FB3 DICT 5

Last Transaction Type 0

Last Transaction Timestamp 0

Transaction Counter 0

Last V.Blank Timestamp 0

Last V.Update Timestamp 0

--END Device Dump--

### End: AGDC[4] 0x10000050f (took 0.012 sec) ################################

### End: Devices (took 0.013 sec) ############################################

### Start: mpxdiagnose #######################################################

### End: mpxdiagnose (took 0.020 sec) ########################################

AGDCDiagnose completed in 0.317860 seconds

joevt · Feb 27, 2023

fuinhu said:
I'm using two DisplayPort cables but i cant get past 3840x2160.

The Mac Pro specs are the following:

4.1 flashed to 5.1

latest bootROM

Dual Xeons E5520

128gb RAM ECC

XFX AMD Radeon RX5700XT 8gb Triple Ventilation

OWC Accelsior M2 with a Crucial P3 1Tb

I'm running Catalina with all the updates, using Martin Lo package of OpenCore 0.8.8 with the following boot-args:

enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -no_compat_check no32exec=0

Faking the SMBios to a MacPro 6,1 because i read somewhere that MST had somehting to do with the board ID

I already tried disabling WEG, lilu and RadeonBoost but it didnt make any difference.

Heres a copy of AGDC diagnose:

Please edit your post to make it more readable:
Use [code] ... [/code] instead of [quote] ... [/quote], and paste the AGDC diagnose text into a text editor first to make sure you don't get triple line spaced text from Terminal.app. In the text editor, you can replace triple line feed with single line feed if necessary.

The AGDC diagnose only shows one DisplayPort connection:

Code:

Connections:
* 1: [DP 1.2 4 x HBR2] Status: [4 x HBR2 7777] caps [features 0x101141b, p_encoding 0xd] Sink OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0 FW Version: 0.0
2:
3:
4:

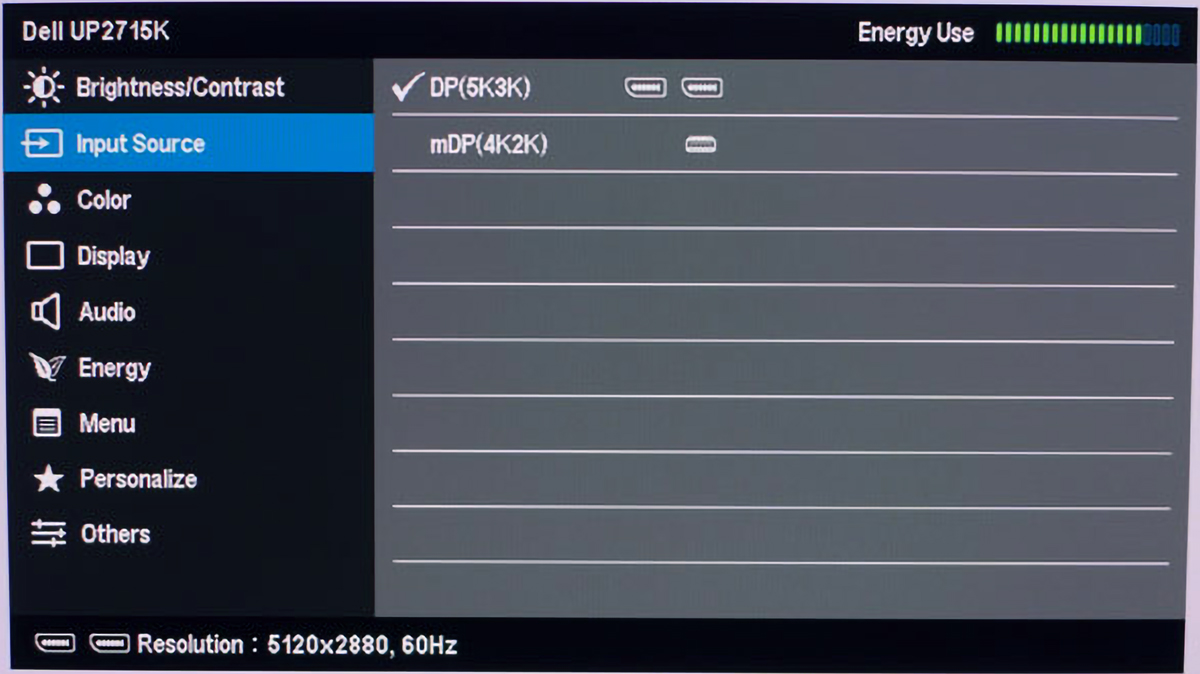

5K requires both DisplayPort connections to work. Make sure you're using the full sized DisplayPort connectors on the UP2715K. The Mini DisplayPort connector is only for 4K. Make sure the onscreen menu of the UP2715K is set to dual DisplayPort input instead of single Mini DisplayPort input.

First, try testing two separate displays to make sure both DisplayPort outputs work.

Switch cables to see if both cables are ok.
Switch ports on the 5700XT to make sure both ports are working.

fuinhu · Feb 27, 2023

joevt said:
Please edit your post to make it more readable:
Use [code] ... [/code] instead of [quote] ... [/quote], and paste the AGDC diagnose text into a text editor first to make sure you don't get triple line spaced text from Terminal.app. In the text editor, you can replace triple line feed with single line feed if necessary.

I'm sorry, i'll edit it.

joevt said:
The AGDC diagnose only shows one DisplayPort connection:

Code:

Connections: * 1: [DP 1.2 4 x HBR2] Status: [4 x HBR2 7777] caps [features 0x101141b, p_encoding 0xd] Sink OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0 FW Version: 0.0 2: 3: 4:

5K requires both DisplayPort connections to work. Make sure you're using the full sized DisplayPort connectors on the UP2715K. The Mini DisplayPort connector is only for 4K. Make sure the onscreen menu of the UP2715K is set to dual DisplayPort input instead of single Mini DisplayPort input.

First, try testing two separate displays to make sure both DisplayPort outputs work.

Switch cables to see if both cables are ok.
Switch ports on the 5700XT to make sure both ports are working.

I know it requires two DP connections, i'm using two cables

I'll try to get another monitor to test the DP ports

Thank you!

arw · Feb 27, 2023

Just making sure, did you verify the correct input on the Dell?

joevt said:
Make sure the onscreen menu of the UP2715K is set to dual DisplayPort input

fuinhu · Feb 27, 2023

arw said:
Just making sure, did you verify the correct input on the Dell?

It only gives me two options:
- DP 5K3K
- mDP 4K2K

I'm choosing DP.

arw · Feb 27, 2023

Ok, too bad. Good luck then with your other testing.

fuinhu · Feb 27, 2023

arw said:
Ok, too bad. Good luck then. Btw, this is how it should look like (see bottom left).

yeah i know, mine shows the 2DP and 3840x2160@60Hz and then Maximum: 5120×2880@60hz

I already asked a friend if he can borrow me another monitor in order to see if it is something with the gpu/displayport cables

joevt · Feb 27, 2023

You see in the AGDCDiagnose output where it shows that DP was connected to connection 1. You should test if you can make it appear for connection 2,3, or 4 by switching the cables on the 5700XT.

joevt · Feb 27, 2023

Also, it may be helpful to pull the power cable from the UP2715K and reconnect it.

fuinhu · Feb 27, 2023

joevt said:
You see in the AGDCDiagnose output where it shows that DP was connected to connection 1. You should test if you can make it appear for connection 2,3, or 4 by switching the cables on the 5700XT.

yeah it shows the different ports and work at 4K, tried that with both cables and every port posible

joevt said:
Also, it may be helpful to pull the power cable from the UP2715K and reconnect it.

Also did that but it remais at 4K

fuinhu · Feb 27, 2023

I've just tested it with two monitors connected via DisplayPort and its working fine. So its no the 5700xt neither the cables.
I guess its something on Catalina that i have to configure.

fuinhu · Feb 27, 2023

Here's AGDC Diagnose with both displays connected

Code:

AGDCDiagnose Version: 5.2.6.6
### Start: GPUWrangler #######################################################
Stats: GPUCAdded:1 GpuAdded:1 Eject:0/f0/fd0/c0 Remove:0/t0 Un:0

gpu 0xdb91 flags 0xbe000020 (DG,published,driversStarted,hasGPUC,quiet,pubSched,pubArmed) vid.did=1002.731f b:d:f=7:0:0
gpu 0xdb91        pci 0x100000202 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0
gpu 0xdb91       agdc 0x100000463     /AMDRadeonX6000_AmdAgdcServices
gpu 0xdb91       gpuc 0x1000003cf     /AMDRadeonX6000_AmdGpuWrangler
gpu 0xdb91 agdpclient 0x100000465     /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
gpu 0xdb91      accel 0x1000003fb     /AMDRadeonX6000_AMDNavi10GraphicsAccelerator
gpu 0xdb91      fb0:0 0x10000040f     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0
gpu 0xdb91      fb1:1 0x100000411     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1
gpu 0xdb91      fb2:2 0x100000413     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2
gpu 0xdb91      fb3:3 0x100000415     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3

### End: GPUWrangler (took 0.109 sec) ########################################

### Start: EFIDisplayInfo ####################################################
Not present
Dumping EFI data for GPU Path IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0
### End: EFIDisplayInfo (took 0.107 sec) #####################################

### Start: Mux ###############################################################
### End: Mux (took 0.001 sec) ################################################

### Start: Ports #############################################################
### Start: AGDC[1] 0x1000003d7 ###############################################
IOService:/IOResources/AppleGPUWrangler
Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)
### End: AGDC[1] 0x1000003d7 (took 0.002 sec) ################################

### Start: AGDC[2] 0x1000003cf ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler
Vendor: AMD [00001002]: GPURoot [7 30000] (0)
### End: AGDC[2] 0x1000003cf (took 0.001 sec) ################################

### Start: AGDC[3] 0x100000463 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices
See 0x100000465
### End: AGDC[3] 0x100000463 (took 0.001 sec) ################################

### Start: AGDC[4] 0x100000465 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)
FBs: 4, Ports: 0x1e mst:0xe ddc:0x1e aux:0xe, Streams: dp:6 dvi:4 mst:6 max:6
Framebuffers:
* 0: Address:  1.0 Stream: Enabled  Group: -1  Online   Assoc'd  MayGroup
* 1: Address:  2.0 Stream: Enabled  Group: -1  Online   Assoc'd  MayGroup
  2: Address:  0.0 Stream: Not Associated Group: -1                    MayGroup
  3: Address:  0.0 Stream: Not Associated Group: -1                    MayGroup
Port Capabilities:
* 1: AUX, DDC, MST
* 2: AUX, DDC, MST
  3: AUX, DDC, MST
  4: DDC
Connections:
* 1: [DP 1.2 4 x HBR ]      Status: [4 x HBR  7777]      caps [features 0x101141b, p_encoding 0xd]             Sink   OUI:018-052-086 ABCDEF [065-066-067-068-069-070] HW Version: 0    FW Version: 0.0
* 2: [DP 1.2 4 x HBR2]      Status: [4 x HBR2 7777]      caps [features 0x101141b, p_encoding 0xd]             Sink   OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0    FW Version: 0.0
  3:
  4:
## Register Dump Port 1 - Start ##
000000: 0x12 0x0a 0x84 0x01 0x01 0x00 0x01 0x40 0x02 0x02 0x06 0x00 0x00 0x00 0x00 0x00
  Reg: 000000: 12 : DPCD_REV: 1.2
  Reg: 000001: 0a : MAX_LINK_RATE: HBR
  Reg: 000002: 84 : MAX_LANE_COUNT: 4, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 1
  Reg: 000003: 01 : MAX_DOWNSPREAD: 0.5% down, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 000004: 01 : NORP: 1
  Reg: 000005: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 000006: 01 : MAIN_LINK_CHANNEL_CODING: ANSI 8B/10B
  Reg: 000007: 40 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 1, OUI: 0
  Reg: 000008: 02 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 1, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 000009: 02 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 96
  Reg: 00000a: 06 : RECEIVE_PORT1_CAP_0:
  Reg: 00000b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00000c: 00 : I2C Speed:
  Reg: 00000d: 00 : eDP_CONFIGURATION_CAP: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00000e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00000f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
000020: 0x00 0x00 0x00
  Reg: 000020: 00 : FAUX_CAP: FAUX_CAP: 0
  Reg: 000021: 00 : MSTM_CAP: MST_CAP: 0
  Reg: 000022: 00 : NUMBER_OF_AUDIO_ENDPOINTS: 0
000060: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 000060: 00 : DSC Support: 0
  Reg: 000061: 00 : DSC Algorithm revision: 0
  Reg: 000062: 00 : DSC RC Buffer Block size: 0
  Reg: 000063: 00 : DSC RC Buffer size: 0
  Reg: 000064: 00 : DSC slice Capabilities 1 : 0
  Reg: 000065: 00 : DSC Line buffer bit depth: 0
  Reg: 000066: 00 : DSC Block prediction support: 0
  Reg: 000067: 00 : DSC Maximum bit per pixel: 0
  Reg: 000068: 00 : DSC Maximum bit per pixel: 0
  Reg: 000069: 00 : DSC Decoder color format capabilities: 0
  Reg: 00006a: 00 : DSC decoder color depth capabilities: 0
  Reg: 00006b: 00 : DSC Peak Throughput: 0
  Reg: 00006c: 00 : DSC Maximum Slice width: 0
  Reg: 00006d: 00 : DSC Slice capabilities 2: 0
  Reg: 00006e: 00 : Reserved: 0
  Reg: 00006f: 00 : DSC Bits per pixel increment: 0
000090: 0x00
  Reg: 000090: 00 : FEC Capability: 0x0
000080: 0x00 0x11 0x22 0x33 0x44 0x55 0x66 0x77 0x88 0x99 0xaa 0xbb 0xcc 0xdd 0xee 0xff
  Reg: 000080: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000081: 11 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [1] Analogue VGA, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 1 720x480 interlaced, 60Hz
  Reg: 000082: 22 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [2] DVI, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 2 720x480 interlaced 50Hz
  Reg: 000083: 33 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [3] HDMI, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 3 1920x1080 interlaced, 60Hz
  Reg: 000084: 44 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [4] Other, No EDID, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 4 1920x1080 interlaced, 50Hz
  Reg: 000085: 55 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [5] Reserved, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 5 1280x720 progressive, 60Hz
  Reg: 000086: 66 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [6] Reserved, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 6 1280x720 progressive, 50Hz
  Reg: 000087: 77 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [7] Reserved, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 7 Reserved
  Reg: 000088: 88 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000089: 99 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [1] Analogue VGA, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 1 720x480 interlaced, 60Hz
  Reg: 00008a: aa : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [2] DVI, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 2 720x480 interlaced 50Hz
  Reg: 00008b: bb : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [3] HDMI, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 3 1920x1080 interlaced, 60Hz
  Reg: 00008c: cc : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [4] Other, No EDID, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 4 1920x1080 interlaced, 50Hz
  Reg: 00008d: dd : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [5] Reserved, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 5 1280x720 progressive, 60Hz
  Reg: 00008e: ee : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [6] Reserved, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 6 1280x720 progressive, 50Hz
  Reg: 00008f: ff : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [7] Reserved, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 7 Reserved
000100: 0x0a 0x84
  Reg: 000100: 0a : LINK_BW_SET: HBR
  Reg: 000101: 84 : LANE_COUNT_SET: LANE_COUNT_SET 4, ENHANCED_FRAME_EN: 1
000107: 0x10
  Reg: 000107: 10 : DOWNSPREAD_CTRL: SPREAD_AMP: 1, MSA_TIMING_PAR_IGNORE_EN: 0
00010a: 0x00
  Reg: 00010a: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
000111: 0x00
  Reg: 000111: 00 : MSTM_CTRL: UPSTREAM_IS_SRC:0 UP_REQ_EN:0 MST_EN:0
000120: 0x00
  Reg: 000120: 00 : FEC Configuration: 0x0
000160: 0x00
  Reg: 000160: 00 : DSC Enable: 0x0
000200: 0x01 0x00 0x77 0x77 0x81 0x03 0x11 0x11
  Reg: 000200: 01 : SINK_COUNT: SINK_COUNT 1, CP_READY: 0
  Reg: 000202: 77 : LANE0: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000202: 77 : LANE1: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE2: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE3: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000205: 03 : SINK_STATUS: RECEIVE_PORT_0_STATUS: 1, RECEIVE_PORT_1_STATUS: 1
  Reg: 000206: 11 : LANE0: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
  Reg: 000206: 11 : LANE1: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
  Reg: 000207: 11 : LANE2: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
  Reg: 000207: 11 : LANE3: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
00020f: 0x00
  Reg: 00020f: 00 : DSC Status: 0
000280: 0x00
  Reg: 000280: 00 : FEC Status: 0
00042f: 0x00
  Reg: 00042f: 00 : DISPLAY_ROTATION: 0x0
002200: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 002200: 00 : DPCD_REV: 0.0
  Reg: 002201: 00 : MAX_LINK_RATE: ???
  Reg: 002202: 00 : MAX_LANE_COUNT: 0, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 0
  Reg: 002203: 00 : MAX_DOWNSPREAD: None, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 002204: 00 : NORP: 0
  Reg: 002205: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 002206: 00 : MAIN_LINK_CHANNEL_CODING_SET: ??
  Reg: 002207: 00 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 0, OUI: 0
  Reg: 002208: 00 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 0, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 002209: 00 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 32
  Reg: 00220a: 00 : RECEIVE_PORT1_CAP_0:
  Reg: 00220b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00220c: 00 : I2C Speed:
  Reg: 00220d: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00220e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00220f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
068028: 0x01
  Reg: 068028: 01 : HDCP_CAPABLE: 1, REPEATER: 0
06921d: 0x00 0x00 0x00
  Reg: 06921d: 00 : VERSION: 0
  Reg: 06921f: 00 : HDCP_CAPABLE: 0, REPEATER: 0
069330: 0x00 0x00
  Reg: 069330: 00 : HDCP_Depth: 0
  Reg: 069331: 00 : HDCP_count: 0  HDCP2_0 Downstream: 0 HDCP1 Downstream: 0
069493: 0x00
  Reg: 069493: 00 : Ready: 0 , H' Available: 0, Pairing_available: 0 , Reauth_req: 0, Link Integrity: 0
## Register Dump Port 1 - End ##
## EDID Dump Port 1 - Start ##
// EDID Dump: device, 256 bytes, OK
uint8_t EDID_AOC_5e3_2402[] = {
  /* 000: */  0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00,
  /* 008: */  0x05, 0xe3, 0x02, 0x24, 0x1c, 0x33, 0x00, 0x00,
  /* 010: */  0x16, 0x1e, 0x01, 0x04, 0xa5, 0x35, 0x1e, 0x78,
  /* 018: */  0x3b, 0xfb, 0x55, 0xa3, 0x55, 0x50, 0x9d, 0x26,
  /* 020: */  0x0e, 0x50, 0x54, 0xbf, 0xef, 0x00, 0xd1, 0xc0,
  /* 028: */  0xb3, 0x00, 0x95, 0x00, 0x81, 0x80, 0x81, 0x40,
  /* 030: */  0x81, 0xc0, 0x01, 0x01, 0x01, 0x01, 0x02, 0x3a,
  /* 038: */  0x80, 0x18, 0x71, 0x38, 0x2d, 0x40, 0x58, 0x2c,
  /* 040: */  0x45, 0x00, 0x0f, 0x28, 0x21, 0x00, 0x00, 0x1e,
  /* 048: */  0x2a, 0x44, 0x80, 0xa0, 0x70, 0x38, 0x27, 0x40,
  /* 050: */  0x30, 0x20, 0x35, 0x00, 0x0f, 0x28, 0x21, 0x00,
  /* 058: */  0x00, 0x1a, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x32,
  /* 060: */  0x34, 0x47, 0x32, 0x57, 0x31, 0x47, 0x35, 0x0a,
  /* 068: */  0x20, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0xfd,
  /* 070: */  0x00, 0x30, 0x4b, 0x55, 0x55, 0x12, 0x01, 0x0a,
  /* 078: */  0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x01, 0x04,
  /* 080: */  0x02, 0x03, 0x1e, 0xf1, 0x4b, 0x90, 0x1f, 0x05,
  /* 088: */  0x14, 0x04, 0x13, 0x03, 0x12, 0x02, 0x11, 0x01,
  /* 090: */  0x23, 0x09, 0x07, 0x07, 0x83, 0x01, 0x00, 0x00,
  /* 098: */  0x65, 0x03, 0x0c, 0x00, 0x10, 0x00, 0x8c, 0x0a,
  /* 0a0: */  0xd0, 0x8a, 0x20, 0xe0, 0x2d, 0x10, 0x10, 0x3e,
  /* 0a8: */  0x96, 0x00, 0x0f, 0x28, 0x21, 0x00, 0x00, 0x18,
  /* 0b0: */  0x01, 0x1d, 0x00, 0x72, 0x51, 0xd0, 0x1e, 0x20,
  /* 0b8: */  0x6e, 0x28, 0x55, 0x00, 0x0f, 0x28, 0x21, 0x00,
  /* 0c0: */  0x00, 0x1e, 0x8c, 0x0a, 0xd0, 0x8a, 0x20, 0xe0,
  /* 0c8: */  0x2d, 0x10, 0x10, 0x3e, 0x96, 0x00, 0x0f, 0x28,
  /* 0d0: */  0x21, 0x00, 0x00, 0x18, 0x8c, 0x0a, 0xd0, 0x90,
  /* 0d8: */  0x20, 0x40, 0x31, 0x20, 0x0c, 0x40, 0x55, 0x00,
  /* 0e0: */  0x0f, 0x28, 0x21, 0x00, 0x00, 0x18, 0x00, 0x00,
  /* 0e8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x4d
};
## EDID Dump Port 1 - End ##
## Display Connection Stats Dump Port 1 - End ##
  Display mfgName: AOC, productID: 0x2402
  Time to EDID read: 1002
  Time to link train: 2527968
  Link training duration: 24358
  Link training status: 1
  Link training count: 1
  HDCP status: 0
  HDCP retry count: 1
  EFI w/a data: 0x0
## Display Connection Stats Dump Port 1 - End ##
## Register Dump Port 2 - Start ##
000000: 0x12 0x14 0xc4 0x01 0x01 0x00 0x01 0x83 0x02 0x02 0x06 0x00 0x00 0x00 0x00 0x00
  Reg: 000000: 12 : DPCD_REV: 1.2
  Reg: 000001: 14 : MAX_LINK_RATE: HBR2
  Reg: 000002: c4 : MAX_LANE_COUNT: 4, TPS3_SUPPORTED: 1, ENHANCED_FRAME_CAP: 1
  Reg: 000003: 01 : MAX_DOWNSPREAD: 0.5% down, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 000004: 01 : NORP: 1
  Reg: 000005: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 000006: 01 : MAIN_LINK_CHANNEL_CODING: ANSI 8B/10B
  Reg: 000007: 83 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 3, MSA_TIMING_PAR_IGNORED: 0, OUI: 1
  Reg: 000008: 02 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 1, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 000009: 02 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 96
  Reg: 00000a: 06 : RECEIVE_PORT1_CAP_0:
  Reg: 00000b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00000c: 00 : I2C Speed:
  Reg: 00000d: 00 : eDP_CONFIGURATION_CAP: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00000e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00000f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
000020: 0x00 0x00 0x00
  Reg: 000020: 00 : FAUX_CAP: FAUX_CAP: 0
  Reg: 000021: 00 : MSTM_CAP: MST_CAP: 0
  Reg: 000022: 00 : NUMBER_OF_AUDIO_ENDPOINTS: 0
000060: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 000060: 00 : DSC Support: 0
  Reg: 000061: 00 : DSC Algorithm revision: 0
  Reg: 000062: 00 : DSC RC Buffer Block size: 0
  Reg: 000063: 00 : DSC RC Buffer size: 0
  Reg: 000064: 00 : DSC slice Capabilities 1 : 0
  Reg: 000065: 00 : DSC Line buffer bit depth: 0
  Reg: 000066: 00 : DSC Block prediction support: 0
  Reg: 000067: 00 : DSC Maximum bit per pixel: 0
  Reg: 000068: 00 : DSC Maximum bit per pixel: 0
  Reg: 000069: 00 : DSC Decoder color format capabilities: 0
  Reg: 00006a: 00 : DSC decoder color depth capabilities: 0
  Reg: 00006b: 00 : DSC Peak Throughput: 0
  Reg: 00006c: 00 : DSC Maximum Slice width: 0
  Reg: 00006d: 00 : DSC Slice capabilities 2: 0
  Reg: 00006e: 00 : Reserved: 0
  Reg: 00006f: 00 : DSC Bits per pixel increment: 0
000090: 0x00
  Reg: 000090: 00 : FEC Capability: 0x0
000080: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 000080: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000081: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000082: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000083: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000084: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000085: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000086: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000087: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000088: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000089: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008a: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008b: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008c: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008d: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008e: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008f: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
000100: 0x14 0x84
  Reg: 000100: 14 : LINK_BW_SET: HBR2
  Reg: 000101: 84 : LANE_COUNT_SET: LANE_COUNT_SET 4, ENHANCED_FRAME_EN: 1
000107: 0x10
  Reg: 000107: 10 : DOWNSPREAD_CTRL: SPREAD_AMP: 1, MSA_TIMING_PAR_IGNORE_EN: 0
00010a: 0x00
  Reg: 00010a: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
000111: 0x00
  Reg: 000111: 00 : MSTM_CTRL: UPSTREAM_IS_SRC:0 UP_REQ_EN:0 MST_EN:0
000120: 0x08
  Reg: 000120: 08 : FEC Configuration: 0x8
000160: 0x00
  Reg: 000160: 00 : DSC Enable: 0x0
000200: 0x41 0x04 0x77 0x77 0x01 0x03 0x66 0x66
  Reg: 000200: 41 : SINK_COUNT: SINK_COUNT 1, CP_READY: 1
  Reg: 000202: 77 : LANE0: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000202: 77 : LANE1: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE2: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE3: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000205: 03 : SINK_STATUS: RECEIVE_PORT_0_STATUS: 1, RECEIVE_PORT_1_STATUS: 1
  Reg: 000206: 66 : LANE0: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
  Reg: 000206: 66 : LANE1: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
  Reg: 000207: 66 : LANE2: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
  Reg: 000207: 66 : LANE3: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
00020f: 0x00
  Reg: 00020f: 00 : DSC Status: 0
000280: 0x00
  Reg: 000280: 00 : FEC Status: 0
00042f: 0x00
  Reg: 00042f: 00 : DISPLAY_ROTATION: 0x0
002200: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 002200: 00 : DPCD_REV: 0.0
  Reg: 002201: 00 : MAX_LINK_RATE: ???
  Reg: 002202: 00 : MAX_LANE_COUNT: 0, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 0
  Reg: 002203: 00 : MAX_DOWNSPREAD: None, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 002204: 00 : NORP: 0
  Reg: 002205: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 002206: 00 : MAIN_LINK_CHANNEL_CODING_SET: ??
  Reg: 002207: 00 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 0, OUI: 0
  Reg: 002208: 00 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 0, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 002209: 00 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 32
  Reg: 00220a: 00 : RECEIVE_PORT1_CAP_0:
  Reg: 00220b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00220c: 00 : I2C Speed:
  Reg: 00220d: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00220e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00220f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
068028: 0x01
  Reg: 068028: 01 : HDCP_CAPABLE: 1, REPEATER: 0
06921d: 0x00 0x00 0x00
  Reg: 06921d: 00 : VERSION: 0
  Reg: 06921f: 00 : HDCP_CAPABLE: 0, REPEATER: 0
069330: 0x00 0x00
  Reg: 069330: 00 : HDCP_Depth: 0
  Reg: 069331: 00 : HDCP_count: 0  HDCP2_0 Downstream: 0 HDCP1 Downstream: 0
069493: 0x00
  Reg: 069493: 00 : Ready: 0 , H' Available: 0, Pairing_available: 0 , Reauth_req: 0, Link Integrity: 0
## Register Dump Port 2 - End ##
## EDID Dump Port 2 - Start ##
// EDID Dump: device, 384 bytes, OK
uint8_t EDID_DEL_10ac_40b6[] = {
  /* 000: */  0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00,
  /* 008: */  0x10, 0xac, 0xb6, 0x40, 0x53, 0x30, 0x35, 0x30,
  /* 010: */  0x20, 0x1a, 0x01, 0x04, 0xb5, 0x3c, 0x22, 0x78,
  /* 018: */  0x3a, 0x72, 0x25, 0xac, 0x50, 0x33, 0xb7, 0x26,
  /* 020: */  0x0b, 0x50, 0x54, 0x21, 0x08, 0x00, 0x81, 0x00,
  /* 028: */  0xb3, 0x00, 0xd1, 0x00, 0xa9, 0x40, 0x81, 0x80,
  /* 030: */  0xd1, 0xc0, 0x01, 0x01, 0x01, 0x01, 0x56, 0x5e,
  /* 038: */  0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,
  /* 040: */  0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,
  /* 048: */  0x00, 0x00, 0x00, 0xff, 0x00, 0x33, 0x44, 0x38,
  /* 050: */  0x46, 0x38, 0x36, 0x38, 0x41, 0x30, 0x35, 0x30,
  /* 058: */  0x53, 0x0a, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x44,
  /* 060: */  0x45, 0x4c, 0x4c, 0x20, 0x55, 0x50, 0x32, 0x37,
  /* 068: */  0x31, 0x35, 0x4b, 0x0a, 0x00, 0x00, 0x00, 0xfd,
  /* 070: */  0x00, 0x1d, 0x4b, 0x1f, 0xb4, 0x36, 0x01, 0x0a,
  /* 078: */  0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x02, 0xe9,
  /* 080: */  0x02, 0x03, 0x0c, 0xf1, 0x23, 0x09, 0x07, 0x07,
  /* 088: */  0x83, 0x01, 0x00, 0x00, 0x4d, 0xd0, 0x00, 0xa0,
  /* 090: */  0xf0, 0x70, 0x3e, 0x80, 0x50, 0x20, 0x65, 0x0c,
  /* 098: */  0x55, 0x50, 0x21, 0x00, 0x00, 0x18, 0x56, 0x5e,
  /* 0a0: */  0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,
  /* 0a8: */  0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,
  /* 0b0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0b8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0c0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0c8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0d0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0d8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0e0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0e8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x34,
  /* 100: */  0x70, 0x12, 0x79, 0x00, 0x00, 0x12, 0x00, 0x16,
  /* 108: */  0x82, 0x10, 0x10, 0x00, 0xff, 0x09, 0x3f, 0x0b,
  /* 110: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x44, 0x45, 0x4c,
  /* 118: */  0xb6, 0x40, 0x53, 0x30, 0x35, 0x30, 0x03, 0x00,
  /* 120: */  0x3c, 0x4c, 0xd0, 0x00, 0x84, 0xff, 0x0e, 0x9f,
  /* 128: */  0x00, 0x2f, 0x80, 0x1f, 0x00, 0x6f, 0x08, 0x3d,
  /* 130: */  0x00, 0x02, 0x00, 0x04, 0x00, 0x10, 0x5d, 0x00,
  /* 138: */  0x04, 0xff, 0x09, 0x9f, 0x00, 0x2f, 0x80, 0x1f,
  /* 140: */  0x00, 0x3f, 0x0b, 0x28, 0x00, 0x02, 0x00, 0x09,
  /* 148: */  0x00, 0xc4, 0xbc, 0x00, 0x04, 0xff, 0x09, 0x9f,
  /* 150: */  0x00, 0x2f, 0x80, 0x1f, 0x00, 0x3f, 0x0b, 0x51,
  /* 158: */  0x00, 0x02, 0x00, 0x09, 0x00, 0x07, 0x00, 0x0a,
  /* 160: */  0x08, 0x81, 0x00, 0x08, 0x04, 0x00, 0x04, 0x02,
  /* 168: */  0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 170: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 178: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xd5, 0x90
};
## EDID Dump Port 2 - End ##
## Display Connection Stats Dump Port 2 - End ##
  Display mfgName: DEL, productID: 0x40b6
  Time to EDID read: 1002
  Time to link train: 2501117
  Link training duration: 15343
  Link training status: 1
  Link training count: 1
  HDCP status: 0
  HDCP retry count: 1
  EFI w/a data: 0x0
## Display Connection Stats Dump Port 2 - End ##
### End: AGDC[4] 0x100000465 (took 0.271 sec) ################################

### End: Ports (took 0.273 sec) ##############################################

### Start: Metrics ###########################################################
Display Metric Tool Version: 1.2
Display Metric Plugin Version: 1.2 AGDC Version: 5.2.6
Dumping Metric Logs: currentlog(24) logsize(32768) numberlogs(819)
Total lines: 25
2023-02-27 15:16:11.652979-0800:               kAGDCPluginMetricsPowerOff(411e) GPU:0xdb91 Port: 0 Will
2023-02-27 15:16:11.657131-0800:                kAGDCPluginMetricsPowerOn(411f) GPU:0xdb91 Port: 0 Did
2023-02-27 15:16:12.414291-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0xa max_lane_count:0x84 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.415292-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgName:AOC mfgID:0x5e3 productID:0x2402
2023-02-27 15:16:12.553219-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 2 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.554222-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 2 mfgName:DEL mfgID:0x10ac productID:0x40b6
2023-02-27 15:16:12.576475-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0xa max_lane_count:0x84 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.577451-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgName:AOC mfgID:0x5e3 productID:0x2402
2023-02-27 15:16:12.591565-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 2 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.592536-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 2 mfgName:DEL mfgID:0x10ac productID:0x40b6
2023-02-27 15:16:14.942258-0800:                kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1
2023-02-27 15:16:14.966616-0800:                  kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0xa lane_count:0x84 LT Status:0x1 (OK)
2023-02-27 15:16:14.966907-0800:              kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1
2023-02-27 15:16:15.054336-0800:                kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 2
2023-02-27 15:16:15.069679-0800:                  kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 2 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)
2023-02-27 15:16:15.070318-0800:              kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 2
2023-02-27 15:16:24.971535-0800:              kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2
2023-02-27 15:16:25.074618-0800:              kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 2 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2
2023-02-27 15:16:26.061090-0800:         kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled
2023-02-27 15:16:26.061106-0800:     kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1
2023-02-27 15:16:26.160310-0800:                kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 2 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3
2023-02-27 15:16:26.161205-0800:                    kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 2 Latency(in microsecond) 518
2023-02-27 15:16:26.176786-0800:         kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 2 Enabled
2023-02-27 15:16:26.176795-0800:     kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 2 Status:0 (OK) Stored Km:0x1
### End: Metrics (took 0.003 sec) ############################################

### Start: displaypolicyd ####################################################
running 131 sec (started Mon Feb 27 15:16:07 2023, now Mon Feb 27 15:18:18 2023)
boardID: Mac-F60DEB81FF30ACF6
featureMask: 0x100204
platformFlags: 0
extraSupportFlags: 0
wranglerFlags: 0x44
launcher[0]: name '7:0:0', state 1, managerState 1, vendor class/id/version 0x5 0x106b 0x10000
gpu[0]: index=0 state=0x5 (Published) events=() dispPolicyState=0x1 (Managed) dispPolicyLaunchIndex=0
gpu 0xdb91 flags 0x9e000020 (DG,published,driversStarted,hasGPUC,pubSched,pubArmed)
gpu 0xdb91        pci 0x100000202 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0
gpu 0xdb91       agdc 0x100000463     /AMDRadeonX6000_AmdAgdcServices
gpu 0xdb91       gpuc 0x1000003cf     /AMDRadeonX6000_AmdGpuWrangler
gpu 0xdb91 agdpclient 0x100000465     /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
gpu 0xdb91      accel 0x1000003fb     /AMDRadeonX6000_AMDNavi10GraphicsAccelerator
gpu 0xdb91      fb0:0 0x10000040f     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0
gpu 0xdb91      fb1:1 0x100000411     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1
gpu 0xdb91      fb2:2 0x100000413     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2
gpu 0xdb91      fb3:3 0x100000415     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3
Version: 5.2.6, Max: 512, counter: 242, calendar sync: 0x5f5b6a9ef96fc/0x6ff4ab
GTRACEDATASTREAM traceData = {
    { 0x67547261, 0x63654461, 0x74614475, 0x6d700000, 0x102, 512, 242, 5, 2, 6, 6, 56, 1677539767457532, 7337131 },
    {
        { 6969422534, 0x0, 391, 38, 0, 0, 0x0, 0x0, 0x0 },
        { 7698731724, 0x0, 743, 88, 56, 0, 0x0, 0x4, 0x0 },
        { 8129991331, 0x0, 521, 72, 73, 0, 0x1, 0xdb91, 0x0 },
        { 8130550579, 0x0, 70, 71, 73, 0, 0x20001, 0xdb91, 0x0 },
        { 8130640922, 0x0, 70, 71, 73, 0, 0x90002, 0xdb91, 0x0 },
        { 8130664227, 0x0, 70, 71, 73, 0, 0x40009, 0xdb91, 0x0 },
        { 8130685734, 0x0, 70, 71, 73, 0, 0x50004, 0xdb91, 0x0 },
        { 8130707266, 0x0, 81, 77, 73, 0, 0x60000, 0xdb91, 0x0 },
        { 10808523044, 0x0, 521, 72, 73, 0, 0x10000002, 0xdb91, 0x0 },
        { 10808638788, 0x0, 81, 77, 73, 0, 0x70006, 0xdb91, 0x0 },
        { 10808945164, 0x0, 273, 78, 79, 0, 0x100000465, 0x1, 0x0 },
        { 10809036074, 0x0, 293, 78, 62, 0, 0x100000465, 0x0, 0x0 },
        { 10809215596, 0x0, 316, 78, 79, 0, 0x100000465, 0x3, 0x0 },
        { 10809215796, 0x0, 151, 80, 61, 0, 0x100000465, 0x1, 0x0 },
        { 10809216039, 0x0, 81, 77, 73, 0, 0x10007, 0xdb91, 0x0 },
        { 10810574799, 0x100000465, 762, 31, 0, 0, 0x0, 0x0, 0x0 },
        { 10851425345, 0x100000465, 988, 26, 0, 0, 0x0, 0x0, 0x0 },
        { 10851441009, 0x100000465, 997, 33, 0, 0, 0x0, 0x0, 0x0 },
        { 11190020694, 0x100000465, 1003, 34, 0, 0, 0x0, 0x0, 0x0 },
        { 11340991024, 0x100000465, 6251, 13, 52, 46, 0x0, 0x2, 0x0 },
        { 11341003829, 0x100000465, 6251, 13, 52, 46, 0x1, 0x2, 0x0 },
        { 11341037250, 0x100000465, 6251, 13, 52, 46, 0x2, 0x2, 0x0 },
        { 11341056904, 0x100000465, 6251, 13, 52, 46, 0x3, 0x2, 0x0 },
        { 11346184533, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000000, 0x0 },
        { 11346188584, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },
        { 11346189714, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 11346190712, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 11346191764, 0x100000465, 187, 9, 47, 64, 0x0, 0xf, 0x0 },
        { 11346193127, 0x100000465, 199, 10, 0, 0, 0x0, 0x0, 0x0 },
        { 11346196172, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 11346198343, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 11346200341, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 11346327682, 0x100000465, 155, 42, 53, 0, 0x1, 0x5, 0x0 },
        { 11346328373, 0x100000465, 190, 41, 61, 61, 0x1, 0x1, 0x0 },
        { 11346328649, 0x100000465, 1642, 25, 58, 0, 0x1, 0x0, 0x0 },
        { 11346417345, 0x100000465, 155, 42, 53, 0, 0x0, 0x5, 0x0 },
        { 11346417567, 0x100000465, 190, 41, 61, 61, 0x0, 0x0, 0x1 },
        { 11346417709, 0x100000465, 1642, 25, 58, 0, 0x0, 0x1, 0x0 },
        { 11346459749, 0x0, 228, 1, 43, 0, 0x2, 0xa, 0x0 },
        { 11346491178, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },
        { 11347242073, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },
        { 11347242518, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x0 },
        { 11347301661, 0x100000465, 412, 37, 60, 49, 0x1, 0x1, 0x0 },
        { 11348254967, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11348255552, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11351890053, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11352765820, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11352766184, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11353735512, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11353735803, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11354650577, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },
        { 11355514515, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },
        { 11356082848, 0x0, 46, 39, 0, 0, 0x1, 0x0, 0x0 },
        { 11356083936, 0x100000465, 155, 42, 53, 0, 0x0, 0x6, 0x0 },
        { 11356435247, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },
        { 11357464372, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },
        { 11358328305, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },
        { 11359350884, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },
        { 11360316383, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },
        { 11565558140, 0x100000465, 5447, 6, 46, 0, 0x1, 0x100000000, 0x0 },
        { 11565559103, 0x100000465, 544, 36, 59, 70, 0x1, 0x0, 0x0 },
        { 11565652001, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x200000000, 0x0 },
        { 11565663918, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x0 },
        { 11565677855, 0x100000465, 412, 37, 60, 49, 0x2, 0x1, 0x0 },
        { 11566571845, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11566572531, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11570064287, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 11570936299, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11570936585, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11571830983, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11571831229, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11572743021, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x600000000, 0x0 },
        { 11573607462, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x10000000e, 0x0 },
        { 11574506645, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x400000020, 0x0 },
        { 11575522996, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000000060, 0x0 },
        { 11576396874, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000090, 0x0 },
        { 11577414194, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000002200, 0x0 },
        { 11578400540, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc00000400, 0x0 },
        { 11702388607, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },
        { 11703376203, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc000e0000, 0x0 },
        { 11704481244, 0x100000465, 5447, 6, 46, 0, 0x1, 0x200000000, 0x0 },
        { 11704482193, 0x100000465, 544, 36, 59, 70, 0x2, 0x0, 0x0 },
        { 11704484376, 0x100000465, 582, 36, 51, 0, 0x2, 0x1, 0x0 },
        { 11704522695, 0x0, 228, 1, 43, 0, 0x3, 0x1f4, 0x0 },
        { 11704613770, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },
        { 11704614321, 0x100000465, 544, 36, 59, 70, 0x3, 0x0, 0x0 },
        { 11704689750, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },
        { 11704690199, 0x100000465, 544, 36, 59, 70, 0x4, 0x0, 0x0 },
        { 11704709118, 0x100000465, 1312, 32, 0, 0, 0x0, 0x0, 0x0 },
        { 11704840426, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },
        { 11704841000, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11705705083, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11705705271, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11709187367, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11710066164, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11710066427, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11710971711, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11710971924, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11711897688, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },
        { 11712767591, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },
        { 11713683751, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },
        { 11714749651, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },
        { 11715620629, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },
        { 11716632107, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },
        { 11717598799, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },
        { 11727694559, 0x100000465, 5368, 5, 46, 0, 0x1, 0x100000000, 0x0 },
        { 11727756913, 0x100000465, 544, 36, 59, 70, 0x1, 0x0, 0x0 },
        { 11727831157, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x200000000, 0x0 },
        { 11727831457, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 11728690051, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11728690279, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11732184300, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 11733045846, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11733046109, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11733943605, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11733943869, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11734858300, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x600000000, 0x0 },
        { 11735724846, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x10000000e, 0x0 },
        { 11736609049, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x400000020, 0x0 },
        { 11737617213, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000000060, 0x0 },
        { 11738487508, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000090, 0x0 },
        { 11739505511, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000002200, 0x0 },
        { 11740490589, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc00000400, 0x0 },
        { 11740729654, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },
        { 11741726792, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc000e0000, 0x0 },
        { 11742781862, 0x100000465, 5368, 5, 46, 0, 0x1, 0x200000000, 0x0 },
        { 11742843855, 0x100000465, 544, 36, 59, 70, 0x2, 0x0, 0x0 },
        { 11742924810, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },
        { 11742925316, 0x100000465, 544, 36, 59, 70, 0x3, 0x0, 0x0 },
        { 11743002394, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },
        { 11743002840, 0x100000465, 544, 36, 59, 70, 0x4, 0x0, 0x0 },
        { 11743023567, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 11743065509, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 11990863786, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 11990865724, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 11990889551, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11995381518, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000600, 0x0 },
        { 12000481402, 0x100000465, 3517, 81, 83, 0, 0x1, 0x0, 0x0 },
        { 12000598564, 0x100000465, 3541, 82, 83, 0, 0x0, 0x0, 0x0 },
        { 12000679289, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12000686507, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x200020000000000 },
        { 12000691481, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12000692695, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12000694124, 0x100000465, 187, 9, 47, 64, 0x0, 0xf, 0x0 },
        { 12000695191, 0x100000465, 199, 10, 0, 0, 0x3000100000001, 0x0, 0x0 },
        { 12000701948, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12000708003, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 12000710567, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12000712554, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12000719141, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12009786035, 0x100000465, 1325, 28, 0, 0, 0x0, 0x0, 0x0 },
        { 12009867879, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },
        { 12009870659, 0x0, 270, 17, 55, 0, 0x0, 0x100000465, 0x0 },
        { 12009871200, 0x0, 282, 17, 55, 67, 0x0, 0x100000465, 0x1 },
        { 12009871721, 0x0, 328, 16, 0, 0, 0x1, 0x0, 0x0 },
        { 12121900793, 0x100000465, 1610, 14, 53, 0, 0x0, 0x2, 0x0 },
        { 12121986873, 0x100000465, 155, 42, 53, 0, 0x0, 0x2, 0x0 },
        { 12122167999, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12122175690, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x200020000000000 },
        { 12122180891, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12122182147, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12122183508, 0x100000465, 187, 9, 47, 64, 0x1, 0xe, 0x0 },
        { 12122184630, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12122192753, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12122199166, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 12122201916, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12122204119, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12122225535, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12219035071, 0x0, 46, 39, 0, 0, 0x2, 0x0, 0x0 },
        { 12219036490, 0x100000465, 155, 42, 53, 0, 0x0, 0xa, 0x0 },
        { 12219070633, 0x100000465, 113, 8, 46, 63, 0x100, 0x200000000, 0x0 },
        { 12219082046, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12259237499, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 12259238480, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 12259265189, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 12263683914, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000600, 0x0 },
        { 12264687806, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12264695009, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x200020000000000 },
        { 12264700024, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12264701227, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12264702536, 0x100000465, 187, 9, 47, 64, 0x1, 0xe, 0x0 },
        { 12264703518, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12264711445, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12264717353, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 12264719806, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12264721776, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12264738827, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12510806614, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 12510808381, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 12510844193, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 12515288713, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000600, 0x0 },
        { 12517401192, 0x100000465, 3517, 81, 83, 0, 0x1, 0x1, 0x0 },
        { 12517515305, 0x100000465, 3541, 82, 83, 0, 0x0, 0x1, 0x0 },
        { 12517675713, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12517683733, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x201020000000414 },
        { 12517688718, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12517689926, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12517691344, 0x100000465, 187, 9, 47, 64, 0x1, 0xe, 0x0 },
        { 12517692415, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12517699169, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12517705275, 0x100000465, 199, 10, 0, 0, 0x103000100000001, 0x0, 0x0 },
        { 12517711079, 0x100000465, 113, 8, 46, 63, 0x100, 0x200000000, 0x0 },
        { 12517716711, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12517719107, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12517724536, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12730675836, 0x100000465, 1610, 14, 53, 0, 0x0, 0x2, 0x0 },
        { 12730701811, 0x100000465, 155, 42, 53, 0, 0x0, 0x2, 0x0 },
        { 12730833796, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12730841407, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x201020000000414 },
        { 12730846642, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12730847939, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12730849292, 0x100000465, 187, 9, 47, 64, 0x3, 0xc, 0x0 },
        { 12730850507, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12730858903, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12730864883, 0x100000465, 199, 10, 0, 0, 0x103000200000001, 0x0, 0x0 },
        { 12730877264, 0x100000465, 113, 8, 46, 63, 0x100, 0x200000000, 0x0 },
        { 12730883187, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12730885853, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12730906420, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12762146597, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 12762147902, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 12762178373, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13013883516, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13013885776, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13013924596, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13264086725, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13264088583, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13264117247, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13514073118, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13514074808, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13514096189, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13764133752, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13764135476, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13764164909, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 14017267122, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 14017269022, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 14017289032, 0x100000465, 155, 42, 53, 0, 0x0, 0x8, 0x0 },
        { 14017344915, 0x100000465, 435, 40, 60, 49, 0x1, 0x0, 0x10001 },
        { 14017345265, 0x100000465, 435, 40, 60, 49, 0x2, 0x0, 0x10001 },
        { 14017345601, 0x100000465, 435, 40, 60, 49, 0x3, 0x0, 0x0 },
        { 14017345837, 0x100000465, 435, 40, 60, 49, 0x4, 0x0, 0x0 },
        { 14017347080, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
    }
};
### End: displaypolicyd (took 0.005 sec) #####################################

### Start: Devices ###########################################################
### Start: AGDC[1] 0x1000003d7 ###############################################
IOService:/IOResources/AppleGPUWrangler
Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)
### End: AGDC[1] 0x1000003d7 (took 0.002 sec) ################################

### Start: AGDC[2] 0x1000003cf ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler
Vendor: AMD [00001002]: GPURoot [7 30000] (0)
### End: AGDC[2] 0x1000003cf (took 0.001 sec) ################################

### Start: AGDC[3] 0x100000463 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices
See 0x100000465
### End: AGDC[3] 0x100000463 (took 0.001 sec) ################################

### Start: AGDC[4] 0x100000465 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)
--BEGIN Device Dump--
Link Count    4
Initialized    YES
Enabled    YES
Hw Ready    YES
Hw Attached    YES
Framebuffers Enabled    4 of 4
Mapped Framebuffers    0

Asic Info    DICT    22
ID: Family Id    143
ID: Device Id    0x731f
ID: HW Revision    0x2
ID: PCI Revision Id    0xc1
ID: Emulated Revision    3
IS eGPU    NO
PCI Address    7:0:0
FB Loc Base    0x8000000000
FB Loc Top    0x81FFFFFFFF
FB Offset    0
MEM SIZE: FB Size    8176 MB
MEM SIZE: FB Aperture    256 MB
MEM SIZE: Reg Aperture    512 KB
MEM CONFIG: VRAM Type    GDDR6
MEM CONFIG: VRAM Width    256
BRANDING: Family Name    Radeon RX
BRANDING: Device Name    5700 XT
BRANDING: Model Name    Radeon RX 5700 XT

DAL Caps    DICT    10
MAX Links    4
MAX Streams    6
MAX Audios    6
MAX Downscale Ratio    2.0
MAX Cursor Size    256
I2C Speed    100 KHz
linear pitch align    64
dcc_const_color    NO
dual_link_dvi    NO
dsc_support    YES

Power Play    DICT    13
Is Supported    YES
Is Initialized    YES
Is Enabled    YES
Current Level (SW)    0
Current Level (HW)    0
HW TDP Limit    180
TDP Table Count    16
Vram Reserved Size    1048576
Vram Reserved Used    69632
Vram Reserved Offset    0x8000300000
Version SMU    0x2a3400
Version PPLIB    2.775

Atom Bios    DICT    5
Crystal Freq    100000 KHz
Boot Display Clock    625000 KHz
BIOS Image Size    65536
Part Number    113-180W2NAVI10XT8GD
FW Reserved Size    0 KB

Link@0    DICT    23
Link Index    0
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    ENABLED
Active Signal Type    DP SST
Engine ID    DIG_E
Transmitter ID    UNIPHY_E
HPD ID    HPD_6
DDC Channel    DDC_6
Connector ID    19:1:3
Connector Type    Display Port

Connected Status Link0    DICT    6
Link Index    0
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    27000
Reported Link Spread    16

Active Status Link0    DICT    6
Link Index    0
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    27000
Reported Link Spread    16

Connected DP Config Link0    DICT    13
DPCD Revision    0x12
Link Rate    27000 (max:27000)
Lane Count    4 (max:4)
CR Time    100 uSec
EQ Time    400 uSec
EQ Pattern    TPS:2
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Enabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link0    DICT    13
DPCD Revision    0x12
Link Rate    27000 (max:27000)
Lane Count    4 (max:4)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Enabled
MST Enabled    NO
Sleep Value    0

Link@1    DICT    23
Link Index    1
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    ENABLED
Active Signal Type    DP SST
Engine ID    DIG_C
Transmitter ID    UNIPHY_C
HPD ID    HPD_2
DDC Channel    DDC_2
Connector ID    19:2:3
Connector Type    Display Port

Connected Status Link1    DICT    6
Link Index    1
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    54000
Reported Link Spread    16

Active Status Link1    DICT    6
Link Index    1
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    54000
Reported Link Spread    16

Connected DP Config Link1    DICT    13
DPCD Revision    0x12
Link Rate    54000 (max:54000)
Lane Count    4 (max:4)
CR Time    100 uSec
EQ Time    400 uSec
EQ Pattern    TPS:3
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Enabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link1    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Link@2    DICT    23
Link Index    2
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    DISABLED
Active Signal Type    NONE
Engine ID    DIG_D
Transmitter ID    UNIPHY_D
HPD ID    HPD_1
DDC Channel    DDC_1
Connector ID    19:3:3
Connector Type    Display Port

Connected Status Link2    DICT    6
Link Index    2
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Active Status Link2    DICT    6
Link Index    0
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Connected DP Config Link2    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link2    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Link@3    DICT    23
Link Index    3
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    DISABLED
Active Signal Type    NONE
Engine ID    DIG_A
Transmitter ID    UNIPHY_A
HPD ID    HPD_4
DDC Channel    DDC_4
Connector ID    12:1:3
Connector Type    HDMI

Connected Status Link3    DICT    6
Link Index    3
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Active Status Link3    DICT    6
Link Index    0
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Connected DP Config Link3    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link3    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Framebuffer@0    DICT    19
FB Index    0
FB Online    YES
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Current Config FB0    DICT    8
FB ID    0
Sleep State    0x2
Flags: SingleLinkValid    SET
Flags: DPLinkConfigValid    SET
Flags: ScanoutResourceConfig    SET
Sink    1.0
Scanout Count    1

Display Path (Active) FB0    DICT    21
surface_address    0x600000
surface_bytes    8294400
bytes_per_row    7680
bits_per_pixel    32
bits_per_component    10
Is Connected    YES
Is Online    YES
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    1920x1080 @ {0,0}
SW Dst Viewport    1920x1080 @ {0,0}
Stream Count    1
FB Index    0
Group Index    0
Mode Id    0x80005000
Depth Index    2
HW Src Viewport    1920x1080 @ {0,0}
HW Dst Viewport    1920x1080 @ {0,0}
Underscan    100 % - {75:100}

Stream@0 FB0    DICT    11
Stream ID    0
Is Enabled    YES
Is DPMS Off    NO
Change Flags    0
Option Flags    0
Sink Address    0.0
HW Src Viewport    1920x1080 @ {0,0}
HW Dst Viewport    1920x1080 @ {0,0}

Timing FB0    DICT    24
Display Mode    80005000
Refresh Rate (Calculated)    60 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    1920 x 1080
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    148500000 Hz
Scaler Flags    0
Signal Config    0
Blanking    280 x 45
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    88 x 4
Sync Pulse Width (h, v)    44, 5
Sync Config (h, v)    + x +
Num Links    1
VB Extension    0
OUTPUT: Pixel Encoding    2 (YCbCr444)
OUTPUT: Bits Per Color Component    2 (8 bpc)
OUTPUT: Colorimetry    128 (BT.709)
OUTPUT: Dynamic Range    1 (SDR)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB0    DICT    11
FB Index    0
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    1
Expected V.Update    0

Metric Data FB0    DICT    5
Last Transaction Type    0x5
Last Transaction Timestamp    137606680036
Transaction Counter    1939
Last V.Blank Timestamp    137619288057
Last V.Update Timestamp    137620005581

Framebuffer@1    DICT    19
FB Index    1
FB Online    YES
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Current Config FB1    DICT    8
FB ID    1
Sleep State    0x2
Flags: SingleLinkValid    SET
Flags: DPLinkConfigValid    SET
Flags: ScanoutResourceConfig    SET
Sink    2.0
Scanout Count    1

Display Path (Active) FB1    DICT    21
surface_address    0x600100
surface_bytes    14745600
bytes_per_row    10240
bits_per_pixel    32
bits_per_component    10
Is Connected    YES
Is Online    YES
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    2560x1440 @ {0,0}
SW Dst Viewport    2560x1440 @ {0,0}
Stream Count    1
FB Index    1
Group Index    0
Mode Id    0x80005000
Depth Index    2
HW Src Viewport    2560x1440 @ {0,0}
HW Dst Viewport    2560x1440 @ {0,0}
Underscan    100 % - {75:100}

Stream@0 FB1    DICT    11
Stream ID    0
Is Enabled    YES
Is DPMS Off    NO
Change Flags    0
Option Flags    0
Sink Address    1.0
HW Src Viewport    2560x1440 @ {0,0}
HW Dst Viewport    2560x1440 @ {0,0}

Timing FB1    DICT    24
Display Mode    80005000
Refresh Rate (Calculated)    60 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    2560 x 1440
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    241500000 Hz
Scaler Flags    0
Signal Config    0x2
Blanking    160 x 41
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    48 x 3
Sync Pulse Width (h, v)    32, 5
Sync Config (h, v)    + x -
Num Links    2
VB Extension    0
OUTPUT: Pixel Encoding    1 (RGB444)
OUTPUT: Bits Per Color Component    4 (10 bpc)
OUTPUT: Colorimetry    1 (RGB)
OUTPUT: Dynamic Range    1 (SDR)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB1    DICT    11
FB Index    1
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    1
Expected V.Update    0

Metric Data FB1    DICT    5
Last Transaction Type    0x5
Last Transaction Timestamp    132686072914
Transaction Counter    160
Last V.Blank Timestamp    137620712561
Last V.Update Timestamp    137621135739

Framebuffer@2    DICT    17
FB Index    2
FB Online    NO
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Display Path (Active) FB2    DICT    20
surface_address    0x600200
surface_bytes    0
bytes_per_row    0
bits_per_pixel    32
bits_per_component    8
Is Connected    NO
Is Online    NO
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    1x1 @ {0,0}
SW Dst Viewport    1x1 @ {0,0}
Stream Count    0
FB Index    2
Group Index    0
Mode Id    0x3000
Depth Index    1
HW Src Viewport    1x1 @ {0,0}
HW Dst Viewport    1x1 @ {0,0}
Underscan    100 % - {100:100}

Timing FB2    DICT    24
Display Mode    3000
Refresh Rate (Calculated)    0 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    1 x 1
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    0 Hz
Scaler Flags    0
Signal Config    0
Blanking    0 x 0
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    0 x 0
Sync Pulse Width (h, v)    0, 0
Sync Config (h, v)    - x -
Num Links    0
VB Extension    0
OUTPUT: Pixel Encoding    0 (n/a)
OUTPUT: Bits Per Color Component    0 (n/a)
OUTPUT: Colorimetry    0 (n/a)
OUTPUT: Dynamic Range    0 (n/a)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB2    DICT    10
FB Index    2
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    0
Expected V.Update    0

Metric Data FB2    DICT    5
Last Transaction Type    0
Last Transaction Timestamp    0
Transaction Counter    0
Last V.Blank Timestamp    0
Last V.Update Timestamp    0

Framebuffer@3    DICT    17
FB Index    3
FB Online    NO
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Display Path (Active) FB3    DICT    20
surface_address    0x600300
surface_bytes    0
bytes_per_row    0
bits_per_pixel    32
bits_per_component    8
Is Connected    NO
Is Online    NO
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    1x1 @ {0,0}
SW Dst Viewport    1x1 @ {0,0}
Stream Count    0
FB Index    3
Group Index    0
Mode Id    0x3000
Depth Index    1
HW Src Viewport    1x1 @ {0,0}
HW Dst Viewport    1x1 @ {0,0}
Underscan    100 % - {100:100}

Timing FB3    DICT    24
Display Mode    3000
Refresh Rate (Calculated)    0 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    1 x 1
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    0 Hz
Scaler Flags    0
Signal Config    0
Blanking    0 x 0
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    0 x 0
Sync Pulse Width (h, v)    0, 0
Sync Config (h, v)    - x -
Num Links    0
VB Extension    0
OUTPUT: Pixel Encoding    0 (n/a)
OUTPUT: Bits Per Color Component    0 (n/a)
OUTPUT: Colorimetry    0 (n/a)
OUTPUT: Dynamic Range    0 (n/a)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB3    DICT    10
FB Index    3
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    0
Expected V.Update    0

Metric Data FB3    DICT    5
Last Transaction Type    0
Last Transaction Timestamp    0
Transaction Counter    0
Last V.Blank Timestamp    0
Last V.Update Timestamp    0

--END Device Dump--
### End: AGDC[4] 0x100000465 (took 0.016 sec) ################################

### End: Devices (took 0.017 sec) ############################################

### Start: mpxdiagnose #######################################################
### End: mpxdiagnose (took 0.018 sec) ########################################

AGDCDiagnose completed in 0.283609 seconds

joevt · Feb 28, 2023

The issue so far is that only one DisplayPort connection is appearing on the Mac.

Do you have a different computer with two DisplayPort 1.2 outputs to test the UP2715K with? Or a PC? A PC can do 5K60 from a single DisplayPort 1.4 port using a DisplayPort 1.4 MST hub.

fuinhu · Feb 28, 2023

joevt said:
The issue so far is that only one DisplayPort connection is appearing on the Mac.

Do you have a different computer with two DisplayPort 1.2 outputs to test the UP2715K with? Or a PC? A PC can do 5K60 from a single DisplayPort 1.4 port using a DisplayPort 1.4 MST hub.

i installed windows on the Mac Pro yesterday and again i only got 4K.
i guess it has something to do with the GPU, i bought it secondhand and while in windows i noticed it has a modified bios optimized for mining purposes.
i'll try to flash the stock bios today and i'll let you know how it goes.

fuinhu · Mar 1, 2023

flashed the original bios and still no 5k.

fuinhu · Mar 3, 2023

I tried connecting the 2715k to my 16" macbook pro with two USB-C adapters and no 5k

I guess that it's something with the monitor. Is there any way to hard reset it or to see if it recognizes the 2nd DP port?

joevt · Mar 3, 2023

fuinhu said:
I tried connecting the 2715k to my 16" macbook pro with two USB-C adapters and no 5k

It appears from the AGDCDiagnose output that one of the DisplayPort connections is not being detected. Only port 1 and port 4 of the AMD GPU show activity.

Looking at the EDID in the AGDCDiagnose output, it appears that the first DisplayPort of the display is working (which is why you can get at least 4K). The 2nd DisplayPort port of the display is not detected. For the UP2715K, the first DisplayPort connection represents the right half of the display when doing 5K60.

Since you have an Intel Mac, you can try AllRez to see what DisplayPort info can be retrieved from all the GPU ports. It will probably show DisplayPort info from the same ports as AGDCDiagnose.

fuinhu said:
I guess that it's something with the monitor. Is there any way to hard reset it or to see if it recognizes the 2nd DP port?

You can try pulling the power cord from the display, wait a few seconds, then reconnect it.

Try switching the DisplayPort cables at the display. See if that changes the port of the AMD GPU (in which case the display's 2nd DisplayPort port is probably broken) or if that changes the EDID (in which case the Thunderbolt port of the MBP is broken and you can try other Thunderbolt ports) or both (in which case the display should work).

fuinhu · Mar 10, 2023

So i tested the monitor with a PC and the problem remains, it's something on the monitor pcb

MP 1,1-5,1 Can't get 5k on Dell UP2715k with Mac Pro 5.1 and AMD Radeon Rx5700xt

macrumors newbie

macrumors 604

macrumors newbie

macrumors 65816

macrumors newbie

macrumors 65816

Attachments

macrumors newbie

macrumors 604

macrumors 604

macrumors newbie

macrumors newbie

macrumors newbie

macrumors 604

macrumors newbie

macrumors newbie

macrumors newbie

Attachments

macrumors 604

macrumors newbie

Our Staff
