Could someone tell me what this is?

Discussion in 'iPhone' started by lthompson, Oct 3, 2012.

  1. lthompson macrumors member

    Joined:
    Jul 13, 2011
    #1

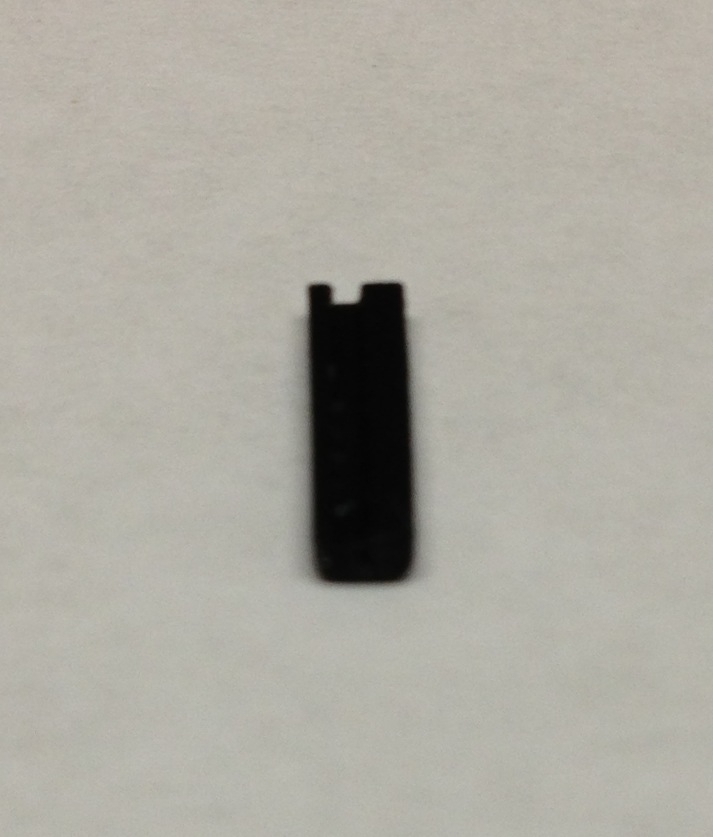

    I replaced the home button on my iPhone 4 and while putting it back together I noticed the below part had fallen off and I don't know where it goes. It appears to be a bumber and made of soft rubber. It is approx 8X3X1.5 mm and the slot is offset to one side.


    Attached Files:

  2. Adutrumque macrumors 65816

    Adutrumque

    Joined:
    Mar 8, 2012
    Location:
    Sweden
  3. NM08SRT8 macrumors 6502a

    NM08SRT8

    Joined:
    Jan 18, 2010
    Location:
    New Mexico
    #3
    Hard to tell since the picture isn't clear enough. Just head over to ifixit and look over their tear down pictures, maybe you'll see it.

  4. reputationZed macrumors 65816

    Joined:
    Mar 9, 2011
    Location:
    34°55′42″N 80°44′41″W (34.
  5. NM08SRT8 macrumors 6502a

    NM08SRT8

    Joined:
    Jan 18, 2010
    Location:
    New Mexico
    #5

    Paulie wants a cracker?

  6. JodyK macrumors 6502a

    JodyK

    Joined:
    Jan 29, 2010
    Location:
    Northern Atlanta suburbs
  7. auero macrumors 65816

    Joined:
    Sep 15, 2006
    #7

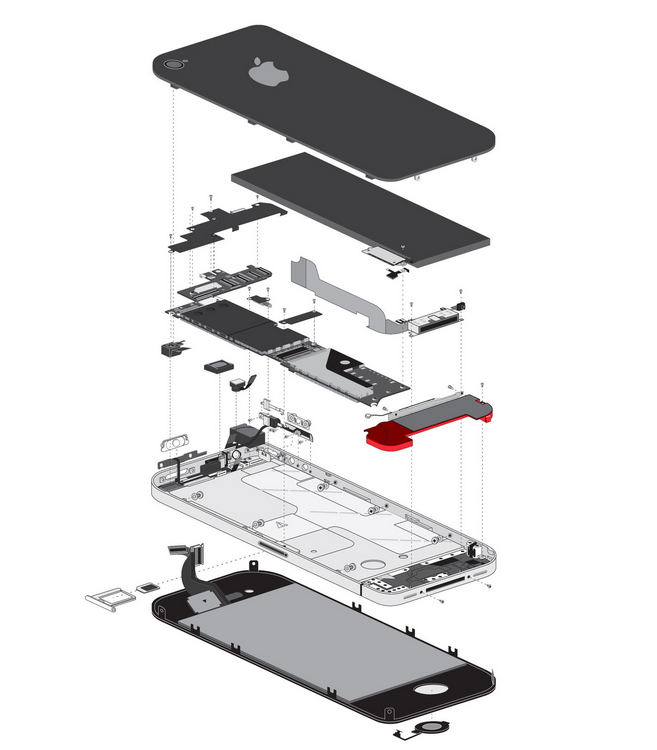

    Attached Files:

  8. TJ61 macrumors 6502a

    Joined:
    Nov 16, 2011
    #8
    Is it the part that used to help your camera focus? :rolleyes:

    Regards,
    Tom

  9. cal6n macrumors 68000

    cal6n

    Joined:
    Jul 25, 2004
    Location:
    Gloucester, UK
    #9
    Check here

    It fits over the mid-plane where the ribbons from the touch screen go through.

  10. PrestonWard macrumors member

    Joined:
    Jul 30, 2012
    #10
    it attaches to the logic board where the screen cable sits.

  11. MOKHAN macrumors 6502

    Joined:
    Mar 19, 2011
    Location:
    Toronto, Canada
    #11
    The above posters got it right. Don't worry, they fall out whenever I repair an iPhone also. I just throw them out.

  12. lthompson thread starter macrumors member

    Joined:
    Jul 13, 2011
    #12
    I'm gonna go with this one. The phone is working fine and replacing the home button was a PITA and I don't want to take it back apart.

  13. nefan65 macrumors 65816

    nefan65

    Joined:
    Apr 15, 2009
