Did a clean install, disk utility says my SSD is shared by 4 volumes - Why?

Discussion in 'macOS High Sierra (10.13)' started by SRLMJ23, Sep 25, 2017.

  1. SRLMJ23 Contributor

    SRLMJ23

    Joined:
    Jul 11, 2008
    Location:
    In between Syracuse, NY and Albany, NY
    #1
    I did a clean install tonight, APFS (Encrypted) and everything went smooth with my installation, however, when I go into Disk Utility and click on "Macintosh HD" which is my main/startup disk it says in the upper right hand corner of Disk Utility under where it says how much space you have left "SHARED BY 4 VOLUMES." What the hell does this mean? It should only have the volume it is installed on. All four volumes only take up 1.07gb of space, but why is it like this? Thanks in advance!

    :apple:

  2. neliason macrumors 6502

    Joined:
    Oct 1, 2015
    #2
    I’ve not used an APFS drive yet, but my understanding is that a feature of APFS is that it can share space across partitions on the same drive. So if you initially create two partitions and run out of space on one, but have space on another, the first one can use that space.

  3. SRLMJ23 thread starter Contributor

    SRLMJ23

    Joined:
    Jul 11, 2008
    Location:
    In between Syracuse, NY and Albany, NY
    #3
    Problem is I did not create any other partitions. I wiped my drive clean (it never had any extra partitions ever) and installed High Sierra. Thanks for the reply!

    On a side note, wow is High Sierra great! Everything is fast and fluid!

    :apple:

  4. prisstratton macrumors 6502a

    prisstratton

    Joined:
    Dec 20, 2011
    Location:
    Winnipeg, Manitoba, Canada
    #4
    I was wondering about the same thing. If you go to Terminal and type in: diskutil list, you will see the 4 volumes it is talking about. They must all be created by the new APFS, on my system they are: Macintosh HD, Preboot, Recovery and VM.

  5. higgalls macrumors regular

    Joined:
    Mar 20, 2008
    #5
    I have the same 4 volumes and also am wondering why... I have an SSD - not sure if that will make a difference (can't see why it would though). I have never intentionally created any partitions - it has always been a pretty default install (and then upgrade to new versions of Mac OS).

  6. madmin macrumors regular

    Joined:
    Jun 14, 2012
    #6
    It's normal to see these 4 volumes. Recovery is obviously the recovery partition, VM is virtual memory (swap files) and Preboot is likely to be Filevault etc (I guess).

  7. LarryJoe33 macrumors 65832

    LarryJoe33

    Joined:
    Jul 17, 2017
    Location:
    Boston
    #7
    It's normal for encrypted. You would have two if not encrypted.

  8. madmin macrumors regular

    Joined:
    Jun 14, 2012
    #8
    I don't believe that's true

  9. LarryJoe33 macrumors 65832

    LarryJoe33

    Joined:
    Jul 17, 2017
    Location:
    Boston
    #9

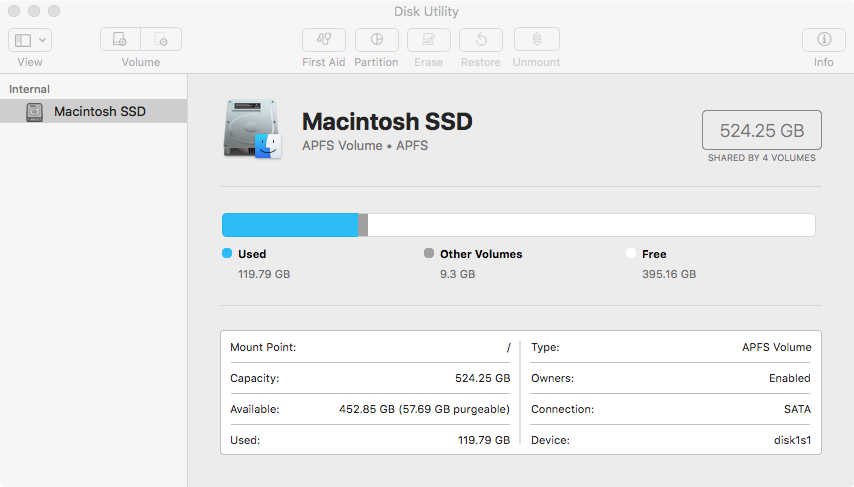

    DU 4 volumes.png EDIT, you are correct, four is normal for both .

  10. SRLMJ23 thread starter Contributor

    SRLMJ23

    Joined:
    Jul 11, 2008
    Location:
    In between Syracuse, NY and Albany, NY
    #10

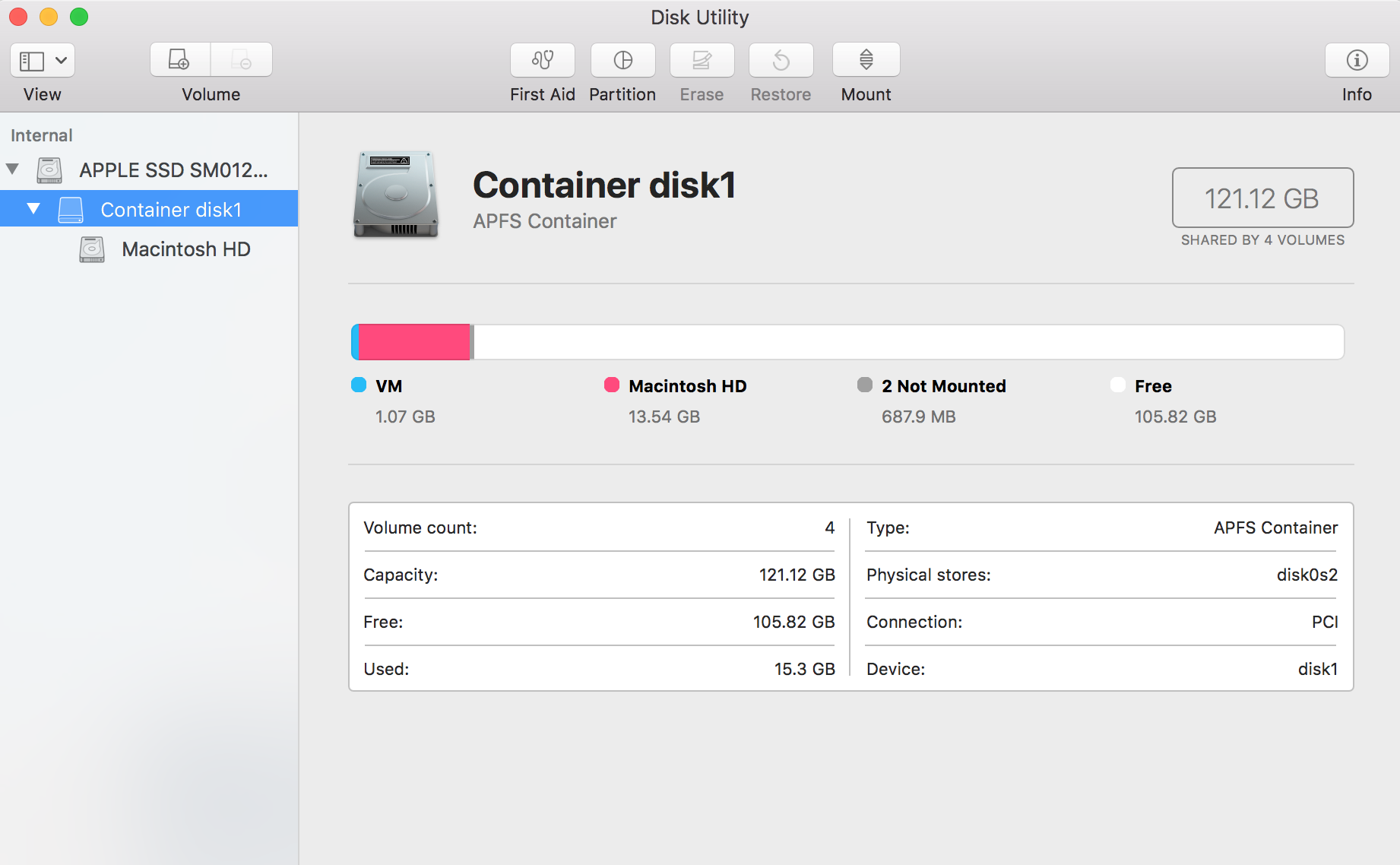

    Anyone know what this is, like I said...I did a clean install and created zero partitions. Does everyone else who used APFS (Encrypted) see this "Container disk1"? I assume it is where those 4 other partitions are as I can see VM on it, just want to make sure everything is good on my machine:

    Screen Shot 2017-09-26 at 12.28.58 PM.png

  11. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #11
    It is totally normal. Like mentioned, if you run diskutil list in Terminal you can see the other hidden volumes not shown in Disk Utility.

    Code:
    /dev/disk1 (synthesized):
       #:                       TYPE NAME                    SIZE       IDENTIFIER
       0:      APFS Container Scheme -                      +250.0 GB   disk1
                                     Physical Store disk0s2
       1:                APFS Volume Macintosh HD            61.7 GB    disk1s1
       2:                APFS Volume Preboot                 18.2 MB    disk1s2
       3:                APFS Volume Recovery                520.0 MB   disk1s3
       4:                APFS Volume VM                      2.1 GB     disk1s4


  12. SRLMJ23 thread starter Contributor

    SRLMJ23

    Joined:
    Jul 11, 2008
    Location:
    In between Syracuse, NY and Albany, NY
    #12

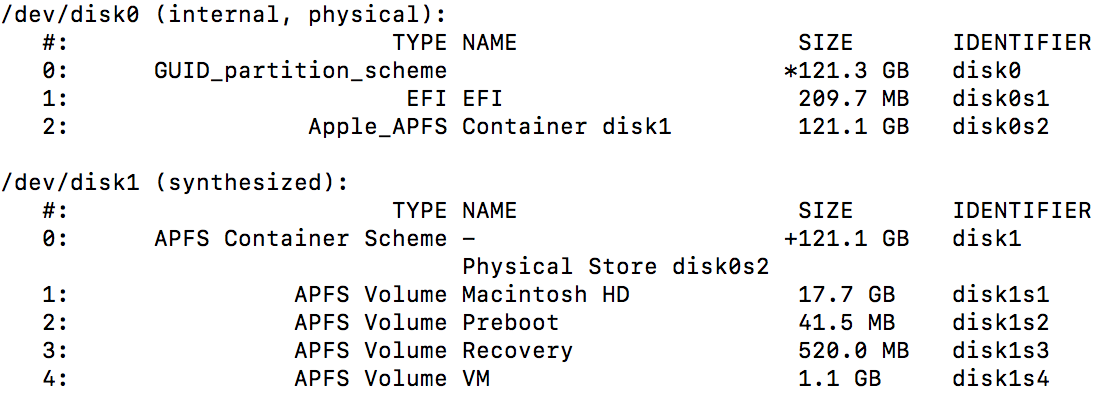

    What does it list above that in Terminal when you do diskutil list? I get a few things above what you posted. I will post a screen shot:

    Screen Shot 2017-09-26 at 2.14.55 PM.png

    :apple:

  13. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #13
    Mine is the same. The top is the physical disk and the bottom is the volumes on the virtual disk1.

  14. SRLMJ23 thread starter Contributor

    SRLMJ23

    Joined:
    Jul 11, 2008
    Location:
    In between Syracuse, NY and Albany, NY
    #14
    Ahh, okay I appreciate your help! It is good to know I am not the only one with these 4 volumes. I was thinking I was going to have to do another clean install.

    PS: Think you can help with my other thread, you seem much more knowledgeable than I am with macOS.

    Here is the link: https://forums.macrumors.com/threads/anyone-else-dislike-the-new-login-screen.2072578/

    :apple:

  15. LarryJoe33 macrumors 65832

    LarryJoe33

    Joined:
    Jul 17, 2017
    Location:
    Boston
