Help. Broke the fan connector....Need a closeup pix of logic board

Discussion in 'Mac mini' started by fredc888, Mar 14, 2014.

  1. fredc888, Mar 14, 2014
    Last edited: Mar 14, 2014

    fredc888 macrumors newbie

    Joined:
    Mar 14, 2014
    #1
    Hi everyone,
    Sorry for bothering folks about my issue.

    As the idiot I am, I was in the process of upgrading my Mac Mini to SSD.. In the process, my torx screwdriver accidentally slipped and I raked over part of the fan connector attached to the logic board. In the process of doing that, I broke 2 pads and a small component fell off so that the fan always runs high now.. (great...)

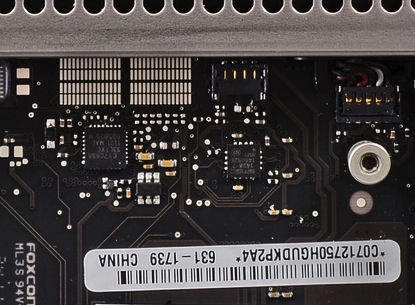

    Can someone please help me and snap a good picture of the area around the fan connector, similar to the picture I've attached below (minus my self-inflicted damage...I'm an idiot)?

    My mini is MC936LL/A, and I'm hoping one of you can graciously take a picture similar to this one..

    [​IMG]

    One of my colleague can do pretty good board repair, but in the absence of an actual logic board schematic, a picture of an existing board would be a good start.

    Thanks so much in advance for help...

  2. 808?, Mar 14, 2014
    Last edited: Mar 14, 2014

    808? macrumors 6502a

    Joined:
    Aug 4, 2011
    Location:
    Hong Kong
    #2

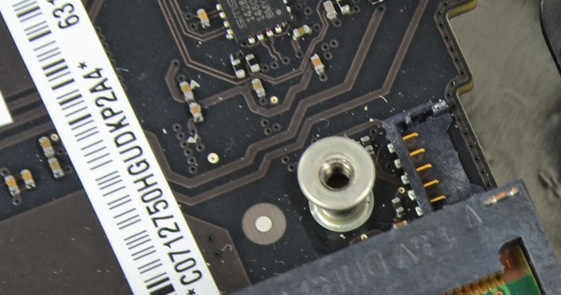

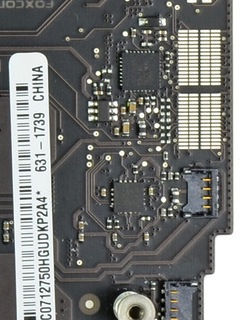

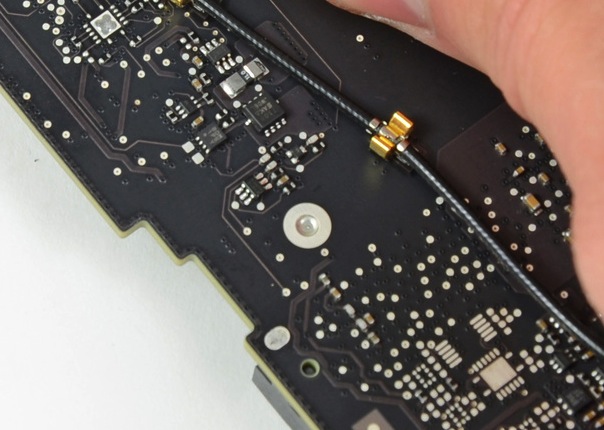

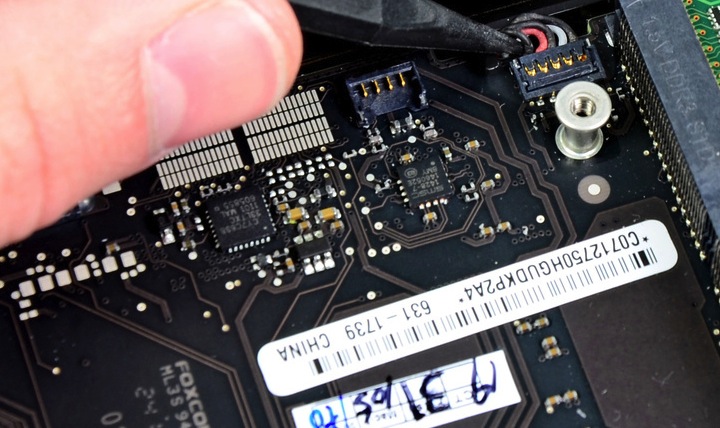

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Trying to find a bigger photo is proving tough!
