How long is the cord from the adaptor to the magsafe 2?

Discussion in 'MacBook Air' started by TreRep, Aug 19, 2013.

  1. TreRep macrumors regular

    TreRep

    Joined:
    Aug 9, 2008
    Location:
    Venice, ITALY
    #1
    How long is the cord from the adaptor to the magsafe 2?

    thank you ;)

  2. ZBoater macrumors G3

    ZBoater

    Joined:
    Jul 2, 2007
    Location:
    Sunny Florida
  3. luisito macrumors regular

    luisito

    Joined:
    Nov 15, 2012
    #3
    Eyeballing it, I would say longer than 1 meter, perhaps 1.2 meters. :)

  4. ZBoater macrumors G3

    ZBoater

    Joined:
    Jul 2, 2007
    Location:
    Sunny Florida
    #4
    Oops, sorry about that. Just saw the OPs location.

    1.7 meters. :D

    I took a measuring tape and measured 60 inches (the tape was 60 inches long) and still had a little less than 1 foot left. Not sure if the adapters outside of the US are different.

  5. TreRep thread starter macrumors regular

    TreRep

    Joined:
    Aug 9, 2008
    Location:
    Venice, ITALY
    #5
    thank you very much to all :)

    i ordered today my new macbook air 13

    now i am working in my bedroom with my ikea galant desk....

    so i will be able to attach the power adapter directly into the plug in the wall without using the ac cord right?

    or is it better and safer with the supplementary ac cord?

  6. luisito macrumors regular

    luisito

    Joined:
    Nov 15, 2012
    #6
    Yes, you can use the adapter directly into the wall plug.

    The supplementary cable serves 2 purposes, first, it is an extension cord incase the cable from the adapter is not long enough and second, most importantly, that cable grounds the computer due to the 3rd pin.

    The adapter by itself has no ground.

  7. TreRep thread starter macrumors regular

    TreRep

    Joined:
    Aug 9, 2008
    Location:
    Venice, ITALY
    #7
    so it is a lot better to use it with the ground connector.... :(

  8. luisito macrumors regular

    luisito

    Joined:
    Nov 15, 2012
    #8
    It is better in the name of safety, but it also depends on your particular circumstances.

    I live on a place that doesn't have thunderstorms nor electric spikes, power surges, thus I am not at risk of electrocuting myself, so I never use the extension cord, most people don't use the extension cord.

    In case of a problem, the Apple adapter will blow up, but your computer will be protected, that is its job, to reduce/filter the amount of electricity that gets directed to your computer.

    There are some other ways of going around this if safety is your concern, get a surge protector/adapter. Most people have one of this for connecting a lot of electronics at their desks.

  9. mattferg macrumors 6502

    Joined:
    May 27, 2013
    #9
    Only in the US. In other countries (or at least the UK) both the extension cable and the adapter that plugs directly into the wall are grounded.

    Although I do notice that the Italian adapter is not grounded and the cable is... is it only the UK that has a grounded charger no matter what?

  10. luisito macrumors regular

    luisito

    Joined:
    Nov 15, 2012
    #10
    I've been deceived my entire life!
    That is not fair! Haha.

  11. Gav2k macrumors G3

    Gav2k

    Joined:
    Jul 24, 2009
    #11
    Dosnt matter if the extension is used or not the ground dosnt actually do anything as it's not connected to the adaptor in any way

  12. luisito macrumors regular

    luisito

    Joined:
    Nov 15, 2012
    #12
    Not quite true.

    Ground is connected through the metal disk. If you take a look at the cable itself, there are latches that grab unto the metal disk for ground purposes.

  13. Gav2k macrumors G3

    Gav2k

    Joined:
    Jul 24, 2009
    #13
    Where it terminates and does nothing. The adapter is dc and earth is not used

  14. luisito macrumors regular

    luisito

    Joined:
    Nov 15, 2012
    #14
    Let me help you. Do you see where the metal disc goes? There are 2 metal latches that ground the adapter through the extension cord.

    [​IMG]

  15. Gav2k macrumors G3

    Gav2k

    Joined:
    Jul 24, 2009
    #15
    I have one sat here. The earth terminates at the disk and does nothing!

    As you can see from the pictures. The disk does not pass through the plastic so the adaptor is NOT earthed in any way!

    Images from indestructibles.com


    Attached Files:

  16. Gav2k macrumors G3

    Gav2k

    Joined:
    Jul 24, 2009
  17. luisito macrumors regular

    luisito

    Joined:
    Nov 15, 2012
    #17


    I believe that it is my duty to Educate you on Apple Magsafe Power Adaptors, and to put a stop to this before you confuse any other users.



    First.

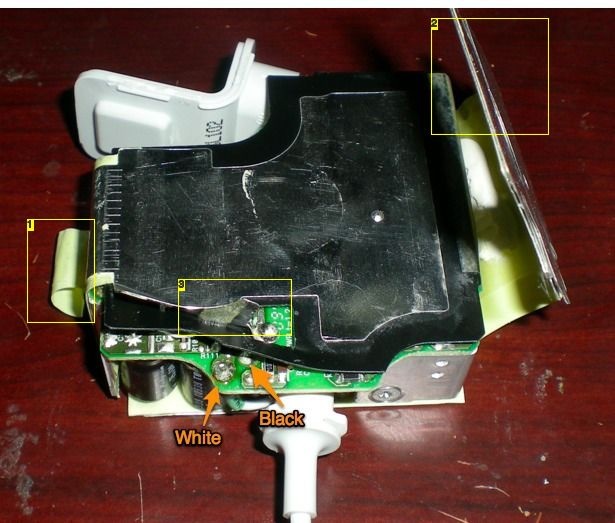

    You forgot to add 1 important picture from instructables. If you zoom in, you can see a black cable coming out of that white "plastic" you talked about. You know, angle is everything! (Every time I refer to "plastic", I am referring to the plastic that you claim covers the metal disc completely not allowing for a ground connection).

    [​IMG]



    Second.

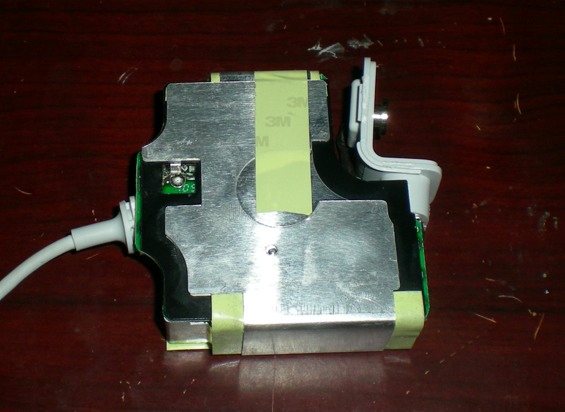

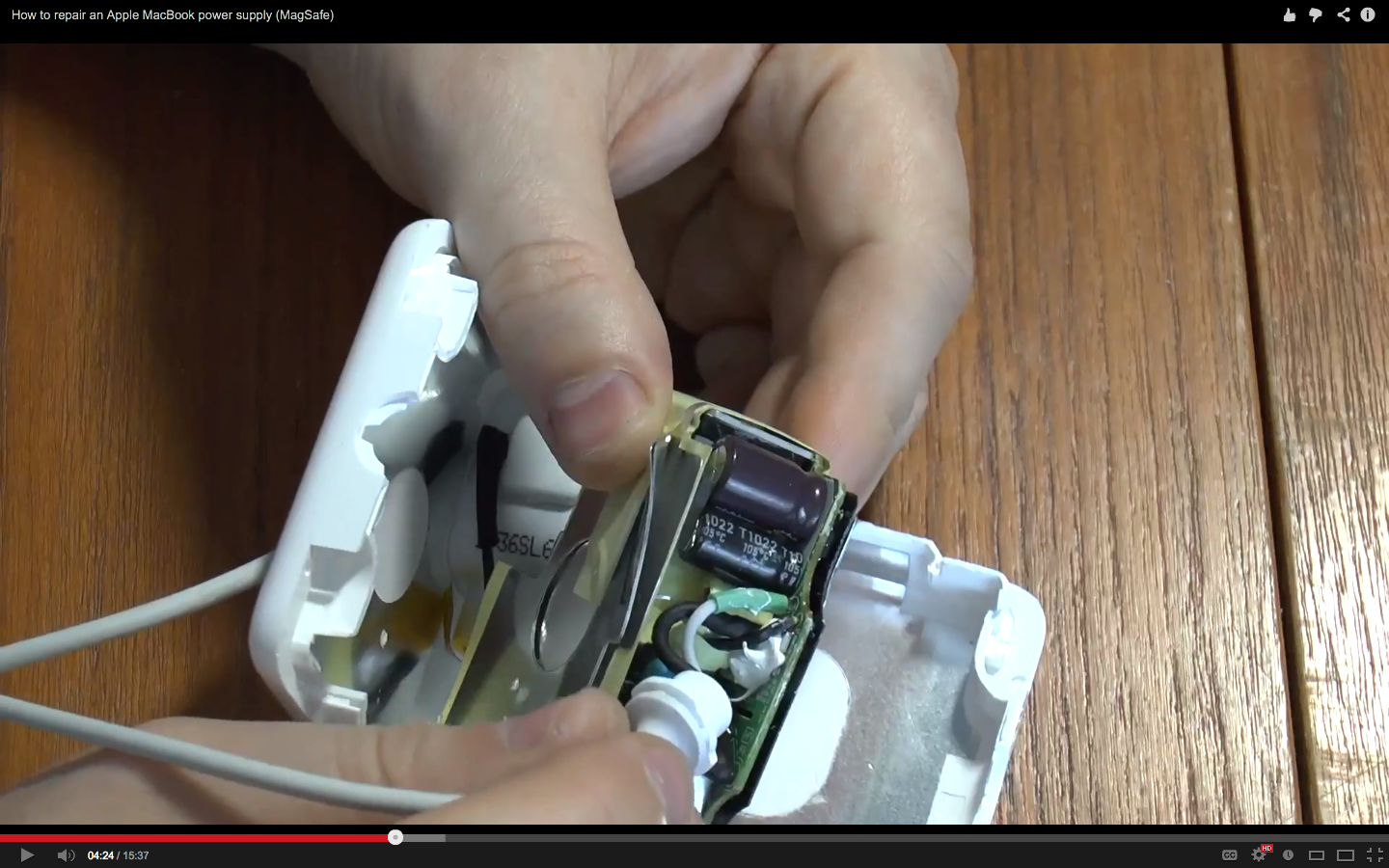

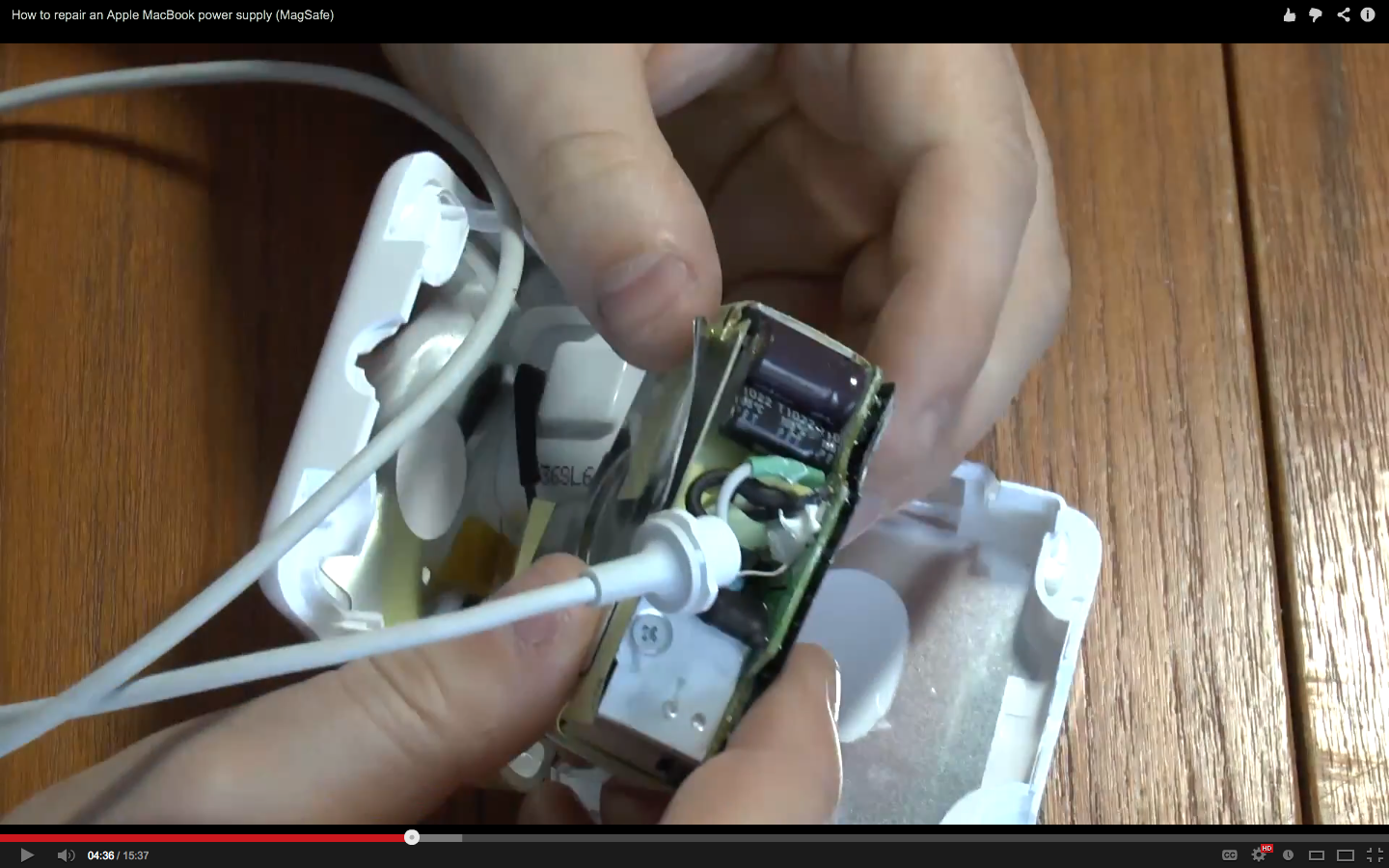

    Here are some beautiful pictures of the black cable that comes out from the "plastic" which is connected to the AC adapter through the metal disk. If a DC cable (provided by Apple) is used, then you adapter is grounded! Wow! Note that the last picture is the best.

    [​IMG]

    [​IMG]

    [​IMG]

    Not yet convinced? Don't worry, I got you covered. I got the screenshots between 4 and 5 minutes.

    Try watching the YouTube video!!
    Here.




    Third.

    Logic, always put logic before all things.
    Why would Apple waste money on adding a 3rd pin on their cable extension cord? Because if your claim were to be true, then it would be pointless. :eek:



    Forth.

    The magsafe pin, either 1 or 2, or T or L, however you wish to call it, has 2 ground pins, the outermost pins.

    [​IMG]

    Screenshot taken fro Wikipedia without permission from the owner. Muahahah! Wikipedia. But I am quoting it, though!

    I hope that this has helped you extend your knowledge on Apple Adapters; for next time, please do more research before grabbing the first pictures that you find on the web.

    Questions welcomed.
