In horribly desperate need of help resolving external hard drive issue - Last Resort

Discussion in 'Mac Basics and Help' started by dwhits90, Mar 11, 2013.

  1. dwhits90 macrumors newbie

    Joined:
    Mar 11, 2013
    #1
    I've never posted in a forum like this before, but I have total faith in the people on here. There will be UNENDING appreciation for anyone that can help me out at all.

    So I have a huge issue going on right now. Basically I cannot get my external hard drive working, which is a huge problem seeing as I cannot apply to graduate school for architecture without the documents on there. I would GREATLY appreciate any help. (Note - I'm not hugely knowledgeable about a lot of the backend tech stuff on computers but am a very fast learner and have a VERY solid grip on how to use macs).

    Here's the story:

    I have a 1TB WD external hard drive. I gave it a FAT32 partition so I could transfer documents between my MAC and my PC in my architecture studio. The hard drive was working fine for a while and then last week, I noticed that it gave me an error message saying that I could read documents on the hard drive but I would not be able to copy new documents to the hard drive. Then, the next time I plugged the hard drive into my computer, I got an error message telling me that "The disk you inserted was not readable by this computer." And I haven't been able to get it to work since. I opened disk utility and the partition's name has changed to disk2s1 from it's original name. Also, disk utility is unable to repair the disk.

    I downloaded and paid for Stellar Phoenix. It ran for a week and was able to recover some of the files (so I KNOW the files are still there) but I know it didn't even BEGIN to scan the depths of my hard drive because it appeared to freeze at about 5% of the way through the scan (at least I think it was frozen because it was monitoring the same sector for 2 days) and I stopped the scan and recovered some of the files it had detected. These files were recovered to the 2 TB G-Technology hard drive that I have since purchased at the apple store. I then purchased DiskWarrior. DiskWarrior gave me an error message that read:
    Directory cannot be rebuilt, the file system is unsupported.
    This disk is not a Macintosh disk.
    This disk does not appear on the desktop.
    This disk is 1 TB in size.
    Disk ID: disk2s1
    Sectors: 1,953,458,174 (512 Bytes each)
    Drive Format: FDisk Partition Scheme
    File System: MS-DOS/PC
    Model: WD

    I cannot for the life of me figure out what this FDisk Partition Scheme means. I used a mac to partition the drive and to prove it, the hard drive was working on the Mac. It's almost as if suddenly, something changed the drive format.

    After doing extensive searches online, it appears my problem is SIMILAR to this post -> http://forum.voodooprojects.org/index.php?topic=1593.0

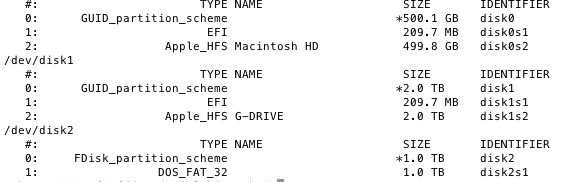

    The poster was able to solve the issue, but I don't have the technical understanding to figure out what he did. I attached an image of what the terminal says when I list the drives.

    If there is ANYONE out there that is willing to help me out, I would truly be endlessly appreciative. This is really an incredibly serious problem for me, and I'm really just ready for this issue to be done with, but I don't want to spend any more money on it, especially if it's something that can be fixed without spending money and I just don't know how to do it.


    Attached Files:

  2. The-Pro macrumors 65816

    Joined:
    Dec 2, 2010
    Location:
    Germany
    #2
    my portable external hdd has died recently. First noticed something weird weeks ago, never bothered saving data.
    I had a os journaled and Fat 32 partition. I primarily used the HDD with my 2010 MBP, and the fat 32 partition stopped mounting, it just wasnt able to. The osx parti. was mounting, sometimes, but copying stuff gave me errors like the files are in use and stuff like that.
    I did a safe boot, hold the shift key when booting, and I managed to copy no more then 10 single files at a time before after an always different period of time, i got errors again. I then had to restart into safe boot again and copy more. Spend 2 days copying my files.
    With the FAT 32 parti. I thought I had lost everything. Disk utility was also unable to repair any of the partitions.
    Then I thought about trying the HDD with other computers. on a 15" 2008 MBP the osx parti didnt mount but the fat 32 did, copying files gave me errors though. Booting into win 7 on my 2010 MBP, made the fat 32 mount and I was able to copy a couple GB's before it stopped working. Booting into XP on the 2008 MBP I was able to get some of my data from the fat 32 parti.

    I plugged the HDD into 8 different computers and on every single one the HDD functioned differently. I managed to get the most of my data but some was lost for good.
    My best advice, try your HDD with several computers, be it friends or a hardware store even :D Try it with several computers running different versions of windows.

    I download over 10 recovery softwares, none did what I wanted them to do. Id say download all the ones you find that suit your situation and try them out. Who knows.
    Sorry im not much help

  3. dwhits90 thread starter macrumors newbie

    Joined:
    Mar 11, 2013
    #3
    Thanks. I'll work on this. In the mean time, does anyone else have any insight?
