iPhone 5c missing components from logic board causing camera not to work

Discussion in 'iPhone' started by noledud, Oct 4, 2014.

  1. noledud macrumors newbie

    Joined:
    Oct 4, 2014
    #1
    hi all

    the camera wont work on a 5c i have

    it just has a blank preview screen and does nothing forzen cant switch to front camera or anything

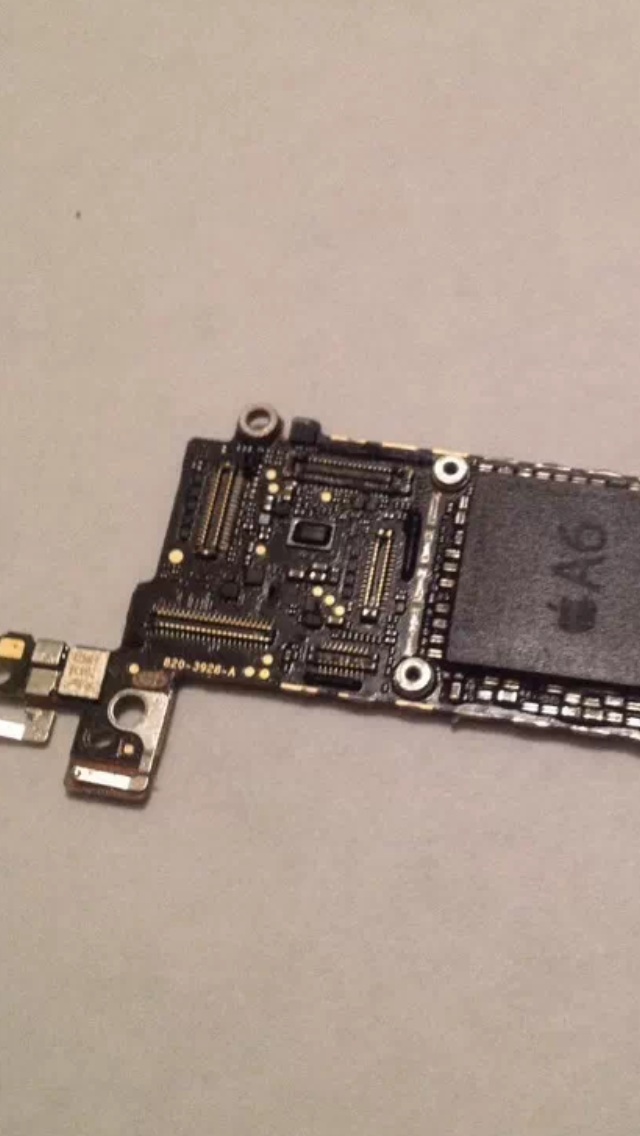

    checked logic board and it seems as if 2 components are missing

    can someone tell me what they are or where i could go to find out ?

    the close up is of just under the rear camera connector


    Attached Files:

  2. Newtons Apple macrumors P6

    Newtons Apple

    Joined:
    Mar 12, 2014
    Location:
    Jacksonville, Florida
    #2
    There are very few here that can tell you if something is missing from your circuit board.

    I would check with Apple.

  3. ZBoater macrumors G3

    ZBoater

    Joined:
    Jul 2, 2007
    Location:
    Sunny Florida
    #3
    I'm guessing if you have a view of your logic board, you might have other issues....

  4. maflynn Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #4
    I haven't taken my phone apart so I can't tell you what my 5c looks like, but why not take it to apple if the camera is not functioning?

  5. ucfgrad93 macrumors P6

    ucfgrad93

    Joined:
    Aug 17, 2007
    Location:
    Colorado
    #5
    Agreed, take it back to Apple or where ever you bought it.

  6. Charadis macrumors 6502a

    Joined:
    Jul 3, 2010
    #6
    Hi OP, based on your photo, there are 4 exposed pads that I can see (shiny solder dots that are contacts for a surface mount component, such as an IC or other part). At first, I thought it could be for two micro capacitors, but upon closer inspection of a bare board, it appears that there is one less IC on your board. I do not know the function or part number for this IC, unfortunately.

    I would reassemble your device, and as everyone suggests, make a visit to the Apple a Store. It would be wise not to mention the disassembly offhand. Sent from my iPad.


    Attached Files:
