Late 2012 iMac, Erased SSD+(new)SSD, Can't boot, fix or access via Target Disc Mode

Billzabub

macrumors newbie
May 24, 2019
8
0
0
I am having a lot of problems with my Late 2012 27" iMac not booting (and not letting me install, run diagnostics tests etc)...

Ok... I'll try and keep this concise:

Late 2012 3.4Ghz 8MB iMac worked great for years - started to get some random restarts last year - was running High Sierra

Tried an update to Mojave - failed - and iMac no-longer would boot / kept power re-cycling

Took it in for repair at good authorized Apple repair center. They managed to get all data off the Fusion drive (128GB original SSD/NVME + 1TB HDD). They tried reinstalling OS (I think they put original Snow Leopard on there). But kept getting re-boots.

Told me it was likely a Logic Board fault which would cost $800 or I could leave with them for recycling...

I decided I wanted to try and save the machine - I had read that the PSU boards on late 2012 iMacs often caused this sort of problem - so I brought the iMac home - learned how to open it up (iFixit) - bought a refurbished different PSU board for $100 and fitted it.

Did a quick test - and it booted ! hurrah.

At this point I thought I would give the machine a bit of boost so bought a 1TB SSD (Samsung EVO 860) and swapped out the HDD for the SSD. I expected this to kill the fusion drive setup - and it did - but I was ready to install Mojave from external USB disk I had made

This didn't seem to work - but when I tried Recovery mode from Internet, It remade fusion drive, installed High Sierra - and booted! So was super happy, re-sealed screen to machine and had a working iMac again.

So then... I tried installing Mojave again (10.14.4)... seemed ok to begin with then crash... then didn't boot and wouldn't even get to disk utilities or Terminal with my Mojave USB install disk

So I thought maybe the fusion disk setup was the culprit - and therefore if I could reset that - maybe unfuse the drives and install OS X to NVME and use the 1TB for applications and user data...

I bought a firewire cable (and a new Mac book Air....) and used Target Disc Mode - I could see drives - I ran first aid on them - no errors. I tried lots of different boot options - in the end I erased them both to try and get rid of fusion setup (pic is before erase).

Everything I did hasn't helped getting past a stuck progress bar on the Apple Logo.

I can't do internet recovery, USB recovering, Paragon Hard Disk Manager USB Key, Apple diagnostics (via internet) - I get same error about Can't load EFI...

So then I thought if its nothing to do with my internal drives (which should be blank) - maybe its my memory... so I tried removing one 4GB bank - same results. tried other... same results...

The only thing I can get into is Single User Mode - but not sure what to do there to help....

Before I start believing it is a logic board problem I really want to rule out some kind of SW/Firmware issue - or test HW somehow and check it works - but remember - I have NO OS installed at the moment

... update ...

things are getting worse - now I can't even see the drives in Target Disk Mode :( - the host is showing Firewire symbol - but no drives appearing on my Mac Book Air (which I just upgraded to 10.14.5 - hope that hasn't caused that).
If I use Single User Mode (with as USB 10.14.4 key in) I see the drives *are* there (with ls /dev/disk*) - but I don't seem to be able to run fsck on them (only the USB 'root')

What do I need to do in Single User Mode to be able to a) check other drives, b) see them in Target Disk Mode please?

On another thread https://discussions.apple.com/thread/250285425?page=5 there is lots of talk of the latest Mojave EFI Firmware 224.0.0 being buggy - e.g. stopping Cmd-D diagnostics from working:

Error: 0x8000000000000003, Cannot Load 'EFI/Drivers/TestSupport.efi'
Status: 0x00000003

I get this too so I can't easily check what is working and what isn't

p.s. I changed my RAM tonight - NO change.

Thanks


Fishrrman

macrumors P6
Feb 20, 2009
16,982
5,448
0
You have another, working Mac, right? (MacBook?)

Do this:
You'll need a USB flash drive 32gb or larger, or an external hard drive.

Do this on the OTHER Mac (not the problem iMac).

Install a clean copy of the OS of your choice onto the USB flashdrive or external drive. Set it up with a basic administrative user account.

Now, take this drive to the problem iMac.
Can you boot the iMac from it?

WHY you're doing this:
You need a way to boot the iMac from an EXTERNAL drive that has a copy of the OS on it that is "bootable to the finder".
This will demonstrate whether the problems with the iMac are drive-related, or are coming from somewhere other than the internal drive(s).

If the iMac boots and runs ok from the flashdrive, then it's the internal drives that need work...

  • Like
Reactions: Billzabub

Billzabub

macrumors newbie
May 24, 2019
8
0
0
You have another, working Mac, right? (MacBook?)

Do this:
You'll need a USB flash drive 32gb or larger, or an external hard drive.

Do this on the OTHER Mac (not the problem iMac).

Install a clean copy of the OS of your choice onto the USB flashdrive or external drive. Set it up with a basic administrative user account.

Now, take this drive to the problem iMac.
Can you boot the iMac from it?

WHY you're doing this:
You need a way to boot the iMac from an EXTERNAL drive that has a copy of the OS on it that is "bootable to the finder".
This will demonstrate whether the problems with the iMac are drive-related, or are coming from somewhere other than the internal drive(s).

If the iMac boots and runs ok from the flashdrive, then it's the internal drives that need work...
[doublepost=1558802133][/doublepost]So yes, I have Mac Book Air with 10.14.5 running on it.
I understand in principle what you are suggesting - but all guides I see on the net talk about creating a USB bootable Mac OS X *installer* disk, not a bootable to finder USB disk.
But I have tried the Mojave installer usb and also a recovery/paragon disk manager USB which are basically cut down boot versions and both of these stall while loading...
So.. newbie question to everyone, if I option boot and select an external drive am I running any internal efi firmware that is on any internal storage/nv memory?
Or is it that the standard external boot is trying to access the internal drives and getting confused and hanging?
My point is that without opening up the damn machine (and I'd like to avoid cutting through all the adhesive it too me ages to get right) I can't isolate what is happening from what could still be lurking on some partition of those drives.
Any pointers to creating a minimal external boot USB would still make sense.

BTW one thing someone suggested was create a high Sierra install USB but I can't even download the install from Mojave 10.14.5 (with direct link) it won't let me.

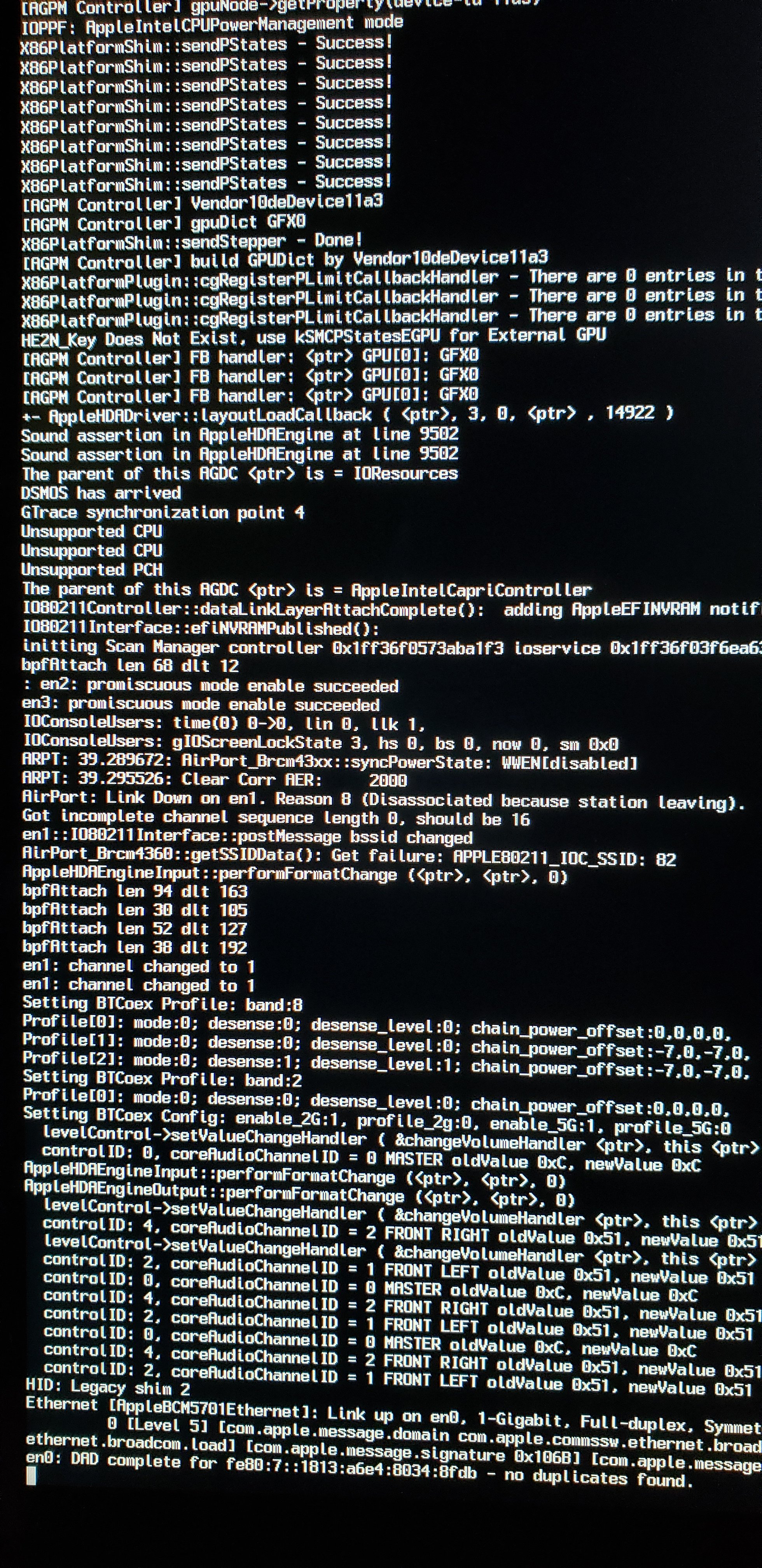

Here's photo of where it hangs when I try and boot with verbose mode on.


Fishrrman

macrumors P6
Feb 20, 2009
16,982
5,448
0
"I understand in principle what you are suggesting - but all guides I see on the net talk about creating a USB bootable Mac OS X *installer* disk, not a bootable to finder USB disk."

I've shown you "the pathway forward".
Whether you choose to walk it is... up to you.

Try doing what I've recommended that you do.
Then get back to us.

  • Like
Reactions: Billzabub

Billzabub

macrumors newbie
May 24, 2019
8
0
0
Ok... I borrowed a neighbor's Mac Book Air which was running High Sierra 10.13.6. I installed an external bootable version of High Sierra on external USB/T5 SSD. It worked on his Mac. Remembered to change his Start Up drive to Internal before I finished with machine (that would have been awkward otherwise).
Now when I do Option boot I get option of "Mac OS X 10.13.6" or "Recovery 10.13.6".
They both get stuck on the apple loading progress.
Haven't tried verbose or Single User Mode yet.

The only thing I can think of which isn't a 'logic board failure' is boot rom mismatch now... (if it was HW then why was High Sierras running before I tried the Mojave update?)

How can I find out what Boot ROM EFI I have now (I suspect 224 still...) - and then downgrade?
There is the last Apple EFI standalone ROM for this model - Late 2012 27" Intel 3.4 on this page -
is there any way to update Boot firmware from Single User Mode?

... Update

Single User Mode works and obviously this is better position now that it is a full Mac OS X disk (10.13.6) environment (thanks for this).

I don't know enough about diagnosing things from this point.

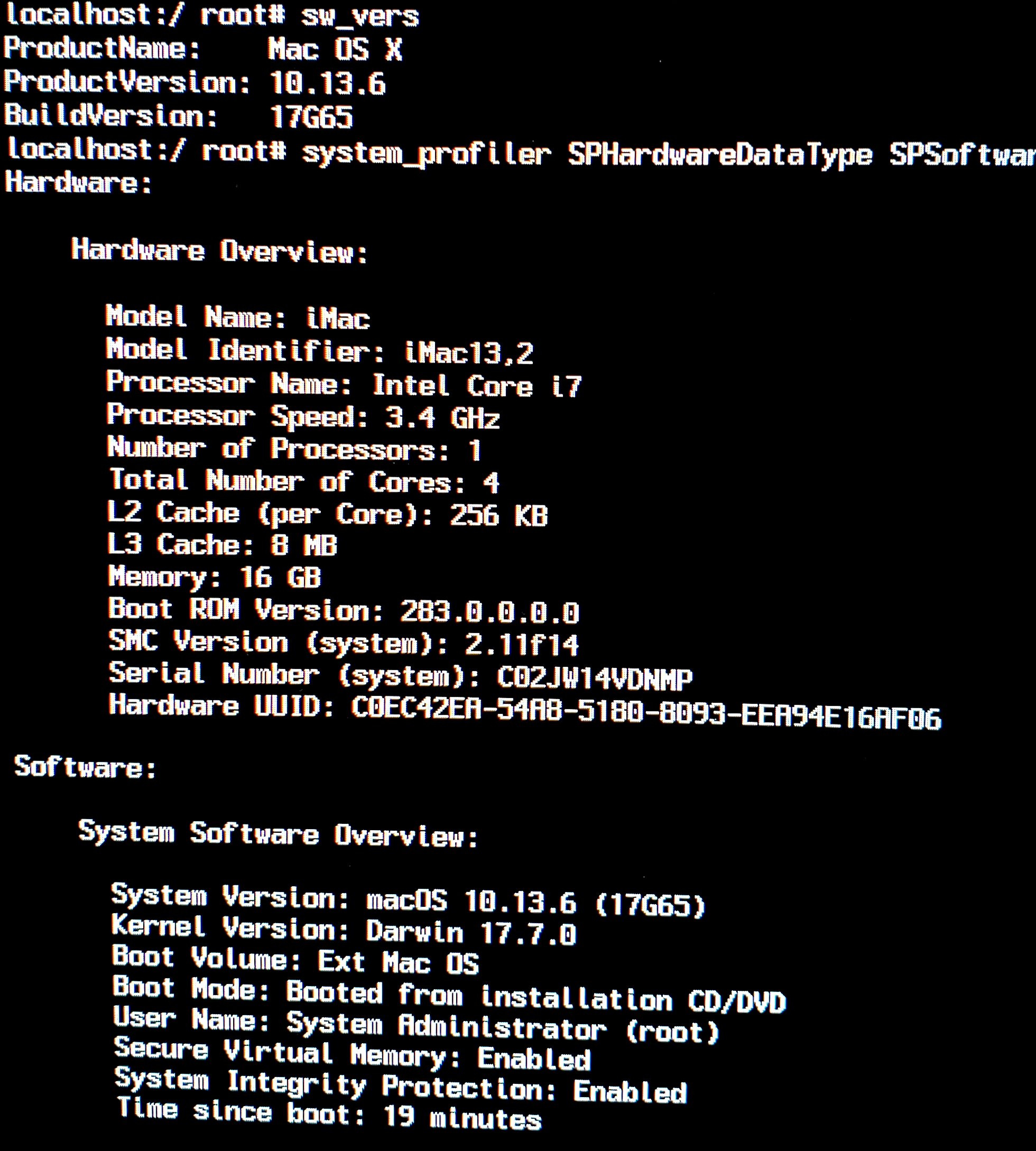

You can see the other drives are enumerated in the screen shot
Thanks
[doublepost=1558819697][/doublepost]Here's some more info on the HW and SW build versions.



Last edited:

Billzabub

macrumors newbie
May 24, 2019
8
0
0
Ok... here is the Panic detail from the last time I tried to boot from that 10.13.6 Ext Mac OS X -

Anonymous UUID: FA4168BD-C794-AA5B-5B97-30CF9280A87A

Sat May 25 15:30:28 2019

*** Panic Report ***
panic(cpu 2 caller 0xffffff7fadd70692): "bool IOAccelDisplayMachine2::display_mode_did_change(uint32_t): vendor driver returns false"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/IOAcceleratorFamily_kexts/IOAcceleratorFamily-378.26/Kext2/IOAccelDisplayMachine.cpp:490
