iPad [Leaked!] Ipad Air unboxing and A7 chip disassembly pictures

Discussion in 'iPad' started by offall, Oct 27, 2013.

  1. offall, Oct 27, 2013
    Last edited: Oct 27, 2013

    offall macrumors newbie

    Joined:
    Jun 8, 2009
    #1
    Chinese forums now published multiple photos of ipad air unboxing and even the disassemble of the mainboard and showing A7 chip inside.

    Can anyone take a look at the A7 chip picture and see if we can confirm if the A7 in ipad air are running at higher frequency than iphone5s or even have 2G ram?

    Here are the pictures

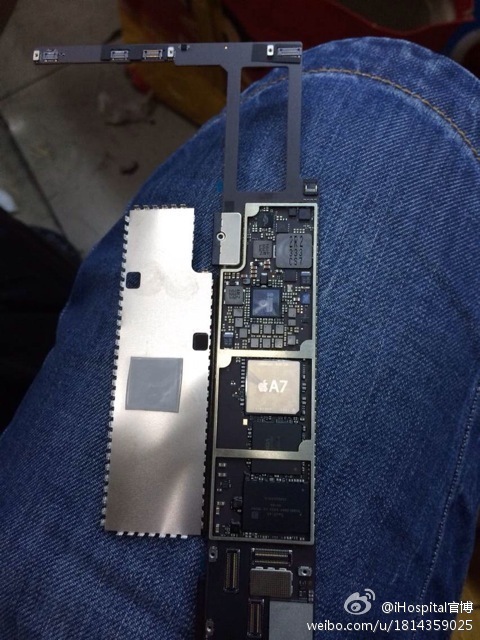

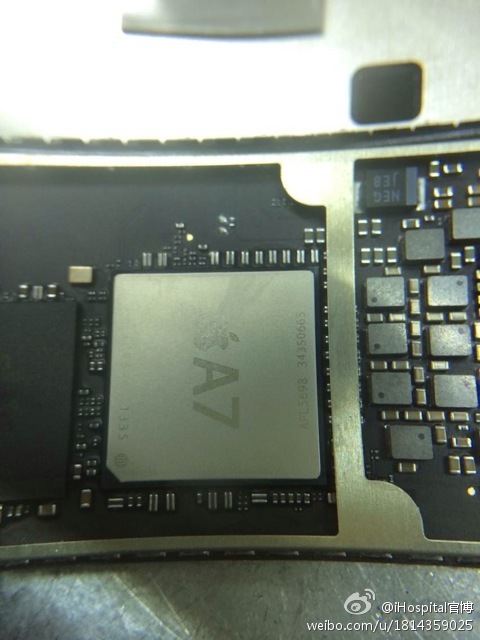

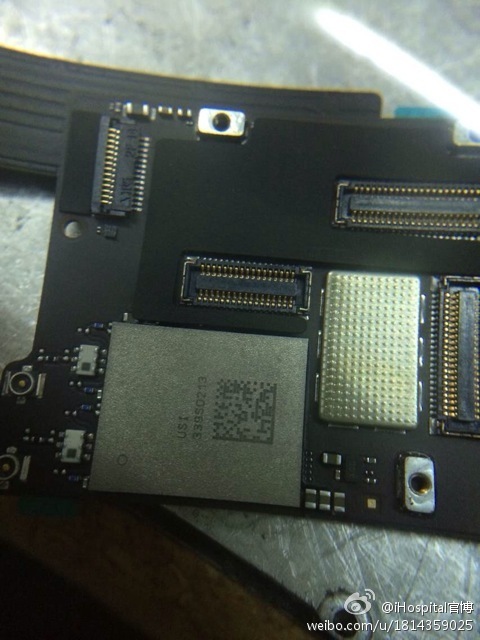

    Disassembly pictures see attached pics below: (for a few more pictures and the original post see here )


    For the unboxing pictures see original post here with pictures ), see google translated page here


    Attached Files:

  2. virginblue4 macrumors 68000

    virginblue4

    Joined:
    Apr 15, 2012
    Location:
    United Kingdom
  3. iDuel macrumors 6502a

    iDuel

    Joined:
    Jul 20, 2011
    Location:
    Greece/USA
    #3
    That chip should be black with a white "A7" engraving. I call fake

  4. scrap104, Oct 27, 2013
    Last edited: Oct 27, 2013

    scrap104 macrumors regular

    scrap104

    Joined:
    Dec 30, 2010
    Location:
    UTC−05:00
    #4
    The A5X and A6X were silver in the big iPads. Still, I can't truly believe it yet until iFixit's teardown.

  5. Lecdg2 macrumors newbie

    Joined:
    Oct 27, 2013
  6. zbarvian macrumors 68010

    Joined:
    Jul 23, 2011
    #6
    Proof of a better GPU? Must be a different chip in some way than the 5S A7.

  7. Lecdg2 macrumors newbie

    Joined:
    Oct 27, 2013
    #7
    It is too early to conclude anything as we are not even sure that this pictures (that look authentic) are not a fake.
    By comparing the size of the chip with the A7 found in the iphone, it might be possible to identify some difference.
    However until proper teardown, all of this willl remain speculation

  8. scrap104 macrumors regular

    scrap104

    Joined:
    Dec 30, 2010
    Location:
    UTC−05:00
    #8
    I noticed the APL numbering is consistent with the 'X' series processors as well.

    A7 (Air): APL5698
    A6X: APL5598
    A5X: APL5498

    A7: APL0698
    A6: APL0598
    A5: APL0498
    A4: APL0398

  9. Lecdg2 macrumors newbie

    Joined:
    Oct 27, 2013
    #9
    Beated....


    In fact there is an interesting fact.
    On the pictures, the reference is APL5698
    On the A6x, it was APL5598
    On the the A5X, it was APL5498.

    On the A7, reference is APL0698
    On the A6, reference is APL0598
    On the A5, reference is APL0498


    (Check ifixit if you don't believe me)

    So if image are real, and if apple keep the same logic, the A7 chip find in the ipad air is an hidden A7X...

  10. zbarvian macrumors 68010

    Joined:
    Jul 23, 2011
    #10
    I think this is conclusive proof. Not only do we have Apple's performance claims, we now have the proper numbering and even color. All that's left is benchmarks but one can safely assume those will confirm these findings.

  11. Lecdg2 macrumors newbie

    Joined:
    Oct 27, 2013
    #11
    It will be interesting to find out what will be in the ipad mini retina.
    One of the reason for Apple not to call the Ipad Air chip an A7X might be no to highlight that ipad mini retina "only" have the same A7 found in iphone 5s

  12. puma1552 macrumors 601

    Joined:
    Nov 20, 2008
    #12
    So can anyone determine from these pics if we have 1 or 2 gigs of RAM?

    I wonder if the big holdout from Apple is that the Air might have 2 gigs while the mini has 1?

  13. aneftp macrumors 68040

    Joined:
    Jul 28, 2007
    #13
    I am ordering both 64gb verizon lte iPad air and iPad mini 2.

    Than waiting for teardown. If same exact ram. Than I will return the iPad Air (I already have iPad 3 and iPad 4).

    If iPad Air has 2GB ram and iPad mini retina has 1gb ram. Than will return the iPad mini retina.

    That's my gameplan.

  14. Pressure macrumors 68040

    Pressure

    Joined:
    May 30, 2006
    Location:
    Denmark
  15. offall thread starter macrumors newbie

    Joined:
    Jun 8, 2009
    #15
    heat sink is consistent with A6X if I remember correctly.

    what are the other chips like the one with engraving of 343s0655-A1 1334KHFZ

  16. zbarvian macrumors 68010

    Joined:
    Jul 23, 2011
    #16
    If Apple's numbers are telling - and so far they have been - then both iPads use an identical chip distinct from that of the 5S. I doubt the Air will have a "hidden A7X," and the Mini a normal A7.

  17. Lecdg2 macrumors newbie

    Joined:
    Oct 27, 2013
    #17
  18. offall thread starter macrumors newbie

    Joined:
    Jun 8, 2009
    #18
    Not really,
    the performance improvement mentioned for the retina iPad Mini (8x of ipad mini original) suggests that its A7 is only as fast as the one in the iPhone 5S.

    So, the A7 in the Air should have faster graphics performance (2x of ipad 4) than the A7s in the iPhone 5S and retina iPad Mini.



  19. offall thread starter macrumors newbie

    Joined:
    Jun 8, 2009
    #19

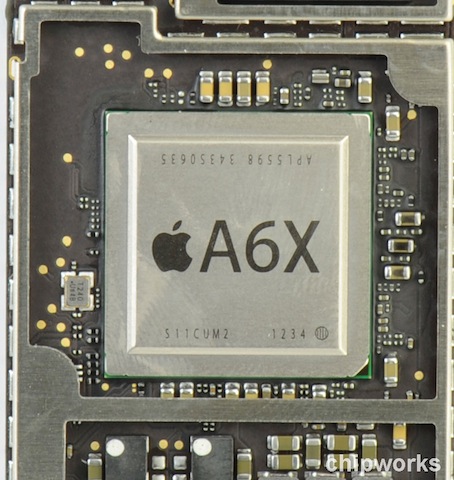

    From the A6X picture above, seems like A6x (or A7 here) doesn't have as many of the engraved codes as A6 /A7 in the iphone



  20. Zerilos macrumors 6502a

    Joined:
    Dec 18, 2012
    #20
    The logic board appears to be much larger that what's on the iPhone 5s.

  21. zbarvian macrumors 68010

    Joined:
    Jul 23, 2011
    #21
    How do you figure? 8x faster than the A5, so do the math: 2x faster is A5X, 4x faster is A6X, which means another speed-double would put us at twice the speed of the A6X, and the A7 in the 5S is NOT that chip.

  22. offall thread starter macrumors newbie

    Joined:
    Jun 8, 2009
    #22
    There is a full thread here about how this doesn't match up
    check out here:
    http://forums.macrumors.com/showthread.php?t=1658221



  23. mcdj macrumors 604

    mcdj

    Joined:
    Jul 10, 2007
    Location:
    NYC
    #23
    Seriously people, do you hear yourselves? Calling a chip inside a tablet fake because you *think* it should be a different color?

    I think all the posts calling fake are fake, made by fake people posing as posters to discredit the color silver.

    That only sounds slightly more retarded than calling these photos fake.

  24. joedan76 macrumors newbie

    Joined:
    Jun 16, 2013
    #24
    There is a APl5698 chip image here?

    Does it tell us more in terms of memory?

    http://sz776.hqew.com/ec/ecview_22145812.html

  25. DVK916 macrumors regular

    Joined:
    Jan 5, 2006
    #25
    The problem with this statement is it contradicts apple statement about the mini GPU being 8X the current A5.

    ----------


    This is 100% wrong.

    ----------

    That thread shows what you are stating is bogus and wrong. If the mini is 8X the A5 then it would be around were the A7 in the Air would be not the 5s.

    ----------

    The A5 in the Mini is 16 Gflops

    A minimum of 8*16 gives us 128 Gflops.

    The A6X is 76 GFlops so 2X the A6X gives us 152 Gflops.

    Apple tends to be very conservative so I would estimate the Gflops of the different A7s as

    Iphone 5s: 76Gflops
    Mini: 130 - 170 GFlops
    Air: 150 -200 GFlops.

    So the Mini and Air could be the same A7, or the Mini is clocked in between the two.
