MacPro w/10 GB RAM - Photoshop only "sees" 3072 MB? Huh?

Discussion in 'Mac Pro' started by DHart, Sep 22, 2008.

  1. DHart macrumors 6502

    DHart

    Joined:
    Jan 17, 2008
    #1
    Well, I just installed 8 GB of additional RAM in my new mac pro, bringing my total to 10 GB. The System Profiler shows all 10 GB being there... but when I go into Photoshop/Preferences/Performance to up the usage of RAM, it only shows 3072 MB of "Available RAM".

    Shouldn't Photoshop see at least 7000 or 8000 MB of available RAM? I did quit and restart Photoshop and it made no difference, still just says "3072 MB of available RAM".... can anyone help me figure this out?

    I love this MacPro! Thank you.

  2. Peace macrumors P6

    Peace

    Joined:
    Apr 1, 2005
    Location:
    Space--The ONLY Frontier
  3. DHart thread starter macrumors 6502

    DHart

    Joined:
    Jan 17, 2008
    #3
    No.... oh no. Windows is not allowed anywhere near my place....

  4. Peace macrumors P6

    Peace

    Joined:
    Apr 1, 2005
    Location:
    Space--The ONLY Frontier
    #4
    Ok.. I think there's a preference in PS CS3 that allows you to adjust the amount of memory that's available to PS.

    Click around.

  5. robbieduncan Moderator emeritus

    robbieduncan

    Joined:
    Jul 24, 2002
    Location:
    London
    #5
    Well it's a 32-bit process so it's only going to have access to 4Gb at most...

  6. Consultant macrumors G5

    Consultant

    Joined:
    Jun 27, 2007
    #6
    Unfortunately, the 3GB memory limitation is that of Adobe.

    Why don't you google:
    adobe 3gb memory limitation

  7. robbieduncan Moderator emeritus

    robbieduncan

    Joined:
    Jul 24, 2002
    Location:
    London
    #7
    1GB reserved for memory mapped files?

    Edit: just looked it up: 1Gb for the application code, 3Gb for data = 4Gb 32-bit process limit.

  8. DHart thread starter macrumors 6502

    DHart

    Joined:
    Jan 17, 2008
    #8
    Consultant... thank you. For a few minutes I was wondering WHY I went and bought 8 more GB of RAM for Photoshop, not knowing the limitation of 3 GB.

    I did as you suggested, found the following, and implemented it! Awesome.

    Work around Photoshop's 3GB RAM limit
    Fri, Jul 18 2008 at 7:30AM PDT • Submitted by Anonymous

    With RAM prices dropping so fast, it seems a shame that I can't really use more than 3GB of memory for Photoshop. As a 32 bit application, Photoshop CS3 can only "use" 4GB of real memory -- a 1GB chunk for the application, leaving a potential 3GB of real RAM available for Photoshop to use for my images. For anyone with 8GB or more of memory, here's an old concept that tricks Photoshop into using as much memory as you want.

    Remember RAM disks from OS9? The feature is available in the command line in OS X. By creating a RAM disk, and having Photoshop use that as the first scratch disk, you'll speed up Photoshop as long as you have enough real memory to do it. For my test, I allocated 3GB to Photoshop in its prefernces (real memory usage), and then created a 2GB RAM disk.

    The Terminal command to create a 2GB drive is:
    hdid -nomount ram://4194304
    The number is the number of 512 byte blocks in your RAM disk. The example above creates a 2GB disk, so a 4GB drive would be 2x that number, and a 1GB drive would be half that number, and so on. Once the disk is created, format it with Disk Utility. Then configure Photoshop to use the RAM disk as your first scratch disk. As soon as CS3 hits the 3GB memory barrier, it starts using the RAM disk as "memory" first. Remember, it will be "swapping" memory pages in and out of the 3GB memory set, but this is still better than swapping to and from a hard drive.

    I created a 4.5GB file in Photoshop, and was pleased to see almost no disk activity on my real drive, but my RAM drive was full during my test.

    Note: This really only helps someone with 8GB or more of memory running CS3 a lot. For example, if you had 16GB of memory, you could create an 8GB RAM disk, and then allocate 3GB in CS3, effectively having Photoshop "use" 11GB of real memory before hitting the disk. Also note that RAM disks are not quite as fast as regular memory access native to an application, but they are much faster than having CS3 swap to your hard drive.

    While it takes some steps to get this configured, I thought there might be some people out there interested in improving how CS3 uses real memory, since there is no 64-bit version yet.

  9. UltraNEO* macrumors 601

    UltraNEO*

    Joined:
    Jun 16, 2007
    Location:
    近畿日本
    #9
    The trouble is.... 99% of the users on those board don't know what the search thing does, and your asking them to use Google?

    Dude, they even write Dummy books for Blogger, it's just a matter of time for a Google search one... no wait, O'reilly releases one called "Google hacks" - possibly too advance for kid here, huh? :D

  10. DHart thread starter macrumors 6502

    DHart

    Joined:
    Jan 17, 2008
    #10
    UltraNEO*.... Google is as easy as it gets... what are you talking about?

  11. TheG4Mutiny macrumors newbie

    TheG4Mutiny

    Joined:
    Sep 25, 2008
    #11
    trying to make a fool of themselves.


    back to original post.

    there arent many applications available atm to run more than 4 gigs of combined process, but 10gigs is a good amount to do everything i can possibly think of.

    i mean i only run 1 gig and can run garageband, photoshop, aim, msn, firefox, safari, and itunes all at once.

    so 10 gigs = god like, multiprocess usage.

  12. DHart thread starter macrumors 6502

    DHart

    Joined:
    Jan 17, 2008
    #12
    PS3 on 10.5 or later will see more than 3 GB RAM

    No need for a RAM Disk with OS 10.5 or later, the OS automatically spills Photoshop's needs to available ram before going to the scratch disk (hard drive). If you have 6 or more GB of RAM, set PS Performance to 100% (3 GB) and the OS will automatically let PS use the extra RAM beyond 3 GB.

  13. hwojtek macrumors 6502a

    hwojtek

    Joined:
    Jan 26, 2008
    Location:
    A small rural village in western Poland
    #13
    How is it possible, if PS CS3 just cannot address anything beyond 4th GB of memory? It's a 32-bit app!

  14. DHart thread starter macrumors 6502

    DHart

    Joined:
    Jan 17, 2008
    #14
    From Adobe:
    Allocating Memory above 2 GB with 64-bit Processors
    When you run Photoshop CS3 on a 64-bit operating system, such as Mac OS X v10.4 and later, Photoshop can access up to 8 GB of RAM. You can see the actual amount of RAM Photoshop can use in the Let Photoshop Use number when you set the Let Photoshop Use slider in the Performance preference to 100%. The RAM above the 100% used by Photoshop, which is from approximately 3 GB to 3.7 GB, can be used directly by Photoshop plug-ins (some plug-ins need large chunks of contiguous RAM), filters, and actions. If you have more than 4 GB (to 8 GB), the RAM above 4 GB is used by the operating system as a cache for the Photoshop scratch disk data. Data that previously was written directly to the hard disk by Photoshop is now cached in this high RAM before being written to the hard disk by the operating system. If you are working with files large enough to take advantage of these extra 2 GB of RAM, the RAM cache can increase performance of Photoshop.
    The default RAM allocation setting in Photoshop CS3 is 70%. These settings should be optimal for most users. To get the ideal RAM allocation setting for your system, change the RAM allocation in 5% increments and watch the performance of Photoshop in the Activity Monitor. You must quit and restart Photoshop after each change to see the change take effect.
    The available RAM shown in the Performance preferences has already deducted an amount that is reserved for the operating system from the total RAM in your computer. You shouldn't set the percentage of RAM to be used by Photoshop to 100% (unless you are using more than 2G of RAM) because other applications which run at the same time as Photoshop (for example, Adobe Bridge CS3) need a share of the available RAM. Some applications use more RAM than you might expect. For example, web browsers can use 20-30 MB of RAM, and music players can use 20-50 MB of RAM. Watch the Activity Monitor to view the RAM allocations on your computer.
    Watch your efficiency indicator while you work in Photoshop to determine the amount of RAM you'll need to keep your images in RAM. The efficiency indicator is available from the pop-up menu on the status bar of your image or from the Palette Options on the Info Palette pop-up menu. When the efficiency indicator goes below 95-100%, you are using the scratch disk. If the efficiency is around 60%, you'll see a large performance increase by changing your RAM allocation or adding RAM.

    If you do have 4 GB or more of RAM, you should set the percentage of RAM used by PS to 100%.

  15. WonderSausage macrumors member

    WonderSausage

    Joined:
    Jul 3, 2008
    #15
    Adobe CS4 is 64-bit... only on Windows. If you install Vista x64 under Boot Camp and Photoshop CS4 for Windows, you can use all 10 GB in Photoshop.

  16. DHart thread starter macrumors 6502

    DHart

    Joined:
    Jan 17, 2008
    #16
    You don't have to do that to make use of extra RAM.

    Through the design of OS 10.5, Photoshop will use the extra RAM beyond 3 GB in a Mac, under OS 10.5, as a very quick scratch disk until the available RAM is used up and only then go to the hard disk for scratch purposes if it needs to. So if you have, say, 10 GB of RAM in your Mac (as I do), set your PS Prefs to use 100% of the RAM (which will show a little over 3 GB) and OS 10.5 will use any extra RAM beyond 3 GB, as needed, as scratch for Photoshop. Thus, OS 10.5 enables Photoshop to use the extra RAM beyond 3 GB, even though PS is 32-bit on the Mac.

  17. xgman macrumors 601

    xgman

    Joined:
    Aug 6, 2007
  18. Salavat23 macrumors 6502

    Joined:
    Feb 7, 2008
    #18
    Why not launch multiple instances of Photoshop, each being able to access 3GB.

  19. UltraNEO* macrumors 601

    UltraNEO*

    Joined:
    Jun 16, 2007
    Location:
    近畿日本
    #19
    Salavat23, Have you actually tried this on a Mac?

  20. rhett7660 macrumors G4

    rhett7660

    Joined:
    Jan 9, 2008
    Location:
    Sunny, Southern California
    #20
    Sorry I had to chuckle at this.. can't tell if he/she is serious or not. Either way it is funny....

  21. UltraNEO* macrumors 601

    UltraNEO*

    Joined:
    Jun 16, 2007
    Location:
    近畿日本
    #21
    DHart...

    I don't think what your reading is correct!
    Why don't you give references to the information your quoting? It'll give you more creditability, right now I'm only smelling BS and it stinks. Unless your some mathematical genius and you've found out a why to bend/warp and distort the physics of how many bytes of information a thirty-two bit application can support, your just talking from your ass.

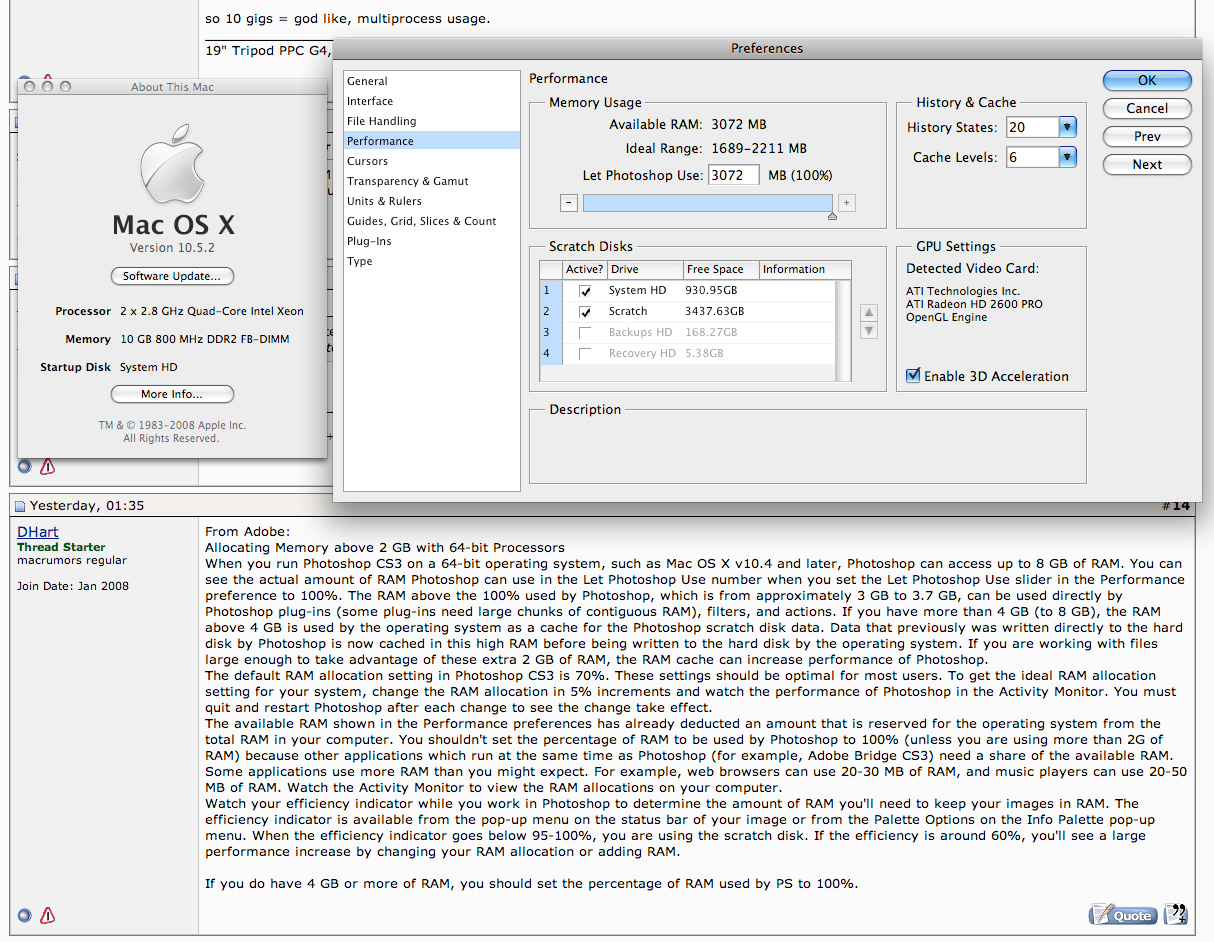

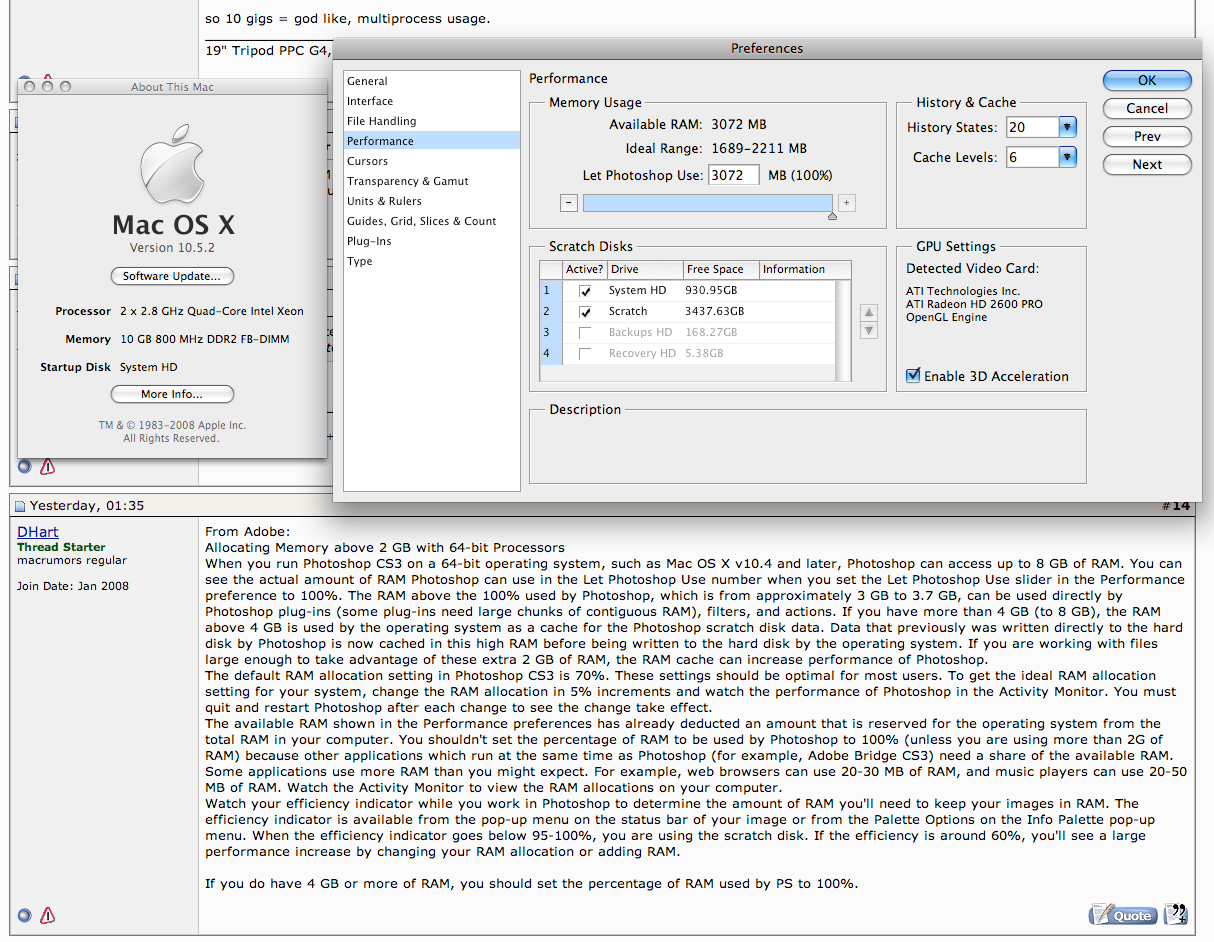

    In the attachment below, you'll see I'm actually running a system that's sixty-four bit and loaded with ten gigabytes of ram. I've attempted to allocated 100% memory to the application.. and if you look carefully, you see it's only allowing 3072MB (100%).


    Attached Files:

  22. hwojtek macrumors 6502a

    hwojtek

    Joined:
    Jan 26, 2008
    Location:
    A small rural village in western Poland
    #22
    I'll second that.

    Wrong. It's the OS X that buffers disk I/O, and not Photoshop CS3, which is technically unable to access anything beyond the 4096th megabyte.

  23. Salavat23 macrumors 6502

    Joined:
    Feb 7, 2008
    #23
    No, but it works on my PC with by duplicating the install to several parts of my hard drive.
