Microscope Photos of 4s Display

Discussion in 'iPhone' started by rose3fa, Jul 20, 2012.

  1. rose3fa macrumors newbie

    Joined:
    Feb 3, 2012
    #1
    I took some photos of my iPhone 4s display with a microscope.

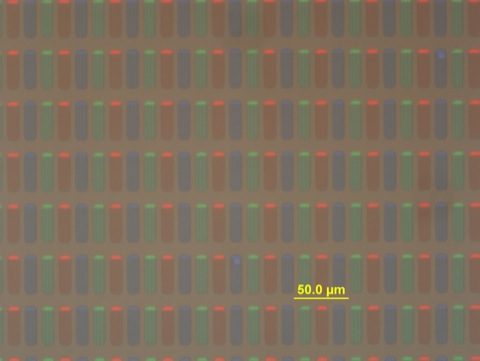

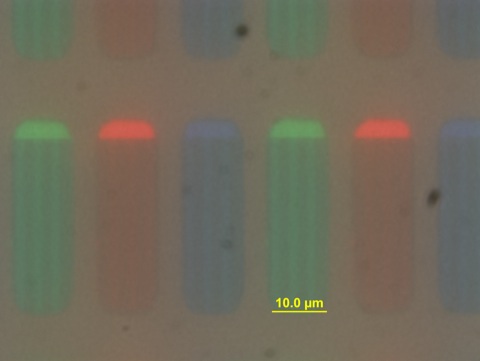

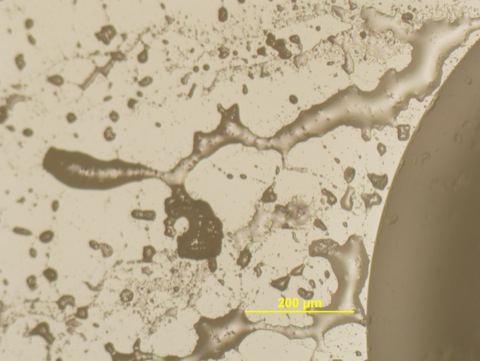

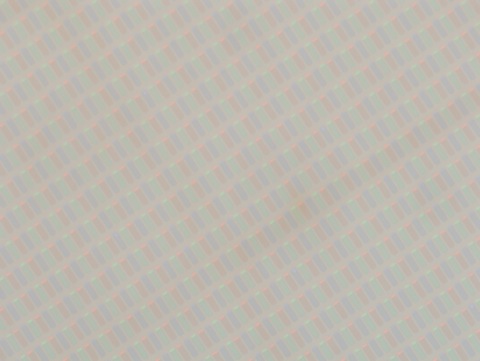

    Photos are of the RGB pixels and of finger oil and the same surface cleaned of oil.


    Attached Files:

  2. rose3fa thread starter macrumors newbie

    Joined:
    Feb 3, 2012
    #2
    A couple more of the glass (?)

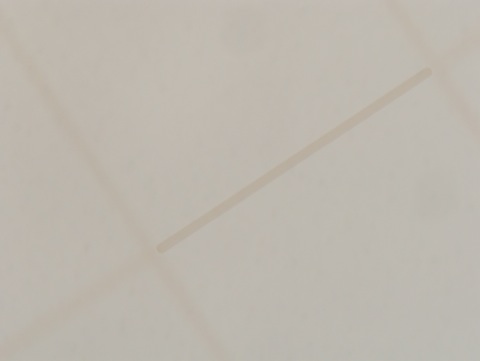

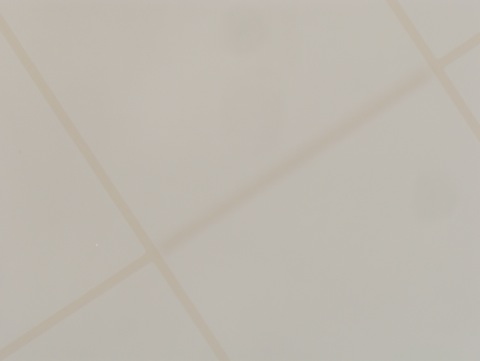

    Two images of what I think is the glass, with a square grid. The vertical lines, however, seem to be on one side of the glass and the horizontal lines on the other.


    Attached Files:

  3. lordofthereef macrumors G5

    lordofthereef

    Joined:
    Nov 29, 2011
    Location:
    Boston, MA
    #3
    Outside of some cool looking pics, is there a takeaway point to this?

  4. Small White Car macrumors G4

    Small White Car

    Joined:
    Aug 29, 2006
    Location:
    Washington DC
  5. 3bs macrumors 603

    3bs

    Joined:
    May 20, 2011
    Location:
    Dublin, Ireland
    #5
    What microscope did you use?

  6. rose3fa thread starter macrumors newbie

    Joined:
    Feb 3, 2012
    #6
    I thought the images were interesting and I would share for others who think the same.

    Olympus BX61

  7. lordofthereef macrumors G5

    lordofthereef

    Joined:
    Nov 29, 2011
    Location:
    Boston, MA
    #7
    Fair enough. Wasn't being critical (I realize it may have come off that way). Just thought there might be more there than I was aware of. :)

  8. Subjugator macrumors regular

    Joined:
    Jul 10, 2010
  9. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #9
    That grid is the capacitive sensor for detecting touch points. They are visible to the naked eye under certain light conditions such as direct sun light and the screen off.

  10. maflynn Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
  11. Mac.World macrumors 68000

    Mac.World

    Joined:
    Jan 9, 2011
    Location:
    In front of uranus
    #11
    If you know someone with a pentile screen, a la Galaxy S3 or Note, you'll be able to see the extra green pixel giving the screens the bluish white tint, like HID headlights.

    It would also be interesting to see the difference in the make up of the capacitive screen tech and the diff between the iPhone 4s Gorilla Glass and S3's Gorilla Glass 2.

  12. skidbubble macrumors 6502

    Joined:
    May 17, 2010
    #12
    That is very cool, OP. After seeing the finger oil one, it made me feverishly wipe my phone down with an alcohol pad. Gave me the heebie-jeebies. I actually have read that the average cell phone harbors more germs & bacteria than a toilet in a gas station bathroom. Seeing your pics, I believe it.

  13. Technarchy macrumors 604

    Technarchy

    Joined:
    May 21, 2012

Share This Page
