New Mac Mini won't boot and has picture of switch on screen

Discussion in 'Mac mini' started by lightspd, Sep 7, 2010.

  1. lightspd macrumors newbie

    Joined:
    Sep 7, 2010
    #1

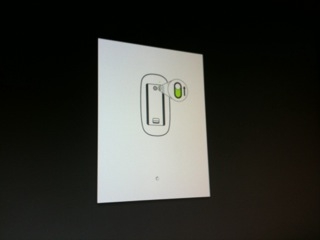

    I just bought a Mac Mini and all technical help is closed right now. I am very frustrated as the one I bought yesterday had no display output. The system starts and gets to a screen that has what looks to be a switch that needs to be changed. I have looked at the entire box and can not see a switch that needs to be changed. I have taken a picture and have put it on here. I have googled it and can not find anything. If anyone has any suggestions please help me. My mouse and keyboard are both new wireless so I have nothing I can even use there. I am enclosing a picture of the screen. I also only have power and monitor plugged in.

    Thanks


    Attached Files:

  2. djourd macrumors member

    Joined:
    Dec 15, 2008
  3. lightspd thread starter macrumors newbie

    Joined:
    Sep 7, 2010
    #3
    thanks I grabbed an old track ball and I am going. I have a flat track pad they sold me guess it isn't paired yet so that is messin me up. Not sure how to pair it yet but I am sure something will show up. If you know I would appreciate. It is a wireless unit as well.

  4. btbrossard macrumors 6502a

    Joined:
    Oct 25, 2008
    Location:
    Chicagoland
    #4
    • Make sure your system software is up to date (10.6.4 or later). Your mini is probably already running newer software.
    • Go into "System Preferences" (through the Apple menu). Click "Trackpad" and then "Set up Bluetooth Trackpad in lower left corner".
    • Press on/off button on your trackpad to turn it on.
    • Click "Continue" when your device is detected.
    • Enjoy.
    As a footnote, Bluetooth needs to be enabled on your Mac.

  5. SmilesLots macrumors regular

    SmilesLots

    Joined:
    Apr 30, 2010
    Location:
    SW Virginia
    #5
    I had that same picture when I first tried to start a new out of the box 2010 mini server. The problem was that the screen resolution of the monitor I was using was set to some value the mini could not adjust to. By using a different monitor, it seemed to fix itself, and now both monitors work.

  6. Giuly macrumors 68040

    Giuly

    #6
    Hook up an USB mouse/keyboard, set up the Mini and pair your Trackpad afterwards.

  7. mangrove macrumors 6502

    Joined:
    Jul 10, 2010
    Location:
    FL, USA
    #7
    I just looked in my keyboard that I also got with my 2010 mini. P4 talks about pairing with the Mini. Also pages 2-4 on the mouse directions tell you how to pair it with the mini. Pages 2-4 on the trackpad should also help.
