Post your "About This Mac" from your FrankenMac!

macagain

macrumors 6502
Original poster
Jan 1, 2002
297
97
All you folks who have upgraded your MacPros to some "non-standard" config, how bout posting your "About This Mac"...

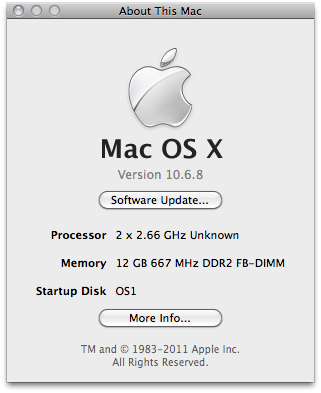

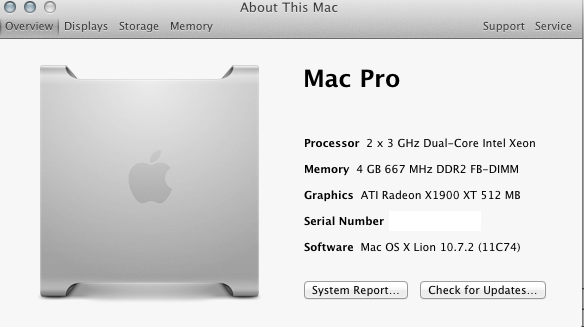

I'll start with my 1,1...


Attachments

bkpr

macrumors member
Apr 2, 2007
33
0

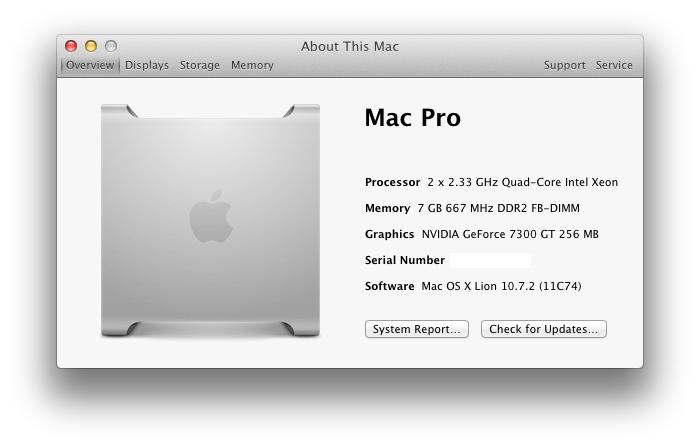

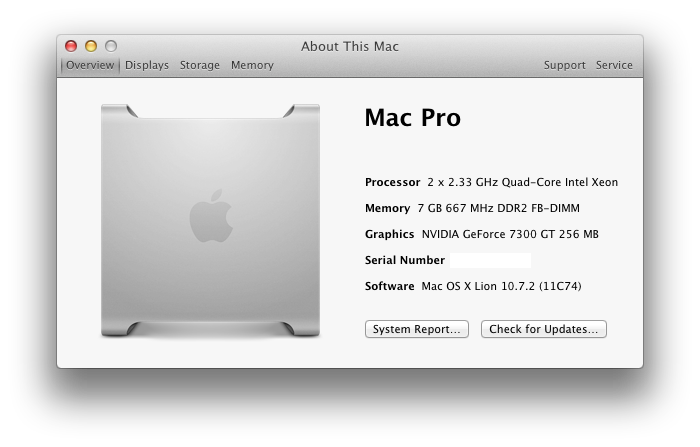

A little while ago I Frankensteined my quad core 1,1 Mac Pro into an octo core. Scary stuff (at least for me) but worked out well. I wrote about the experience on my blog: http://bartkowalski.com/2010/11/octocore/

I'm itching for a new Mac Pro as are many others. I've been *this* close to pulling the trigger on a hex 3.33 over the last few months. I keep telling myself the update is coming, the update is coming…


Attachments

wonderspark

macrumors 68040
Feb 4, 2010
3,047
100
Oregon
Was playing with Apple logo colors... settled on green, since I love green apples. I was going for a Granny Smith green. :)



jasonvp

macrumors 6502a
Jun 29, 2007
604
0
Northern VA

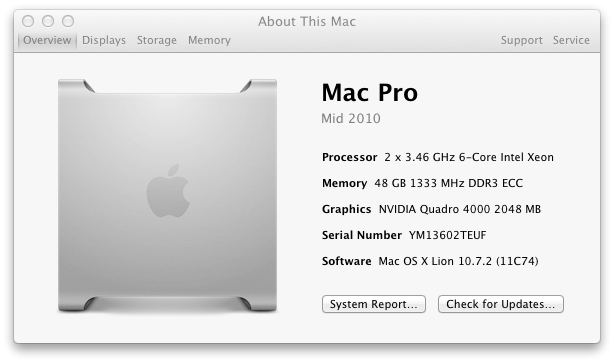

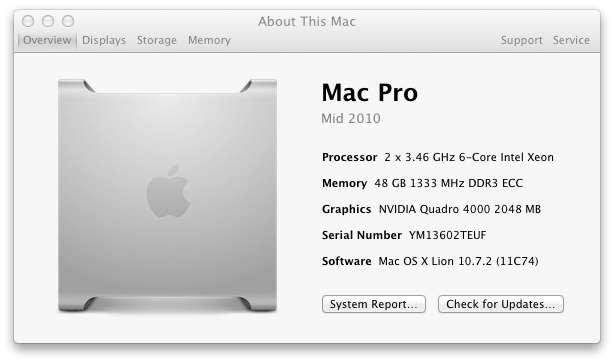

I posted this in another thread, but my 2010 was originally a 2 x 2.4GHz e5620 and was upgraded to a 2 x 3.46GHz x5690 system.

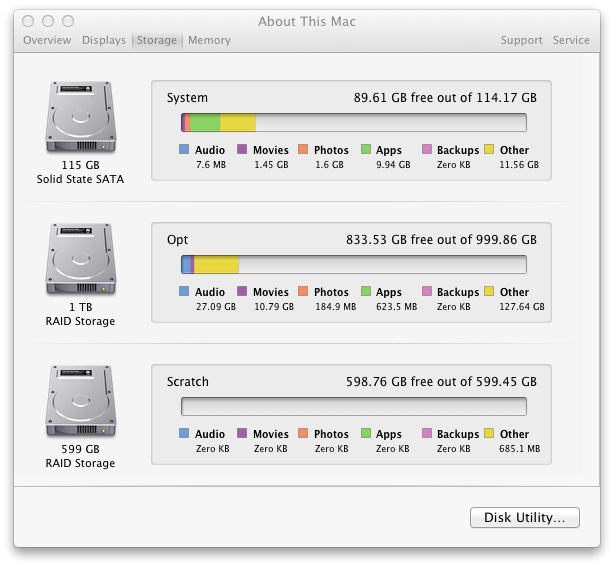

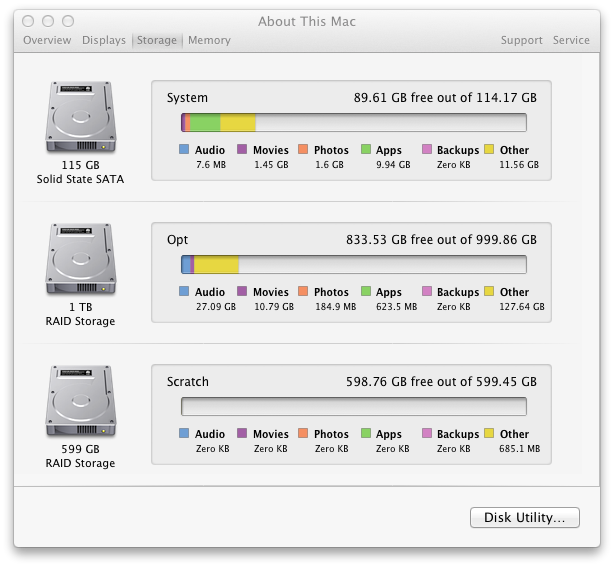

For storage, I have 5 drives in the machine. One SSD in the 5.25" bay under the BD-ROM drive, 2 1TB 7200RPM drives mirrored together in drive bays 1 and 2, and 2 300GB 10000RPM drives striped together in drive bays 3 and 4.

jas


Attachments

Last edited:

jasonvp

macrumors 6502a
Jun 29, 2007
604
0
Northern VA
how did you upgrade the cpu on the 2009? i read that the 2009 8 core has lidless cpu's thus making it impossible to switch them out to 6core cup's.
It's not impossible, just really tricky and not for the faint of heart as I understand it. You can do one of a few things, from what I know:
  • Try to pry the lids off the new Intel chips (eek!)
  • Attach the heat sinks without tightening the screws down much at all
  • Attach the heat sinks with different screws and washers to give the heat sink enough room to clear the lid and not crush the chip pins.

jas

Last edited:

sunnyj

macrumors 6502
Oct 18, 2010
428
9
Vancouver, British Columbia
It's not impossible, just really tricky and not for the faint of heart as I understand it. You can do one of a few things, from what I know:
  • Try to pry the lids off the new Intel chips (eek!)
  • Attach the heat sinks without tightening the screws down much at all
  • Attach the heat sinks with different screws and washers to give the heat sink enough room to clear the lid and not crush the chip pins.

jas
which of the 3 methods above did you go with?


ClassObject

macrumors 6502
Mar 1, 2010
272
1
how did you upgrade the cpu on the 2009? i read that the 2009 8 core has lidless cpu's thus making it impossible to switch them out to 6core cup's.

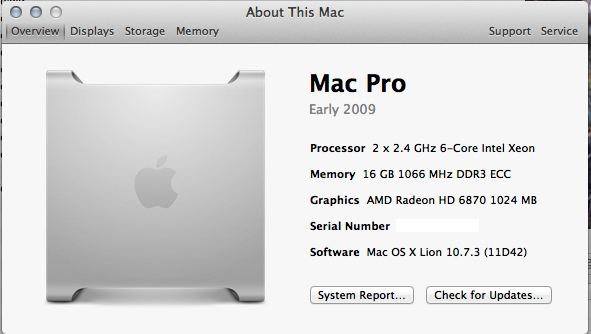

I went to a hardware store with my digital caliper. I needed washers that would provide about 2.3mm increase in height. I used 16 1.16mm stainless steel washers. I also had to remove the retaining clips from the heatsink fan with flush cut clippers to allow the fan connector to make a connection. All has worked well for 6 or 7 months. Existing screws were reused.

----------

can hackintoshers join the party?:(
Hacks are frankenmacs by definition.


jasonvp

macrumors 6502a
Jun 29, 2007
604
0
Northern VA
How or what CPU upgrade can I do with my Mac Pro. Any ideas will greatly appreciated. !!!!!! I really think that this a steal for $550.00 just as is, and I would like to know what possibilities I have as far as upgrading it.
Your Mac's motherboard has 2 771 sockets in it, so I'd assume that any socket 771 Xeon would work. But that's an ASSumption on my part, so take it for what it's worth.

The real problem you'll have is 4GB of RAM which in the 64bit world just isn't enough. And DDR2 RAM has sky-rocketed in price. So even if you do get the processors safely replaced, you're still going to be swapping like mad unless you invest some $$ in more RAM.

jas


destroyer01

macrumors newbie
Jan 24, 2011
10
0
Your Mac's motherboard has 2 771 sockets in it, so I'd assume that any socket 771 Xeon would work. But that's an ASSumption on my part, so take it for what it's worth.

The real problem you'll have is 4GB of RAM which in the 64bit world just isn't enough. And DDR2 RAM has sky-rocketed in price. So even if you do get the processors safely replaced, you're still going to be swapping like mad unless you invest some $$ in more RAM.

jas
Do you happen to know exactly what hardware or where I could start to purchase the Ram and or CPU's and maybe the cost $$$. Thanks


alphaod

macrumors Core
Feb 9, 2008
22,176
1,228
NYC
I really want to join this party… but I'm afraid I'm not willing to spend $2400 on new processors.


d-m-a-x

macrumors 6502a
Aug 13, 2011
509
0
mines pretty OEM. 2.66 quad with 7 gigs ram does fine for photoshop. Hard drive bays are filled. Radeon upgrade, i think 49xx. I did get a blu ray burner in the 2nd bay with a sata cable plugged into the motherboard.


Rokeneer

macrumors regular
Sep 27, 2011
119
0
Do you happen to know exactly what hardware or where I could start to purchase the Ram and or CPU's and maybe the cost $$$. Thanks
Just check out Intel's Harpertown line for new CPU's. And OWC (macsales.com) is the best place for memory.

----------

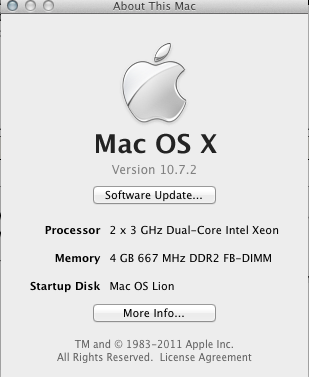

I have a Mac Pro 1,1 running 2x 3Ghz dual core "Woodcrest" Processors. I am looking to upgrade the processors, but I have a question about compatibility.

I know I need to get a chip that has the LGA771 socket, but what about TDP? Do I have to stay at the 80W max TDP per processor, or can I increase it to something like 120W or 150W max TDP?
