Biggest Internal drive...

Discussion in 'Apple TV and Home Theater' started by markfc, Jun 23, 2008.

  1. macrumors 6502a

    Is the 250gb still the biggest internal drive that will fit in the AppleTV?
  2. macrumors 6502a

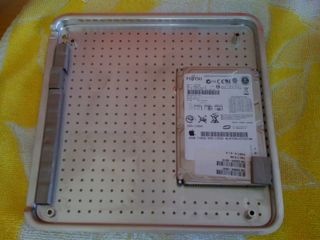

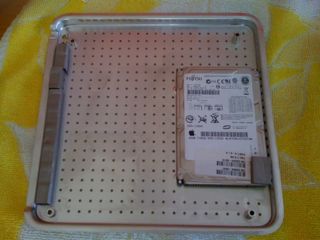

    I have a Western Digital EIDE 250Gb (WD2500BEVE) drive in mine. I think that the problem is that most of the drives over 250Gb have SATA connections and so are not compatible with the AppleTV.
  3. macrumors 6502a

    Yep, that's the problem.

    I wonder if there is a small sata > ide adapter available. I'm looking hard but can't find one.
  4. macrumors 604

    Cave Man

    Not small enough.

    If you want larger, then you need to run an IDE cable out the back, or a SATA bridge/cable out the back.
  5. macrumors 6502a

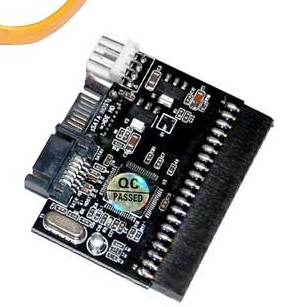

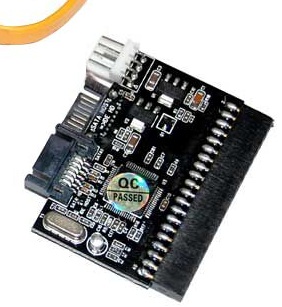

    On ebay you can get Bidirectional IDE to SATA adaptors. The only problem is that the space in the AppleTV is limited.

    Attached Files:

  6. macrumors 604

    Cave Man

    It's more than that. You also need a 5v power source, cross-over cable, and a 44-pin to 40-pin adapter.
  7. macrumors 68020

    As well as Cave Man can attest to, not all ide/sata bridges work in the atv.
  8. macrumors G3


    Why would you need such a big drive if all of your media can stream over your network?

    Maybe instead you should invest in things to make your network faster rather than opening up your :apple:TV
  9. macrumors 6502a

    Maybe I don't want to leave my iMac running all the time just incase I want to watch a movie....
  10. macrumors 6502a

    Mark, did you think about patching your ATV and just add an external USB harddrive ?
  11. macrumors 604

    Cave Man

    Streaming's usually fine for playback, but it sucks for ff/rew.
  12. macrumors member

    I've not had any stuttering, FF, REW or other problems while streaming from my wired network.

    I went the extra inch and made sure that the server (a Mini), the cabling, jacks, switches and router were all gigabit capable. Sure, the aTV's ethernet port is limited to 100 megabits per second, but even with that as the weakest link, I've not had any problems with streaming content.

    I think most of the problems I've read about others having with streaming occur when attempting to do so wirelessly. 802.11N is terrific and all, but when moving around large files and rock solid connections are needed, nothing today beats a wired network.
  13. macrumors regular

    how difficult is it to do? if it is fairly easy and i could buy say a 1tb external drive and sync all my movies to that then it would be amazy.
  14. macrumors 68020

    Frankly, I a really cannot fathom hacking the software and all of that, when you can pop it open and do the eSata mod and be done with it. One time shot and all of the storage you are likely to need without an atv update breaking your mod. Just my .02 ;)
  15. macrumors 6502a

    It is pretty easy with a patchstick. Patchsticks are available all over the place.
  16. macrumors 6502a

    I see 3 problems with this approach

    1) you void your guarantee
    2) this is not for everyone - a software patch is much easier
    3) you are still limited by 250 GB, so you gain a mere 90 GB in comparison to the original, whereas you are more or less unlimited by using an external hd
  17. macrumors 604

    Cave Man

    It is completely reversible and can be done such that no one knows it was modded.

    I disagree. I found the patch more difficult, once dyna and I figured out how the eSATA mod works. In addition, every time Apple updates the ATV OS, the patch is broken and you have to start over (and usually wait for the patch to be developed). With eSATA, you just choose Software Update from the ATV menu and you're done. The only disadvantages with eSATA are an extra $30-$50 expense (eSATA enclosure, bridge and cable) and potential larger footprint. And eSATA is substantially faster than a USB drive.

    The largest is 1 TB, not 250 gb. When the 2 TB drives come available, that will be the largest.
  18. macrumors 6502a

    Really ? I thought I read in another thread that the biggest one is still 250 GB ? :confused:
  19. macrumors 604

    Cave Man

    The biggest internal drive for the ATV without SATA is 250 gigs (PATA). External SATA can be whatever the largest drive available (currently 1 TB).
  20. macrumors 6502a

    Ok, so I was right. Of course I was referring to internal hds.
  21. macrumors 604

    Cave Man

    Your response was to dynaflash's post about eSATA:

    Clearly, dyna was talking about eSATA, not internal PATA.
  22. macrumors 6502a

    Ok, so we both have it figured out now :)
  23. macrumors 68020

    I do realize that the eSata mod is not internal. However neither is the usb drive solution. So its kind of a "Touche' " on that one. One only needs to spend some time on the #awkwardtv irc channel to see how many people are looking to either fix their broken atv software from using the patchstick, or trying to find/download a complete stock atv software image to restore their atv to stock form software wise to appreciate the damage that can be done with a patchstick application gone awry . At any rate I digress (as usual) and apologize to the OP for derailing discussion from the original question.

    Yes, the biggest internal hdd that works with the atv is 250GB :)
