G4 Quicksilver->ATX 'hackintosh'.

[comda]

I realize this post is a few weeks old.. But i have to ask.. How did you get the motherboard stands in? drill holes the same size as the drill size on the pegs themselves?

I wont have time until the summer..... But Since seeing a previous post in insanlymac forums and this one i want to do the same... but i want to build a retro machine in mine. I have about 3 pentium 2 Era boards and want to make a simple windows 98 system for all my dos/early era Pc games. I figured since computer that age didnt get as hot (the 266Mhz CPU i have doesnt even have a fan) i figured a small tight case would be great for it!



[iModFrenzy]

I really want another 2GB ddr2 stick .

I could probably send one your way, if you still need one. I got 2 DDR2(2GB) sticks from a C2D mobo somewhere.



[128keaton]

I could probably send one your way, if you still need one. I got 2 DDR2(2GB) sticks from a C2D mobo somewhere.

Really? That would be excellent . Sorry I didn't reply sooner, but I'll shoot ya a PM.



[iModFrenzy]

If you don't mind me asking, what's the progress so far with the hackintosh?



[velocityg4]

I realize this post is a few weeks old.. But i have to ask.. How did you get the motherboard stands in? drill holes the same size as the drill size on the pegs themselves?

I wont have time until the summer..... But Since seeing a previous post in insanlymac forums and this one i want to do the same... but i want to build a retro machine in mine. I have about 3 pentium 2 Era boards and want to make a simple windows 98 system for all my dos/early era Pc games. I figured since computer that age didnt get as hot (the 266Mhz CPU i have doesnt even have a fan) i figured a small tight case would be great for it!

Regular motherboard stand offs are the wrong height. After disassembling the door. I broke off all the metal pieces with pliers. I then drilled holes and ran screws through and made custom spacers with plastic hose. As I recall I also had to cut slots it the door latching system.

If I were to do it again I would solder or glue the screws in place and use a stiffer material for the spacers.



[128keaton]

If you don't mind me asking, what's the progress so far with the hackintosh?

So far, nothing much, the front LED and power button work still, got a new graphics card for it, a 6790, so not terribler. Any news on that DDR2 stick?



[comda]

Regular motherboard stand offs are the wrong height. After disassembling the door. I broke off all the metal pieces with pliers. I then drilled holes and ran screws through and made custom spacers with plastic hose. As I recall I also had to cut slots it the door latching system.

If I were to do it again I would solder or glue the screws in place and use a stiffer material for the spacers.

what do you mean by spacers? im not following what you're explaining here at all.. maybe to do you a photo you can share or at least PM me it? i want to do this mod in the summer.. but dont want to make the case a total mess... kinda a noob at fabrication..



[velocityg4]

what do you mean by spacers? Im not following what you're explaining here at all.. Maybe to do you a photo you can share or at least pm me it? I want to do this mod in the summer.. But dont want to make the case a total mess... Kinda a noob at fabrication..



[iModFrenzy]

So far, nothing much, the front LED and power button work still, got a new graphics card for it, a 6790, so not terribler. Any news on that DDR2 stick?

Ah ok

Yea, It's somewhere in my basement, Ive been looking around for it, gimmie a day.



[comda]

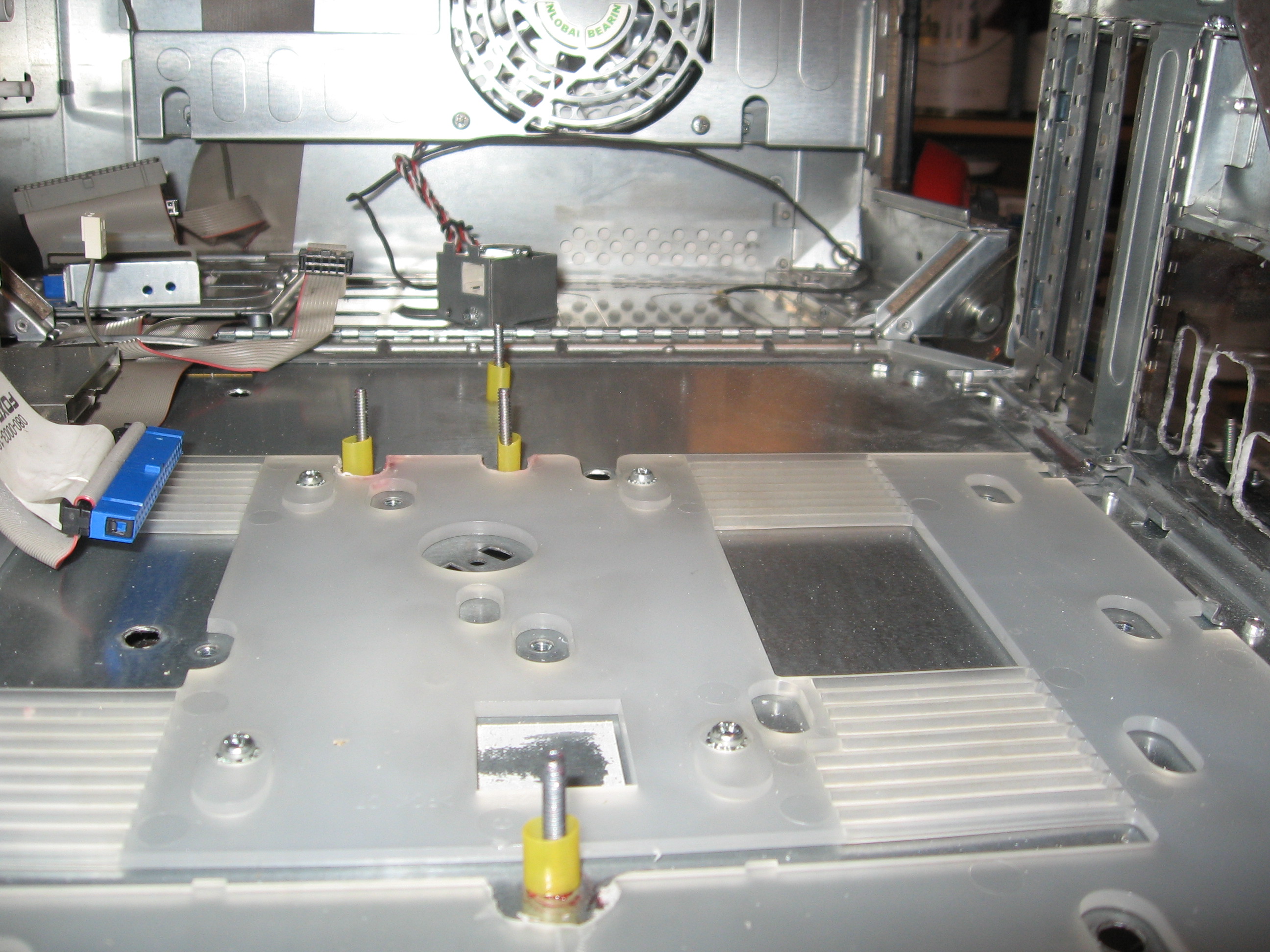

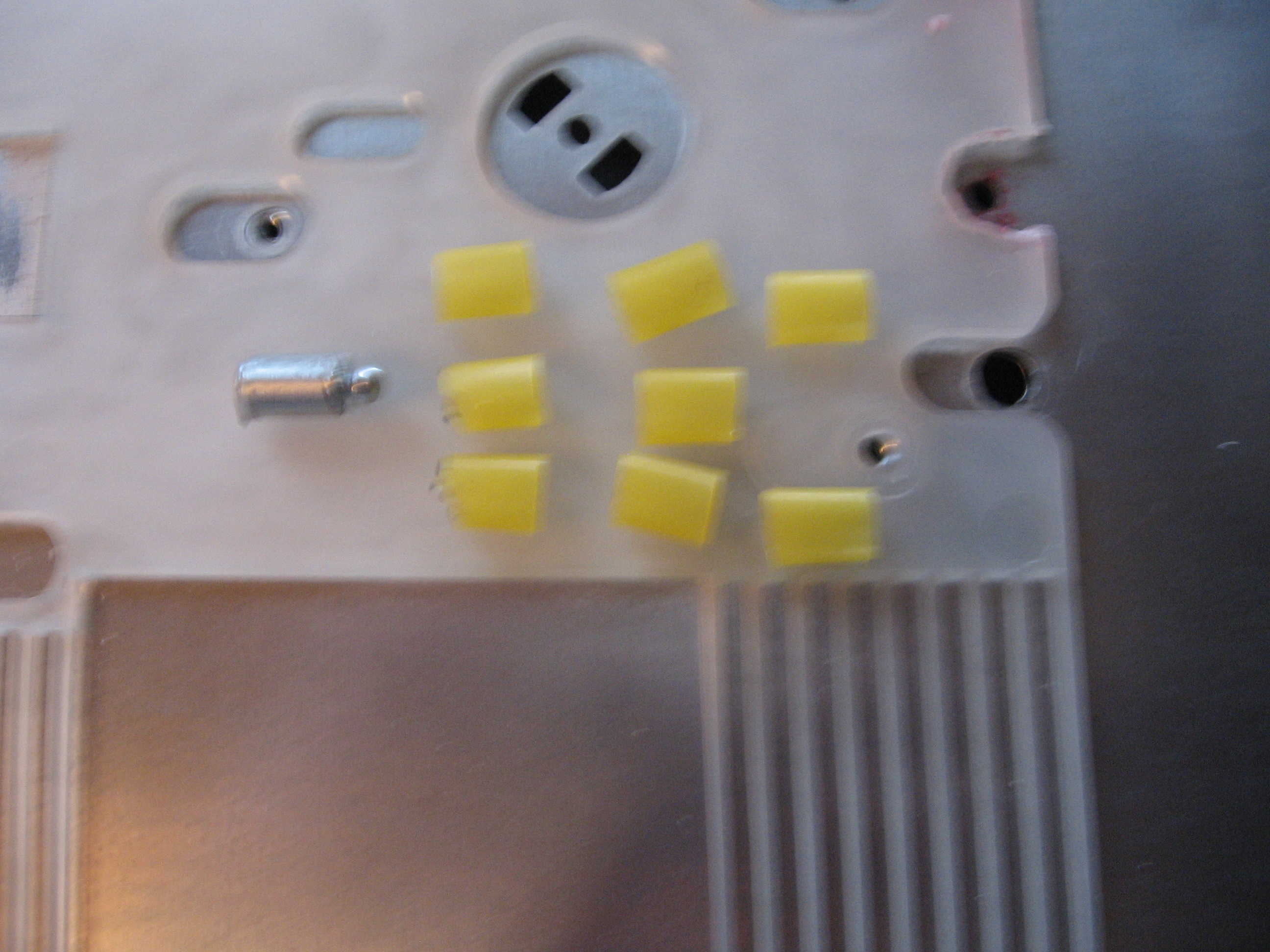

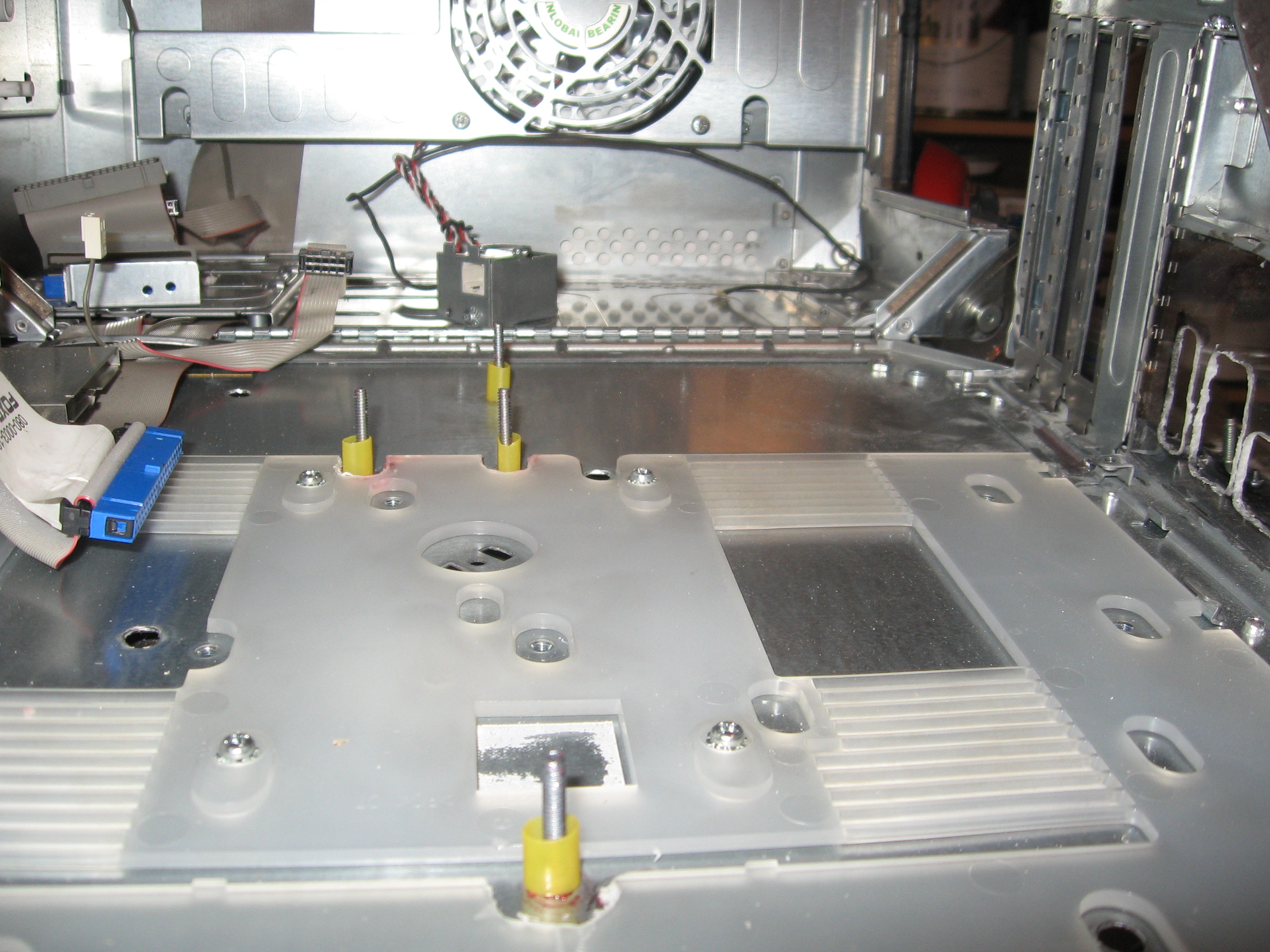

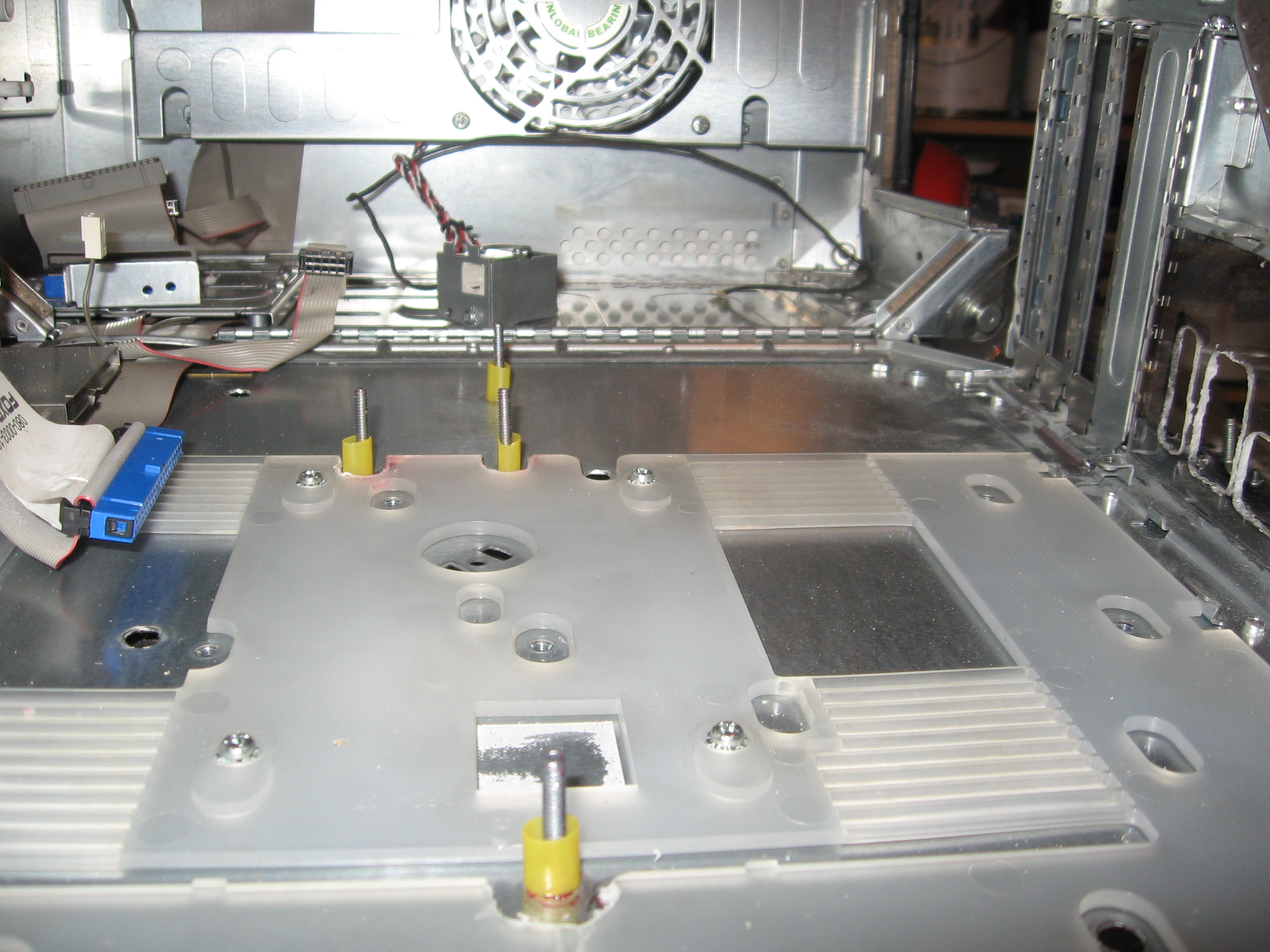

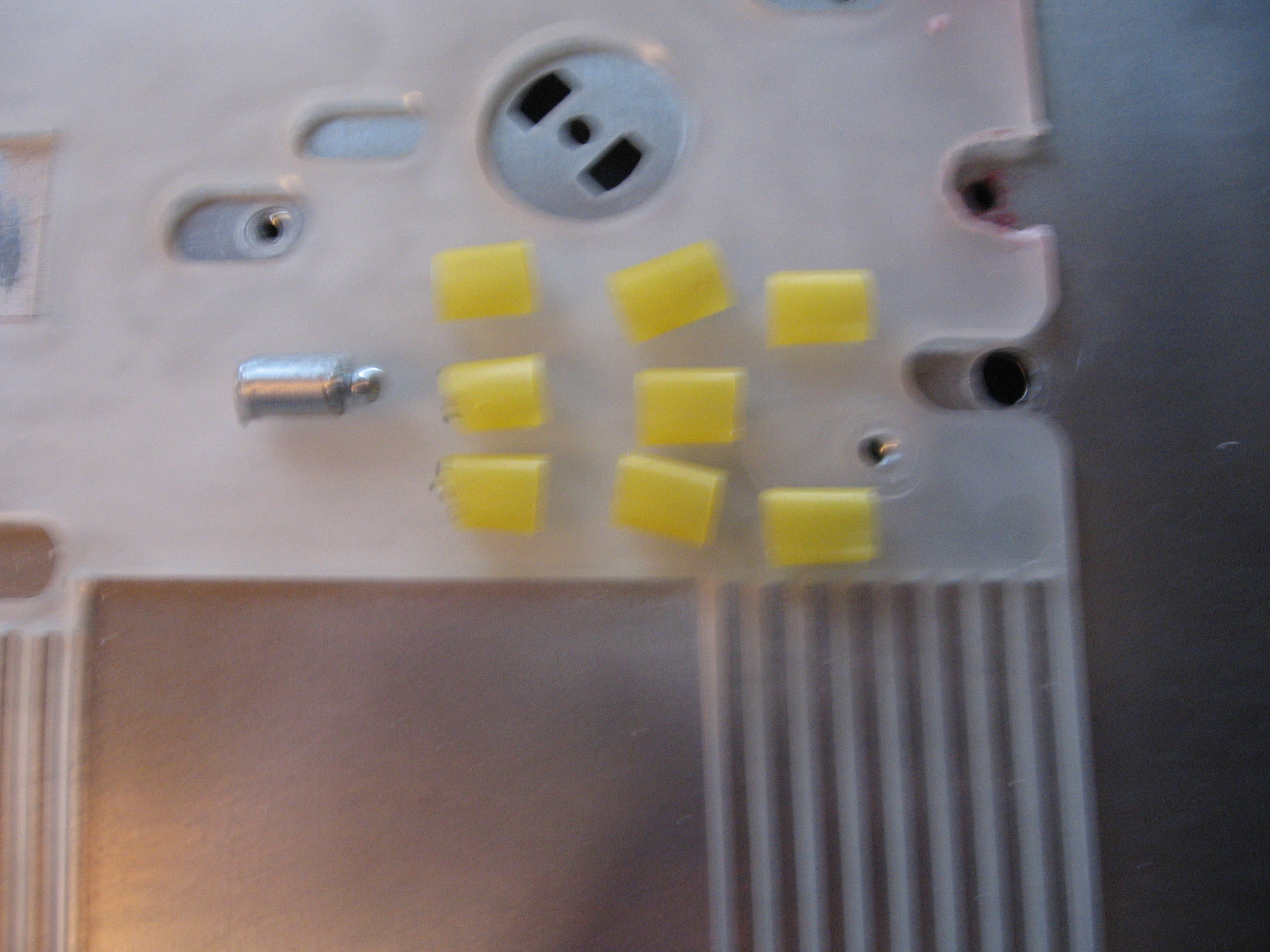

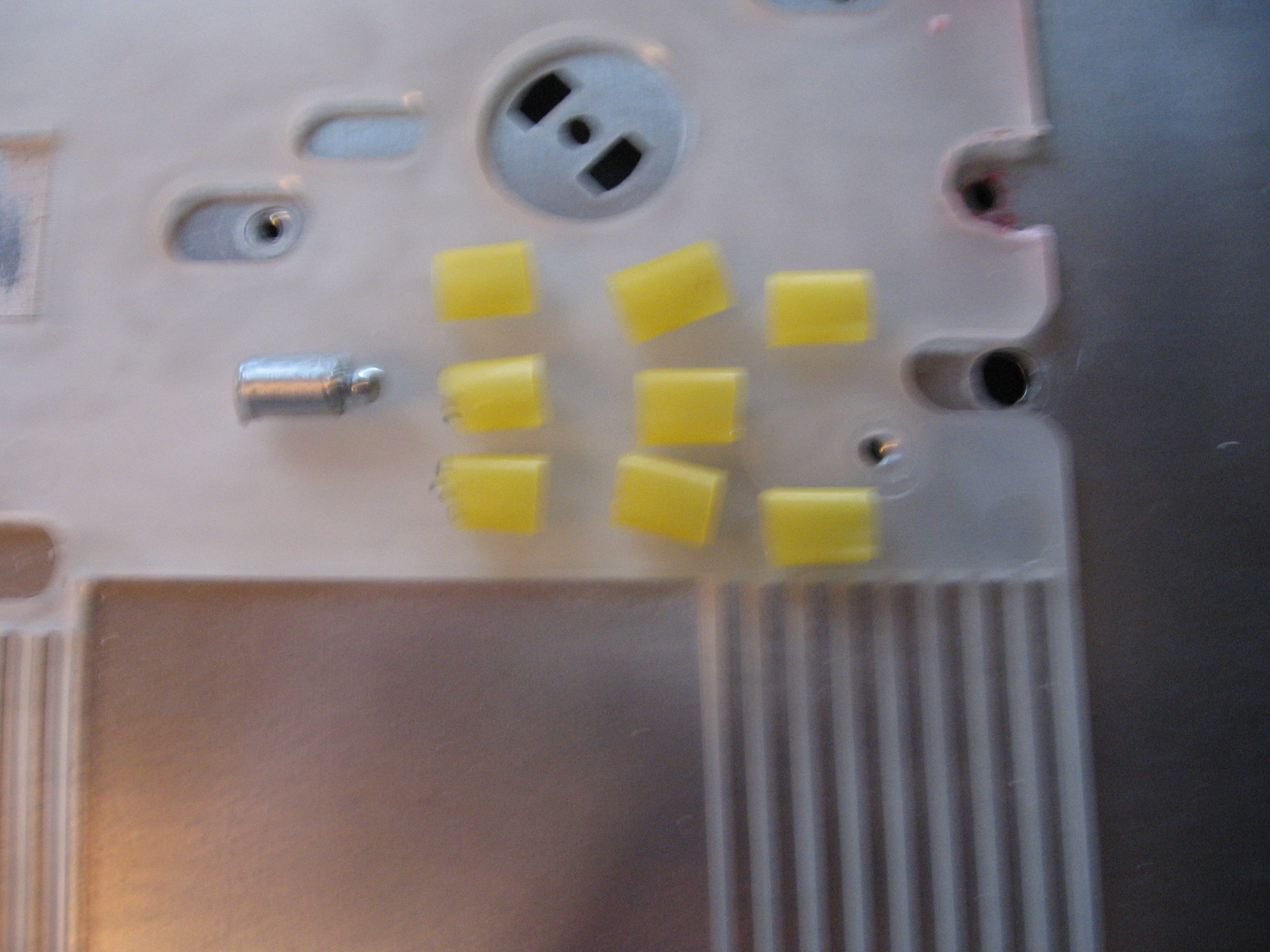

View attachment 537562 View attachment 537563

Thank you so much for clearing that up. Guess once i have some time in the summer I might do a little fiddling around and get this done. Cant wait to turn my G4 into a P2 or P4. Sadly its a dead machine.



[128keaton]

View attachment 537562 View attachment 537563

Thats fancy, I just drilled holes without using spacers, I probably should fix that since PCIe cards don't quite fit without a bunch of effort.



[velocityg4]

Thank you so much for clearing that up. Guess once i have some time in the summer I might do a little fiddling around and get this done. Cant wait to turn my G4 into a P2 or P4. Sadly its a dead machine.

Turn it into an 8086. Use the CD bay for 5.25" floppy's.

Thats fancy, I just drilled holes without using spacers, I probably should fix that since PCIe cards don't quite fit without a bunch of effort.

If you still have the original standoffs. Use one as a guide for the spacer size. I'd use a stiffer material than the tubing I used. It crushes awfully easy.



[A.Goldberg]

What about throwing a Mac Mini in there



[128keaton]

Turn it into an 8086. Use the CD bay for 5.25" floppy's.



If you still have the original standoffs. Use one as a guide for the spacer size. I'd use a stiffer material than the tubing I used. It crushes awfully easy.

I threw out the old spacers, but I'll see what I can find. Its not really much of a main project. I'll have to cut the CD/DVD drive holder to put my new front USB setup in it. Now, I gotta cram a 6790 into it.

What about throwing a Mac Mini in there

I don't have a spare floating about.



[comda]

[/COLOR]

Turn it into an 8086. Use the CD bay for 5.25" floppy's.


If you still have the original standoffs. Use one as a guide for the spacer size. I'd use a stiffer material than the tubing I used. It crushes awfully easy.

Sadly i dont have a machine that old. My current plan with the case is to use a Pentium 2 board with a P2 233Mhz i have with a 32mb Ati card for all my classic games, like doom, doom 2, ultimate doot GTA2, sim city 2000 etc. Since the Pentium 2 is a slot CPU it might be a little tricky but im up for a challenge. The biggest advantage is the fact the P2 doesnt generate that much heat and therefore i dont have to cut any holes into the case for better ventilation.
