iPod touch and iPhone different size screens?

Discussion in 'iPod touch' started by Schnebar, Sep 5, 2007.

  1. macrumors 6502

    Joined:
    May 15, 2006
    Location:
    California
    #1
    [​IMG]

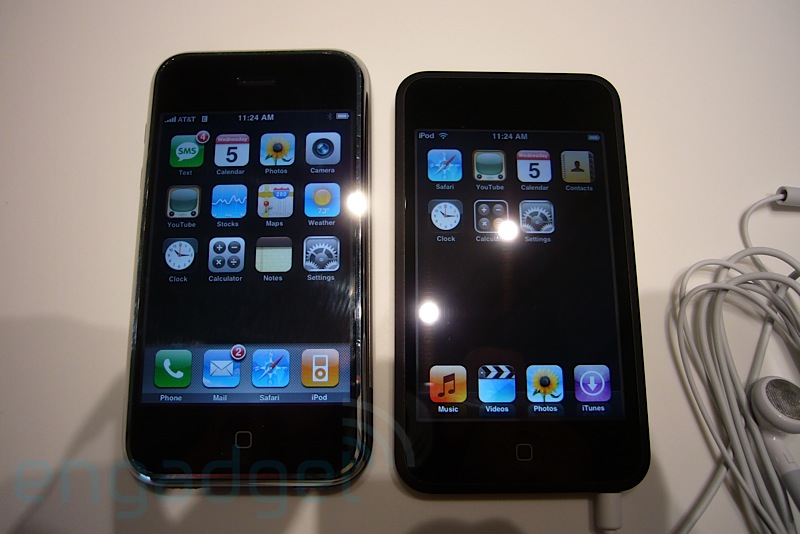

    on the apple store iPhone is 160 dpi and the iPod touch is 163

    is the screen a little bit smaller?

  2. macrumors 68000

    pianoman

    Joined:
    May 31, 2006
    #2
    the screens look the same size (tech specs say 3.5" for each) but on the website the iPod touch looks like a smaller unit than the iPhone (and the tech specs confirm this). i'm not sure if that answers specifically what you're asking, though.

  3. macrumors 6502

    Joined:
    Mar 26, 2007
    Location:
    north carolina
    #3
    this isnt answering your questions i dont think but im wondering why on the new iPod touch did they leave all that blank room at the top of the iPod? they could have made the screen bigger. :confused:

  4. thread starter macrumors 6502

    Joined:
    May 15, 2006
    Location:
    California
    #4
    They probably needed the same proportions so they cant just stretch the screen.

    It also makes it more balanced.

    Think what it wold look like if it wasn't there.

  5. macrumors regular

    DeeGee48

    Joined:
    Jun 28, 2007
    Location:
    Havertown, Pa
    #5
    Size vs. Size

    If I'm not mistaken they are made by different contractors in China which probably accounts for the VERY slight difference in dimensions and screen pixel count, etc. Otherwise I don't know why that would be.

  6. macrumors member

    Joined:
    Jan 22, 2007
    #6
    Yes, I think characters looks a little bit smaller (1%) on the iPod's screen.

    [​IMG]

  7. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #7
    Same screen size, just more pixels in the exact same measured area. That means the picture will be a little sharper. 3 pixels sharper since the iPhone is 160 pixels per inch, while the iPod touch is 163 pixels.

  8. macrumors 6502

    Joined:
    Feb 15, 2007
    #8
    The number of pixels is listed as identical. This would mean your reply is not correct.

  9. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #9
    yes, they are both 480 x 320, but manufacturers have been known at times when it comes to displays to use dpi interchangeable with pixels per inch. But the physical size of the screen is still 3.5, it's very clear and simple in regards to it's specs. So if you read it you'll see 160 dpi and 163 pixels per inch, that is a difference, but there is no difference in the diagonal measurement of the screen itself.

    Diagonal viewing area which is 3.5 on each, that's a match.

    480 x 320 pixel resolution that's 480 lines horizontal by 320 lines horizontal, that's a match.

    160 dpi (interchangeable for some screen manufacturers with ppi) compared to 163 ppi, not a match, but that does not affect the size of the screen. That means in one square inch area on the iPhone there are 160 pixels, in the iPod touch there are 163 pixels in the same one square inch area. That translates into a sharper image on the iPod touch.

    So technically speaking my statement is correct. That would be like saying a 32" Widescreen Non-HD TV is a smaller screen then a 32" Widescreen HD set. The HD set will have more pixels and more lines of resolution, but the diagonal viewing area is still the same.

  10. macrumors 601

    gloss

    Joined:
    May 9, 2006
    Location:
    around/about
    #10
    except that 480x320 is a fixed number of pixels no matter how you look at it. They cannot both have the same number of pixels in the same size of screen and yet differing ppi counts.

    Unless you've found some new way to redefine integral mathematics.

  11. macrumors 603

    aswitcher

    Joined:
    Oct 8, 2003
    Location:
    Canberra OZ
  12. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #12
    480 x 320 is not the number of pixels it is the number of vertical and horizontal lines. If you've seen an HD TV for example if it's labeled 1080 that is 1080 horizontal lines, a standard non-hd TV has 525 horizontal lines. Manufacturers only display the horizontal since the image is painted from top to bottom horizontally, not vertically. Your laptop might be 1280 x 800, that is 1280 vertical lines by 800 horizontal lines. If you had only 800 pixels for your whole screen the image would look horrible. There are thousands of pixels that span just one of the 1280 vertical lines, and thousands that span just one of the 800 horizontal lines.

    Here's a link with a definition, and you'll see nowhere pixel count mentioned, since this does not measure the number of pixels.

    http://www.pcmag.com/encyclopedia_term/0,2542,t=lines+of+resolution&i=46138,00.asp

    Yes, the viewing area is exactly the same.

  13. macrumors 6502

    Joined:
    Feb 15, 2007
    #13
    Yeah, CLuv isn't making sense to me here, either, and I'm not stupid (grad student in physical sciences).

    One thing we haven't considered is that it's a type-o on Apple's part.

    Height and width of iPod Touch is 110x61.8 mm while that of the iPhone is 115x61 mm ... That doesn't really help, though, since the iPhone is taller, but thinner, so it probably has more to do with the case than the screen.


    Edit: I wrote this before CLuv posted his clarification. However, my last two points are possibly still relavent.

  14. thread starter macrumors 6502

    Joined:
    May 15, 2006
    Location:
    California
    #14
    I always thought 480x320 is the amount of pixels when you multiply it out.

    It is like a graph in math. 480 pixels on the x axis and 320 on the y

  15. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #15
    here's information on ppi to help clarify

    http://www.pcmag.com/encyclopedia_term/0,2542,t=ppi&i=49602,00.asp

    A 3.5" screen cannot change size of the viewing area, even if one manufacturer makes a finer, more precise screen that has a greater number of pixels in the same defined area. This area is know as ppi or dpi. Think of computer monitors that show 23 dpi or 20 dpi, but they are both 21" monitors. One screen can fit more pixels in the same area, therefore the 23 dpi will have a sharper picture then a 20 dpi monitor. The physical viewing on both is 21" even though one has more dpi/ppi.

    It's not, it's just the number of lines that run from one side of the screen to the other side of the screen in a horizontal and vertical measurement. There are pixels that make up the line, and if you measured a one inch area on your screen, in that area there would be 160 or 163 pixels, depending on how small each pixel is that makes up that area.

  16. thread starter macrumors 6502

    Joined:
    May 15, 2006
    Location:
    California
    #16
    maybe the iPhone screen is 3.54 in and the iPod touch screen is 3.46 in

    So they rounded.

  17. macrumors 601

    gloss

    Joined:
    May 9, 2006
    Location:
    around/about
    #17
    Thanks for that. I get it now.

  18. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #18
    I'm glad that helped, I'm not trying to sound short. I initially tried to relate it to when I was in the high-end audio field. When it comes to TV's, manufacturers general only talk about the horizontal lines, since your TV "paints" the image horizontally from top to bottom. Now most HD manufacturers will say they are 1024 x 768, and then some will in their detailed spec sheets say their dpi/ppi to the sales reps to show that hey our set is better then our competitor since we can fit in 100,000 pixels in an inch while they can only 75,000 pixels in an inch.

  19. thread starter macrumors 6502

    Joined:
    May 15, 2006
    Location:
    California
    #19
    I am trying to understand this.

    I get that they are the same size screens but wouldn't that also mean that the two screens have different screen resolutions like for getting wallpaper.

    One has more pixels crammed into the screen.

    We know that both the iPhone and iPod touch have the same screen resolution. 480x320

  20. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #20
    Correct, the manufacturer of the iPod touch screen has made a better screen that can fit more pixels in the same sized viewing area. That means each pixel is smaller then their last version (assuming it's the same manufacturer of the iPhone's screen) and since each pixel is smaller/finer, that means it will translate into a sharper image on the same sized screen.

  21. thread starter macrumors 6502

    Joined:
    May 15, 2006
    Location:
    California
    #21
    So there will be more pixels on the iPod then the iPhone.

    even-though they are both 480x320

    so 480x320 is just the proportions not the actually pixels horizontal and vertical.

    you could call the screen proportions 48x32 or 3x2?

  22. macrumors member

    Joined:
    Sep 5, 2007
    #22
    From a manufacturing point of view, it makes sense to keep the screen the same size, as now they don't have to make different screens for the iPhone or iPod Touch.

  23. macrumors member

    Joined:
    Aug 31, 2006
    Location:
    Toronto
    #23
    Another take

    The two are very misleading. DPI is usually used when measuring the dots per inch a printer can print at. While pixels per inch is used in screens, so while CLuv is actually right manufactures interchange the two(thus confusing the hell out of the customer) they're really the same thing.

    So I'm thinking it's actually a typo because regardless the screen is still the same size, and it's even the same resolution.

  24. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #24
    Almost correct:

    There are more pixels in the iPod then the iPhone.

    In a sense yes 480 x 320 just proportions if that simplifies it, but not the number of pixels.

    It's not considered 3x2 though, since it's a widescreen the ratio is 16:9. Relating it to a widescreen TV and a standard box TV. A widescreen's ratio is 16:9, while a standard TV (box) is 4:3. That's why a widescreen has a longer display.

    Think of the diagonal as making a triangle. The length of the x to the y is a ratio of 16:9 in a widescreen TV, while on a standard boxed TV the length of the x to the y is a ration of 4:3. That's getting technical, but that's how it's defined in regards to viewing areas.

  25. macrumors 6502

    Joined:
    Apr 9, 2007
    Location:
    Northern VA, USA
    #25
    Mrjynx, that is correct. Since one is labeled 160 dpi and the other 163 ppi, it leads me to believe it is a different manufacturer for the iPod touch's LCD screen. It also confuses the hell out of consumers to see dpi and then ppi on displays, since they are used as one in the same. You are also correct that dpi is truly supposed to be used for printer's in regards as to how many dots are made per inch. So some display manufacturers have said dots sounds easier to understand then pixels, since a pixel in theory is a dot. So to "dumb" it down, some decide to use dpi instead of the true accepted terminology of ppi.
