Problem with Dual Displays, Powermac11,2 2x2.0, 6600LE

Discussion in 'PowerPC Macs' started by phyrexia, Apr 29, 2011.

Most Liked Posts
  1. phyrexia, Apr 29, 2011

    phyrexia macrumors 6502a

    Joined:
    Sep 3, 2010
    #1
    Hello All.

    I have a Powermac11,2 with the 6600LE video card, 10.5.8, recent software updates. I have been using two displays for some time now with no problems whatsoever.

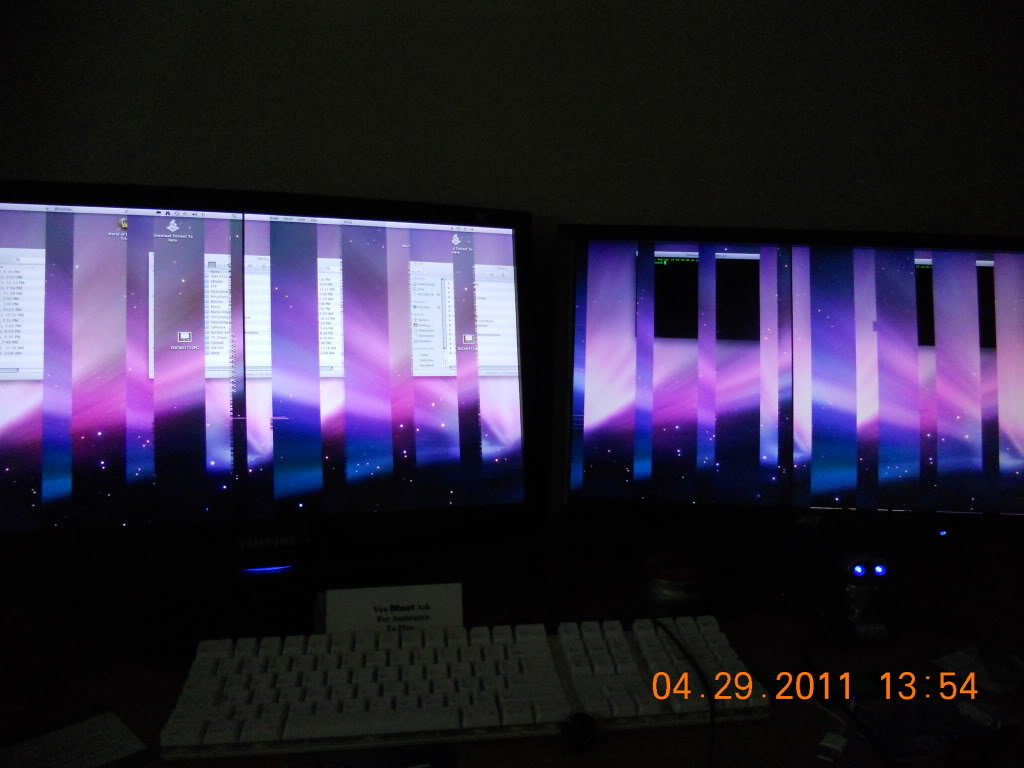

    I recently replaced one of the monitors with a higher resolution unit and now, if I boot my machine up with both monitors connected, this happens:

    [​IMG]

    I had an Acer 21.5" 1080P monitor and Hanns-G monitor which ran at 1440x900, IIRC. I replaced the Hanns-G with a Samsung 2333T, and I'm now using the 2333T as the main display. So now I have two 1920x1080 displays.

    Turning off the secondary monitor does not fix the problem. Unplugging it doesn't either. However, if I boot the machine with the secondary DVI cable unplugged and plug it in once the system is up and running, I don't have the problem. Likewise, once the system is up and running as pictured above, I can unplug a DVI cable and plug it back in, and the system appears to reinitialize the display and everything is back to normal.

    Thanks in advance for your thoughts.

    share
    + Quote Reply
  2. macdatadrive, Apr 29, 2011

    macdatadrive macrumors regular

    Joined:
    Apr 25, 2011
    Location:
    The city of Macintosh :)
    #2
    I think perhaps you may have a faulty cable. See, because you aren't using an Apple display I also could say it could be problem with monitor. I believe maybe your monitor cannot handle Leopard. Try resetting the video card and if all else fails, go to System Settings and check the displays.

    Hope that helps a bit.:)

    share
    + Quote Reply
  3. AdrianK, Apr 30, 2011

    AdrianK macrumors 68020

    Joined:
    Feb 19, 2011
    #3
    That doesn't make any sense, monitors will show whatever graphics are rendered out by the GPU unless they don't conform to the monitors specs in some way (incompatible resolution, refreshrate etc).

    share
    + Quote Reply
  4. chrismacguy, Apr 30, 2011

    chrismacguy macrumors 68000

    Joined:
    Feb 13, 2009
    Location:
    United Kingdom
    #4
    And even then, its not the monitor thats at fault. My best guess would be the graphics card is slightly confused about what to put on each screen - Id try and replace the GFX Card, since it appears both monitors are receiving pieces of each others signals, which I don't think could be a cable issue unless your using a splitter to get 2 monitors off a single display out.

    OP: Also, does it occur if you run the monitors below their stated resolution (ie run one of them at 1600*900/similar)

    share
    + Quote Reply
  5. phyrexia, May 1, 2011

    phyrexia thread starter macrumors 6502a

    Joined:
    Sep 3, 2010
    #5
    Setting the secondary display to a lower resolution fixes the problem.

    Interesting...

    share
    + Quote Reply
  6. chrismacguy, May 1, 2011

    chrismacguy macrumors 68000

    Joined:
    Feb 13, 2009
    Location:
    United Kingdom
    #6
    Sounds to me like your graphics card is having issues pushing pixels to 2 displays at 1920*1080 - It might be easiest to upgrade the graphics card to a more modern card that can handle that resolution correctly.

    share
    + Quote Reply
  7. phyrexia, May 2, 2011
    Last edited: May 2, 2011

    phyrexia thread starter macrumors 6502a

    Joined:
    Sep 3, 2010
    #7
    The whole setup works fine together, at 2x1080, just not at boot. It has run for 10 or 12 days straight with no issues once I pull a DVI cable after it boots. I only paid $100 for this machine. :D So I hesitate to replace a video card with an obsolete $350 Mac video card.

    Is this something that might be solved by an NVRAM reset?

    share
    + Quote Reply
  8. chrismacguy, May 2, 2011

    chrismacguy macrumors 68000

    Joined:
    Feb 13, 2009
    Location:
    United Kingdom
    #8
    It wouldn't hurt to try it Id've thought. It might fix it (It could even be a dodgy cable or something as odd as that, but NVRAM is a good place to start). - Nice machine for $100!

    share
    + Quote Reply
