Ports cover

Originally posted in: Post in thread 'DIY 5k Monitor - success :-)'

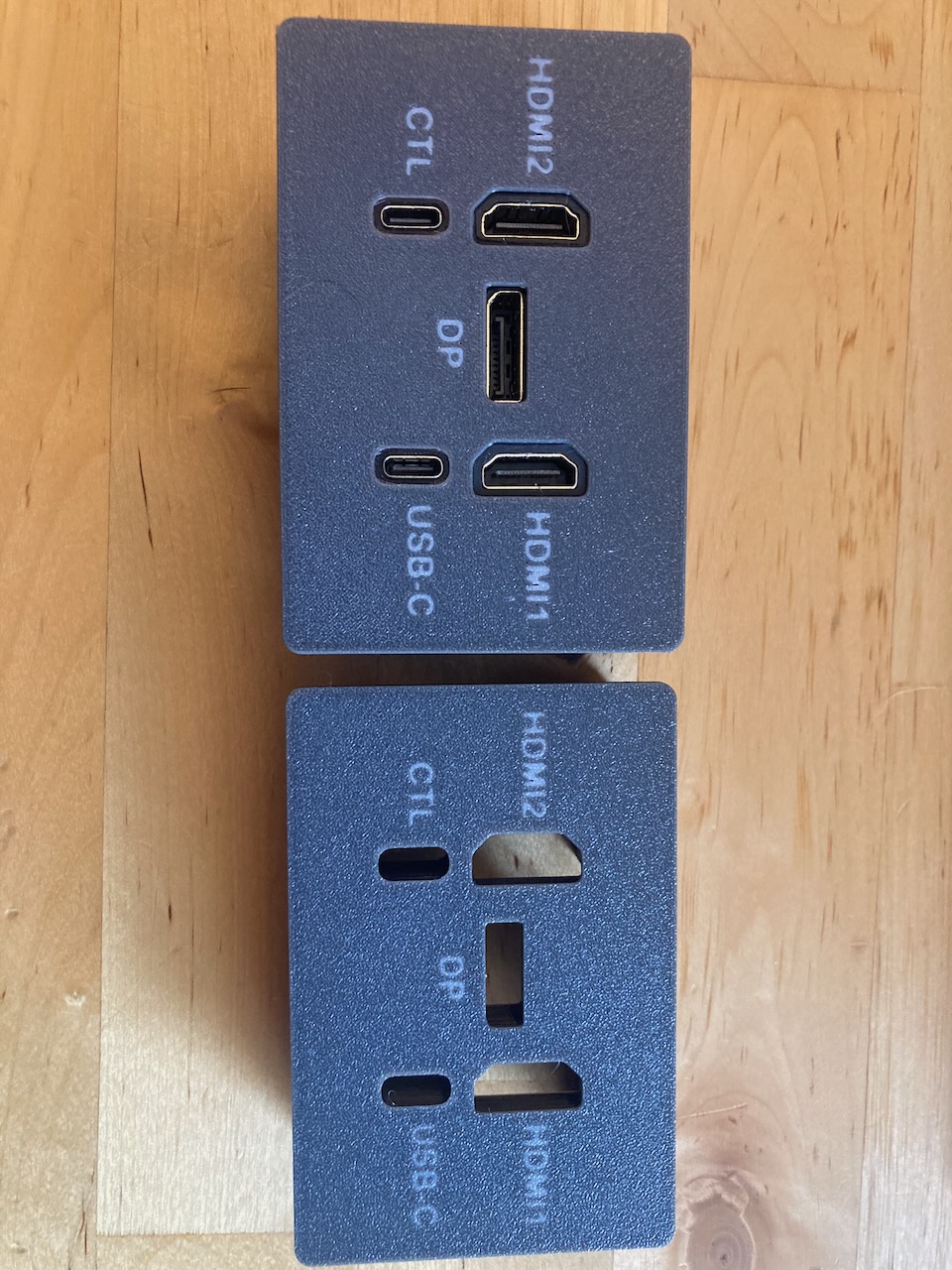

This is a picture of the cover with all the ports from the SA1 board. The CTL port is a USB-C port that's connected to directly to the Arduino (via.a USB-C to micro USB cable) for monitoring purposes and so that I can continue updating the Arduino program.
Click to expand...
