10 GB RAM Placement Mac Pro Early 2008 Quad 2.8

[LimaOhioJoe]

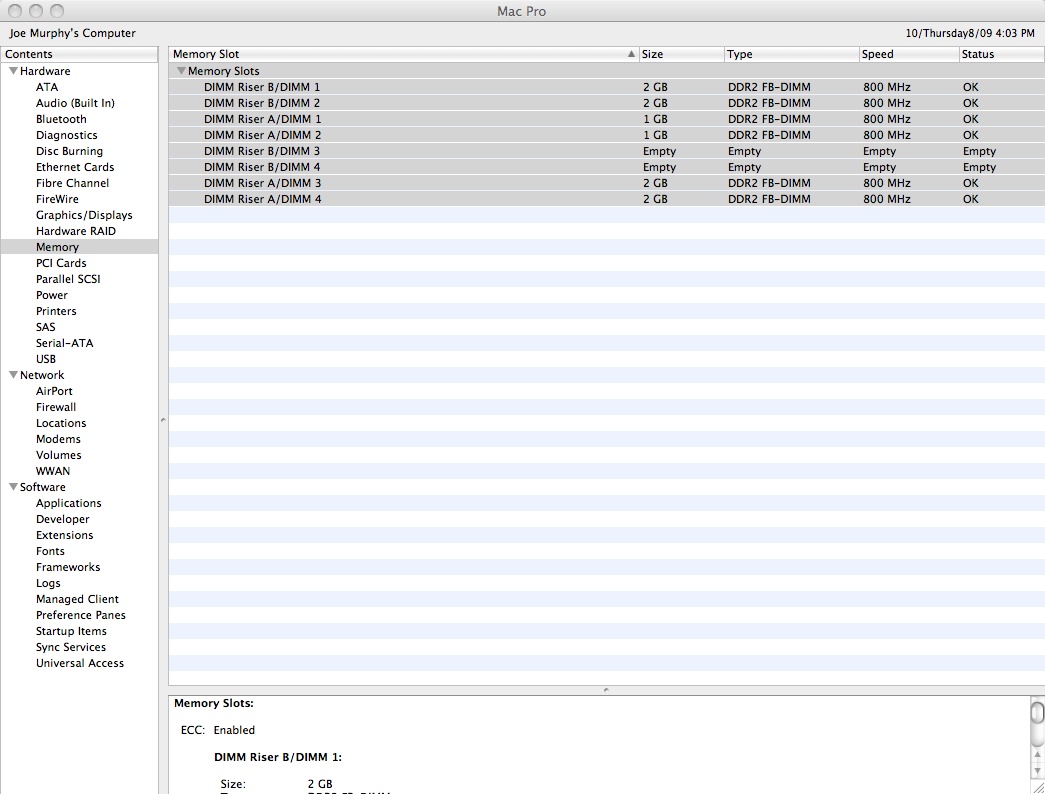

I have searched the forums and think I am at least partly right, but I would like to be sure. I have a nagging feeling I may have to switch the 1 GB modules from A1 and A2 with the 2 GB modules in A3 and A4. Have I placed my modules correctly? Thanks for the help.....



[Mr.Noisy]

I have searched the forums and think I am at least partly right, but I would like to be sure. I have a nagging feeling I may have to switch the 1 GB modules from A1 and A2 with the 2 GB modules in A3 and A4. Have I placed my modules correctly? Thanks for the help.....

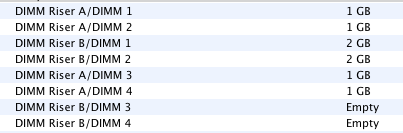

Hi LimaOhioJoe , Put all the 2GB sticks in Riser A1,2,3 & 4 and both 1GB sticks in riser B1 & 2, should be good to go I'm running with 8GB at the mo (got another 4gb to go in when i can be arsed ) & this is what it looks like,
got 4x1gb in risers A and 2x2gb in risers B1 & B2, hope this helps.



[LimaOhioJoe]

Hi LimaOhioJoe , Put all the 2GB sticks in Riser A1,2,3 & 4 and both 1GB sticks in riser B1 & 2, should be good to go I'm running with 8GB at the mo (got another 4gb to go in when i can be arsed ) & this is what it looks like,
got 4x1gb in risers A and 2x2gb in risers B1 & B2, hope this helps.

Thanks for the quick response,,,I appreciate it.
