MP 1,1-5,1 12V activation on macs pro 5.1

L

ljcarballo

macrumors newbie
Original poster
Dec 23, 2019
2
0

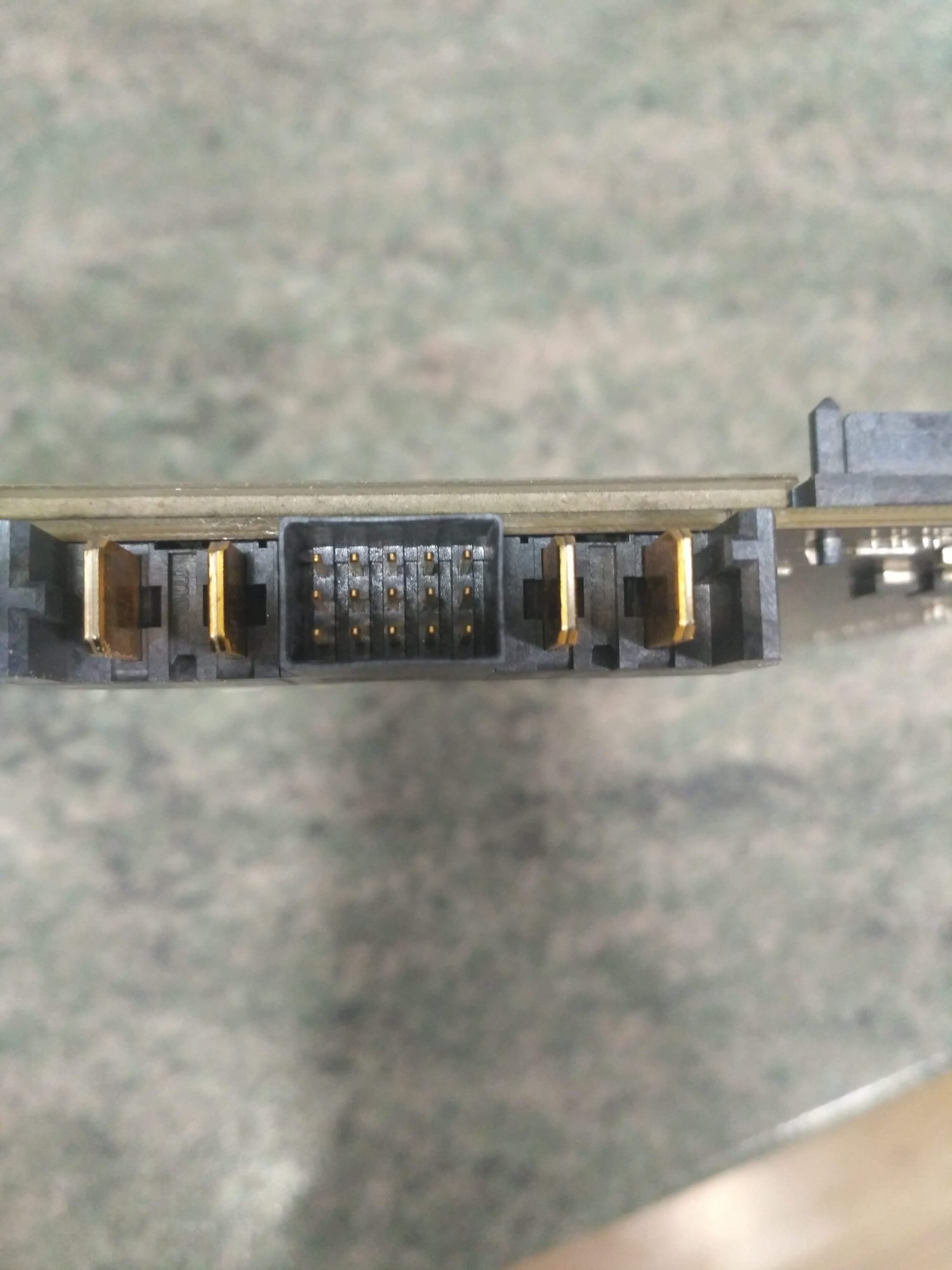

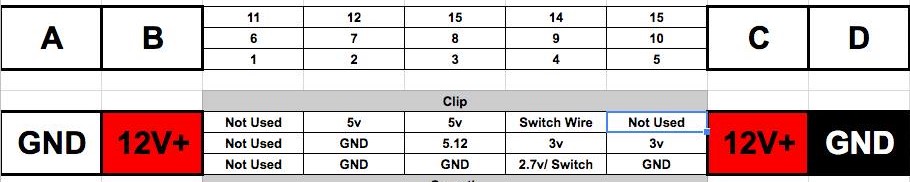

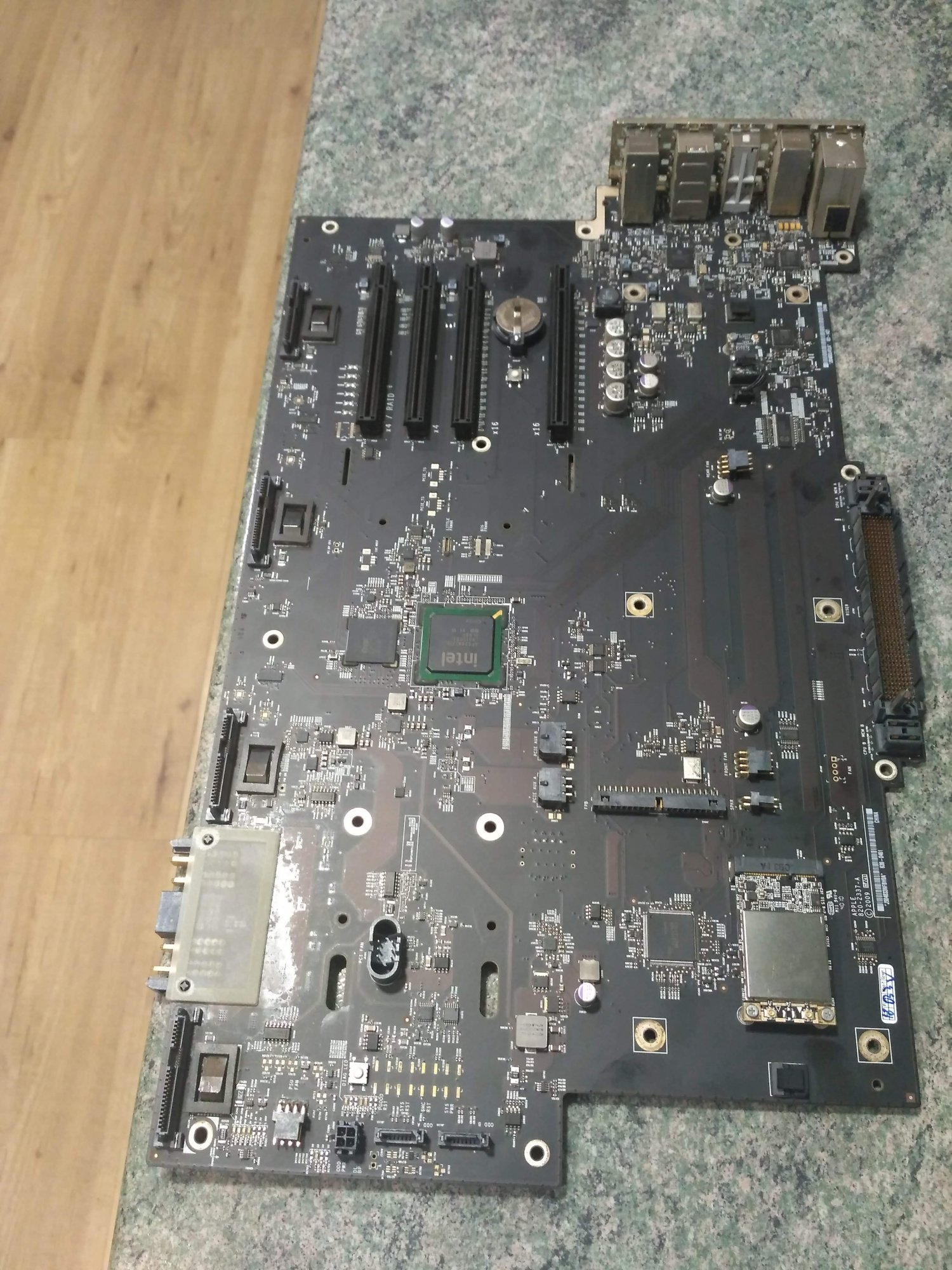

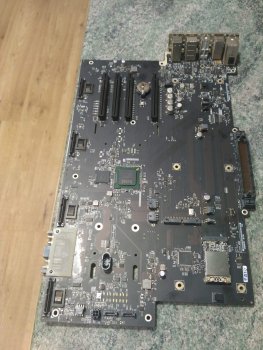

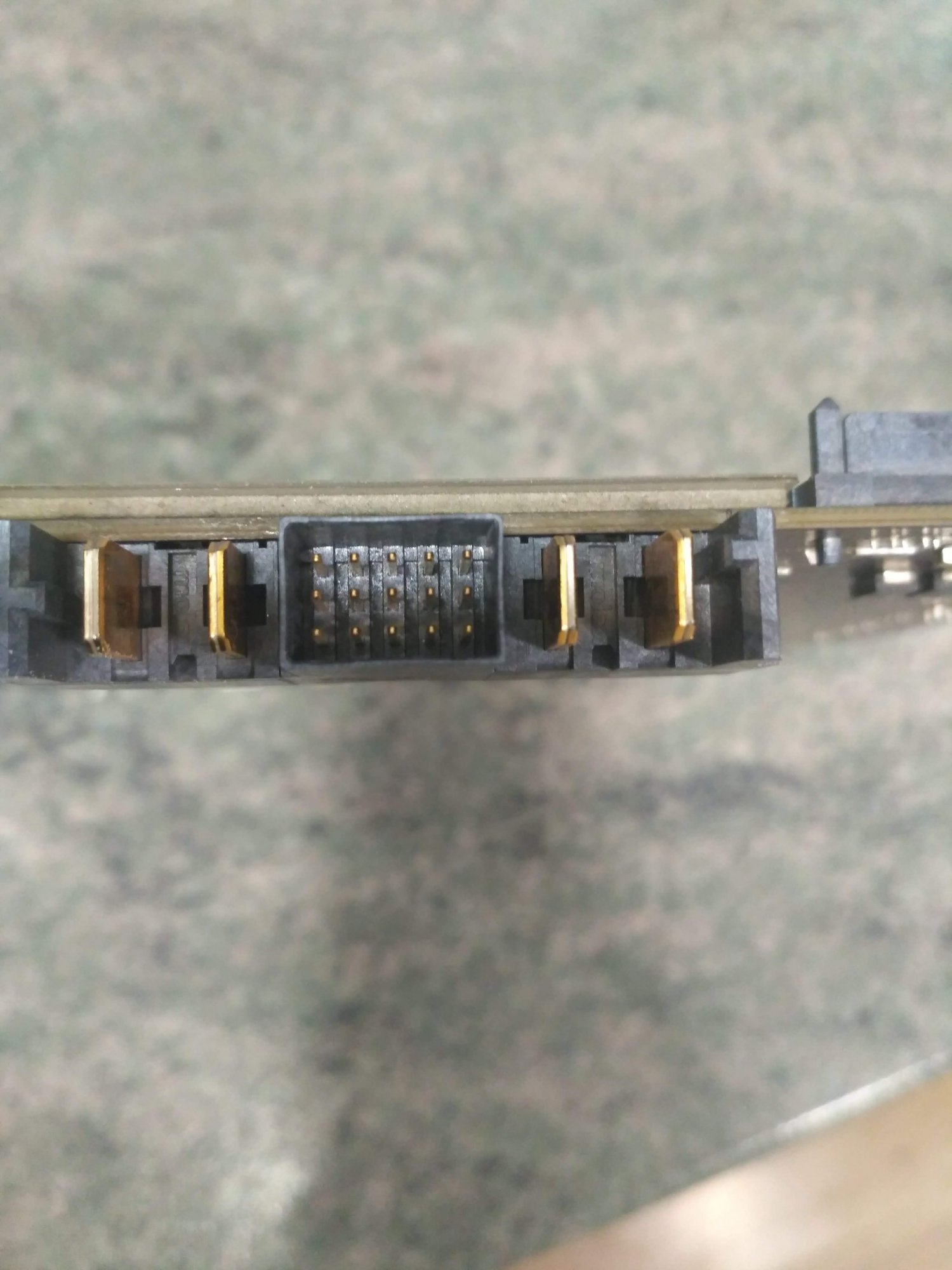

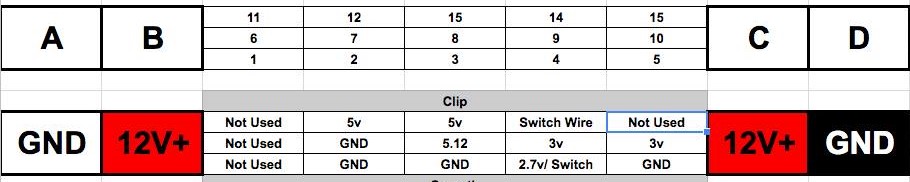

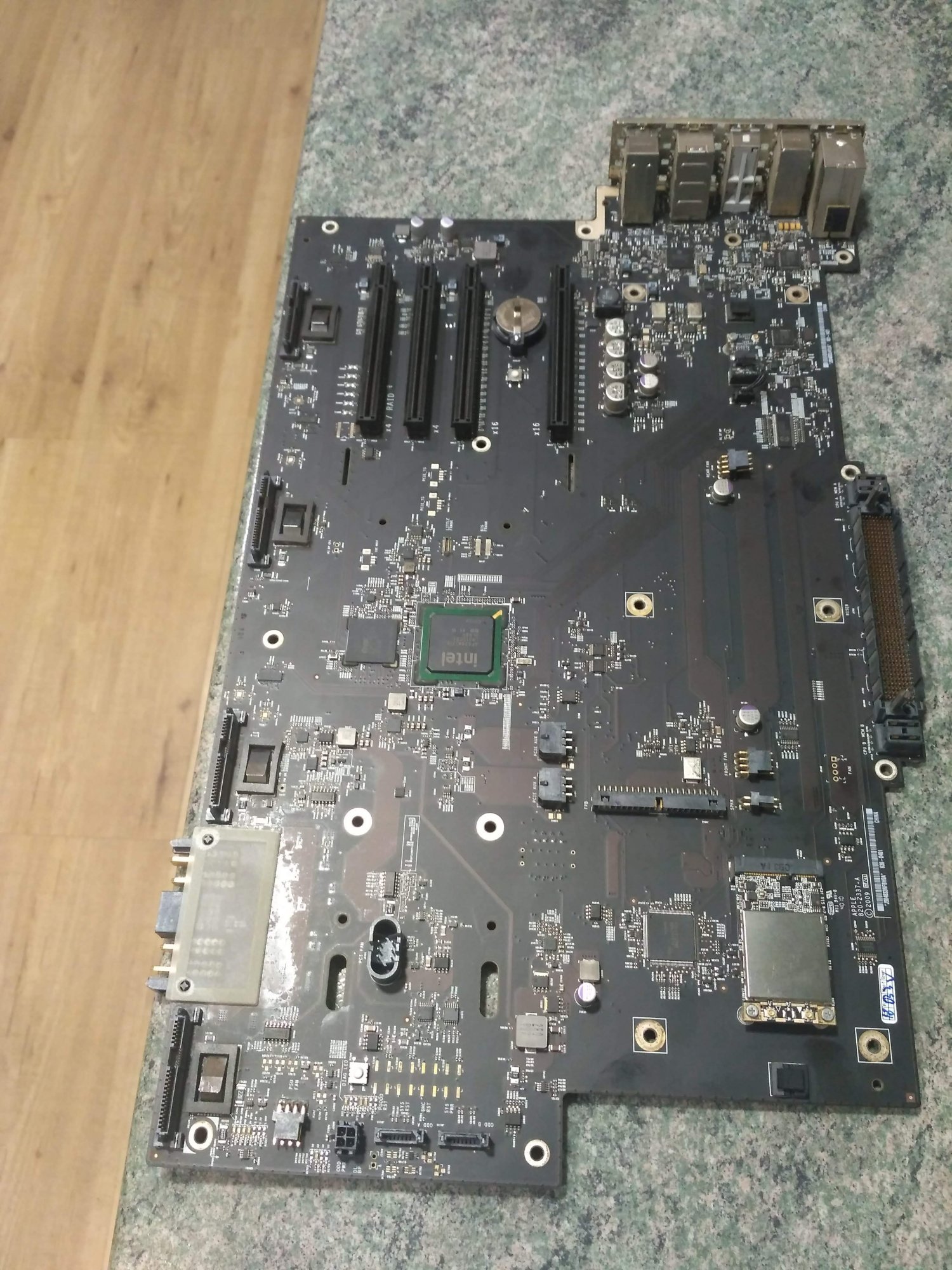

Hello friends, I am trying to see what elements activate the 12V in this type of plates, and as much as I am looking for with the multimeter where these two pins arrive I do not give them, if someone could lend me a hand I would appreciate it. The pins are 14 and 4, I can't see where they are on the board.
Sorry for my language but I am using a translator.


Attachments

  • Foto11.jpg
    65.6 KB · Views: 100
  • IMG_20200102_182129.jpg
    219 KB · Views: 76
  • IMG_20200102_182211.jpg
    504 KB · Views: 61
