30" Cinema Display Power supply.

[Mactech20]

Hi Everyone,

I have two 30" Cinema displays. Both have really noisy power bricks and one goes in and out. Rest assured, I am not going to spend $100 on another power brick for these super old monitors. I am wondering if anyone has ever just wired up their own power supply for these and if there would be any potential issues? I am looking at this: https://www.amazon.com/Switching-Co...+watt+power+supply&qid=1732303969&sr=8-6&th=1



[PaulD-UK]

The Cinema Displays use a 24v 6A PSU,
There are YT videos about the conversion to use any suitable PSU.



[Bobbesteijn]

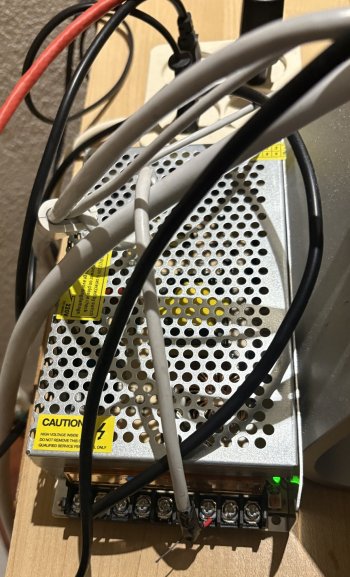

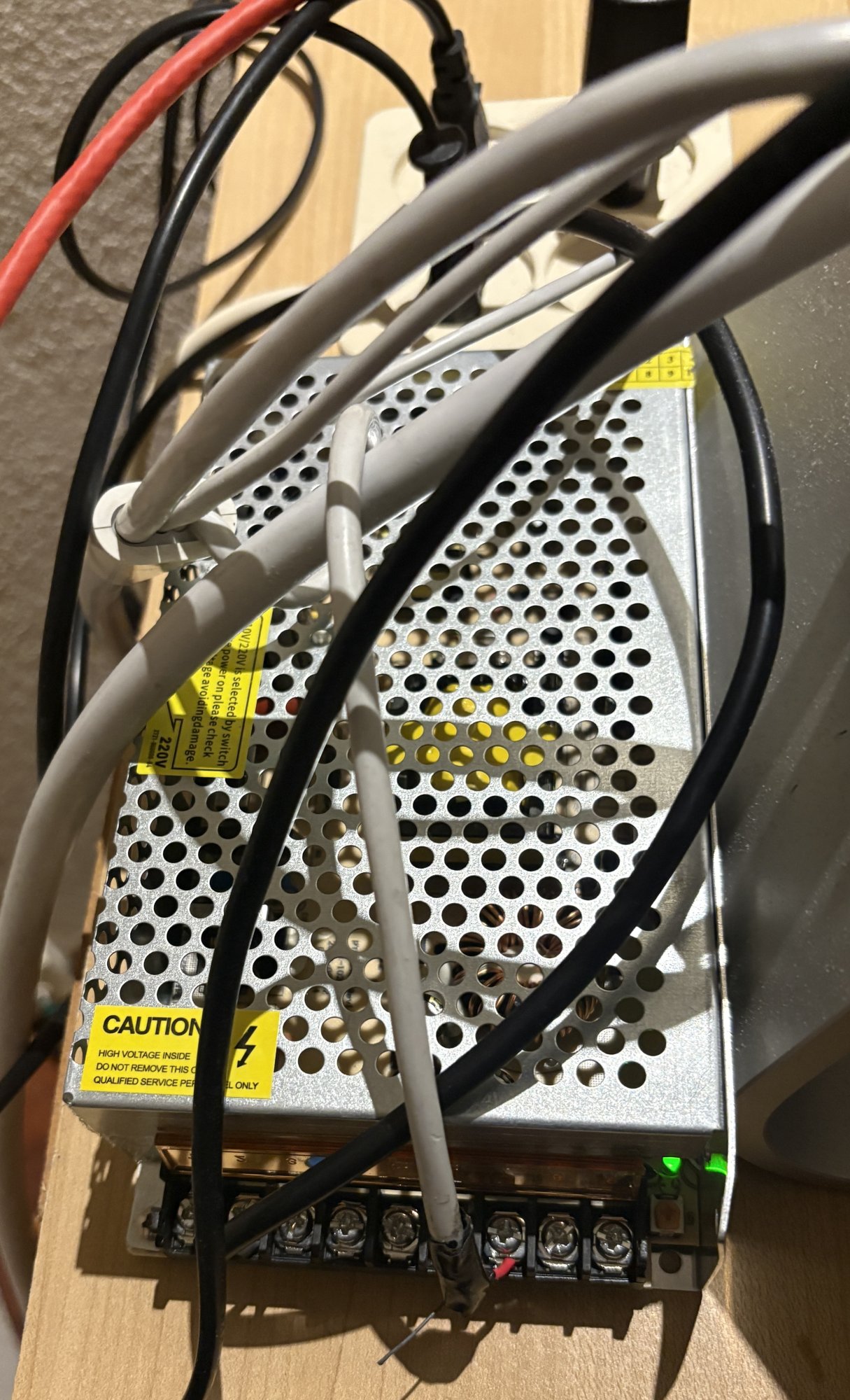

I Bought this power supply for 20euro’s on AliExpress works great and no sounds 220/240v to 24v 10amp 250watts



[EugW]

I Bought this power supply for 20euro’s on AliExpress works great and no sounds 220/240v to 24v 10amp 250watts

Link?



[PaulD-UK]

Its a AliE generic copy (slightly more powerful) of a MeanWell LRS-200-24, 24v 200w, which costs not much more, but which can be bought locally anywhere, and comes with proper certifications.
The ACD only needs less than 8 amps, as the original PSU is 150w.

(1PC) LRS-200-24 200W Single Output Switching Power Supply 24V 8.8A

LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adoptingthe input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3v,4.2V,5V,12V,15V,24V,36V and 48V. ln addition to the high efficiency up to 90%, th...

www.amazon.ca



[Bobbesteijn]

Its a AliE generic copy (slightly more powerful) of a MeanWell LRS-200-24, 24v 200w, which costs not much more, but which can be bought locally anywhere, and comes with proper certifications.
The ACD only needs less than 8 amps.

(1PC) LRS-200-24 200W Single Output Switching Power Supply 24V 8.8A

LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adoptingthe input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3v,4.2V,5V,12V,15V,24V,36V and 48V. ln addition to the high efficiency up to 90%, th...

www.amazon.ca

Don’t do the 8amp, because you also need power for usb hub and de power cable for MacBook, you will get power errors on your ACD screen
