Recently added a small cabinet to my home office, and I've placed it in there closed out of the way along with my external hdds, there aren't any performance issues, but should I be worried about anything else? It's about 2 metres from me.
It’ll be just my Mac mini M1, 2x2th hard drives in their enclosures, and a small dock that lets me connect usbs etc which will be connected to the mini. The hard drives abs the mini are the only two things that have power supply. The hdd enclosures have no fans or heating management built in.Only concern would be heat buildup in the cabinet. I did something similar with a Mini, bunch of drives, and a Synology, along with all my networking gear. Added a muffin to the cabinet to get some airflow. Didn’t take much airflow to keep it at a reasonable temperature.
It's a thin square shaped fan. Usually seen in desktop power supplies. They come in 12v and 120v versions.What’s a muffin? There’s quite a fair amount of space in between. Maybe I should get a mini fan?

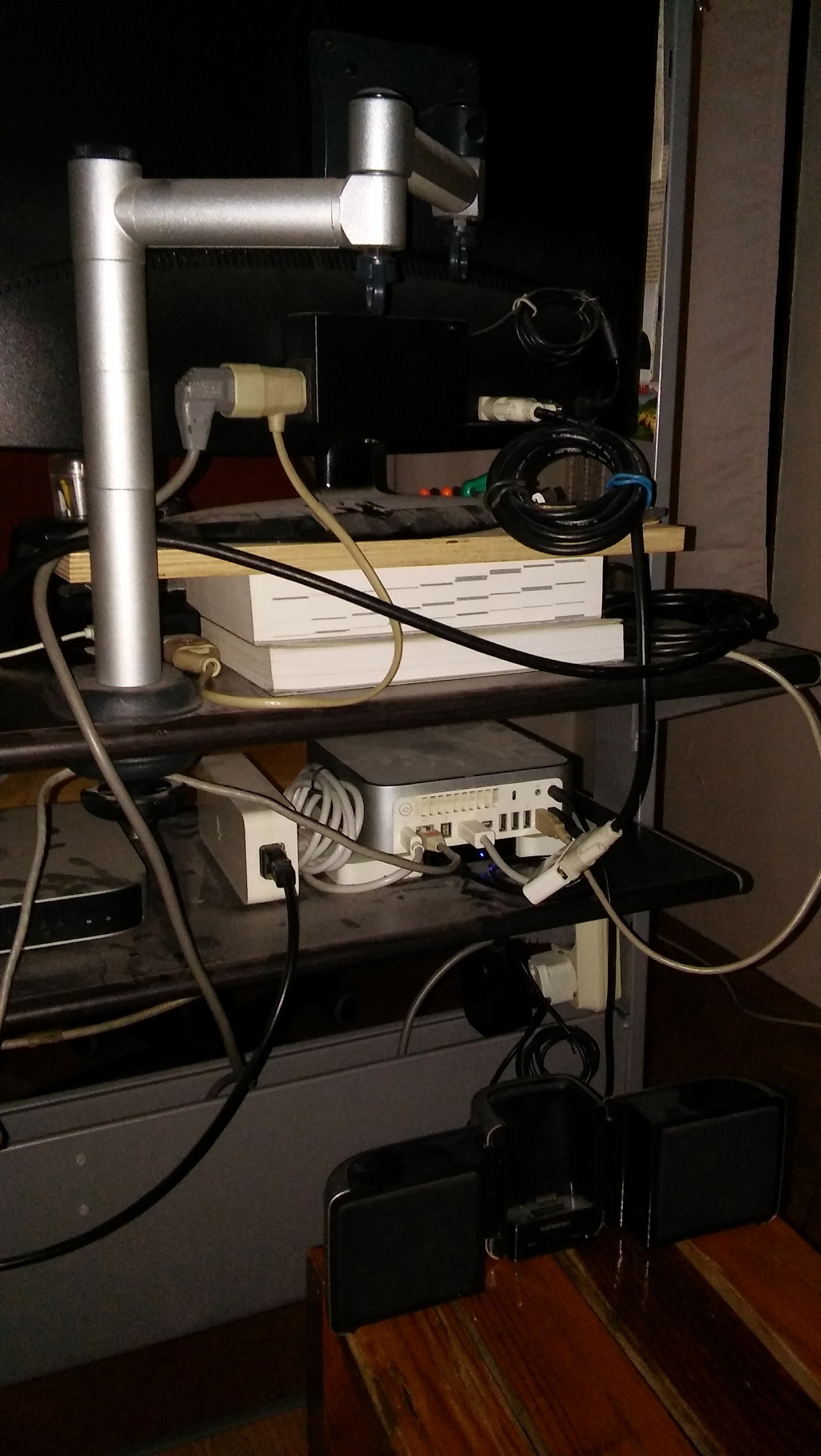

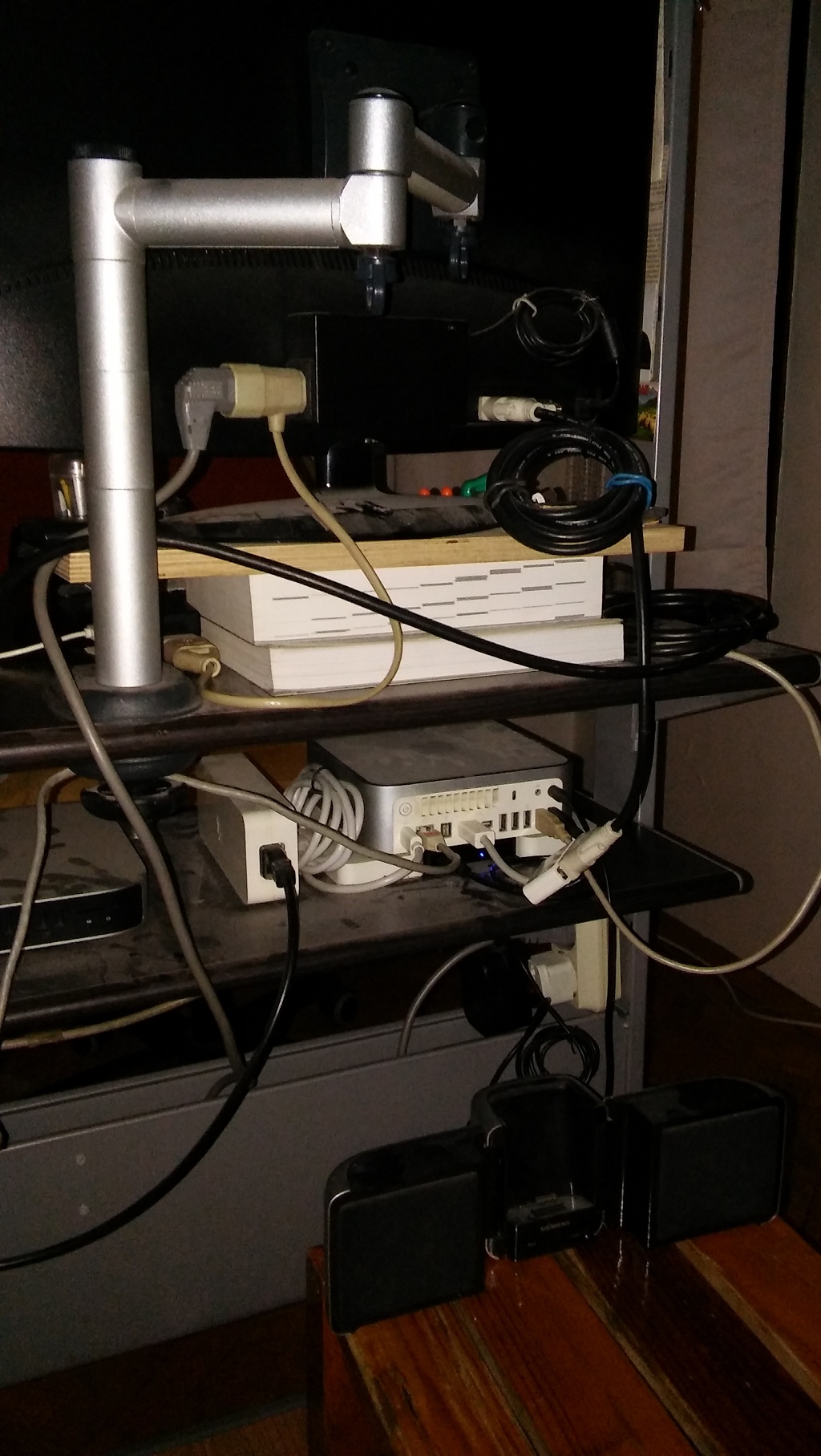

The two Sata drives are not always running. One is time machine and I do manual backups, the other just contains files and documents and I just move them over from my macs storage once I’m done dealing with them or won’t be needing them for a long time. Do you think I could get a plug-in usb desk fan and put it somewhere in the cabinet or near the Mac mini? Would that cause any issues?My 2014 Mini is a media server and lives behind closed doors in the bottom of the small cabinet that has a stereo on top. Has been running fine like this 24/7 for about 3 years and I had a 2012 Mini in the same place for 4 years before that. It has a 4tb external SSD with all my media and a 5tb hard drive that is only mounted for automatic nightly backups with Carbon Copy. No problems at all.
The Mini itself does not get very hot since all it does is silenty serve video and audio with iTunes. But this room is not air conditioned and gets above 80 degrees F frequently in the summer. The big caveat here is, although the cabinet doors are closed, I removed the back so there's plenty of airflow.
Now, the M1 runs much cooler which should help in your case although you may push it harder than my media server and having two hard drives constantly spinning will also generate some heat. I'd want some sort of ventillation inside a small cabinet, either passive or perhaps a fan and exhaust port to create some circulation.
You mean a desk fan those mini ones? Do you have a pic dude?It's a thin square shaped fan. Usually seen in desktop power supplies. They come in 12v and 120v versions.
Do you think I could get a plug-in usb desk fan and put it somewhere in the cabinet or near the Mac mini?
Is there a way to monitor temp?I don't think a fan will make any difference by itself, it willl just blow the hot air around. The point is, you need to provide a way to let cool outside air into the cabinet and let the hot air out - an intake and exhaust port, for example. Most fans are going to make some noise and also suck dirt inside the cabinet. That's why I just removed the back of my cabinet, which was easy since it was just a piece of thin plywood. That allows plenty of air circulation without anything mechanical. Since the cabinet is against the wall, you can't tell that the back is open.
I know the M1 is supposed to run pretty cool, so I suppose you could just put it in the cabinet and see how warm it gets. Don't know if that would be a problem or not.
Macs Fan Control
The two Sata drives are not always running. One is time machine and I do manual backups, the other just contains files and documents and I just move them over from my macs storage once I’m done dealing with them or won’t be needing them for a long time. Do you think I could get a plug-in usb desk fan and put it somewhere in the cabinet or near the Mac mini? Would that cause any issues?
You mean a desk fan those mini ones? Do you have a pic dude?
I bought one with a 120v power brick. Has a rheostat to control the speed. Here is the model. Plenty of airflow at mid-speed setting and fairly quiet.How would ya connect that to the mini or some other power source?
How noisey is it?I don’t have my mini in a cabinet, but I have a router, cable modem, and Caldigit TS3+ in a small cabinet — three feet deep, three feet high, and two feet wide.

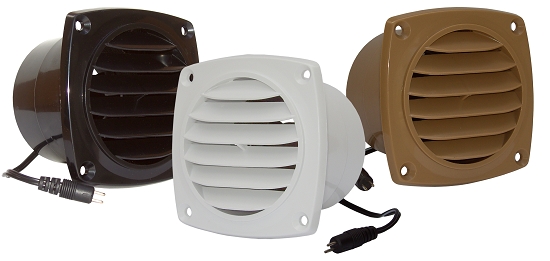

I installed this at the back to exhaust:
![]()
VS-CV/SV: Cabinet/Slim Vent for Cooling & Venting Electronics in a Cabinet or Enclosure
www.coolcomponents.com
and this in the front for intake:
![]()
Plastic Surface Mount Vent Grill for Venting Cabinets or Enclosures
www.coolcomponents.com
temperatures inside remain at about 15 degrees above ambient. I run the fan on its lowest setting.
Have used their products for years. They work well, but admittedly are very expensive for what they are.
How noisey is it?

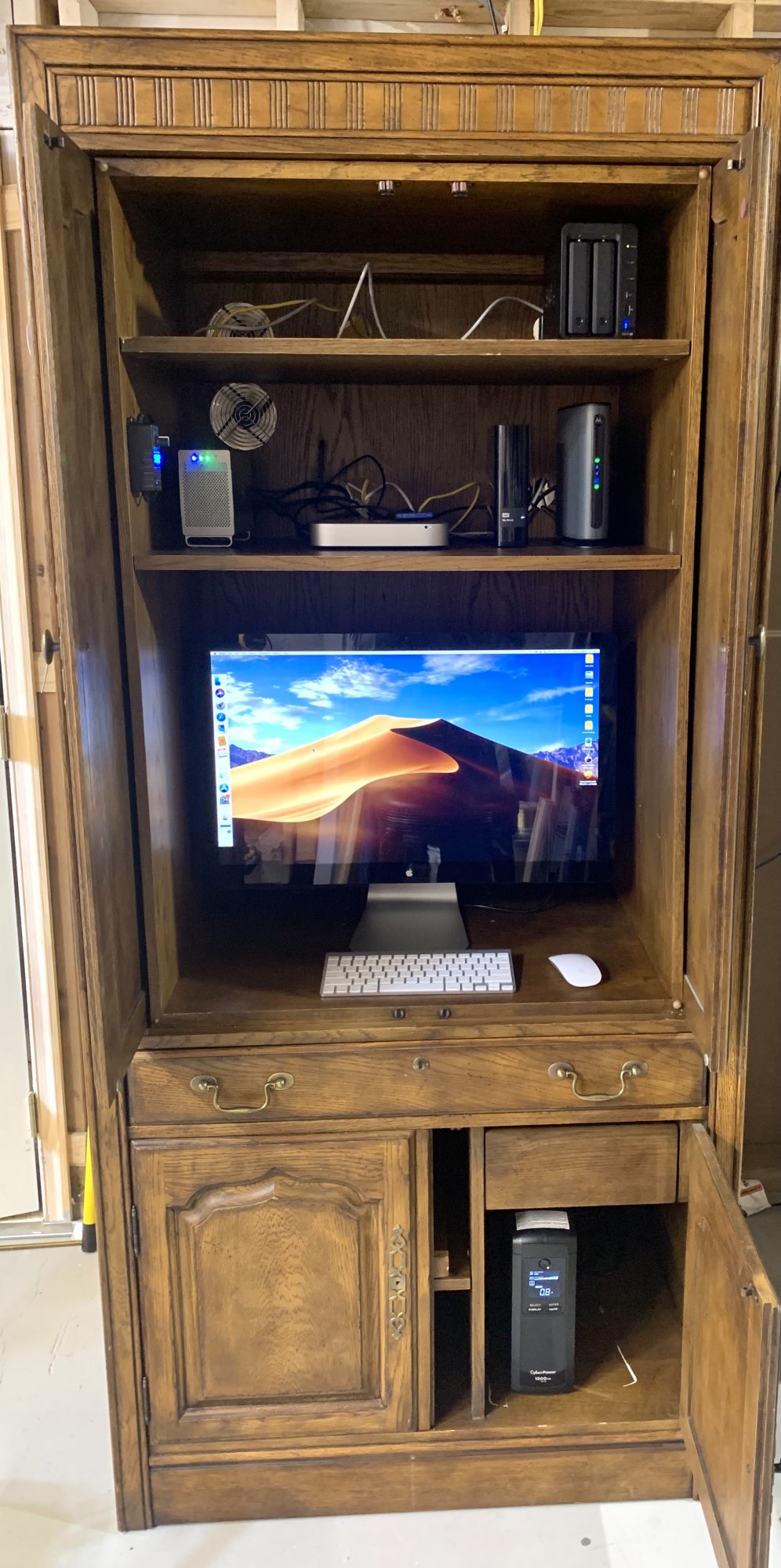

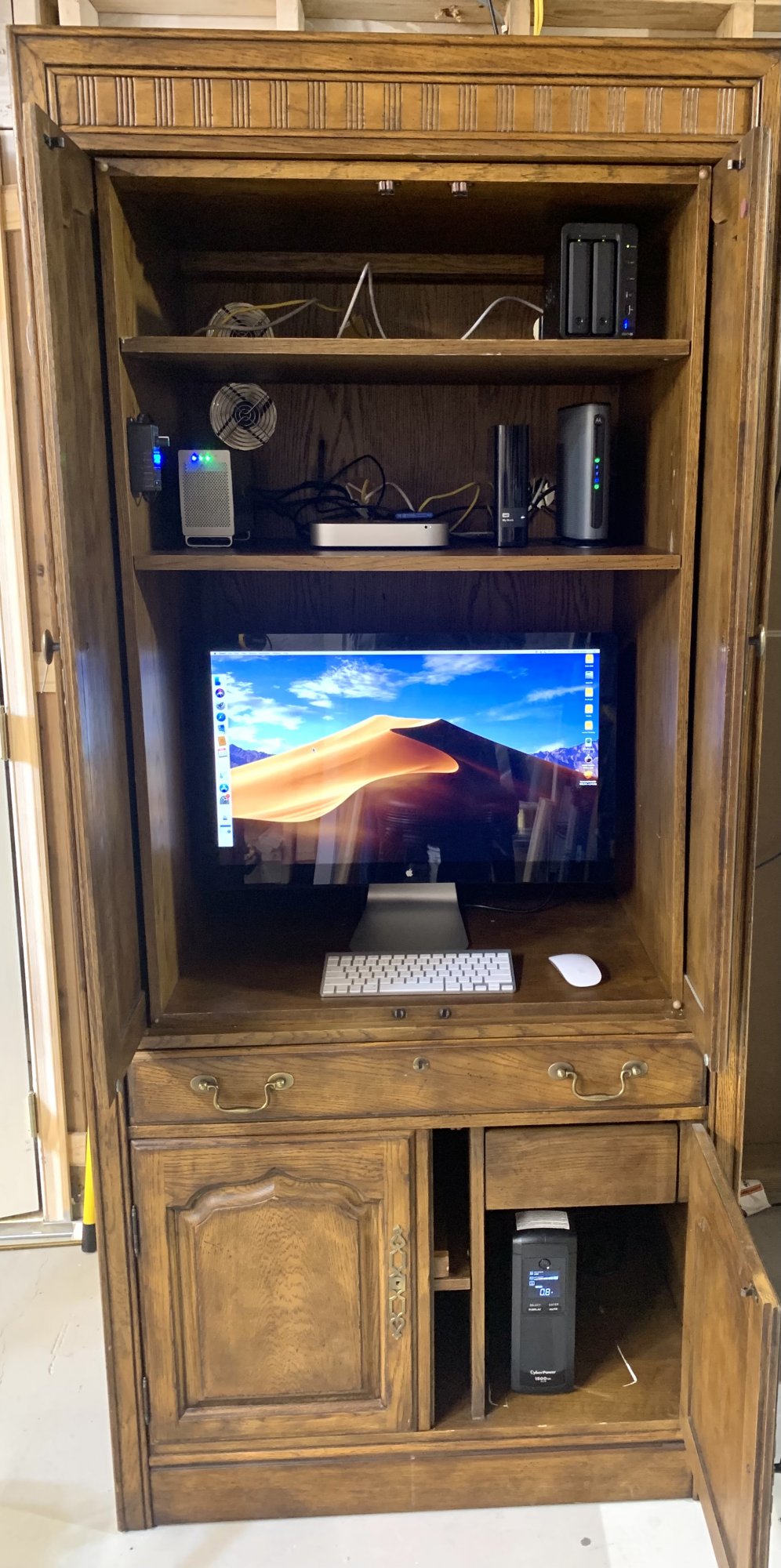

I am aiming for the same, but with an ikea cabinet!Just finished my new data closet in my basement. Bought an old entertainment cabinet from our local Habitat for Humanity ReStore. I didn't have to make any significant modifications for it, just some new holes in the back for cables and the two fans I installed. Rheostat for fans is on left side. At half speed I can barely hear them.
View attachment 1916803
Which mini is that?
My cabinet only cost $29. Hard for Ikea to beat that price.I am aiming for the same, but with an ikea cabinet!
