For those who couldn't be stuffed with loading times...

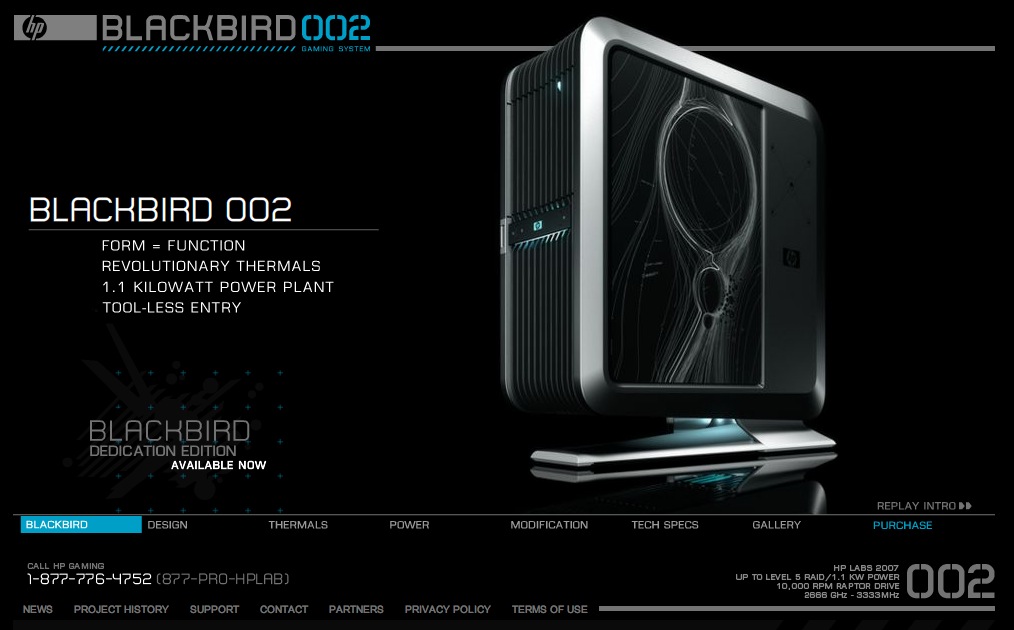

(scroll to bottom for image)
Processor
AMD® X2 Dual Core Architecture
64 bit data paths and registers
Hypertransport™ I/O Bus
Up to SSE 3 support
Integrated DDR2 memory Controler
Configurations
Athlon™ AMD X2 6000+ 3.0GHz
1MB of L2 cache per processor
Intel® Core™ Micro architecture
Up to SSE 3 support
Energy efficiency optimization
Thermal cut-outs to mitigate damage from system overclocking
Configurations
Intel® Core2™ Duo 2.66GHz [E6750]; Dual Core; 4MB of L2 cache; 1333 MHz FSB
Intel® Core2™ Extreme 2.93GHz [X6800]; Dual Core; 4MB of L2 cache; 1066 MHz FSB
Intel® Core2™ Duo 3.0GHz [E6850]; Dual Core; 4MB of L2 cache; 1333 MHZ FSB
Intel® Core2™ Extreme Quad-Core 3.0GHz [QX6850]; Quad Core; 8MB of L2 cache; 1333MHz
Memory
2 or 4 GB 667 MHz PC2-5300 DDR2 SDRAM
2 or 4 GB 800 MHz CORSAIR PC2-6400 DDR2 SDRAM
2 or 4 GB 1066MHz CORSAIR PC2-8500 DDR2 SDRAM SLI Ready
Four DIMM slots supporting up to 4 GB of main memory
256-bit-wide memory architecture
Graphics and Displays
Two Doublewide, 16-lane PCI Express graphics slot with one or more of the following graphic cards installed:
NVIDIA® GeForce® 8600 GTS with 256MB of GDDR3 SDRAM, supports Dual-Link DVI
NVIDIA GeForce 8800 GTS with 640MB of GDDR3 SDRAM, supports Dual-Link DVI (available with liquid cooling)
NVIDIA GeForce 8800 GTX, with 756MB of GDDR3 SDRAM supports Dual-Link DVI (available with liquid cooling)
NVIDIA GeForce 8800 ULTRA, with 756MB of GDDR3 SDRAM supports Dual-Link DVI (available with liquid cooling)
ATI RADEON™ X2900 XT 512MB, with 512MB of GDDR3 SDRAM, SDRAM supports Dual-Link DVI (available with liquid-cooling)
ATI RADEON X2900™ XT 1GB, with 1GB of GDDR4 SDRAM, SDRAM supports Dual-Link DVI (available with liquid-cooling)
ATI RADEON™ HD 2600 XT, with 256MB of GDDR3 SDRAM, supports Dual-Link DVI (dual configuration only)
Supports both ATI Crossfire and NVDIA SLI multiple graphic card configurations
Ageia PhysX™ PCI-E GFX Accelerator Card
Four slots to support NVIDIA SLI or ATI Crossfire configurations with two PCIe graphics cards
Dual-link DVI ports support up to 2560 by 1600 pixels.
Support for analog resolutions up to 2048 by 1536 pixels at 85HZ
DVI to VGA adapter included
Dual-display support for extended desktops and video cloning modes
Communications
Two independent 10/100/1000BASE-T Ethernet (RJ-45) ports that can support jumbo frames with low latency on gigabit connections
Storage
Five independent Serial ATA hard drive bays
Up to 4TB of internal storage using drives with the following capacities:
Hard drive bays 1 – 5 can be configured with the following drives
160GB 10,000 rpm SATA (Western Digital Raptor)
320GB 7200 rpm SATA
500GB 7200 rpm SATA
750GB 7200 rpm SATA
Two Super multi-drive, slim slots with Lightscribe (DVD+/-R/RW+/-DL)
Writes DVD-R discs at up to 16x speed
Writes DVD+R DL discs at up to 4x speed
Reads DVDs at up to 8x speed
Writes CD-R discs at up to 40x speed
Writes CD-RW discs at up to 24x speed
Reads CDs at up to 24x speed
A single 5 1/4 bay for Blu-ray Rewriter and HD DVD-ROM Super multi-drive with LightScribe BD-R/RE SL/DL read and write compatible
CD-R/RW, DVD-R/RW/RAM, +R/RW, +/- R DL
CD Family, DVD-ROM read compatible
HD DVD-ROM/R read compatible
Electrical and environmental requirements
Line voltage: 100-120V AC or 200-240V AC (wide-range power supply input voltage)
Frequency: 50Hz to 60Hz single phase
Current: Maximum of 12A (low-voltage range) or 6A (high-voltage range)
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: -40° to 116° F (-40° to 47° C)
Relative humidity: 5% to 95% noncondensing
Maximum altitude: 10,000 feet
Peripherals and audio
Back panel:
One PS/2 mouse port
One PS/2 keyboard port
Two eSATA ports
One IEEE1394 port
LCD screen (for diagnostics and status)
LCD back light button (some boards only)
SPDIF out and optical out port
Two RJ-45 (Gigabit Ethernet) ports (number depends on MB)
Four USB 2.0 ports (number depends on MB)
Top panel:
15 in 1 multi-card reader
One IEEE1394 port
Two USB 2.0 ports
One 1/8" microphone jack
One 1/8" headphone jack
ADI onboard audio optional audio cards:
Creative Audio Sound Blaster® X-Fi™ XtremeGamer
Creative Audio Sound Blaster® X-Fi™ XtremeGamer Fatal1ty Professional
Features
Speaker and Headphone connections: Stereo to 7.1 (Line Out via three 3.5mm mini jacks)
Flexijack: Line In / Microphone In / Digital Out / Digital I/O via shared 3.5mm mini jack
Auxiliary Line level Input: 4-pin Molex connector
Expansion slots
3 PCIe x16 slots (The two blue PCIe x16 slots operate with a full compliment of 16 PCI Express lanes, while the third white slot operates with only 8)
1 PCIe x1 slot
2 PCI v2.2 slots
Operating System and Software
Microsoft® Windows Vista™ Ultimate
Microsoft® Windows Vista™ Home Premium
Security
Grisoft AVG Professional (1 year base for all models)
Grisoft AVG Professional (2 year upgrade available)
Productivity
Adobe® Reader®
Microsoft® Office Pro 2007
Microsoft® Office Small Business Edition 2007
Microsoft® Office Basic 2007
Burning
CyberLink PowerProducer
CyberLink Power2Go
Size and weight
Height: 598.64 mm (23.5 inches)
Width: 266.96 mm (9 inches)
Length: 557.23 mm (22 inches)
Weight (full configuration): 72 pounds (32.659 kg)
