ATI 5870 with 2GB and 6 Mini Display Port outputs sighted

[VirtualRain]

I wonder if ATI will release a Mac version of this card?

http://www.tcmagazine.com/comments.php?shownews=30749&catid=2

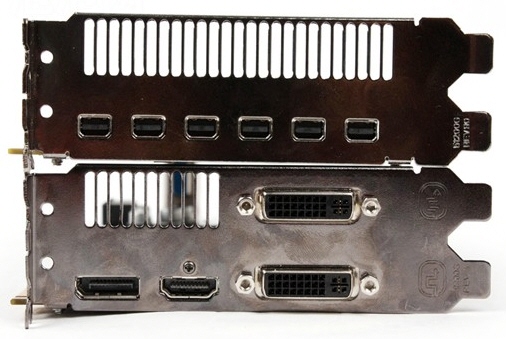

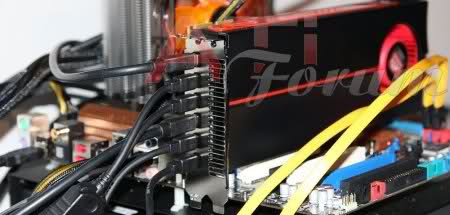

Although not yet announced an interesting new Cypress-based card has popped up online, a Radeon HD 5870 boasting 2GB of GDDR5 memory, which is double the amount found on current models, and featuring no less than six Mini DisplayPort outputs. Dropping the dual DVI and HDMI ports for more DP connectors enables AMD to offer a top notch, DirectX 11 solution that supports multi-monitor configurations of up to six displays via the ATI Eyefinity technology - pretty sweet if you can afford the setup.

Apart from the I/O change and extra VRAM, the new card also comes with an 8-pin and one 6-pin PCIe power connector, as opposed to the 'regular' HD 5870 which makes use of two 6-pin plugs. The 6DP Radeon HD 5870 packs 1600 Stream Processors and has stock GPU/memory clocks of 850/4800 MHz.

The Eyefinity-crazy card's price is yet unconfirmed.



[Mackilroy]

I heard about this a while back. Very cool.



[gugucom]

It sounds like this card pulls an ungodly amount of power.



[alphaod]

Yeah we might get a Mac version—crippled with only half the VRAM and costs twice as much as the regular verison.



[Voidness]

Yeah we might get a Mac version—crippled with only half the VRAM and costs twice as much as the regular verison.

I think this 6 Mini-DisplayPort card is actually the Mac version, since no one uses Mini-DisplayPort except for Apple.



[J the Ninja]

Yay@full-width vent.


And Voidness kind of has a point. Has anyone found a single other Mini DP product aside from adapter cables that isn't made by Apple?



[DoFoT9]

oh my lord! that is insane! i wonder if the card would sell that good. 6DP ports? wow



[gugucom]

http://www.madshrimps.be/vbulletin/f22/amd-radeon-hd-5870-eyefinity-edition-spotted-66266/

While each accelerator supports six displays in all, multiple accelerators can be installed on the same PC without any multi-GPU setup, to scale the size of the resulting display by up to 24 displays and up to 268 megapixels of effective resolution.

This looks like it is aimed at super large displays (268 megapixels) rather than Apple. The TDP according to other sources is 325 W.



[peskaa]

I think this 6 Mini-DisplayPort card is actually the Mac version, since no one uses Mini-DisplayPort except for Apple.

Not at all. Apple made MDP available for licensing in attempt to try and get some other people to use it. Looks like they've just had their first bite...



[irishgrizzly]

Would a Mac Pro handle 2 of these working together in Windows?



[peskaa]

Would a Mac Pro handle 2 of these working together in Windows?

No. The Mac Pro doesn't have enough PCIe power feeds for 2 of these - you could possibly jury-rig a solution but it wouldn't be elegant in the slightest. Crossfire may/may not work.



[gugucom]

Would a Mac Pro handle 2 of these working together in Windows?

Not with internal power. You would need an external 12 V power supply of respectable size.

http://www.seventeam.com.tw/product_contentx.php?theme_select=1english&pid=129&cid=48

something close to this perhaps



[ildondeigiocchi]

Would a Mac Pro handle 2 of these working together in Windows?

Not 2 on the current (2006-2009) Mac Pros, unless apple adds more pci power connectors in the next Mac Pro which I think would be nice and hopefully they'll add the 5870 to the Mac lineup of GPUs.



[malcolm233391]

I'd pay $1000 for that right now.
