Canceled bootcamp installation - unmounted space

[DanielDD]

Dear MacRummoners,

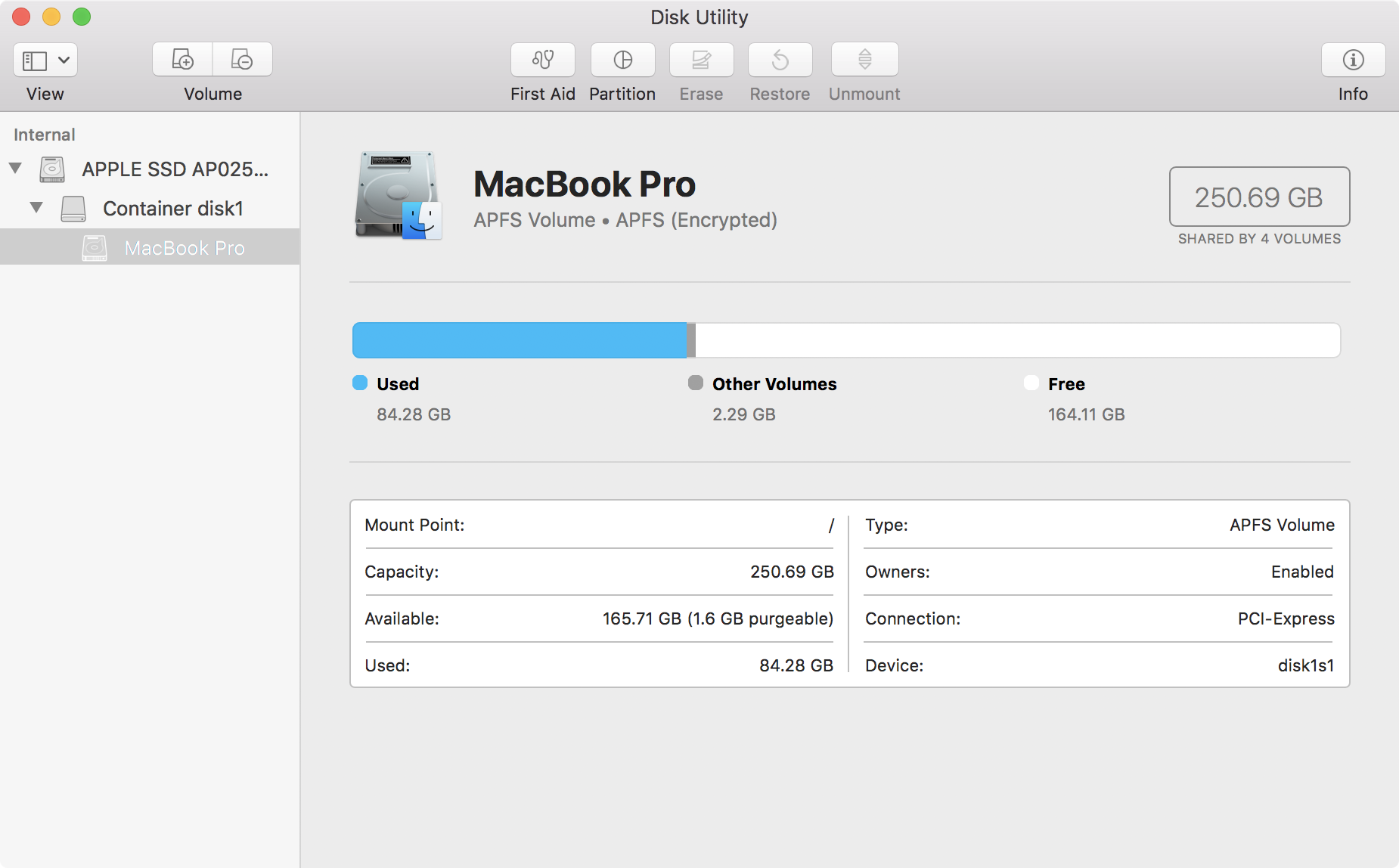

I was installing Windows 10 through bootcamp on a Mac (10.13.5). The installation process hanged. So I canceled it. Now Disk Utility shows 2.29GB worth of "Other Volumes" when they do not actually exist.
I checked EFI volumes to delete Microsoft references. I tried to recover space from recovery mode. I tried running first aid. Nothing seems to help getting this space back.

Any advice?



[BLUEDOG314]

Are you sure they just appeared? I have 2.9GB of other volumes. APFS will have your normal Macintosh HD volume, along with a volume each for VM, Preboot, and Recovery. This is normal. Run "diskutil apfs list" in terminal to see them.



[DanielDD]

This is what I get:

+-- Container disk1 A66CC349-C2AD-4B14-A3D9-C3FD68E35FD3

    ====================================================

    APFS Container Reference:     disk1

    Size (Capacity Ceiling):      250685575168 B (250.7 GB)

    Minimum Size:                 86356623360 B (86.4 GB)

    Capacity In Use By Volumes:   83487182848 B (83.5 GB) (33.3% used)

    Capacity Not Allocated:       167198392320 B (167.2 GB) (66.7% free)

    |

    +-< Physical Store disk0s2 3BA05FC7-7E98-4B97-81D6-9EC20A72D280

    |   -----------------------------------------------------------

    |   APFS Physical Store Disk:   disk0s2

    |   Size:                       250685575168 B (250.7 GB)

    |

    +-> Volume disk1s1 99E528EB-27F5-3FCA-A3FA-5F7BC1EE7912

    |   ---------------------------------------------------

    |   APFS Volume Disk (Role):   disk1s1 (No specific role)

    |   Name:                      MacBook Pro (Case-insensitive)

    |   Mount Point:               /

    |   Capacity Consumed:         80119144448 B (80.1 GB)

    |   FileVault:                 Yes (Unlocked)

    |

    +-> Volume disk1s2 A2E16E2D-BBDB-44C8-B2C0-7C053F12D5A0

    |   ---------------------------------------------------

    |   APFS Volume Disk (Role):   disk1s2 (Preboot)

    |   Name:                      Preboot (Case-insensitive)

    |   Mount Point:               Not Mounted

    |   Capacity Consumed:         53637120 B (53.6 MB)

    |   FileVault:                 No

    |

    +-> Volume disk1s3 2CA6F56F-0780-4E32-A892-5F62C1C2F50C

    |   ---------------------------------------------------

    |   APFS Volume Disk (Role):   disk1s3 (Recovery)

    |   Name:                      Recovery (Case-insensitive)

    |   Mount Point:               Not Mounted

    |   Capacity Consumed:         1028542464 B (1.0 GB)

    |   FileVault:                 No

    |

    +-> Volume disk1s4 6347344E-95D7-4D93-ACAF-1EF4E95F1795

        ---------------------------------------------------

        APFS Volume Disk (Role):   disk1s4 (VM)

        Name:                      VM (Case-insensitive)

        Mount Point:               /private/var/vm

        Capacity Consumed:         2147504128 B (2.1 GB)

        FileVault:                 No

Recovery and preboot. False alarm. Thank you.
