Can't extend signal!!! Why?!!?

[Dopeyman]

Why can't I extend my wireless signal?? What am I doing wrong? Are my settings incorrect?

First off, I have an Airport Extreme A1143 and an Airport Express A1084..

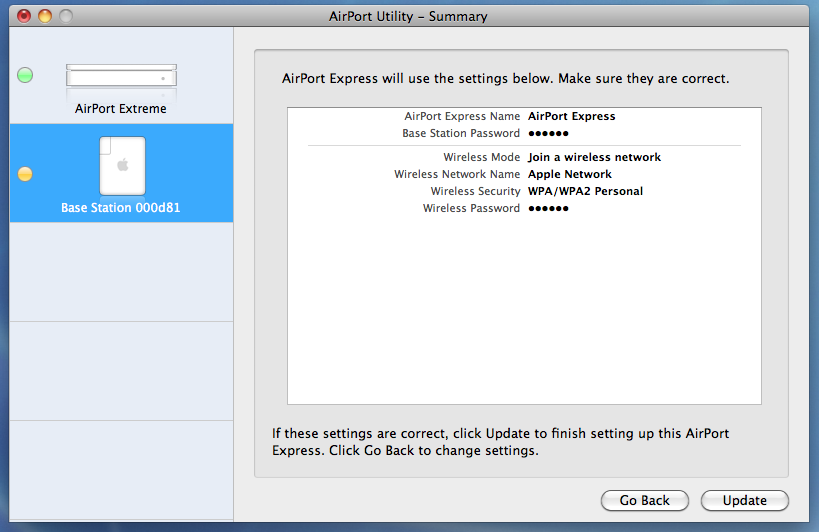

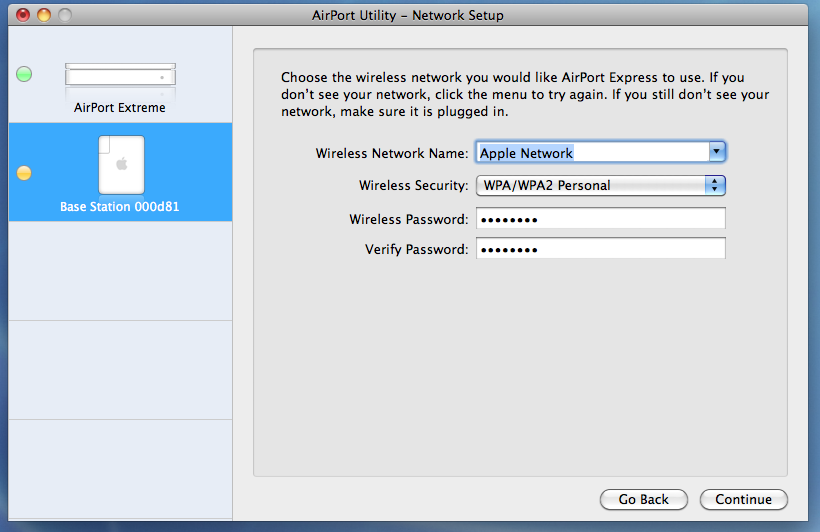

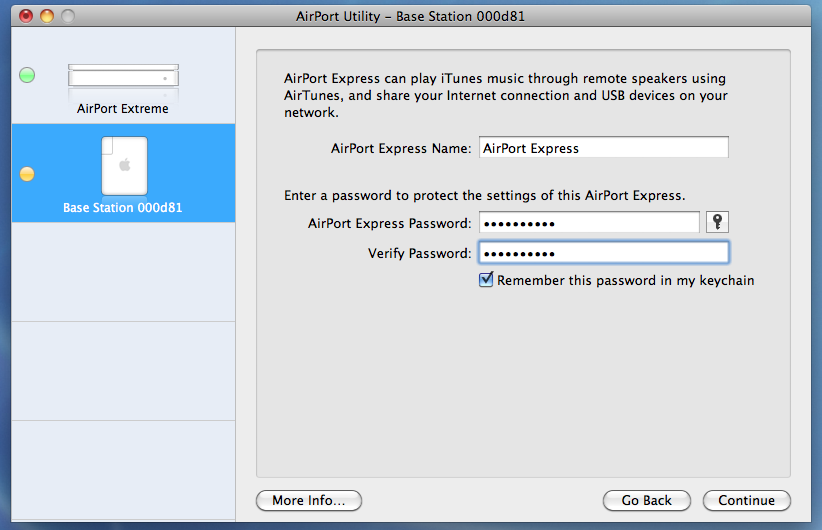

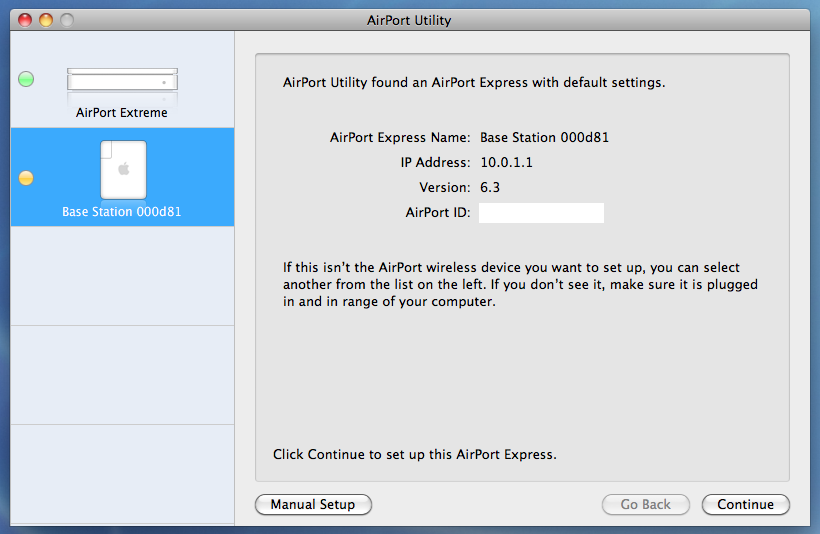

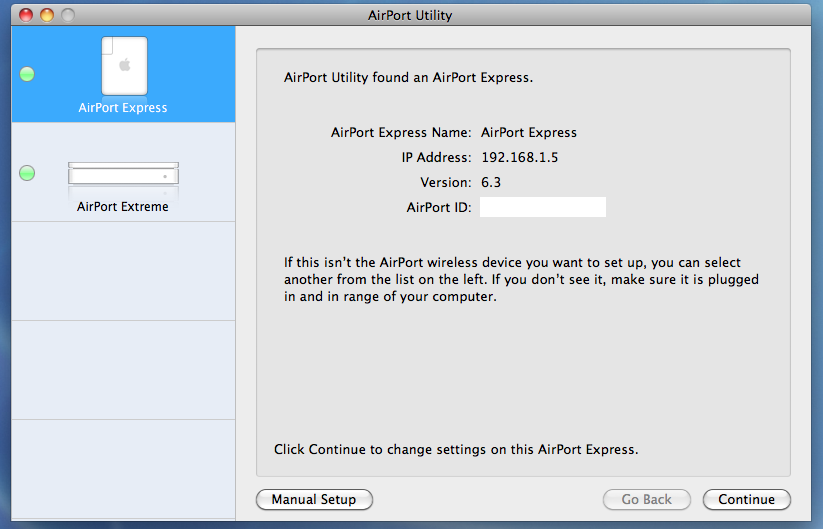

Attached are pics of my settings..



[Dopeyman]

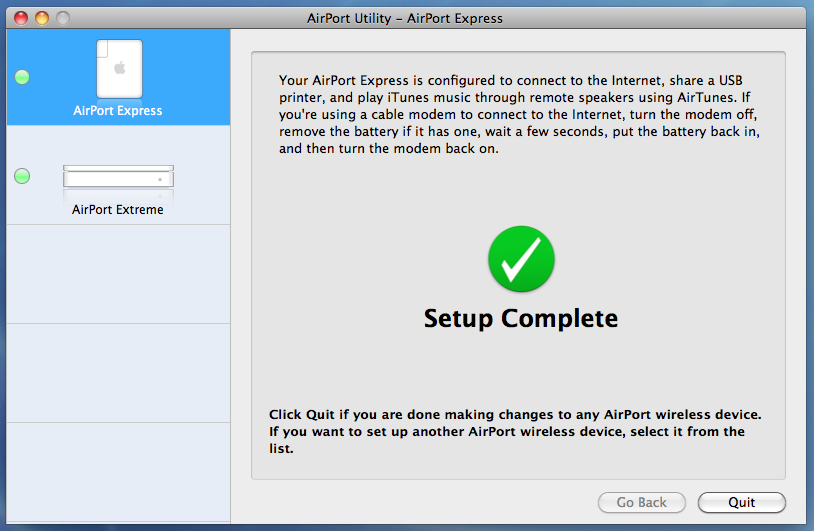

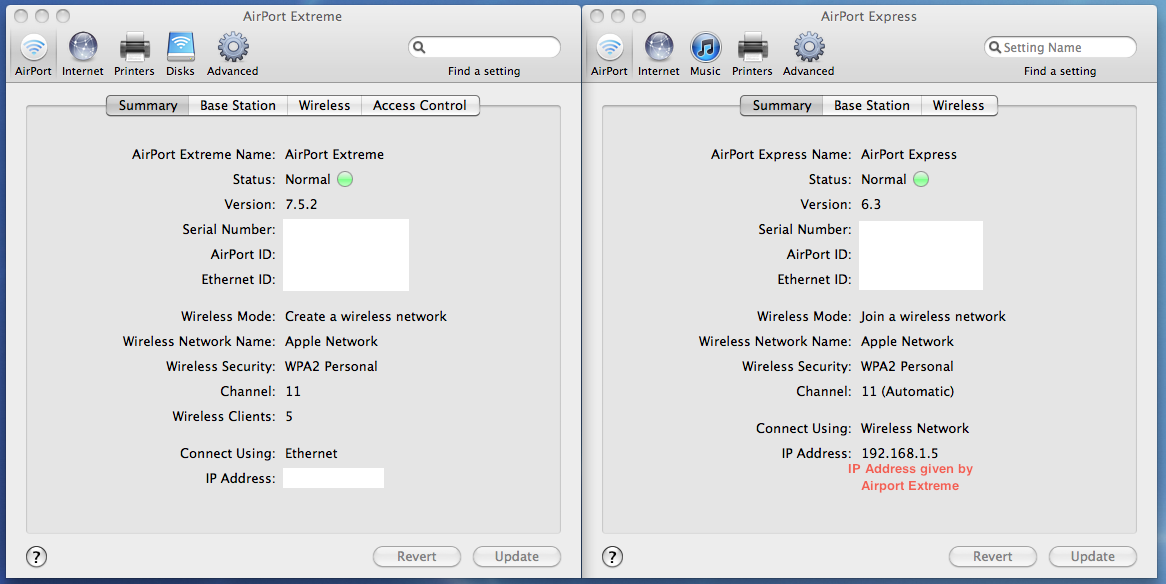

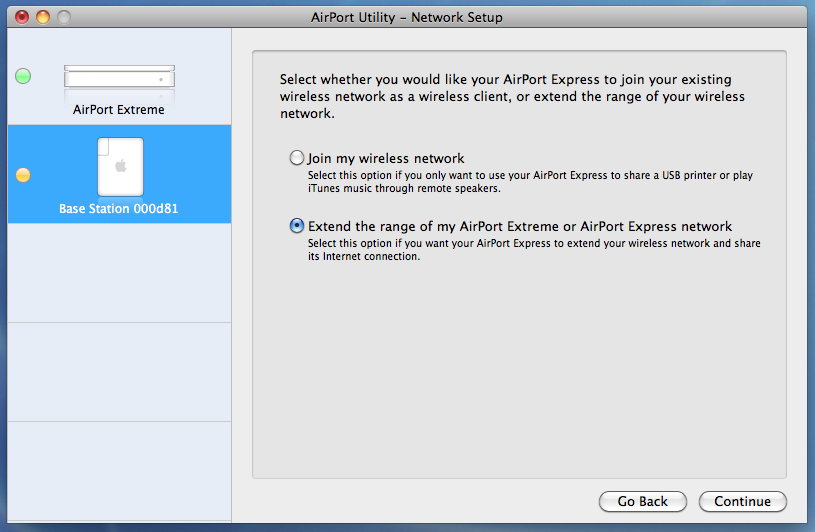

pics cont'd....



[darkhost]

Just set mine up yesterday, so maybe I can help.

Under the options for the Airport Extreme, I believe under the "Wireless" tab, there is a box that needs to be checked, "Extend wireless network" or something like that (Sorry, not home at the moment).



[Dopeyman]

Just set mine up yesterday, so maybe I can help.

Under the options for the Airport Extreme, I believe under the "Wireless" tab, there is a box that needs to be checked, "Extend wireless network" or something like that (Sorry, not home at the moment).

Yup.... I already got that item checked.....



[darkhost]

Hmm, ok.

Looking at the image of the Express, you should probably update the firmware (Also check to see if your Airport Extreme has the most recent firmware)

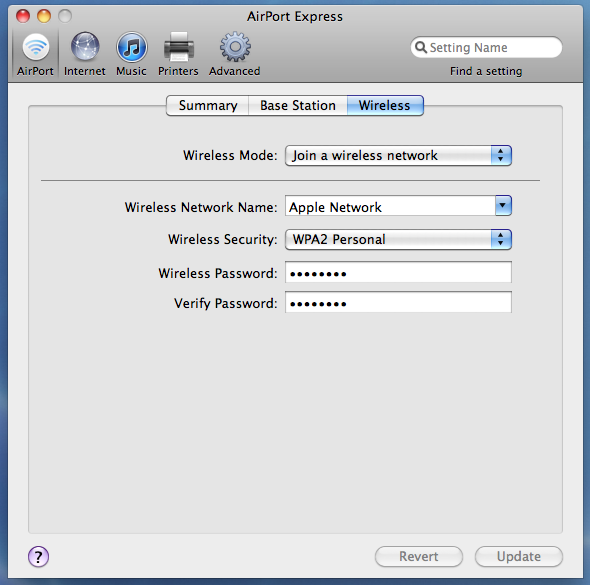

Can you post a screen of the "Wireless" tab on the Express?



[Dopeyman]

Hmm, ok.

Looking at the image of the Express, you should probably update the firmware (Also check to see if your Airport Extreme has the most recent firmware)

Can you post a screen of the "Wireless" tab on the Express?

I think both devices have the latest firmware... Or else I would've gotten a popup saying I need to update....

Or am I wrong?



[itickings]

Unfortunately you need the newer N-capable Express to extend a network...

(Well, technically there is the WDS option, but let's ignore that mess)



[Dopeyman]

Unfortunately you need the newer N-capable Express to extend a network...

(Well, technically there is the WDS option, but let's ignore that mess)

I tried to do that WDS option, but for some reason they wouldn't sync....

So I guess I need the newer express.....

Thanks!!
