Can't rescue original disk size (Sierra)

[Wowzera]

Hello,

I recently deleted a bootcamp partition in my drive, but I can not rescue the size of my drive.

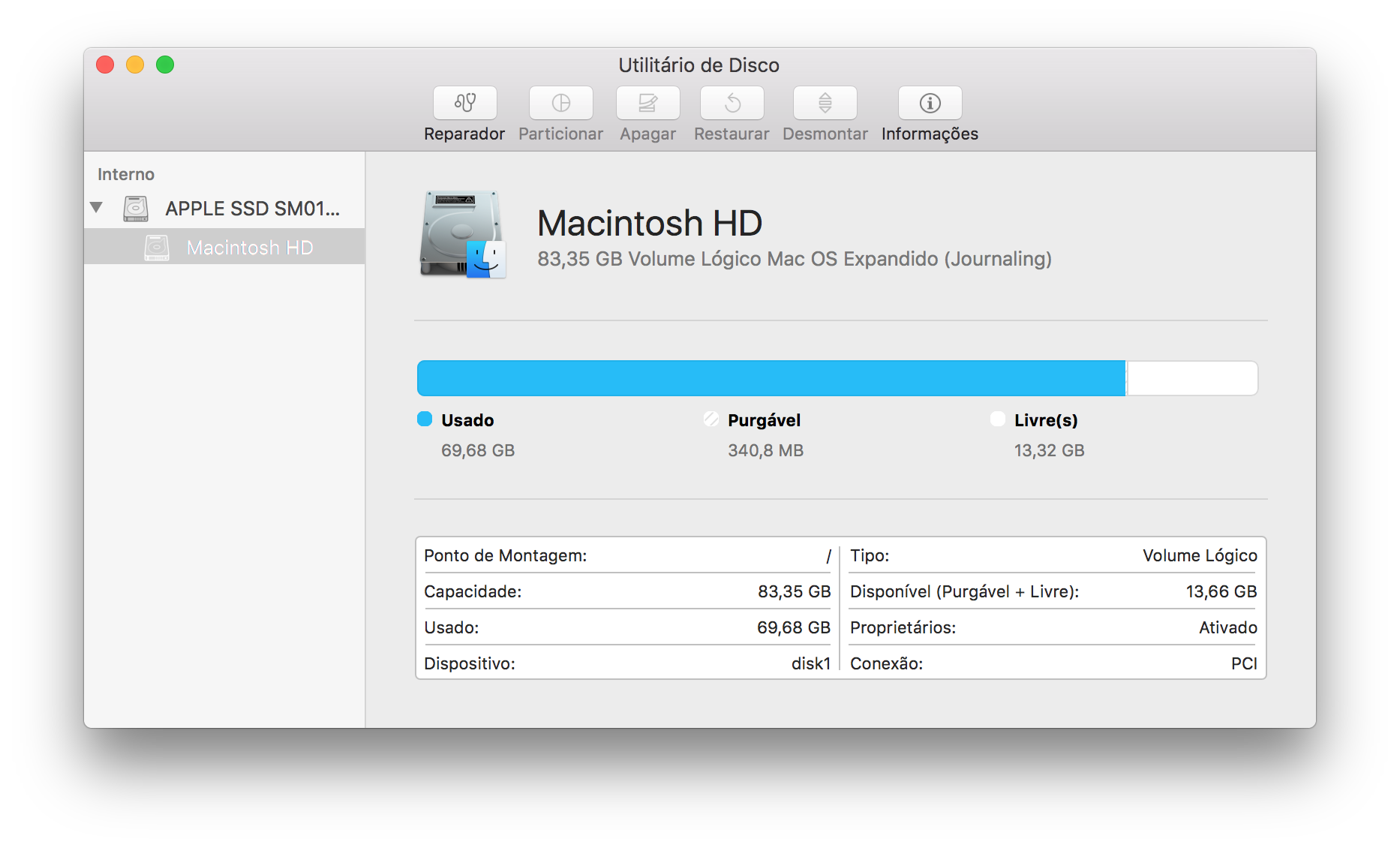

I have a MPB 2015 128GB. But it is currently showing only 83GB of disk space.
Can anyone help me? I have no clue what happened here.



[Kissmyne]

Run "First Aid" on the volume group using Disk Utility, you may also need to force Spotlight to reindex as well...



[Wowzera]

Run "First Aid" on the volume group using Disk Utility, you may also need to force Spotlight to reindex as well...

Ok, just did it and didnt change a thing. Disk utility showed that my disk is ok, nothing wrong.



[Bruno09]

You need to use the Terminal to solve this issue.

First, make sure to have a full backup of your machine (Time machine, clone)

Then in Terminal, paste this :

diskutil cs resizeStack F753BED7-78F3-43D4-9A8F-3920722FB6E2 0b

Hit Enter.

This command ask to extend the core storage to the maximum space available (0b left).

You should see this in the Terminal :

Spoiler: Terminal answer

MacBook-Pro-de-Matheus:~ matheus$ diskutil cs resizeStack F753BED7-78F3-43D4-9A8F-3920722FB6E2 0b


The Core Storage Logical Volume UUID is F753BED7-78F3-43D4-9A8F-3920722FB6E2


Started CoreStorage operation


Checking prerequisites for resizing Logical-Physical volume stack


Growing Logical-Physical volume stack


Verifying file system


Using live mode


Performing live verification


Checking Journaled HFS Plus volume


Checking extents overflow file


Checking catalog file


Checking multi-linked files


Checking catalog hierarchy


Checking extended attributes file


Checking volume bitmap


Checking volume information


The volume Macintosh HD appears to be OK


File system check exit code is 0


Growing Core Storage Physical Volume from 83 364 976 128 to 120 473 067 520 bytes


Copying booter


Growing disk partition


Modifying partition map


Growing Core Storage data structures


Resizing Core Storage Physical Volume structures


Resized Core Storage Physical Volume to 120 473 067 520 bytes


Growing Logical Volume


Resizing Core Storage Logical Volume structures


Resized Core Storage Logical Volume to 120 108 089 344 bytes


Growing file system


Finished CoreStorage operation


MacBook-Pro-de-Matheus:~ matheus$

Then run diskutil list again to check the result.



[Wowzera]

You need to use the Terminal to solve this issue.

First, make sure to have a full backup of your machine (Time machine, clone)

Then in Terminal, paste this :

diskutil cs resizeStack F753BED7-78F3-43D4-9A8F-3920722FB6E2 0b

Hit Enter.

This command ask to extend the core storage to the maximum space available (0b left).

You should see this in the Terminal :

Spoiler: Terminal answer

MacBook-Pro-de-Matheus:~ matheus$ diskutil cs resizeStack F753BED7-78F3-43D4-9A8F-3920722FB6E2 0b


The Core Storage Logical Volume UUID is F753BED7-78F3-43D4-9A8F-3920722FB6E2


Started CoreStorage operation


Checking prerequisites for resizing Logical-Physical volume stack


Growing Logical-Physical volume stack


Verifying file system


Using live mode


Performing live verification


Checking Journaled HFS Plus volume


Checking extents overflow file


Checking catalog file


Checking multi-linked files


Checking catalog hierarchy


Checking extended attributes file


Checking volume bitmap


Checking volume information


The volume Macintosh HD appears to be OK


File system check exit code is 0


Growing Core Storage Physical Volume from 83 364 976 128 to 120 473 067 520 bytes


Copying booter


Growing disk partition


Modifying partition map


Growing Core Storage data structures


Resizing Core Storage Physical Volume structures


Resized Core Storage Physical Volume to 120 473 067 520 bytes


Growing Logical Volume


Resizing Core Storage Logical Volume structures


Resized Core Storage Logical Volume to 120 108 089 344 bytes


Growing file system


Finished CoreStorage operation


MacBook-Pro-de-Matheus:~ matheus$

Then run diskutil list again to check the result.

Thanks for your help, but it didn't solve the issue. Any clue? This is driving me crazy.

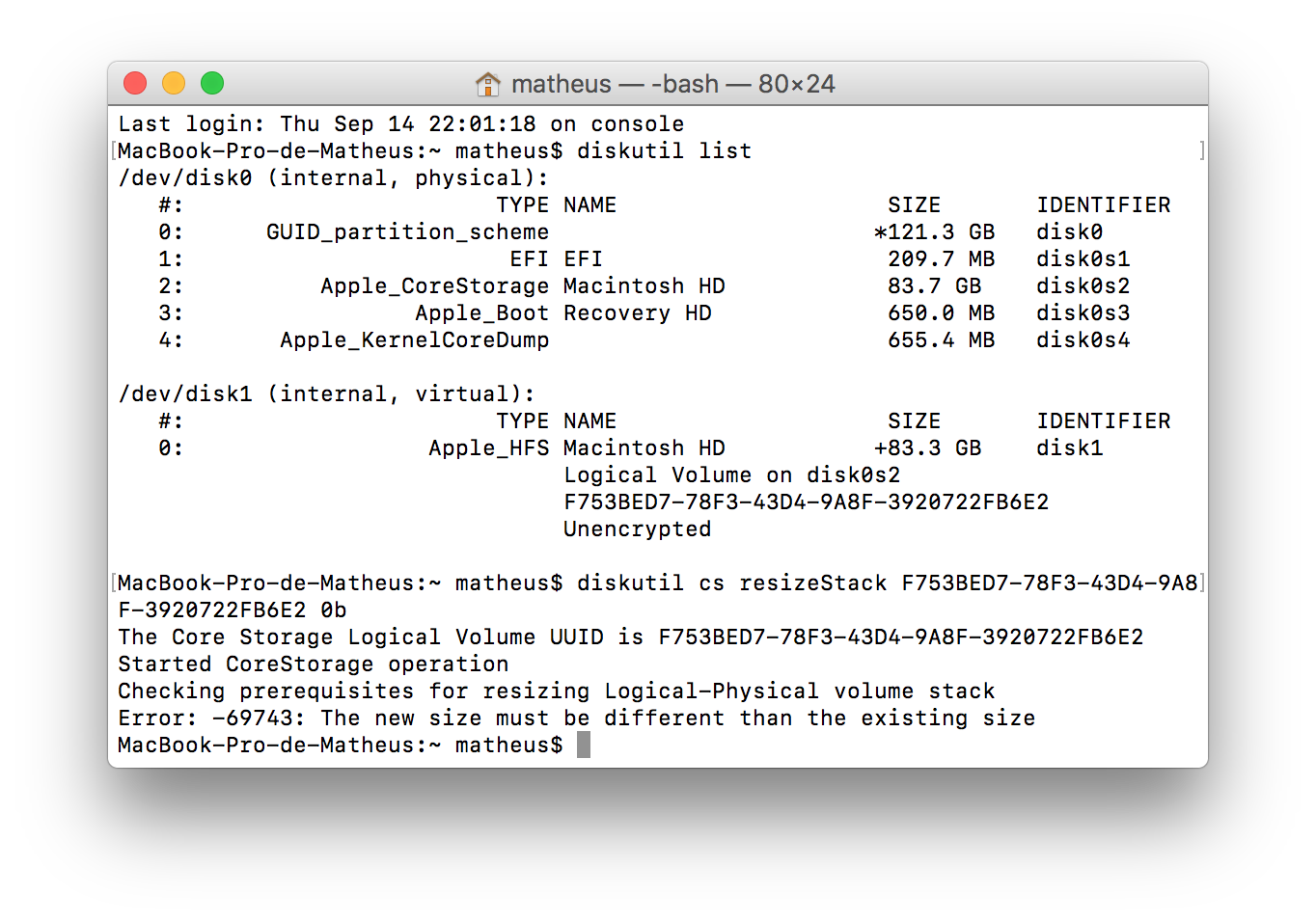

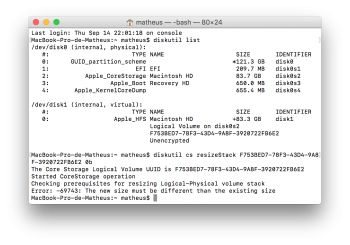

MacBook-Pro-de-Matheus:~ matheus$ diskutil cs resizeStack F753BED7-78F3-43D4-9A8F-3920722FB6E2 0b

The Core Storage Logical Volume UUID is F753BED7-78F3-43D4-9A8F-3920722FB6E2

Started CoreStorage operation

Checking prerequisites for resizing Logical-Physical volume stack

Error: -69743: The new size must be different than the existing size

MacBook-Pro-de-Matheus:~ matheus$



[Bruno09]

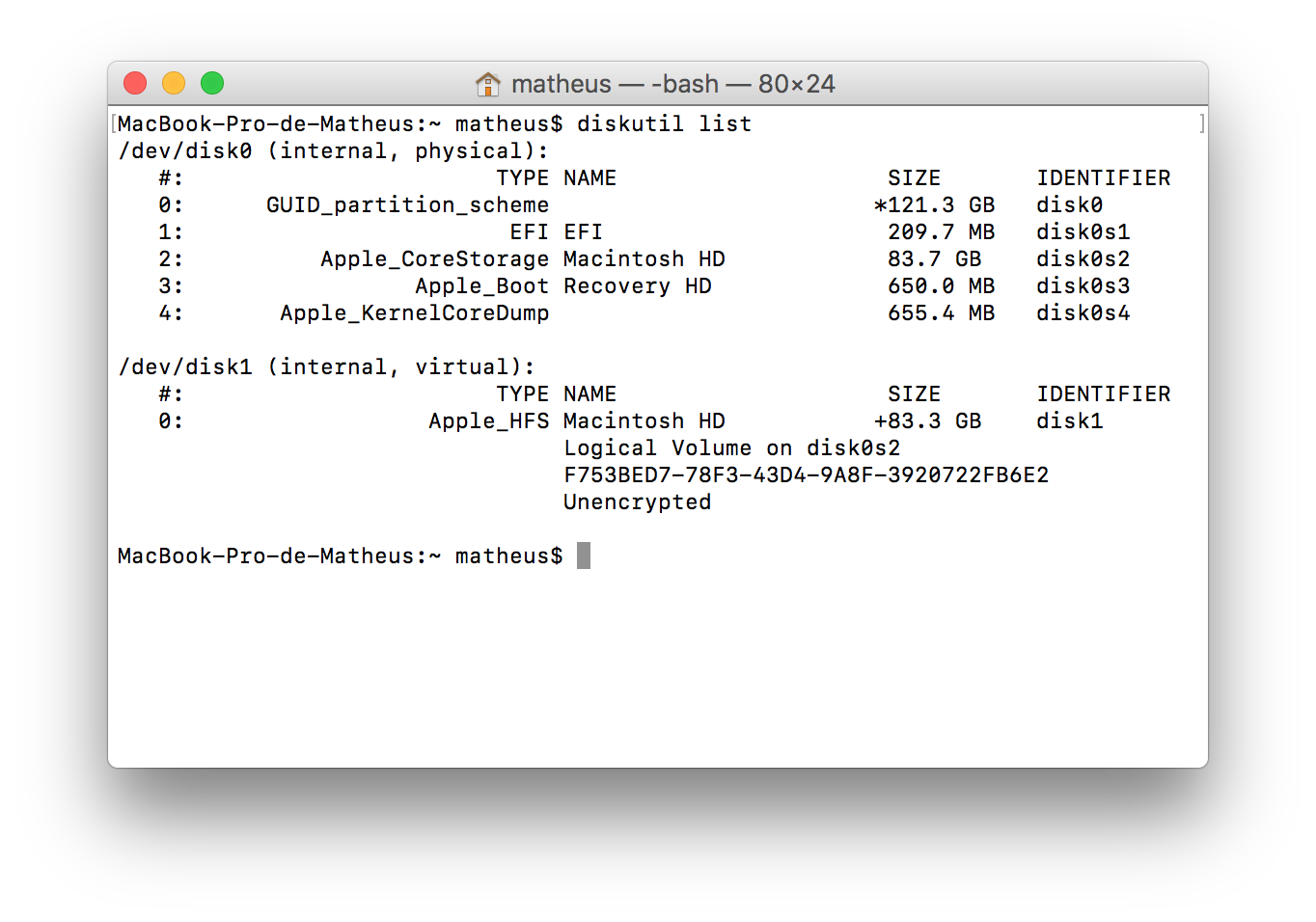

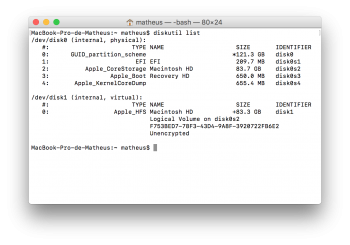

The command failed because of the Apple_KernelCoreDump partition : there is no "free" space available "underneath" the Recovery partition.

Do you know why you have this partition ?
Is your Mac a corporate machine, or did you get help from Apple assistance, or other reason ?



[Wowzera]

The command failed because of the Apple_KernelCoreDump partition : there is no "free" space available "underneath" the Recovery partition.

Do you know why you have this partition ?
Is your Mac a corporate machine, or did you get help from Apple assistance, or other reason ?

No, I dont know.
My mac is a personal machine and I didnt get help from Apple or another reason.
All I did was remove the Bootcamp Partition, but the disk space didnt return to my main drive and neither is listed as available in Disk Utility, its simple "gone".



[Bruno09]

The command resizeStack is the right one to solve your issue, however it will only work if there is "nothing" underneath the Recovery partition.

I think there are three ways to solve your problem :

1. delete the Apple_KernelCoreDump partition, then use the resizeStack command

or

2. revert the core storage, then use Disk Utility to delete the Apple_KernelCoreDump partition and expand the Macintosh HD partition to the maximum space available.

or

3. clone your Macintosh HD partition to an external hard drive (Carbon Copy Cloner, 30 days free demo)
Boot from this clone, erase your internal disk, then clone your clone to the internal drive.
(good solution without using the Terminal)

I am not a Terminal guru by any way, therefore I would prefer if someone else with good knowledge came to help you on this...

Please post the output of this command : diskutil cs list



[Wowzera]

The command resizeStack is the right one to solve your issue, however it will only work if there is "nothing" underneath the Recovery partition.

I think there are three ways to solve your problem :

1. delete the Apple_KernelCoreDump partition, then use the resizeStack command

or

2. revert the core storage, then use Disk Utility to delete the Apple_KernelCoreDump partition and expand the Macintosh HD partition to the maximum space available.

or

3. clone your Macintosh HD partition to an external hard drive (Carbon Copy Cloner, 30 days free demo)
Boot from this clone, erase your internal disk, then clone your clone to the internal drive.
(good solution without using the Terminal)

I am not a Terminal guru by any way, therefore I would prefer if someone else with good knowledge came to help you on this...

Please post the output of this command : diskutil cs list

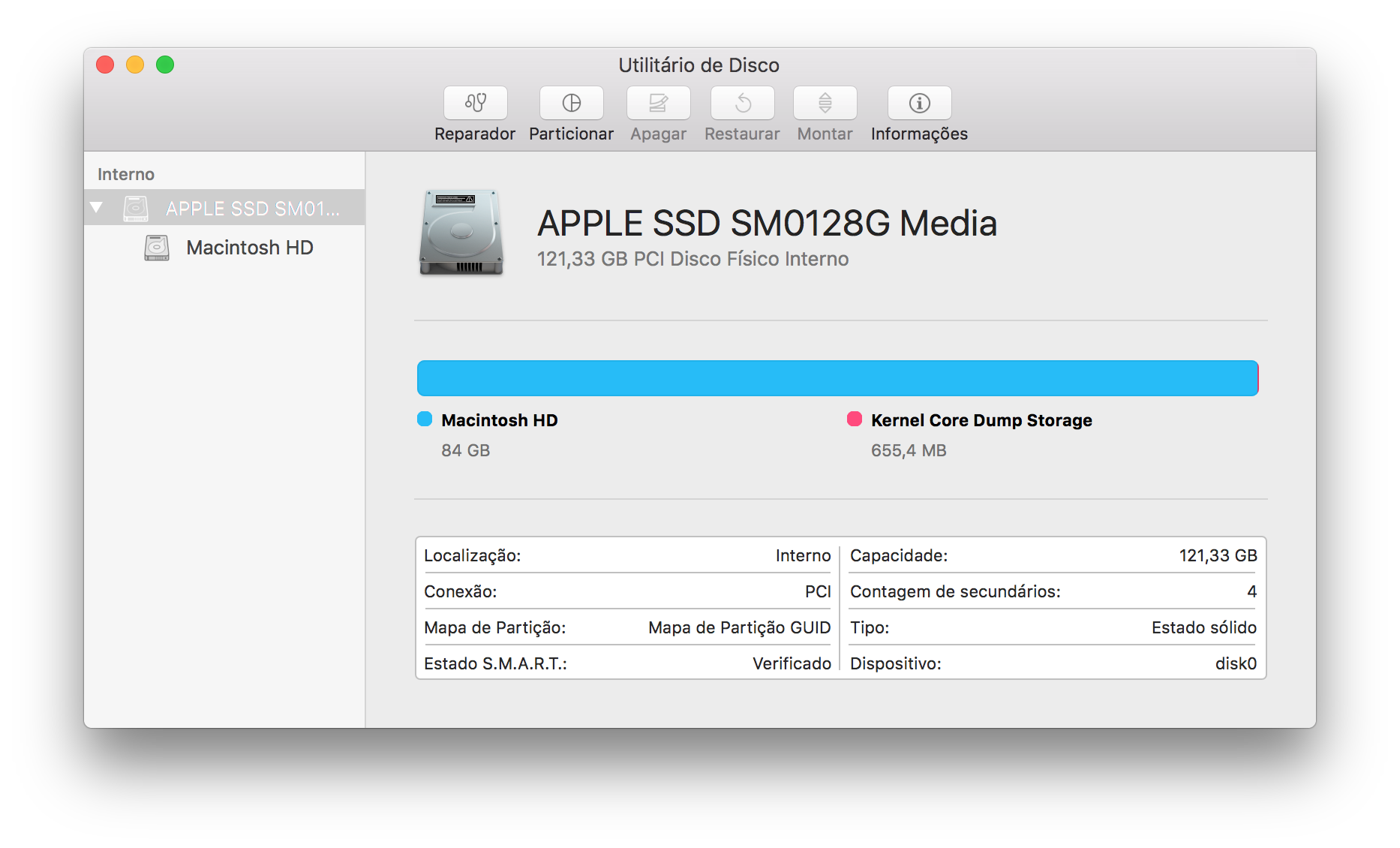

Isn't kernel core dump taking only 655MB?

MacBook-Pro-de-Matheus:~ matheus$ diskutil cs list

CoreStorage logical volume groups (1 found)

|

+-- Logical Volume Group F03CBE82-21B5-47B4-9667-D66502836A67

    =========================================================

    Name:         Macintosh HD

    Status:       Online

    Size:         83716304896 B (83.7 GB)

    Free Space:   0 B (0 B)

    |

    +-< Physical Volume D5D47530-B706-4964-8F19-6419A8FB5F9B

    |   ----------------------------------------------------

    |   Index:    0

    |   Disk:     disk0s2

    |   Status:   Online

    |   Size:     83716304896 B (83.7 GB)

    |

    +-> Logical Volume Family FE60EDDC-D7F8-4E72-9139-2C1D389F2665

        ----------------------------------------------------------

        Encryption Type:         None

        |

        +-> Logical Volume F753BED7-78F3-43D4-9A8F-3920722FB6E2

            ---------------------------------------------------

            Disk:                  disk1

            Status:                Online

            Size (Total):          83349209088 B (83.3 GB)

            Revertible:            Yes (no decryption required)

            LV Name:               Macintosh HD

            Volume Name:           Macintosh HD

            Content Hint:          Apple_HFS



[Bruno09]

Isn't kernel core dump taking only 655MB?

Yes, but the resizeStack command can only work if there is nothing underneath the Recovery partition in the output of the diskutil list command.

If you want to solve the problem without using the Terminal, use the #3. option (clone, format the internal drive, clone back).



[Audit13]

On a PC, the windows installation process creates a recovery partition that is protected and difficult to remove. The same appears to have happened on your Mac and the simplest way to get all of the space back would be to delete all partitions and reinstall the os or restore a time machine backup.



[Wowzera]

Yes, but the resizeStack command can only work if there is nothing underneath the Recovery partition in the output of the diskutil list command.

If you want to solve the problem without using the Terminal, use the #3. option (clone, format the internal drive, clone back).

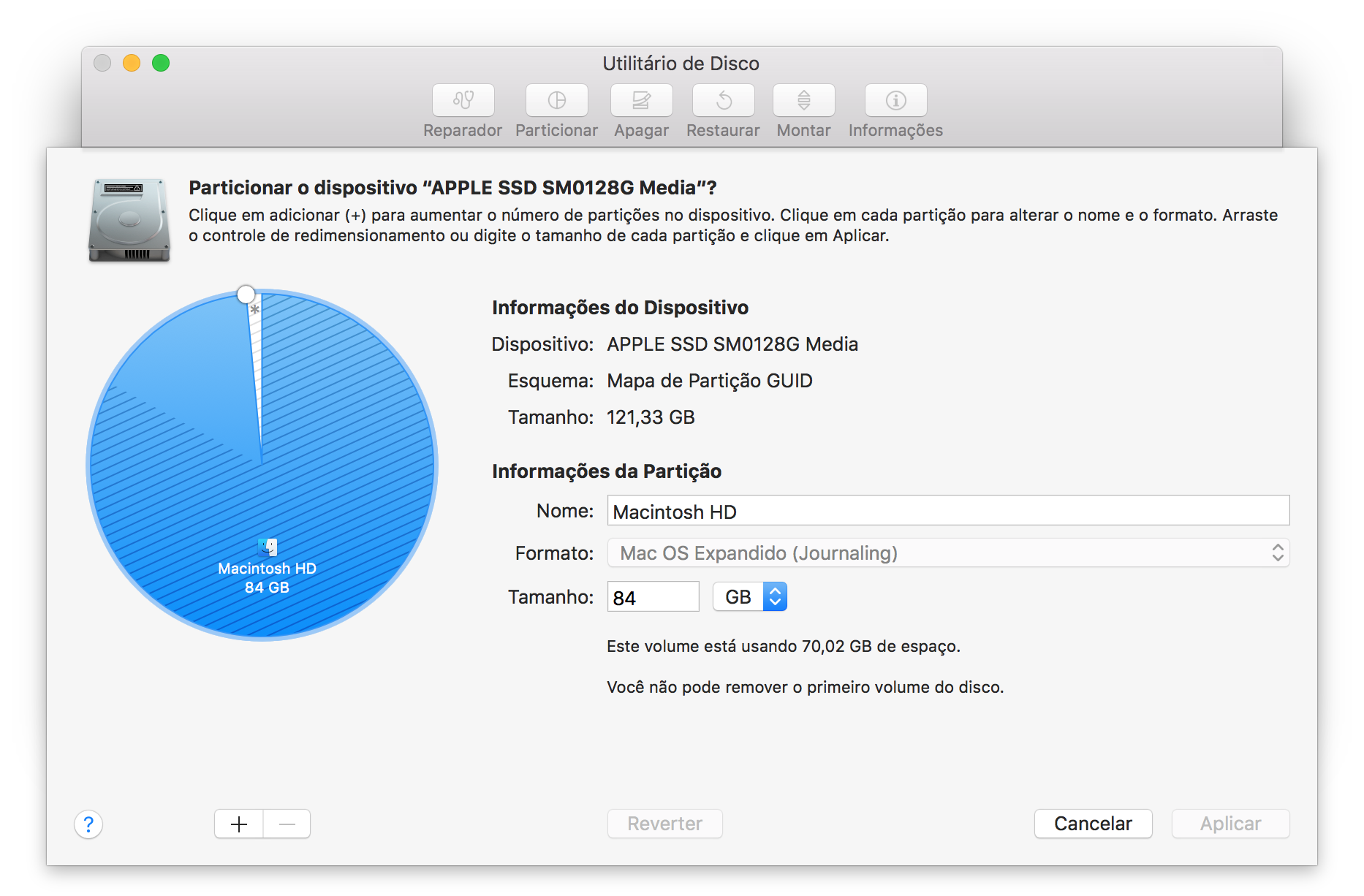

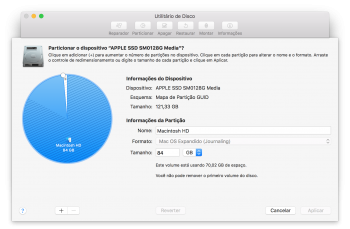

I have no problem using terminal. But I don't know the commands. I cant remove it using Disk Utility (the core dump partition). Do you know how what I have to do?



[Bruno09]

But I don't know the commands.

I don't know them either.

I personally would use the #3 solution.



[Fishrrman]

OP:

Look at choice #3 in Bruno's post 8 above.

THIS is your answer.

It involves a little time, but it WILL do the job and do it right.



[Wowzera]

I did the choice 3 and it solved the problem. Thanks!!
