macrumors bot
Original poster
Apr 12, 2001
68,701
39,620



iSketchnote demonstrated its iPad note digitization product at CES 2015, showing users a way to automatically transfer notes and sketches created with a real pen into digital files that can be edited and shared on the iPad.

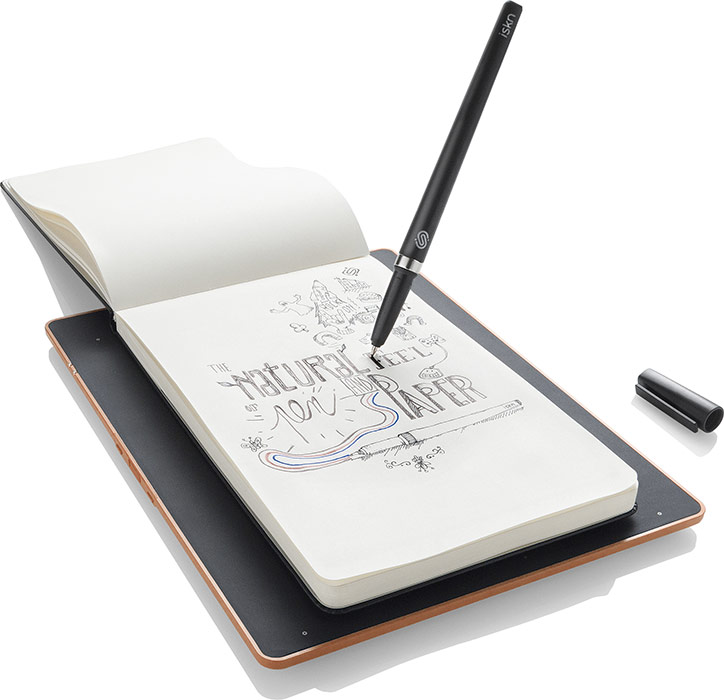

The note digitization is mainly handled by the Slate, which is a Bluetooth-enabled writing platform that allows users to place their favorite notebook or a piece of paper on top and draw or write as they normally would with real-time conversion. The Slate's writing surface contains a coating that holds the paper in place and is scratch-resistant, and weighs less than 14 ounces while providing up to 10 hours of battery life in stand-alone mode. The surface also features ports for a micro SD card and micro USB for charging.

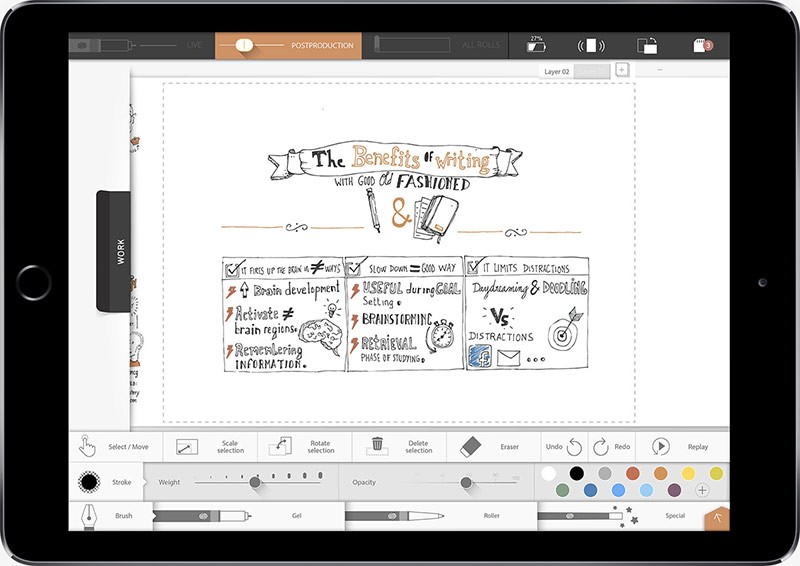

Once digitized, users can access their sketches, drawings and notes on their iPad with the free iSketchnote app, which allows for color and pen tip customization along with layer creation for more complex drawing. Users may also share digitized creations with their friends, and can even send them back and forth with enhancements and enable a video replay to share the process of a piece of work.

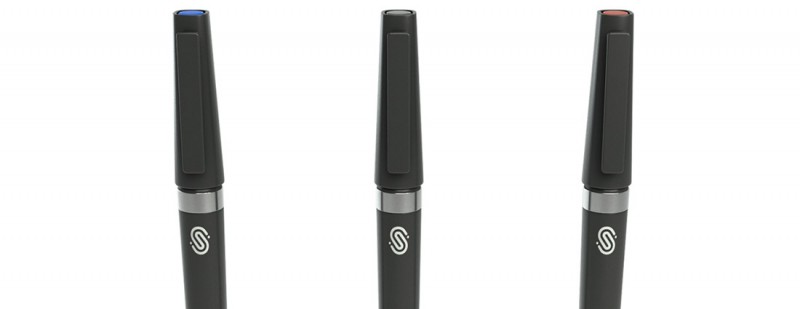

iSketchnote is also offering pens optimized for the Slate and paper, which naturally glide on paper and contains a permanent magnet ring that is embedded within the base. The pens contain refillable cartridges with high quality ink and are offered in blue, black, and red.

iSketchnote is offering the Slate, two pens, and a premium kickstand-enabled cover for $179.99 in an iSketchnote Pack, which is available for the iPad 3 and newer and all versions of the iPad mini. The company also says the first iSketchnote Pack orders will ship later this year.

Article Link: CES 2015: iSketchnote Transfers Pen and Paper Sketches and Notes to iPad Instantly

These are great innovations that some third-party companies are coming up with, but we wouldn't need them if only Apple would make an iPad where we could use a proper fine-point stylus, instead of just a fat stubby wax-crayon type piece of crap... :(

I wonder if Apple will come out with their own pen based on the patent that was featured in an earlier rumor. This seems okay, but I would prefer not having the slate, just a pen.

The people who buy this are going to use it one time, and then never again. It's too complicated, and nobody is going to buy those refills for all those pens.

It should be easier to make a copy of something and pull it into an iPad, but it shouldn't look or work like this. It's like none of these people understand that people already have cases, and now keyboard cases.

I don't like how they don't have an actual person using the device in the promo video either.

Might as well just screenshot handwritten notes at this point. They're should be perfectly readable with any recent iPad's camera.

Might as well just screenshot handwritten notes at this point. They're should be perfectly readable with any recent iPad's camera.

We should be able to scan stuff at this point though. The problem with this is that while you're allowing to let the user use whatever paper it wants, you're changing their way of writing. These pens don't look very nice at all.

Very interesting idea, but it kind of defeats its own purpose. If I'm using my tablet I don't want a paper copy.

You know what else instantly transfers my paper notes to my iPad/iPhone?

The included camera.

The only way that this would be useful for me is if it allowed me to draw in vectors, otherwise as others have pointed out I can simply can a drawing for the same effect. If it allowed me to draw in vectors, that would be a game changer.

These are great innovations that some third-party companies are coming up with, but we wouldn't need them if only Apple would make an iPad where we could use a proper fine-point stylus, instead of just a fat stubby wax-crayon type piece of crap... :(
Is the technology used in the Intuos and Cintiq tablets and their styluses (electromagnetic resonance) compatible with the capacitive touchscreen display technology behind the iPad?

The only way that this would be useful for me is if it allowed me to draw in vectors, otherwise as others have pointed out I can simply can a drawing for the same effect. If it allowed me to draw in vectors, that would be a game changer.

It supposedly captures all your drawings or notes into vector format all in one take without bothering to convert them.

----------

You know what else instantly transfers my paper notes to my iPad/iPhone?

The included camera.

Yeah, I do that too, but you have to get the scan perfectly shot, converted and cleaned up after that. I never scan in black and white, always using Grayscale or Color despite the increase in file size. The iPhone camera is good but if it looks shaky, you have a problem. You have to 'lift' the notes or drawings via Photoshop or Pixelmator, for example, and save them into a different file format.

----------

We should be able to scan stuff at this point though. The problem with this is that while you're allowing to let the user use whatever paper it wants, you're changing their way of writing. These pens don't look very nice at all.

Well, the iSketchnote doesn’t look complicated to me at all. After all, I’m used to the workflow on Sketchbook Pro on my desktop and iOS, including Manga Studio ( which is awesome by the way ) and Adobe CS5.

In fact, this product reminds me greatly of Wacom’s Inkling, which I assume is not being manufactured anymore and the Equil Smartpen 2 that’s coming out. This is the Wacom Inkling seen here:

https://www.youtube.com/watch?v=AwafzuYKr_c

And this is the Equil Smartpen which I think is what iSketchnote is a competitor to:

http://www.myequil.com

I’m seeing a lot of these kind of pen to paper devices lately that transfer images digitally to iOS or other platforms. I don’t think those that buy the iSketchnote are going to use it just once but plenty of time since this is geared toward those who need an analog feeling of writing or drawing on the paper for accuracy with speed. It saves them time from firing up the tablet or other device to draw or jot notes on.

It’s especially true if they’re in a professional conference or meeting with clientele, they have to keep up with the information and dialogue to jot things down. This is especially handy. The other benefit is that drawing on the paper while transferring is like having a carbon copy of the original. The original stays in the sketchbook while the carbon copy goes to the device digitally. And you’ll have that original to fall back on just in case.

Now, since the Inkling is no longer being made, I do know that Adobe made a deal with Moleskine which produces high quality sketchbooks which allows the user to capture the image or notes with a smartphone ( Android or iOS ) to the Creative Cloud environment. You can see the article I found here:

http://techcrunch.com/2014/11/20/moleskine-smart-notebook-svg-from-sketches/

I think it’s a nice touch because, like I said, it’s the best of both worlds. It’s kind of like a carbon transfer ( if you know what that is from art class, it means coating the back of the paper of the original drawing with graphite and re-drawing it over onto another surface. Usually vellum paper is the best method ).

However, since you made those comments, I got curious and found your blog ( if this is really who you are ):

http://jessicalares.com

Your blogs on Adobe, Wacom Intuos, and so on were interesting. I should say that I don’t play with Toon Boom Studio since it’s quite expensive, but Flipbook on Sketchbook Pro is a nice feature to have. Before, one had to use the tweening tool in Adobe Flash ( this was way after they bought out Macromedia which was on a roll kicking Adobe in the nuts ). I even had to work with the old Director application in the mid-1990s that was similar to Flash using tweening tools. Back then, the UI was a bit convoluted compared to what the industry has currently.

The only exception is that on the professional level, when it comes to Mudbox, Maya, and other 3D software for video games, film, and so on, are going to have a huge learning curve with wide array of tools in a complex UI, not so different that trying to learn to fly an airplane or military jet.

It’s all about spending enough ‘flight hours’ to master the programs. It’s like music. You don’t master a guitar overnight. Or fencing, in my case, where it takes a couple years to master the foot and blade work with the epee, saber or foil because it’s a sport based on precision, patience, and physical prowess. It looks easy on the surface, but it really isn’t.

And it takes time to get used to the Intuos. You will definitely see a huge difference why Wacom’s pressure sensitivity is king compared to the iPad. Especially why a lot of creative professionals I hear over the grapevine admire some of Samsung’s Galaxy Note products with their stylus included that has pressure levels built-in.

Now, there is nothing wrong with being a creative hobbyist , in your case, because after all, art is all about experimentation and exploration of other mediums. And yes, I had to learn Photoshop way back in the mid-1990s in art school and at a time when digital art was seeing a huge leap in adoption. I saw this coming when I was trying out the older Wacom tablets back in the day and was impressed ( I still have an older Intuos 2 model which is old school but gets the job done ).

But my point was that, in this thread, manufacturers are looking for ways to provide solutions to note taking, especially artists, to capture thoughts and visual problem solving. Yes, it can be a pain to change up the ink with the ISKN pen but it’s not so different than doing it with the ball point pen buying it from an office supply store. After all, everybody does it all the time from school, work, or anywhere.

I think the ISKN slate appears to be far more accurate in capturing than Wacom’s Inkling which wasn’t enough to pull it off. And yes, I realize it’s expensive to buy at close to $200 and I suspect it has to do with the slate itself. Although, the reason the slate is effective is because it captures the drawings in actual VECTOR format instead of having to use your camera capture it, import to Photoshop, convert it to vector and export it out. And vector is clean and very scalable.

Keep this in mind that a standard Wacom digitizer tablet like the Intuos line costs far more than $200. What you’re getting with the isketchnote is a good deal.

This thing does it all in one take. The refillable cartridges in the pen, I think, IS a good thing because it’s environmentally sound. You keep the pen barrel but the ink is only refillable. I have a COPIC pen made from Japan which has a metal barrel, but the ink itself can be replaced saving me a lot of money in the long run. The same can be said for the famous KOH-I-NOOR technical pens which I still have.

From the looks of it, it appears you can use the ISKN slate and pen without the iPad/desktop or any platform and then transfer it to the devices. It apparently stores what you wrote or draw with a micro SD card that can go up to 16 GB, if desired. But it comes with 2MB built-in or up to 50 pages which is reasonable.

It’s just their new way of approaching different solutions. No one product or solution is perfect. Wacom, Adboe, isketchnote, Samsung, or even Apple’s are not all perfect. They have various approaches, if not too similar.

And yes, you can always use your smartphone camera and take a snapshot of it. But in the end, you have to import the image in to be converted and cleaned up. And I do it all the time with ScanPro on my iPhone 6 Plus, export it to Dropbox and then bring it in Photoshop or Pixelmator at home. It’s possible to do it on the iPad if you’re using the latest Photoshop for image conversion, or any image manipulation app.

But I LIKE the idea of that slate attached to the case while the iPad or tablet is propped up to make it easier on my neck. This is also a good idea for ergonomic purposes when sitting at the table. Looking down while drawing is’nt good for your neck, especially when texting. You want to keep your head up while looking ahead, and I suspect this thing captures the drawing in real time when using the slate. And it keeps your fingers or stylus out of the way from the tablet screen.

My take? I like the idea of it and it’s a nice solution as I’m always experimenting with ways for visual input. I currently bought an Adonit Jot Pro for $30 just for the heck of it to try it out and it gets the job done, although I will need to get a new tablet this year to replace my 1G iPad. I’m considering either iPad Pro, if Apple grows a pair of balls to make the jump and go with pressure sensitivity and stylus and get it out there instead of beating around the bush, OR if not, I will go with an Android tablet with a built in stylus since it’s important for my line of work for portability reasons.

----------

Is the technology used in the Intuos and Cintiq tablets and their styluses (electromagnetic resonance) compatible with the capacitive touchscreen display technology behind the iPad?

No. You need a pressure sensitive pen made by Wacom or Adonit that's specifically made for iOS to use it. You can't use a standard Wacom stylus on the iOS screen because they can't 'handshake' or interact.

Look up Wacom Creative Stylus or Adonit Jot Touch. They're designed for the iOS capacitive touch screen. But on the other hand, Samsung's Galaxy tablet has a stylus that comes with it and is pressure sensitive.

It depends on what you're trying to do on your end by taking notes or drawing and how you want to bring the images together.

Idea:

Use their tracking technology, but do away with the ink and paper and instead just track the motion across the surface of the iPad. Don't rely on the iPad's touch input at all, but do instantly reflect the strokes on the screen.

Does such a thing exist yet or should I file a patent and work on it myself?

Idea:



Use their tracking technology, but do away with the ink and paper and instead just track the motion across the surface of the iPad. Don't rely on the iPad's touch input at all, but do instantly reflect the strokes on the screen.



Does such a thing exist yet or should I file a patent and work on it myself?


If you're thinking of a simple or "dumb" stylus, then yes the market exists. Adonit Jot Pro does exactly that. Even other cheap styluses do the same thing but it depends on the quality of the tip that matters.

If you're thinking of a simple or "dumb" stylus, then yes the market exists. Adonit Jot Pro does exactly that. Even other cheap styluses do the same thing but it depends on the quality of the tip that matters.

I feel like you're thinking of something different. I'm not saying this is a "dumb" stylus. The iPad wouldn't even be aware of the stylus being used on its screen. The stylus would track itself on the screen and tell software where to draw the virtual ink on screen.

I'm saying use this technology in the article, but instead of writing on paper and copying it to the screen, just write on the screen and have the stylus track the motion on the screen instead of the paper.

I feel like you're thinking of something different. I'm not saying this is a "dumb" stylus. The iPad wouldn't even be aware of the stylus being used on its screen. The stylus would track itself on the screen and tell software where to draw the virtual ink on screen.


Oh okay. I see what you mean now. Draw the stylus on any surface and the output is shown on screen. Not too different than using a Wacom Intuos drawing on the digitizer while looking at the monitor. That's the method I use at my studio.

But apparently, Apple supposed is working on something like this. The problem is the type of surface one would write or draw on. It has to be smooth and without any dust or debris to interfere with the process. There have been similar ideas like this using the Leap Motion as well for the desktop using motion control.

I think there were a couple of pens out there that does what yiu described. I think Logitech had something like this?

Pilgrim1099,

I was wondering why that MicroSD was there. Yes, it does have stand alone mode, and that sounds really great. It only accepts 2GB cards at the moment though, but that's 2500 pages according to the manual.

I feel like Flipbook could have been better. I enjoy using it, but don't like that I can't change the frame rate and that it expects you to only use a few layers. Probably asking too much from a drawing program of course.

And yeah, my last teacher was even impressed that I managed to get TBS for $20. I'm surprised more people didn't jump on that. It was a Mac bundle, but I did put it on my Dell too.

I feel the same way about drawing directly down on a screen, and that's why even though I have a lovely Tablet PC sitting on the floor here (Still can't believe the school threw out a $3,000 machine that only needed a new hard drive), I just use the Intuos tablet.

At least they've gotten rid of the need for proprietary paper here.

Is the technology used in the Intuos and Cintiq tablets and their styluses (electromagnetic resonance) compatible with the capacitive touchscreen display technology behind the iPad?

If you're asking could the two be mixed, than YES. That is exactly what Samsung has done with the note series. They licensed Wacom inking tech and integrated it with a standard capacitive touchscreen. Apple is too damn proud to license someone else's tested technology, especially on this subject.

I guarantee Apple has tested numerous fine tipped stylus options on internal iPad prototypes. For whatever reason they feel they can let competitors consume the professional illustrator market.

Incidentally I had a conversation with a friend who is a long time free-hand illustrator. She needs to replace her unibody Macbook and is not leaning towards a Surface Pro 3. Apple are seriously a bunch of curmudgeons to ignore the potential of a premium priced Mac or iOS device with a digitizer pen.

Pilgrim1099,



I was wondering why that MicroSD was there. Yes, it does have stand alone mode, and that sounds really great. It only accepts 2GB cards at the moment though, but that's 2500 pages according to the manual.



I feel like Flipbook could have been better. I enjoy using it, but don't like that I can't change the frame rate and that it expects you to only use a few layers. Probably asking too much from a drawing program of course.



And yeah, my last teacher was even impressed that I managed to get TBS for $20. I'm surprised more people didn't jump on that. It was a Mac bundle, but I did put it on my Dell too.



I feel the same way about drawing directly down on a screen, and that's why even though I have a lovely Tablet PC sitting on the floor here (Still can't believe the school threw out a $3,000 machine that only needed a new hard drive), I just use the Intuos tablet.



At least they've gotten rid of the need for proprietary paper here.


As for TBS, I have Anime Studio Debut so it was okay but limited. The Flipbook feature is one I'm looking into and believe Autodesk may add more things to it later on. I haven't done animation in years let alone story boarding which why I use Intuos 4 and Sketchbook Pro for this purpose. But Manga Studio has been my go to illustration app for a long time now and love the inking and coloring engine. It's much less RAM intensive than Corel Painter, I think.

Of course if I had a Cintiq, that would've made life a lot easier with a higher price tag. It's true that with my original iPad or regular sketchbook, I have to watch the way I sit and draw with the stylus or pen. It's all about ergonomics.

Still, for a school to throw away a 3K computer is insane. At art school back in the 1990s, the industrial design program had a few Silicon Graphics workstations which were advanced for its time. And in the same time, the graphic design and illustration department had a computer lab filled with older Mac desktops ( Centris models I think ) with Photoshop and illustrator.

The graphic design students had courses in learning the software leaving illustrators out which caused a problem. It turns out the digital art movement was gaining traction when Wacom was becoming popular. So we had to petition the administration to allow us to catch up and learn Photoshop for free. And eventually an older student volunteered to teach us which worked out well.

Today, it's so prevalent that my art school now has an iPad program which requires all new students to learn it and I think they were provided with the devices from the start til end of their education. It was one of the first schools to do that and yes, they used styluses for it so they can conceptualize visuals for projects they were assigned to.

It wouldn't surprise me if the students there will use isketchnote with their drawings or conceptuals.

It supposedly captures all your drawings or notes into vector format all in one take without bothering to convert them.

Pilgrim1099,

Thanks, I didn't realize that iSketchnote was going to use a vector format. That is very exciting from my perspective. Depending on how well it works, it could be a big time saver for me. If it does a decent job with the vectors, I will buy one! The Inkling looked good to me but it didn't get very good reviews and so I never bought one (plus it was expensive for having such bad reviews). The software that you had to use to transfer your drawings to your Mac was supposedly horrible too.

Mecha

Pilgrim1099,



Thanks, I didn't realize that iSketchnote was going to use a vector format. That is very exciting from my perspective. Depending on how well it works, it could be a big time saver for me. If it does a decent job with the vectors, I will buy one! The Inkling looked good to me but it didn't get very good reviews and so I never bought one (plus it was expensive for having such bad reviews). The software that you had to use to transfer your drawings to your Mac was supposedly horrible too.



Mecha


Yeah. They killed off the Inkling line and focused on their new Cintiq release which looks awesome. Although there are pen based products that do better than Inkling.

The slate should convert things to vector without any problems but if you need more refinement, importing to photoshop or pixelmator will do the trick to control the exact manner of conversion you want.

Pilgrim1099,

I was just curious as to your thoughts on the iSketchnote. Do you recommend it? Any thoughts on it?

Mecha
