Saberon2014

macrumors member
Original poster
Nov 26, 2013
60
29
Very interesting. I'm starting to wonder if it's just some sort of optimization issue with Big Sur and M1 which could be fixed through updates, as opposed to being hardware related.
I’m on the same train of thought here. We’re all having the same issues and I suspect my replacement will as well. Keep me posted.

Comment

Ninja Dom

macrumors 6502a
Feb 12, 2007
561
93
This is an interesting thread that I’m gonna keep an eye on.

I’m gonna buy an M1 Mac Mini very soon. I’ve already bought the monitor which is 1440p at up to 165Hz refresh rate.

Good luck guys.

Comment

Saberon2014

macrumors member
Original poster
Nov 26, 2013
60
29
Just to be sure and to exhaust the workarounds, I went and bought two 3' HDMI cables and a USB-C to HDMI adapter and it obviously didn't change anything.
Just to be 100% clear, is this new adapter plugged into your USB-C port, and then an HDMI cables goes from this adapter to your monitor?

Comment

supermandrill

macrumors newbie
Nov 21, 2020
24
16
Can you try 60hz as troubleshooting? Do you have a USB C to HDMI/DP you can try?
Reporting back, it also happened at 60Hz. I'm even getting green squares now. Although, like
NotTheReindeer mentioned it seems to only happen at startup! Now I'm really thinking that this is indeed a bug that could be fixed with an update. This is just an my opinion, don't take my word for it.

  • Like
Reactions: Saberon2014
Comment

jazz1

macrumors 68030
Aug 19, 2002
2,711
1,968
Mid-West USA
With many threads about monitor display issues I just have to ask this question. Did 2018 MacMini owners have problems using external displays. Believe me I’m not trolling. I’ve got two monitors waiting for a yet to be shipped M1 MacMini. I’ll be using USB-C direct to one monitor with a USB-C port, and an HDMI cable, direct to a second monitor’s HDMI port. In other words, no adaptors. I wonder if third party adaptors are the issue.

Comment

dpgx81

macrumors member
Jun 13, 2017
49
27
Buffalo, NY
running at 4k right now on an LG Nanocell 90 temporarily - 60hz, no issues so far. I still have to delete the plist but got angry and put a spare tv on my desk to use with my mini :)

Comment

Luposian

macrumors regular
Apr 10, 2005
217
141
Just started reading an article over at Ars Technica, concerning the M1 Mac Mini, and saw this:

"The Mac mini can only drive two displays at a time, and one of those has to be over HDMI. Since that HDMI port is HDMI 2.0, it doesn’t have the throughput to handle 4K at 120Hz, or 8K at 60Hz. There aren’t many monitors like that now, but there increasingly will be over the next few years."

So, basically, via HDMI, you can only run 4K @ 60Hz and not run 8K at all. I'm assuming the USB-C ports are not limited like this.

Hopefully this helps!

  • Like
Reactions: eldho
Comment

hugodrax

macrumors 65816
Jul 15, 2007
1,044
324
With Macs either it works or its a replacement. almost 5 days runtime and no issues on my 27inch 4k Dell P2715Q (Which looks great, solid monitor for Mini's)

If you have a good monitor and cable and you get issues then the Mini is defective.

  • Like
Reactions: supermandrill
Comment

usb3

macrumors newbie
Nov 23, 2020
2
3
I've seen the static issue twice now on my M1 Mac Mini for the monitor hooked up to the HDMI slot

Comment

Einz

macrumors 6502
Feb 14, 2008
357
62
Just started reading an article over at Ars Technica, concerning the M1 Mac Mini, and saw this:

"The Mac mini can only drive two displays at a time, and one of those has to be over HDMI. Since that HDMI port is HDMI 2.0, it doesn’t have the throughput to handle 4K at 120Hz, or 8K at 60Hz. There aren’t many monitors like that now, but there increasingly will be over the next few years."

So, basically, via HDMI, you can only run 4K @ 60Hz and not run 8K at all. I'm assuming the USB-C ports are not limited like this.

Hopefully this helps!

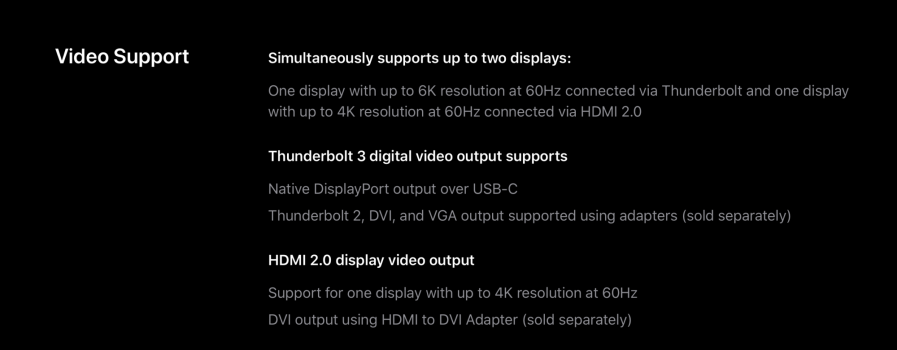

Same on Apple's website.


Attachments

  • screenshot_418.png
    230.3 KB · Views: 90
  • Like
Reactions: 4sallypat
Comment

Yebubbleman

macrumors 601
May 20, 2010
4,008
997
Los Angeles, CA
So, just to clarify, you all are still having the issue when setting your screens to the refresh rate that Apple explicitly states is supported? If so, this is not good news.

I was hoping to at least badger my dad to replace his 2010 Mac mini with one of the M1 Mac minis. He's a casual Logic Pro user, and even with the M1 mini not being able to go past 16GB or have more than two Thunderbolt 3 ports, it'd be a massive upgrade for him. Hopefully it's only a software issue that gets resolved in an 11.0.2 update.

Comment

Markleshark

macrumors 603
Aug 15, 2006
6,249
10
Carlisle, Up Norf!

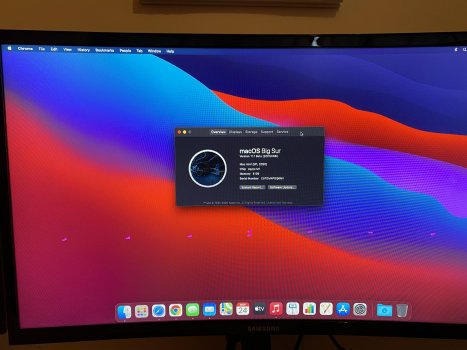

Okay so I’m getting this exact same issue. Oddly only seems to be the monitor connected with HDMI. I’ve tried a different cable and a different monitor and the issue is still present. Monitors are old, no 4K or anything running at 60hz. Managed to get a picture.


Attachments

  • B2D8933F-925F-4BC7-9F82-AEA8BEE95ABF.jpeg
    396.6 KB · Views: 188
Comment

Saberon2014

macrumors member
Original poster
Nov 26, 2013
60
29
Okay so I’m getting this exact same issue. Oddly only seems to be the monitor connected with HDMI. I’ve tried a different cable and a different monitor and the issue is still present. Monitors are old, no 4K or anything running at 60hz. Managed to get a picture.
While I’m sorry to hear you’re having the same issue, I’m glad to know this is a bit more widespread that initially thought. I’m feeling quite confident that this can be fixed via a software update and isn’t defective hardware.

  • Like
Reactions: supermandrill
Comment

Markleshark

macrumors 603
Aug 15, 2006
6,249
10
Carlisle, Up Norf!
While I’m sorry to hear you’re having the same issue, I’m glad to know this is a bit more widespread that initially thought. I’m feeling quite confident that this can be fixed via a software update and isn’t defective hardware.
Totally understandable. I've enrolled this one in the BETA program and we're running 11.1 at the moment which has the same issue. Understandable I guess if it's not been widely reported as yet.

Related / Unrelated issue, anyone having problems with any lag / juddering / stuttering after waking from sleep? I'm watching Activity Monitor and the memory or CPU isn't under any pressure but windows (mainly Finder) sometimes lag for a few seconds then react to what I'm asking it to do. Restart fixed it but I'm thinking it's all graphical.

  • Like
Reactions: supermandrill
Comment

NJRonbo

macrumors 68030
Jan 10, 2007
2,639
548
There are people having problems getting their M1 to drive a single 46" UltraWide display at native resolution.

So, I am not surprised to hear about these issues.

Has anyone tried using the high-speed TB3 cables? I bought one for my 16" MBP to drive my 46" monitor. It goes to a dock where a display port cable goes to the monitor itself.

I am HOPING that the TB3 connection makes all the difference when my Mini arrives in two weeks.

Otherwise, for the moment, a lot of monitor issues out there.

Comment

dmylrea

macrumors 68040
Sep 27, 2005
3,331
4,213
Okay so I’m getting this exact same issue. Oddly only seems to be the monitor connected with HDMI. I’ve tried a different cable and a different monitor and the issue is still present. Monitors are old, no 4K or anything running at 60hz. Managed to get a picture.
Exact same issue I see on my HDMI-connected 1080p 60Hz monitor randomly. Surely it's an issue that an update to macOS will fix. I'm not worried. So far, it only happens on the login screen.

The monitor I want to use is a 27" WQHD that only has a dual-link DVI connection. Any idea how to connect my M1 Mini to this monitor?

Comment

Markleshark

macrumors 603
Aug 15, 2006
6,249
10
Carlisle, Up Norf!
Exact same issue I see on my HDMI-connected 1080p 60Hz monitor randomly. Surely it's an issue that an update to macOS will fix. I'm not worried. So far, it only happens on the login screen.

The monitor I want to use is a 27" WQHD that only has a dual-link DVI connection. Any idea how to connect my M1 Mini to this monitor?
We can hope.

As for connecting DVI, I have DVI monitors and just use a DVI -> HDMI cable from Amazon, works fine.

Comment

dmylrea

macrumors 68040
Sep 27, 2005
3,331
4,213
We can hope.

As for connecting DVI, I have DVI monitors and just use a DVI -> HDMI cable from Amazon, works fine.
This monitor, being 2560x1440, will not work with a standard DVI. It uses Dual Link DVI. Most DVI cables only work up to 1200p. Funny that it works on any video card with a DVI connector, but trying to convert to it is a pain in the butt.

Last edited:
Comment

4sallypat

macrumors 68000
Sep 16, 2016
1,601
1,319
So Calif
Okay so I’m getting this exact same issue. Oddly only seems to be the monitor connected with HDMI. I’ve tried a different cable and a different monitor and the issue is still present. Monitors are old, no 4K or anything running at 60hz. Managed to get a picture.
The picture was helpful!

I see that same purple/red block artifacts on the 12" rMB screen from 2015 that had this problem when waking from sleep!

I wonder if it's a HW or SW issue ???

Comment

amitdel

macrumors newbie
Nov 24, 2020
29
13
When I start first time my Mac mini I get random pink squares in first screen.
Since then I have not seen them.

monitor: DELL U2415 (hdmi)

Hi Machist

Are you getting razor sharp text with U2415 + Mac mini? I have the exact same monitor hooked up to a windows Full HD laptop over HDMI.

Thinking of buying M1 Air, but concerned that text might not be razor sharp / be a bit blurred, compared to the current setup (Dell Latitude + U2415).
