Does MacBook Pro M1 Max support 120hz external monitor?

M

mixart

macrumors member
Original poster
Dec 2, 2012
70
14
Let's say that Apple launch a 27" or 32" 120hz monitor. Does the new MacBook Pro M1 Max support 120hz, when connection a 120hz monitor with usb-c? I know it does not have the new HDMI 2.1 with 120hz support, sadly.

Thunderbolt 4 support is right? We'll have to wait a while for some selection of monitors that support TB4 though.

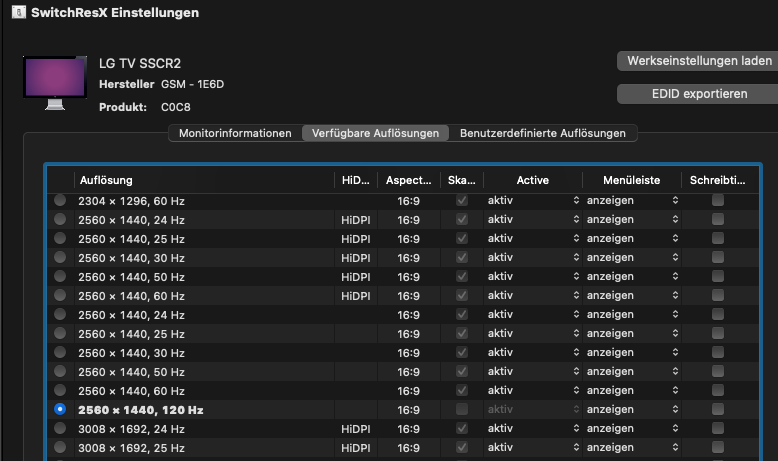

With integrated HDMI u can get up to QHD in 120hz


Attachments

  • Bildschirmfoto 2021-12-07 um 21.48.21.png
    Bildschirmfoto 2021-12-07 um 21.48.21.png
    88.9 KB · Views: 5,738
What matters is the resolution, not the physical size of the display.
If Apple releases 27" or 32" displays they will be 5k and 6k.
I believe of the responses so far have been for QHD, 4k and 5k2k displays, not 5k or 6k displays which have much more pixels to push.
I think I've read somewhere that it could be doable with DSC (Display Stream Compression) over the TB4 40Gb connection though.

  • Like
Reactions: Christopher Kim
vipulvw said:
Please let me know ho to do that..
Click to expand...
Just connect the USB-C cable in one of the four TB4 ports and the other into your monitor. The resolutions and refresh rate show up in the Display pref automatically. At least with a qHD display (2560x1440) you can do up to 165Hz using a TB4-DisplayPort cable but are limited to 144Hz using a TB4-USB-C cable.

144hz worked with a DispayPort adapter at 3840x1600 on an Ultrawide. Though, the monitor only has one DisplayPort, so I have to reserve it for my gaming PC/G-Sync. Instead, I have to use HDMI 2.0 (monitor limitation) at 85hz. Surprisingly, 85hz still feels like a big improvement over 60hz. Switching back to PC at 144hz, I’m quickly reminded how good it can be.

If only there was a reliable DisplayPort KVM switch. I tried a CableMatters USB / DisplayPort box KVM with remote, 144hz worked fine on Mac, but USB wouldn’t, while PC, anything about 100hz would go black, but USB worked fine. Had to return the KVM.

Yes, I had M1 Max and M1 Pro connected with a Dual DP 1.4 KVM switch and sharing two gaming monitors, one is running 3440x1440@180hz and the other is running 2560x1440@144hz. I have a Thunderbolt 4 hub connected between MBP and the KVM switch.

TimothyB said:
144hz worked with a DispayPort adapter at 3840x1600 on an Ultrawide. Though, the monitor only has one DisplayPort, so I have to reserve it for my gaming PC/G-Sync. Instead, I have to use HDMI 2.0 (monitor limitation) at 85hz. Surprisingly, 85hz still feels like a big improvement over 60hz. Switching back to PC at 144hz, I’m quickly reminded how good it can be.

If only there was a reliable DisplayPort KVM switch. I tried a CableMatters USB / DisplayPort box KVM with remote, 144hz worked fine on Mac, but USB wouldn’t, while PC, anything about 100hz would go black, but USB worked fine. Had to return the KVM.
Click to expand...
I have the same set-up like you, bought DP splitter, plugged it into monitor and it works

EnderTW said:
Yep, my M1 Mac right now drives my external 4k 120 hz over TB
Click to expand...
Any chance you could provide a link for the cable you used? I'm only getting 48-60 and 60 at 4K on my Aorus 43" though I'm using the USB-C cable from a OWC drive dock cuz it's what I had on hand.

I have MacBook Pro M1 2021 TB4 and LG OLED TV 4k 120hz HDMI 2.1.

As I understood there is restriction for Type-C -> HDMI 2.1 output and limited to 4k 60hz in MacOS when HDMI on another side.

As here reported, TB4 from MacBook Pro M1 can do 4k 120hz with Type-c -> DisplayPort.

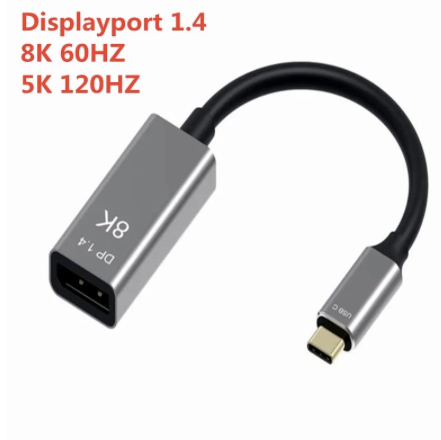

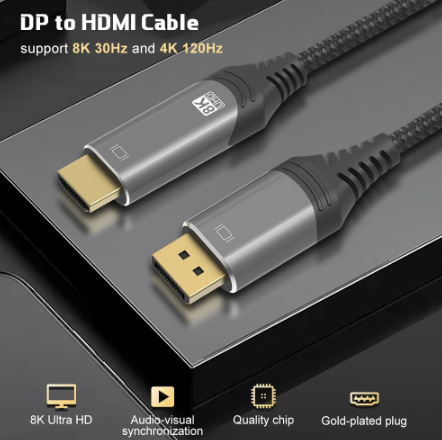

I wonder will it work 4k 120hz with dongle TypeC -> DP 1.4 female + DP 1.4 -> HDMI 2.1 cable ?


Attachments

  • Screenshot 2022-02-06 at 22.52.09.png
    Screenshot 2022-02-06 at 22.52.09.png
    101.5 KB · Views: 400
  • Screenshot 2022-02-06 at 22.42.40.png
    Screenshot 2022-02-06 at 22.42.40.png
    172.2 KB · Views: 433
I used a DP -> Mini DP (TB/USBC) cable to achieve 4K 120HZ HDR on my m1 Mac, literally off of amazon. Acer predator 27

Thanks. My monitor takes a USB-C input and I'm using a cable with USB-C on both ends. I may just order a TB4 cable and just give it a try. I have no idea what spec my existing cable is, but it's from 2019 so that can't help.

It's super confusing where different technologies all use the same physical connector. ?

I can confirm that. I connect it via thunderbolt 3 usb type c to displayport monitor to 240hz samsung oddysey monitor. No problem at even 240HZ.

GoldPunch said:
I can confirm that. I connect it via thunderbolt 3 usb type c to displayport monitor to 240hz samsung oddysey monitor. No problem at even 240HZ.
Click to expand...
So you're running M1 MAX with the G9 at 240hz?

I have my M1 MAX coming this weekend. I'm currently using a TB3UBSC cable to DP from the Mac Mini M1 to the G9 and it works perfect. Curious to know if I can push the M1 MAX to full resolution at 240hz.

Thank you!

Using this: https://www.amazon.com/dp/B08B3XNZGS?ref=ppx_yo2ov_dt_b_product_details&th=1

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
snsking said:
So you're running M1 MAX with the G9 at 240hz?

I have my M1 MAX coming this weekend. I'm currently using a TB3UBSC cable to DP from the Mac Mini M1 to the G9 and it works perfect. Curious to know if I can push the M1 MAX to full resolution at 240hz.

Thank you!

Using this: https://www.amazon.com/dp/B08B3XNZGS?ref=ppx_yo2ov_dt_b_product_details&th=1
Click to expand...

I have G7 version (1440p@240HZ) Which is working great so far. I do not have any idea if it will work well with super ultrawide screens...

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
