Help deciphering log from my MacBook Pro

N

Nerq

macrumors newbie
Original poster
Feb 20, 2011
24
0
Aarhus, Denmark
Hey everyone,

Over the last 6 months or so, I have been getting some kernel panics from my MacBook Pro. I cannot seem to find a pattern in when they happen, or why they happen - the only thing that happens more often than not, is that i happens while I watch movies on Youtube.

Yesterday it seemed that my partition have had enough of the panics, because it died and refused to be repaired - but I could still boot into my windows partition without any problems, so I dont think it is hardware related. :confused:

I must admit that I have no clue how to isolate the issue, or know what tools to use - so I hope you guys can help me out. Let me know if you need any more information from me. :)

My MacBook Pro is an early 2011 model, where I have installed 8gb of ram after buying it.

A from 5 minutes ago looks like this:
Code:
Interval Since Last Panic Report:  3589 sec
Panics Since Last Report:          2
Anonymous UUID:                    3465A9C9-E61E-3B1D-6E41-411D5C4B2CAA

Mon Mar 25 11:40:16 2013
panic(cpu 2 caller 0xffffff8024cb7e95): Kernel trap at 0xffffff8024c43cc1, type 14=page fault, registers:
CR0: 0x0000000080010033, CR2: 0xffffff8047d3a678, CR3: 0x000000012c55a01c, CR4: 0x00000000000606e0
RAX: 0x0000000000000000, RBX: 0x0000000000000000, RCX: 0x0000000009000000, RDX: 0xffffff8027c09290
RSP: 0xffffff810d533b10, RBP: 0xffffff810d533b40, RSI: 0xffffff810d533be8, RDI: 0xffffff8027c09280
R8:  0x0000000000000000, R9:  0xffffff810d533dc0, R10: 0xffffff803b7a8f02, R11: 0x000000000000003a
R12: 0xffffff8047d3a670, R13: 0xffffff8027c09280, R14: 0xffffff810d533be8, R15: 0xffffff8037eb4ee0
RFL: 0x0000000000010282, RIP: 0xffffff8024c43cc1, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0xffffff8047d3a678, Error code: 0x0000000000000009, Fault CPU: 0x2

Backtrace (CPU 2), Frame : Return Address
0xffffff810d5337b0 : 0xffffff8024c1d626
0xffffff810d533820 : 0xffffff8024cb7e95
0xffffff810d5339f0 : 0xffffff8024ccd4dd
0xffffff810d533a10 : 0xffffff8024c43cc1
0xffffff810d533b40 : 0xffffff8024c435f2
0xffffff810d533c20 : 0xffffff8024c670ac
0xffffff810d533c40 : 0xffffff8024c68b6c
0xffffff810d533c70 : 0xffffff8024c689da
0xffffff810d533ca0 : 0xffffff8024c6ce20
0xffffff810d533da0 : 0xffffff8024c8feb4
0xffffff810d533de0 : 0xffffff8024c510fa
0xffffff810d533e10 : 0xffffff8024c20aed
0xffffff810d533e40 : 0xffffff8024c10448
0xffffff810d533e90 : 0xffffff8024c1961b
0xffffff810d533f00 : 0xffffff8024ca5c7e
0xffffff810d533fb0 : 0xffffff8024ccdaee

BSD process name corresponding to current thread: crash_inspector

Mac OS version:
12D78

Kernel version:
Darwin Kernel Version 12.3.0: Sun Jan  6 22:37:10 PST 2013; root:xnu-2050.22.13~1/RELEASE_X86_64
Kernel UUID: 3EB7D8A7-C2D3-32EC-80F4-AB37D61492C6
Kernel slide:     0x0000000024a00000
Kernel text base: 0xffffff8024c00000
System model name: MacBookPro8,2 (Mac-94245A3940C91C80)

System uptime in nanoseconds: 236742069129
last loaded kext at 27058239277: com.apple.driver.AppleHWSensor	1.9.5d0 (addr 0xffffff7fa6776000, size 36864)
last unloaded kext at 181753517423: com.apple.driver.AppleUSBUHCI	5.2.5 (addr 0xffffff7fa558e000, size 65536)
loaded kexts:
com.apple.driver.AppleHWSensor	1.9.5d0
com.apple.iokit.IOBluetoothSerialManager	4.1.3f3
com.apple.filesystems.ntfs	3.10
com.apple.filesystems.autofs	3.0
com.apple.driver.AudioAUUC	1.60
com.apple.driver.AGPM	100.12.87
com.apple.driver.AppleMikeyHIDDriver	122
com.apple.driver.AppleHDA	2.3.7fc4
com.apple.driver.AppleUpstreamUserClient	3.5.10
com.apple.kext.AMDFramebuffer	8.1.0
com.apple.iokit.IOUserEthernet	1.0.0d1
com.apple.driver.AppleMikeyDriver	2.3.7fc4
com.apple.driver.AppleIntelHD3000Graphics	8.1.0
com.apple.AMDRadeonAccelerator	1.0.6
com.apple.iokit.BroadcomBluetoothHCIControllerUSBTransport	4.1.3f3
com.apple.Dont_Steal_Mac_OS_X	7.0.0
com.apple.driver.AppleSMCLMU	2.0.3d0
com.apple.driver.SMCMotionSensor	3.0.3d1
com.apple.driver.AppleMuxControl	3.3.0
com.apple.driver.AppleLPC	1.6.0
com.apple.driver.AppleIntelSNBGraphicsFB	8.1.0
com.apple.driver.ApplePolicyControl	3.3.0
com.apple.driver.AppleMCCSControl	1.1.11
com.apple.driver.AppleSMCPDRC	1.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin	1.0.0
com.apple.driver.AppleUSBTCButtons	237.1
com.apple.driver.AppleUSBTCKeyboard	237.1
com.apple.driver.AppleIRController	320.15
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless	1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib	1.0.0d1
com.apple.BootCache	34
com.apple.iokit.SCSITaskUserClient	3.5.5
com.apple.driver.XsanFilter	404
com.apple.iokit.IOAHCIBlockStorage	2.3.1
com.apple.driver.AppleUSBHub	5.5.5
com.apple.driver.AppleSDXC	1.4.0
com.apple.iokit.AppleBCM5701Ethernet	3.6.0b1
com.apple.driver.AirPort.Brcm4331	614.20.16
com.apple.driver.AppleFWOHCI	4.9.6
com.apple.driver.AppleAHCIPort	2.5.1
com.apple.driver.AppleUSBEHCI	5.5.0
com.apple.driver.AppleEFINVRAM	1.7
com.apple.driver.AppleSmartBatteryManager	161.0.0
com.apple.driver.AppleACPIButtons	1.7
com.apple.driver.AppleRTC	1.5
com.apple.driver.AppleHPET	1.8
com.apple.driver.AppleSMBIOS	1.9
com.apple.driver.AppleACPIEC	1.7
com.apple.driver.AppleAPIC	1.6
com.apple.driver.AppleIntelCPUPowerManagementClient	196.0.0
com.apple.nke.applicationfirewall	4.0.39
com.apple.security.quarantine	2
com.apple.driver.AppleIntelCPUPowerManagement	196.0.0
com.apple.iokit.IOSerialFamily	10.0.6
com.apple.kext.triggers	1.0
com.apple.driver.DspFuncLib	2.3.7fc4
com.apple.iokit.IOAudioFamily	1.8.9fc11
com.apple.kext.OSvKernDSPLib	1.6
com.apple.iokit.IOSurface	86.0.4
com.apple.iokit.IOAcceleratorFamily	30.14
com.apple.iokit.AppleBluetoothHCIControllerUSBTransport	4.1.3f3
com.apple.iokit.IOBluetoothFamily	4.1.3f3
com.apple.driver.AppleHDAController	2.3.7fc4
com.apple.iokit.IOHDAFamily	2.3.7fc4
com.apple.iokit.IOFireWireIP	2.2.5
com.apple.driver.AppleBacklightExpert	1.0.4
com.apple.driver.AppleSMBusPCI	1.0.11d0
com.apple.driver.AppleGraphicsControl	3.3.0
com.apple.iokit.IONDRVSupport	2.3.7
com.apple.kext.AMD6000Controller	8.1.0
com.apple.kext.AMDSupport	8.1.0
com.apple.driver.AppleSMBusController	1.0.11d0
com.apple.iokit.IOGraphicsFamily	2.3.7
com.apple.driver.AppleSMC	3.1.4d2
com.apple.driver.IOPlatformPluginLegacy	1.0.0
com.apple.driver.IOPlatformPluginFamily	5.3.0d51
com.apple.driver.AppleThunderboltDPInAdapter	1.8.9
com.apple.driver.AppleThunderboltDPAdapterFamily	1.8.9
com.apple.driver.AppleThunderboltPCIDownAdapter	1.2.6
com.apple.driver.AppleUSBMultitouch	237.3
com.apple.iokit.IOUSBHIDDriver	5.2.5
com.apple.driver.AppleUSBMergeNub	5.5.5
com.apple.driver.AppleUSBComposite	5.2.5
com.apple.iokit.IOSCSIMultimediaCommandsDevice	3.5.5
com.apple.iokit.IOBDStorageFamily	1.7
com.apple.iokit.IODVDStorageFamily	1.7.1
com.apple.iokit.IOCDStorageFamily	1.7.1
com.apple.iokit.IOAHCISerialATAPI	2.5.1
com.apple.iokit.IOSCSIArchitectureModelFamily	3.5.5
com.apple.driver.AppleThunderboltNHI	1.6.3
com.apple.iokit.IOThunderboltFamily	2.2.6
com.apple.iokit.IOUSBUserClient	5.5.5
com.apple.iokit.IOEthernetAVBController	1.0.2b1
com.apple.iokit.IO80211Family	522.4
com.apple.iokit.IONetworkingFamily	3.0
com.apple.iokit.IOFireWireFamily	4.5.5
com.apple.iokit.IOAHCIFamily	2.3.1
com.apple.iokit.IOUSBFamily	5.5.5
com.apple.driver.AppleEFIRuntime	1.7
com.apple.iokit.IOHIDFamily	1.8.1
com.apple.iokit.IOSMBusFamily	1.1
com.apple.security.sandbox	220.2
com.apple.kext.AppleMatch	1.0.0d1
com.apple.security.TMSafetyNet	7
com.apple.driver.DiskImages	345
com.apple.iokit.IOStorageFamily	1.8
com.apple.driver.AppleKeyStore	28.21
com.apple.driver.AppleACPIPlatform	1.7
com.apple.iokit.IOPCIFamily	2.7.3
com.apple.iokit.IOACPIFamily	1.4
com.apple.kec.corecrypto	1.0
Model: MacBookPro8,2, BootROM MBP81.0047.B27, 4 processors, Intel Core i7, 2.2 GHz, 8 GB, SMC 1.69f4
Graphics: Intel HD Graphics 3000, Intel HD Graphics 3000, Built-In, 512 MB
Graphics: AMD Radeon HD 6750M, AMD Radeon HD 6750M, PCIe, 1024 MB
Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1333 MHz, 0x029E, 0x434D534F344758334D314131333333433920
Memory Module: BANK 1/DIMM0, 4 GB, DDR3, 1333 MHz, 0x029E, 0x434D534F344758334D314131333333433920
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xD6), Broadcom BCM43xx 1.0 (5.106.98.100.16)
Bluetooth: Version 4.1.3f3 11349, 2 service, 18 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Serial ATA Device: TOSHIBA MK7559GSXF, 750.16 GB
Serial ATA Device: MAT****ADVD-R   UJ-898
USB Device: hub_device, 0x0424  (SMSC), 0x2513, 0xfa100000 / 3
USB Device: BRCM2070 Hub, 0x0a5c  (Broadcom Corp.), 0x4500, 0xfa110000 / 5
USB Device: Bluetooth USB Host Controller, apple_vendor_id, 0x821a, 0xfa113000 / 8
USB Device: Apple Internal Keyboard / Trackpad, apple_vendor_id, 0x0246, 0xfa120000 / 4
USB Device: FaceTime HD Camera (Built-in), apple_vendor_id, 0x8509, 0xfa200000 / 2
USB Device: hub_device, 0x0424  (SMSC), 0x2513, 0xfd100000 / 2
USB Device: IR Receiver, apple_vendor_id, 0x8242, 0xfd110000 / 3

Last edited by a moderator:
I see reference to the usb port, do you have anything connected to the usb ports?

If so remove them and see if that corrects the problem. If all else fails you may need to take it into apple for them to look at it.

Nope, nothing attached to the Mac.

And the error seems to happen regardless if I have anything plugged in or not. Also, I am running a fresh install of lion with nothing but bare minimals installed (Chrome, Skype and Spotify).

This is the process involved in the Crash/Panic:

BSD process name corresponding to current thread: crash_inspector

Haven't seen this one before.

What you can do now is several thing, first, make a new User Account and see if the crashes/Panics occur there as well, if not the normal User Account is affected and causes this.
You can also run Apple Hardware Test:

Intel-based Macs: Using Apple Hardware Test

Essentially it says, hold the D key on startup, it will get you in AHT, follow instructions and see if there are any errors.

But, I think it's an OS issue and can be solved.

So, I tried the AHT and that gave me no errors.

I have not tried to make a new user, because simply I reinstalled the entire OS yesterday and I had the errors prior to that.

Any other suggestions? Could it be related to Chrome and perhaps the use of Youtube?

Kernel Panics are rarely a result of software, given how OSX compartmentalizes processes and memory.

If you're unable to isolate the cause, and its a continuing problem then call/visit apple for them to run their diagnostics on it.

Went a couple of days without any errors, and just got a new one. I was browsing in Chrome while it happend.

Code:
Interval Since Last Panic Report:  33027 sec
Panics Since Last Report:          1
Anonymous UUID:                    3465A9C9-E61E-3B1D-6E41-411D5C4B2CAA

Wed Mar 27 15:23:19 2013
panic(cpu 7 caller 0xffffff802eeb7e95): Kernel trap at 0xffffff802ee43cc1, type 13=general protection, registers:
CR0: 0x0000000080010033, CR2: 0x000000010dcb4000, CR3: 0x0000000015a30022, CR4: 0x00000000000606e0
RAX: 0x0000000000000000, RBX: 0x0000000000000000, RCX: 0x0000000009000000, RDX: 0xffffff8031e1a980
RSP: 0xffffff8120d93b70, RBP: 0xffffff8120d93ba0, RSI: 0xffffff8120d93c48, RDI: 0xffffff8031e1a970
R8:  0xffffff8120d93ee0, R9:  0xffffff8120d93ed0, R10: 0x00000000f0000001, R11: 0x0000000000000246
R12: 0xffff0880453fa9a0, R13: 0xffffff8031e1a970, R14: 0xffffff8120d93c48, R15: 0x000000010dcb4000
RFL: 0x0000000000010286, RIP: 0xffffff802ee43cc1, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0x000000010dcb4000, Error code: 0x0000000000000000, Fault CPU: 0x7

Backtrace (CPU 7), Frame : Return Address
0xffffff8120d93810 : 0xffffff802ee1d626
0xffffff8120d93880 : 0xffffff802eeb7e95
0xffffff8120d93a50 : 0xffffff802eecd4dd
0xffffff8120d93a70 : 0xffffff802ee43cc1
0xffffff8120d93ba0 : 0xffffff802ee435f2
0xffffff8120d93c80 : 0xffffff802ee74cc6
0xffffff8120d93ca0 : 0xffffff802ee6f0e2
0xffffff8120d93d90 : 0xffffff802ee62f30
0xffffff8120d93f20 : 0xffffff802eeb82e0
0xffffff8120d93fb0 : 0xffffff802eecd401

BSD process name corresponding to current thread: coreservicesd

Mac OS version:
12D78

Kernel version:
Darwin Kernel Version 12.3.0: Sun Jan  6 22:37:10 PST 2013; root:xnu-2050.22.13~1/RELEASE_X86_64
Kernel UUID: 3EB7D8A7-C2D3-32EC-80F4-AB37D61492C6
Kernel slide:     0x000000002ec00000
Kernel text base: 0xffffff802ee00000
System model name: MacBookPro8,2 (Mac-94245A3940C91C80)

System uptime in nanoseconds: 5564361329048
last loaded kext at 256912075524: com.apple.filesystems.msdosfs	1.8 (addr 0xffffff7fb11d1000, size 65536)
last unloaded kext at 350804446800: com.apple.filesystems.msdosfs	1.8 (addr 0xffffff7fb11d1000, size 57344)
loaded kexts:
com.apple.filesystems.ntfs	3.10
com.apple.driver.AudioAUUC	1.60
com.apple.driver.AppleHWSensor	1.9.5d0
com.apple.filesystems.autofs	3.0
com.apple.driver.AGPM	100.12.87
com.apple.iokit.IOBluetoothSerialManager	4.1.3f3
com.apple.driver.AppleMikeyHIDDriver	122
com.apple.driver.AppleHDA	2.3.7fc4
com.apple.driver.AppleMikeyDriver	2.3.7fc4
com.apple.iokit.IOUserEthernet	1.0.0d1
com.apple.driver.AppleUpstreamUserClient	3.5.10
com.apple.iokit.BroadcomBluetoothHCIControllerUSBTransport	4.1.3f3
com.apple.Dont_Steal_Mac_OS_X	7.0.0
com.apple.driver.AppleSMCPDRC	1.0.0
com.apple.driver.SMCMotionSensor	3.0.3d1
com.apple.driver.ApplePolicyControl	3.3.0
com.apple.kext.AMDFramebuffer	8.1.0
com.apple.driver.AppleMCCSControl	1.1.11
com.apple.driver.AppleLPC	1.6.0
com.apple.driver.AppleIntelHD3000Graphics	8.1.0
com.apple.driver.AppleIntelSNBGraphicsFB	8.1.0
com.apple.AMDRadeonAccelerator	1.0.6
com.apple.driver.AppleSMCLMU	2.0.3d0
com.apple.driver.AppleMuxControl	3.3.0
com.apple.driver.ACPI_SMC_PlatformPlugin	1.0.0
com.apple.driver.AppleUSBTCButtons	237.1
com.apple.driver.AppleUSBTCKeyboard	237.1
com.apple.driver.AppleIRController	320.15
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless	1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib	1.0.0d1
com.apple.BootCache	34
com.apple.iokit.SCSITaskUserClient	3.5.5
com.apple.driver.XsanFilter	404
com.apple.iokit.IOAHCIBlockStorage	2.3.1
com.apple.driver.AppleUSBHub	5.5.5
com.apple.driver.AirPort.Brcm4331	614.20.16
com.apple.driver.AppleFWOHCI	4.9.6
com.apple.driver.AppleSDXC	1.4.0
com.apple.iokit.AppleBCM5701Ethernet	3.6.0b1
com.apple.driver.AppleAHCIPort	2.5.1
com.apple.driver.AppleUSBEHCI	5.5.0
com.apple.driver.AppleEFINVRAM	1.7
com.apple.driver.AppleSmartBatteryManager	161.0.0
com.apple.driver.AppleACPIButtons	1.7
com.apple.driver.AppleRTC	1.5
com.apple.driver.AppleHPET	1.8
com.apple.driver.AppleSMBIOS	1.9
com.apple.driver.AppleACPIEC	1.7
com.apple.driver.AppleAPIC	1.6
com.apple.driver.AppleIntelCPUPowerManagementClient	196.0.0
com.apple.nke.applicationfirewall	4.0.39
com.apple.security.quarantine	2
com.apple.driver.AppleIntelCPUPowerManagement	196.0.0
com.apple.kext.triggers	1.0
com.apple.iokit.IOSerialFamily	10.0.6
com.apple.driver.DspFuncLib	2.3.7fc4
com.apple.iokit.IOAudioFamily	1.8.9fc11
com.apple.kext.OSvKernDSPLib	1.6
com.apple.iokit.IOSurface	86.0.4
com.apple.iokit.IOBluetoothFamily	4.1.3f3
com.apple.iokit.AppleBluetoothHCIControllerUSBTransport	4.1.3f3
com.apple.driver.AppleSMBusPCI	1.0.11d0
com.apple.driver.AppleSMBusController	1.0.11d0
com.apple.driver.AppleHDAController	2.3.7fc4
com.apple.iokit.IOHDAFamily	2.3.7fc4
com.apple.iokit.IOAcceleratorFamily	30.14
com.apple.kext.AMD6000Controller	8.1.0
com.apple.kext.AMDSupport	8.1.0
com.apple.driver.AppleGraphicsControl	3.3.0
com.apple.driver.AppleBacklightExpert	1.0.4
com.apple.iokit.IONDRVSupport	2.3.7
com.apple.iokit.IOGraphicsFamily	2.3.7
com.apple.iokit.IOFireWireIP	2.2.5
com.apple.driver.AppleSMC	3.1.4d2
com.apple.driver.IOPlatformPluginLegacy	1.0.0
com.apple.driver.IOPlatformPluginFamily	5.3.0d51
com.apple.driver.AppleThunderboltDPInAdapter	1.8.9
com.apple.driver.AppleThunderboltDPAdapterFamily	1.8.9
com.apple.driver.AppleThunderboltPCIDownAdapter	1.2.6
com.apple.driver.AppleUSBMultitouch	237.3
com.apple.iokit.IOUSBHIDDriver	5.2.5
com.apple.driver.AppleUSBMergeNub	5.5.5
com.apple.driver.AppleUSBComposite	5.2.5
com.apple.iokit.IOSCSIMultimediaCommandsDevice	3.5.5
com.apple.iokit.IOBDStorageFamily	1.7
com.apple.iokit.IODVDStorageFamily	1.7.1
com.apple.iokit.IOCDStorageFamily	1.7.1
com.apple.iokit.IOAHCISerialATAPI	2.5.1
com.apple.iokit.IOSCSIArchitectureModelFamily	3.5.5
com.apple.driver.AppleThunderboltNHI	1.6.3
com.apple.iokit.IOThunderboltFamily	2.2.6
com.apple.iokit.IOUSBUserClient	5.5.5
com.apple.iokit.IO80211Family	522.4
com.apple.iokit.IOFireWireFamily	4.5.5
com.apple.iokit.IOEthernetAVBController	1.0.2b1
com.apple.iokit.IONetworkingFamily	3.0
com.apple.iokit.IOAHCIFamily	2.3.1
com.apple.iokit.IOUSBFamily	5.5.5
com.apple.driver.AppleEFIRuntime	1.7
com.apple.iokit.IOHIDFamily	1.8.1
com.apple.iokit.IOSMBusFamily	1.1
com.apple.security.sandbox	220.2
com.apple.kext.AppleMatch	1.0.0d1
com.apple.security.TMSafetyNet	7
com.apple.driver.DiskImages	345
com.apple.iokit.IOStorageFamily	1.8
com.apple.driver.AppleKeyStore	28.21
com.apple.driver.AppleACPIPlatform	1.7
com.apple.iokit.IOPCIFamily	2.7.3
com.apple.iokit.IOACPIFamily	1.4
com.apple.kec.corecrypto	1.0
Model: MacBookPro8,2, BootROM MBP81.0047.B27, 4 processors, Intel Core i7, 2.2 GHz, 8 GB, SMC 1.69f4
Graphics: Intel HD Graphics 3000, Intel HD Graphics 3000, Built-In, 512 MB
Graphics: AMD Radeon HD 6750M, AMD Radeon HD 6750M, PCIe, 1024 MB
Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1333 MHz, 0x029E, 0x434D534F344758334D314131333333433920
Memory Module: BANK 1/DIMM0, 4 GB, DDR3, 1333 MHz, 0x029E, 0x434D534F344758334D314131333333433920
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xD6), Broadcom BCM43xx 1.0 (5.106.98.100.16)
Bluetooth: Version 4.1.3f3 11349, 2 service, 18 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Serial ATA Device: TOSHIBA MK7559GSXF, 750.16 GB
Serial ATA Device: MAT****ADVD-R   UJ-898
USB Device: FaceTime HD Camera (Built-in), apple_vendor_id, 0x8509, 0xfa200000 / 3
USB Device: hub_device, 0x0424  (SMSC), 0x2513, 0xfa100000 / 2
USB Device: BRCM2070 Hub, 0x0a5c  (Broadcom Corp.), 0x4500, 0xfa110000 / 5
USB Device: Bluetooth USB Host Controller, apple_vendor_id, 0x821a, 0xfa113000 / 6
USB Device: Apple Internal Keyboard / Trackpad, apple_vendor_id, 0x0246, 0xfa120000 / 4
USB Device: hub_device, 0x0424  (SMSC), 0x2513, 0xfd100000 / 2
USB Device: IR Receiver, apple_vendor_id, 0x8242, 0xfd110000 / 3

Isn't there a Chrome bug with integrated graphics? Are you 100% up to date with all your software?

Chrome is running Version 26.0.1410.43 (up to date)

And the App Store says "No Updates Available". Unless there is some other software I need to manually update that I dont know of then everything should be up to date (including the programs I have installed, which are still a bare minimum).

I have had Chrome issues myself with my rMBP-specifically, locking up my whole machine while browsing flash sites.

I've heard there are less issues if you use the integrated video card but I've just moved to webkit nightly.

Nerq said:
Chrome is running Version 26.0.1410.43 (up to date)

And the App Store says "No Updates Available". Unless there is some other software I need to manually update that I dont know of then everything should be up to date (including the programs I have installed, which are still a bare minimum).
Click to expand...

I'd avoid chrome and see if the problems clear up. I remember when the rMBP came out that chrome had problems but one of the nightly builds fixed that. I have no idea if that nightly build that corrects the issue has been released for general consumption.

Got another two error today, these did not chrash the entire computer. Only Safari and Chrome - but I thought they might help finding the error.

Any help would really be appreciated.


Attachments

  • Chromeerror.pdf
    454.9 KB · Views: 209
  • Safarierror.pdf
    388.8 KB · Views: 313
Nerq said:
Got another two error today, these did not chrash the entire computer. Only Safari and Chrome - but I thought they might help finding the error.

Any help would really be appreciated.
Click to expand...

Just a couple of days ago there was a User on MR which had problems for months in a row, he found out that in the end it was his RAM.
I know you checked with AHT, but what if it IS the RAM, I am pretty sure yours did not come with 2 x 4 GB standard, so did you change the RAM, and if so do you have the old RAM, again, if so put the old one back and see how it goes.

Yep, like mentioned in my first post I have changed the RAM. I did this about a year ago. Changed them to 8GB Corsair DDR3 1333MHz RAM.

Is there any way to check the ram further? Because I dont have the original RAM anymore, and I would like to make sure that the RAM are at fault and not my logicboard, HDD or something like that before buying new RAM.

Thanks for the help so far.

Nerq said:
Yep, like mentioned in my first post I have changed the RAM. I did this about a year ago. Changed them to 8GB Corsair DDR3 1333MHz RAM.

Is there any way to check the ram further? Because I dont have the original RAM anymore, and I would like to make sure that the RAM are at fault and not my logicboard, HDD or something like that before buying new RAM.

Thanks for the help so far.
Click to expand...

Sorry about that, i am busy in too many threads and this one already started 5 days ago, forgot you mentioned it.
Rember is another program to check the RAM, and memtest.

Rember

MemTest for Mac OS X Tests your RAM

It's a shame you don't have the original RAM anymore, otherwise it would have been an easy test.

Corsair is normally good memory though.

Edit: Memtest is best run from Single User mode, I'll attach a User guide.


Attachments

  • Users_Guide.rtf.zip
    6.9 KB · Views: 71
Last edited:
Sorry if I sounded douchey pointing out that I had allready said that I had upgraded the RAM. Did not mean to come across as that :rolleyes:

Thanks for the link to the test, and especially the manual. Tried running the test 3 times in singleusermode. It did not find any errors (see below). I will try and let it run overnight and do some more passes at it.

If that does not produce any errors, should I assume that my RAM are okay? - and then what should I test next? The HDD perhaps?

Code:
Memtest version 4.22 (64-bit)
Copyright (C) 2004 Charles Cazabon
Copyright (C) 2004 - 2008 Tony Scaminaci (Macintosh port)
Licensed under the GNU General Public License version 2 only

Log file written to //memtest.log

Mac OS X 10.8.3 (12D78) running in single user mode
Memory Page Size: 4096
System has 8 Intel core(s) with SSE
Requested memory: 7705MB (8079372288 bytes)
Available memory: 7705MB (8079372288 bytes)
NOTE: Memory request is too large, reducing to acceptable value...
Allocated memory: 7489MB (7853149824 bytes) at local address 0x0000000101000000
Attempting memory lock... locked successfully
Splitting allocated memory into 2 comparison buffers...
Buffer A: 3744MB (3926574912 bytes) starts at local address 0x0000000101000000
Buffer B: 3744MB (3926574912 bytes) starts at local address 0x00000001eb0ac740

Running 3 test sequences... (CTRL-C to quit)

Test sequence 1 of 3:

Running tests on entire 7489MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3744MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 2 of 3:

Running tests on entire 7489MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3744MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 3 of 3:

Running tests on entire 7489MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3744MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

So running it 10 times did not give any erros.

Code:
Memtest version 4.22 (64-bit)
Copyright (C) 2004 Charles Cazabon
Copyright (C) 2004 - 2008 Tony Scaminaci (Macintosh port)
Licensed under the GNU General Public License version 2 only

Log file written to //memtest.log

Mac OS X 10.8.3 (12D78) running in single user mode
Memory Page Size: 4096
System has 8 Intel core(s) with SSE
Requested memory: 7715MB (8090296320 bytes)
Available memory: 7715MB (8090296320 bytes)
NOTE: Memory request is too large, reducing to acceptable value...
Allocated memory: 7499MB (7863768000 bytes) at local address 0x0000000101000000
Attempting memory lock... locked successfully
Splitting allocated memory into 2 comparison buffers...
Buffer A: 3749MB (3931884000 bytes) starts at local address 0x0000000101000000
Buffer B: 3749MB (3931884000 bytes) starts at local address 0x00000001eb5bc9e0

Running 10 test sequences... (CTRL-C to quit)

Test sequence 1 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 2 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 3 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 4 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 5 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 6 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 7 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 8 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 9 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

Test sequence 10 of 10:

Running tests on entire 7499MB region...
  Stuck Address       :    ok
  Linear PRN          :    ok
Running comparison tests using 3749MB buffers...
  Random Value        :    ok
  Compare XOR         :    ok
  Compare SUB         :    ok
  Compare MUL         :    ok
  Compare DIV         :    ok
  Compare OR          :    ok
  Compare AND         :    ok
  Sequential Increment:    ok
  Solid Bits          :    ok
  Block Sequential    :    ok
  Checkerboard        :    ok
  Bit Spread          :    ok
  Bit Flip            :    ok
  Walking Ones        :    ok
  Walking Zeroes      :    ok

All tests passed!  Execution time: 26679 seconds.

Nerq said:
So running it 10 times did not give any errors.
Click to expand...

If it ran ten test I am pretty sure the RAM is OK.

----------
Nerq said:
If that does not produce any errors, should I assume that my RAM are okay? - and then what should I test next? The HDD perhaps?
Click to expand...

You could try to install a fresh copy on an external (then boot from it), even a USB stick would do but it needs to minimum 8 GB, if you suspect the HD this would be a good test.

Thanks for that tip, I will try that out. I did a SMART scan of the computer and got no errors (it had a few errors that were way way old), but nothing else. I am trying to find a program to scan the HDD which is free (I might do it from Windows).

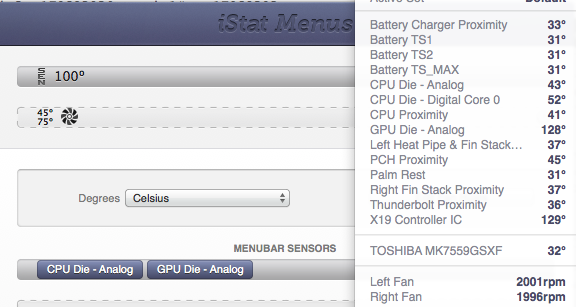

On another note, I installed istat and found that my "GPU Die - Analog" is showing 128 degrees Celsius and the "X19 Controller IC" is showing a 129 degrees Celsius. Increasing the fan speed does not affect the temps at all, SO I am guessing that they are broken. Which I think might point towards a broken logicboard or a broken GPU?

You would know if your GPU was brokeb with green dots on the screen and flashing...more than likely just a sensor issue, which is bad because it means the computer does not know when it is too hot and could potentially overheat. Are you going to see Apple?

Nerq said:
Thanks for that tip, I will try that out. I did a SMART scan of the computer and got no errors (it had a few errors that were way way old), but nothing else. I am trying to find a program to scan the HDD which is free (I might do it from Windows).

On another note, I installed istat and found that my "GPU Die - Analog" is showing 128 degrees Celsius and the "X19 Controller IC" is showing a 129 degrees Celsius. Increasing the fan speed does not affect the temps at all, SO I am guessing that they are broken. Which I think might point towards a broken logicboard or a broken GPU?
Click to expand...

Can't be 129 Celsius AFAIK, 105 is the maximum before the CPU halts.

Well the thing is that I live in Denmark, and we currently do not have any Apple Stores - only resellers like Humac and Eplehuset. Which is okay because they have a repairshop (and my Mac is currently under warranty). But because of Easter they dont open again before tuesday and I am currently studying for exams that I have tuesday and thursday - so it might be a week or so before I have time to bring it in. And I thought it would be good to have figured out what is wrong before I bring it in (it greatly reduces the time it takes in the repairshop).

Currently I am split between the logicboard and something with the GPU. Perhaps overheating due to a faulty sensor.


Attachments

  • Screen Shot 2013-03-29 at 12.51.48 PM.png
    Screen Shot 2013-03-29 at 12.51.48 PM.png
    95.5 KB · Views: 136
Aha, so I installed gfxCardStatus and manually switched to the discrete GPU and that dropped the temp to 51 degrees Celsius. But the X19 Controller IC stays the same, but I have no clue what that sensor monitors.

----------
B... said:
You would also know if the CPU hit 130 C. It would be so hot you would get a bad burn. Sensor malfunction.
Click to expand...

I am not saying that it is 130 degrees Celsius. I am saying that the programs says that :rolleyes: Like I wrote I also think that the sensor is broken (but it actually seems that it was just turned off due to the internal GPU being in charge).

You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
Back
