Help! Mid 2010 MBP keeps rebooting

Tony Lid · Sep 29, 2016

Hi All,
Has anyone else experienced this?
I have a Mid 2010 MacBookPro. Recently often, not always, when I scroll either with mouse or pad it reboots. Been to Genius Bar & because of its age they won't even look at it or advise me. Run normal tests but they aren't telling me anything.
Any clues.

Thank you.

keysofanxiety · Sep 29, 2016

Tony Lid said:
Hi All,
Has anyone else experienced this?
I have a Mid 2010 MacBookPro. Recently often, not always, when I scroll either with mouse or pad it reboots. Been to Genius Bar & because of its age they won't even look at it or advise me. Run normal tests but they aren't telling me anything.
Any clues.

Thank you.

What version of OS are you on?

Let's start by checking the hard-drive's OK and then work backwards from there. Please could you run SMART Utility and screenshot the result? Download links are below.

If you're on 10.9 or higher: https://cloudfront.volitans-software.com/smartutility322.zip
If you're on 10.8 or earlier: https://cloudfront.volitans-software.com/smartutility314.zip

Tony Lid · Sep 29, 2016

keysofanxiety said:
What version of OS are you on?

Let's start by checking the hard-drive's OK and then work backwards from there. Please could you run SMART Utility and screenshot the result? Download links are below.

If you're on 10.9 or higher: https://cloudfront.volitans-software.com/smartutility322.zip
If you're on 10.8 or earlier: https://cloudfront.volitans-software.com/smartutility314.zip

Hi Keysofanxiety,
I am running 10.10.5

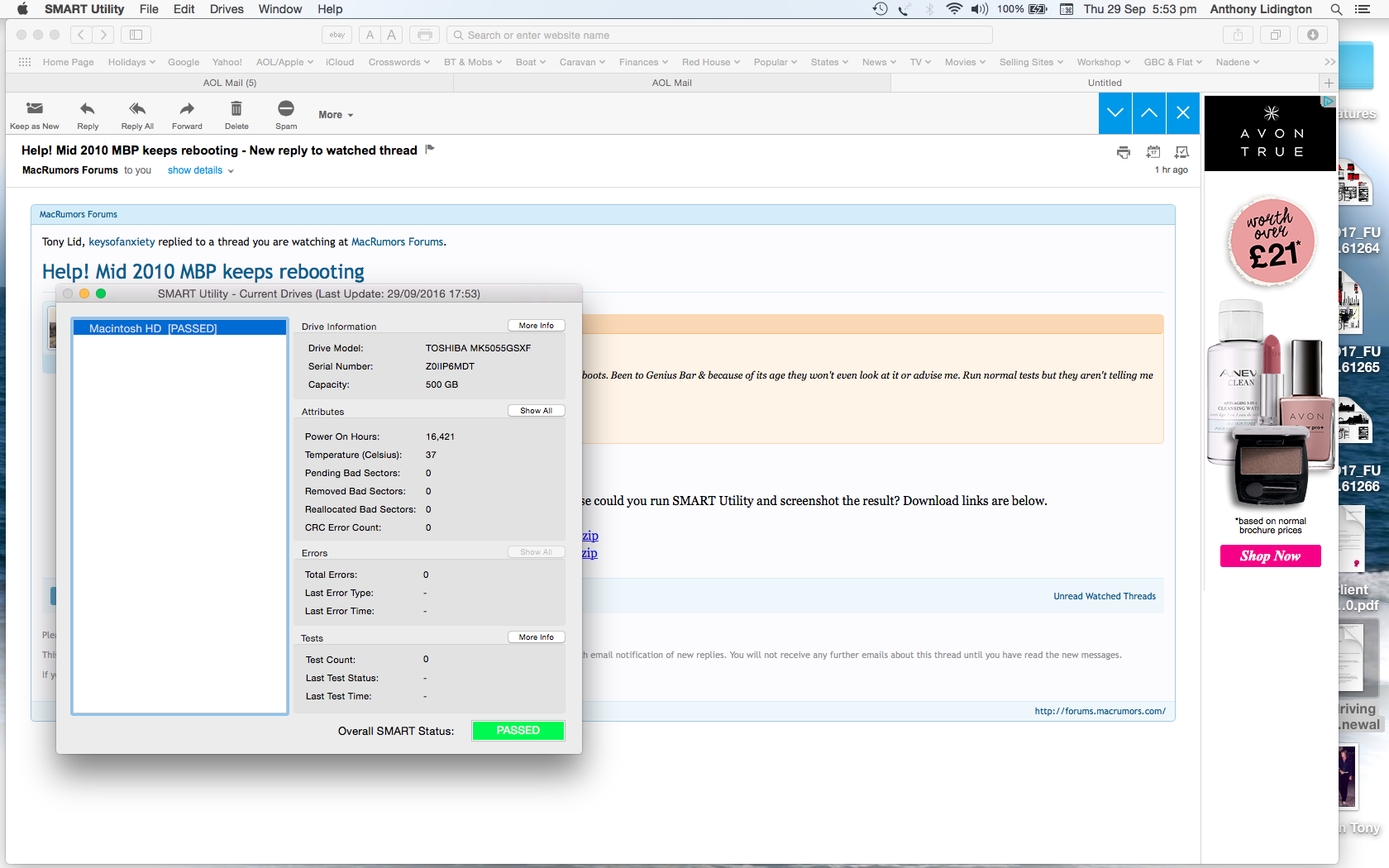

This is the screenshot you asked for.

keysofanxiety · Sep 29, 2016

Tony Lid said:
Hi Keysofanxiety,
I am running 10.10.5

This is the screenshot you asked for.

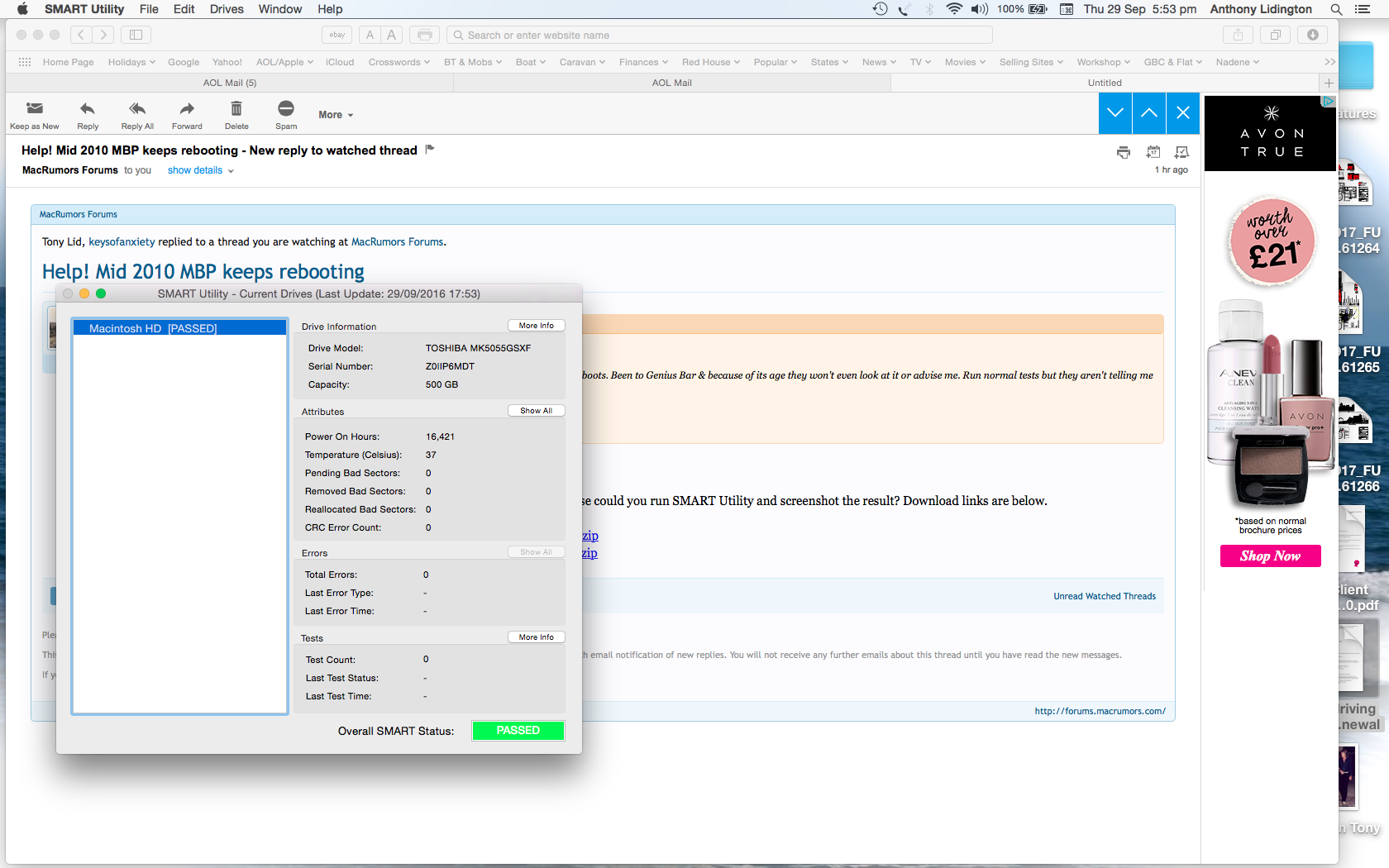

View attachment 661038

That's great, thank you for taking the time to get that information.

When you say it restarts whilst scrolling, does the system completely freeze first? Mouse & keyboard unresponsive? Or will it randomly go to a black screen out of nowhere, sound the startup 'churn', and then show the Apple logo on boot?

Also could I check if you've got a 13" or a 15" MacBook Pro?

Tony Lid · Sep 29, 2016

keysofanxiety said:
That's great, thank you for taking the time to get that information.

When you say it restarts whilst scrolling, does the system completely freeze first? Mouse & keyboard unresponsive? Or will it randomly go to a black screen out of nowhere, sound the startup 'churn', and then show the Apple logo on boot?

Also could I check if you've got a 13" or a 15" MacBook Pro?

Hi Key
it is a 15" & it is the black screen out of nowhere, sound the startup 'churn', and then show the Apple logo on boot, there is a screen initially that offers u the chance to restart by hitting any key (also in chinese, I think)

keysofanxiety · Sep 29, 2016

Tony Lid said:
Hi Key
it is a 15" & it is the black screen out of nowhere, sound the startup 'churn', and then show the Apple logo on boot, there is a screen initially that offers u the chance to restart by hitting any key (also in chinese, I think)

Ah, it's kernel panicking.

1) Select Finder. You can do this by pressing CMD+Tab until you get to Finder, or simply click the Desktop.
2) Click the 'Go' menu at the very top, just to the right of File, Edit, etc. Once you've clicked that menu, hold down the Alt key.
3) You'll see a new option called 'Library' appear. Select that.
4) Open the folder called 'Logs'.
5) Then open the folder called 'Diagnostic Reports'.

Anything in there that corresponds with the date/times of the problem? If so, just double-click one to open it. It'll open in an application called Console.

Select the text along the right-hand side. CMD+A to select all. CMD+C to copy. Then CMD+V into this thread if possible? It'll be lengthy but that'll be the crash log. Hopefully should elucidate the issue.

talisto · Sep 29, 2016

It's probably the logic board. More specifically, the graphics chip on the logic board. Apple had a replacement program for the Mid 2010 MBPs due to issues with the graphics chip, but that program has ended, so you're pretty much SOL unless you get the logic board replaced through a 3rd-party. I've replaced the logic board on mine twice already. The last time I ordered one from eBay and replaced it myself.

If your MBP has both integrated and discrete GPUs, and you're NOT running macOS Sierra yet, you can try running gfxCardStatus and set it to only use your integrated graphics chip: https://gfx.io/

Using only the integrated chip may bypass the problem with the flakey discrete graphics chip, if that's the issue. The app hasn't been updated for macOS Sierra yet though.

Tony Lid · Sep 29, 2016

keysofanxiety said:
Ah, it's kernel panicking.

1) Select Finder. You can do this by pressing CMD+Tab until you get to Finder, or simply click the Desktop.
2) Click the 'Go' menu at the very top, just to the right of File, Edit, etc. Once you've clicked that menu, hold down the Alt key.
3) You'll see a new option called 'Library' appear. Select that.
4) Open the folder called 'Logs'.
5) Then open the folder called 'Diagnostic Reports'.

Anything in there that corresponds with the date/times of the problem? If so, just double-click one to open it. It'll open in an application called Console.

Select the text along the right-hand side. CMD+A to select all. CMD+C to copy. Then CMD+V into this thread if possible? It'll be lengthy but that'll be the crash log. Hopefully should elucidate the issue.

This is really impressive, I bow to you.

Code:

Process:               Safari [397]
Path:                  /Applications/Safari.app/Contents/MacOS/Safari
Identifier:            com.apple.Safari
Version:               9.1.3 (10601.7.8)
Build Info:            WebBrowser-7601007008000000~1
Code Type:             X86-64 (Native)
Parent Process:        ??? [1]
Responsible:           Safari [397]
User ID:               501

Date/Time:             2016-09-17 08:18:46.257 +0100
OS Version:            Mac OS X 10.10.5 (14F1912)
Report Version:        11
Anonymous UUID:        CA3B2EFA-C3FF-BE2B-2600-4D2941C3CA17


Time Awake Since Boot: 390 seconds

Crashed Thread:        0  Dispatch queue: com.apple.main-thread

Exception Type:        EXC_BAD_ACCESS (SIGSEGV)
Exception Codes:       KERN_INVALID_ADDRESS at 0x0000000000000000

External Modification Warnings:
Thread creation by external task.

VM Regions Near 0:
-->
    __TEXT                 000000010b543000-000000010b544000 [    4K] r-x/rwx SM=COW  /Applications/Safari.app/Contents/MacOS/Safari

Application Specific Information:
Process Model:
Multiple Web Processes

Enabled Extensions:
com.cloudextensions.safari.quickfinder-XW8GQEPV97 (1.1 - 1.1) QuickFinder
com.cloudextensions.safari.shoppinghelperebay-XW8GQEPV97 (1.0 - 1.0) Shopping Helper for eBay
com.unionsoftwareonline.safari.quickbrowse-BH6GRJCM8L (1.1 - 1.1) QuickBrowse


Thread 0 Crashed:: Dispatch queue: com.apple.main-thread
0   com.apple.JavaScriptCore         0x000000010c09c982 WTF::CString::CString(char const*, unsigned long) + 50
1   com.apple.JavaScriptCore         0x000000010c6cb876 WTF::StringImpl::utf8ForRange(unsigned int, unsigned int, WTF::ConversionMode) const + 278
2   com.apple.JavaScriptCore         0x000000010c6cb8f8 WTF::StringImpl::utf8(WTF::ConversionMode) const + 24
3   com.apple.JavaScriptCore         0x000000010c6d03a9 WTF::String::utf8(WTF::ConversionMode) const + 25
4   com.apple.WebKit                 0x000000010cd7b146 WKURLCopyCFURL + 34
5   com.apple.Safari.framework       0x000000010b96bc07 Safari::WK::URL::nsURL() const + 29
6   com.apple.Safari.framework       0x000000010b8cac6f Safari::SearchableWebContentViewController::contentIsCapableOfZoom() const + 37
7   com.apple.Safari.framework       0x000000010b8cad16 Safari::SearchableWebContentViewController::canZoomOut() const + 14
8   com.apple.Safari.framework       0x000000010b65c537 -[BrowserWindowControllerMac validateUserInterfaceItem:] + 618
9   com.apple.Safari.framework       0x000000010b92ec1e -[NSControl(BrowserToolbarExtras) validateAsToolbarViewOrSubview] + 187
10  com.apple.Safari.framework       0x000000010b92ee13 -[NSView(BrowserToolbarExtras) validateControls] + 81
11  com.apple.Safari.framework       0x000000010b92ea3f -[BrowserToolbarItem validate] + 167
12  com.apple.AppKit                 0x00007fff948e889e -[NSToolbar validateVisibleItems] + 170
13  com.apple.AppKit                 0x00007fff949726b2 -[NSToolbar _autovalidateVisibleToolbarItems] + 87
14  com.apple.AppKit                 0x00007fff949718c8 __53-[NSToolbarView _scheduleDelayedValidationAfterTime:]_block_invoke + 154
15  com.apple.CoreFoundation         0x00007fff8b1262e4 __CFRUNLOOP_IS_CALLING_OUT_TO_A_TIMER_CALLBACK_FUNCTION__ + 20
16  com.apple.CoreFoundation         0x00007fff8b125f73 __CFRunLoopDoTimer + 1059
17  com.apple.CoreFoundation         0x00007fff8b19953d __CFRunLoopDoTimers + 301
18  com.apple.CoreFoundation         0x00007fff8b0e1608 __CFRunLoopRun + 2024
19  com.apple.CoreFoundation         0x00007fff8b0e0bd8 CFRunLoopRunSpecific + 296
20  com.apple.HIToolbox               0x00007fff8d72a56f RunCurrentEventLoopInMode + 235
21  com.apple.HIToolbox               0x00007fff8d72a2ea ReceiveNextEventCommon + 431
22  com.apple.HIToolbox               0x00007fff8d72a12b _BlockUntilNextEventMatchingListInModeWithFilter + 71
23  com.apple.AppKit                 0x00007fff948a28ab _DPSNextEvent + 978
24  com.apple.AppKit                 0x00007fff948a1e58 -[NSApplication nextEventMatchingMask:untilDate:inMode:dequeue:] + 346
25  com.apple.Safari.framework       0x000000010b5bcf57 -[BrowserApplication nextEventMatchingMask:untilDate:inMode:dequeue:] + 246
26  com.apple.AppKit                 0x00007fff94897af3 -[NSApplication run] + 594
27  com.apple.AppKit                 0x00007fff94814244 NSApplicationMain + 1832
28  libdyld.dylib                     0x00007fff898f75c9 start + 1

Thread 1:: Dispatch queue: com.apple.libdispatch-manager
0   libsystem_kernel.dylib           0x00007fff987d0232 kevent64 + 10
1   libdispatch.dylib                 0x00007fff8ee0a26e _dispatch_mgr_thread + 52

Thread 2:
0   libsystem_kernel.dylib           0x00007fff987ca4de mach_msg_trap + 10
1   libsystem_kernel.dylib           0x00007fff987c964f mach_msg + 55
2   RapportUtil1.dylib               0x0000000111bf1f08 exception_handler::exception_messages_handler(void*) + 200
3   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
4   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
5   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 3:
0   libsystem_kernel.dylib           0x00007fff987ca4de mach_msg_trap + 10
1   libsystem_kernel.dylib           0x00007fff987c964f mach_msg + 55
2   libsystem_kernel.dylib           0x00007fff987c9f60 mach_msg_server + 468
3   RapportDaishi.dylib               0x00000001110f3744 mig_rpc_server::server_working_thread(void*) + 68
4   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
5   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
6   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 4:
0   libsystem_kernel.dylib           0x00007fff987cf48a __semwait_signal + 10
1   libsystem_c.dylib                 0x00007fff898e5e34 usleep + 54
2   RapportUtil1.dylib               0x0000000111b5a6f1 bp_heartbeat_thread + 225
3   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
4   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
5   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 5:
0   libsystem_kernel.dylib           0x00007fff987cf136 __psynch_cvwait + 10
1   trf.dylib                         0x0000000111133e4f posix_waitable_condition::wait(int) + 241
2   trf.dylib                         0x0000000111170f7b async_tasks_scheduler::work() + 91
3   RapportUtil1.dylib               0x0000000111b5cf8a posix_async_tasks_scheduler::async_task_thread_wrapper(void*) + 10
4   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
5   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
6   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 6:
0   libsystem_kernel.dylib           0x00007fff987cf48a __semwait_signal + 10
1   libsystem_c.dylib                 0x00007fff898e5e34 usleep + 54
2   RapportDaishi.dylib               0x00000001110ddfd1 active_monitor_finish_thread(void*) + 193
3   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
4   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
5   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 7:: WebCore: IconDatabase
0   libsystem_kernel.dylib           0x00007fff987cf136 __psynch_cvwait + 10
1   com.apple.WebCore                 0x000000010d693efb WebCore::IconDatabase::syncThreadMainLoop() + 411
2   com.apple.WebCore                 0x000000010d6919a9 WebCore::IconDatabase::iconDatabaseSyncThread() + 361
3   com.apple.JavaScriptCore         0x000000010c09d0e3 WTF::threadEntryPoint(void*) + 179
4   com.apple.JavaScriptCore         0x000000010c09d00f WTF::wtfThreadEntryPoint(void*) + 15
5   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
6   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
7   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 8:: com.apple.CoreAnimation.render-server
0   libsystem_kernel.dylib           0x00007fff987ca4de mach_msg_trap + 10
1   libsystem_kernel.dylib           0x00007fff987c964f mach_msg + 55
2   com.apple.QuartzCore             0x00007fff8c59304f CA::Render::Server::server_thread(void*) + 198
3   com.apple.QuartzCore             0x00007fff8c592f82 thread_fun + 25
4   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
5   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
6   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 9:: com.apple.NSURLConnectionLoader
0   libsystem_kernel.dylib           0x00007fff987ca4de mach_msg_trap + 10
1   libsystem_kernel.dylib           0x00007fff987c964f mach_msg + 55
2   com.apple.CoreFoundation         0x00007fff8b0e1eb4 __CFRunLoopServiceMachPort + 212
3   com.apple.CoreFoundation         0x00007fff8b0e137b __CFRunLoopRun + 1371
4   com.apple.CoreFoundation         0x00007fff8b0e0bd8 CFRunLoopRunSpecific + 296
5   com.apple.CFNetwork               0x00007fff97a8e420 +[NSURLConnection(Loader) _resourceLoadLoop:] + 434
6   com.apple.Foundation             0x00007fff95596e92 __NSThread__main__ + 1345
7   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
8   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
9   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 10:: com.apple.CFSocket.private
0   libsystem_kernel.dylib           0x00007fff987cf3fa __select + 10
1   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
2   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
3   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 11:
0   libsystem_kernel.dylib           0x00007fff987ca4de mach_msg_trap + 10
1   libsystem_kernel.dylib           0x00007fff987c964f mach_msg + 55
2   com.apple.CoreFoundation         0x00007fff8b0e1eb4 __CFRunLoopServiceMachPort + 212
3   com.apple.CoreFoundation         0x00007fff8b0e137b __CFRunLoopRun + 1371
4   com.apple.CoreFoundation         0x00007fff8b0e0bd8 CFRunLoopRunSpecific + 296
5   com.apple.AppKit                 0x00007fff9496a56b _NSEventThread + 137
6   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
7   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
8   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 12:: JavaScriptCore::Marking
0   libsystem_kernel.dylib           0x00007fff987cf136 __psynch_cvwait + 10
1   libc++.1.dylib                   0x00007fff96dadc95 std::__1::condition_variable::wait(std::__1::unique_lock<std::__1::mutex>&) + 47
2   com.apple.JavaScriptCore         0x000000010c0a72ab JSC::GCThread::waitForNextPhase() + 171
3   com.apple.JavaScriptCore         0x000000010c0a7108 JSC::GCThread::gcThreadMain() + 88
4   com.apple.JavaScriptCore         0x000000010c09d0e3 WTF::threadEntryPoint(void*) + 179
5   com.apple.JavaScriptCore         0x000000010c09d00f WTF::wtfThreadEntryPoint(void*) + 15
6   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
7   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
8   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 13:: JavaScriptCore::Marking
0   libsystem_kernel.dylib           0x00007fff987cf136 __psynch_cvwait + 10
1   libc++.1.dylib                   0x00007fff96dadc95 std::__1::condition_variable::wait(std::__1::unique_lock<std::__1::mutex>&) + 47
2   com.apple.JavaScriptCore         0x000000010c0a72ab JSC::GCThread::waitForNextPhase() + 171
3   com.apple.JavaScriptCore         0x000000010c0a7108 JSC::GCThread::gcThreadMain() + 88
4   com.apple.JavaScriptCore         0x000000010c09d0e3 WTF::threadEntryPoint(void*) + 179
5   com.apple.JavaScriptCore         0x000000010c09d00f WTF::wtfThreadEntryPoint(void*) + 15
6   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
7   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
8   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 14:: JavaScriptCore::Marking
0   libsystem_kernel.dylib           0x00007fff987cf136 __psynch_cvwait + 10
1   libc++.1.dylib                   0x00007fff96dadc95 std::__1::condition_variable::wait(std::__1::unique_lock<std::__1::mutex>&) + 47
2   com.apple.JavaScriptCore         0x000000010c0a72ab JSC::GCThread::waitForNextPhase() + 171
3   com.apple.JavaScriptCore         0x000000010c0a7108 JSC::GCThread::gcThreadMain() + 88
4   com.apple.JavaScriptCore         0x000000010c09d0e3 WTF::threadEntryPoint(void*) + 179
5   com.apple.JavaScriptCore         0x000000010c09d00f WTF::wtfThreadEntryPoint(void*) + 15
6   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
7   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
8   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 15:: DFG Worklist Worker Thread
0   libsystem_kernel.dylib           0x00007fff987cf136 __psynch_cvwait + 10
1   com.apple.JavaScriptCore         0x000000010c400f1b JSC::DFG::Worklist::runThread(JSC::DFG::ThreadData*) + 219
2   com.apple.JavaScriptCore         0x000000010c09d0e3 WTF::threadEntryPoint(void*) + 179
3   com.apple.JavaScriptCore         0x000000010c09d00f WTF::wtfThreadEntryPoint(void*) + 15
4   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
5   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
6   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 16:: Safari: WBSParsecSearchClient location
0   libsystem_kernel.dylib           0x00007fff987ca4de mach_msg_trap + 10
1   libsystem_kernel.dylib           0x00007fff987c964f mach_msg + 55
2   com.apple.CoreFoundation         0x00007fff8b0e1eb4 __CFRunLoopServiceMachPort + 212
3   com.apple.CoreFoundation         0x00007fff8b0e137b __CFRunLoopRun + 1371
4   com.apple.CoreFoundation         0x00007fff8b0e0bd8 CFRunLoopRunSpecific + 296
5   com.apple.Safari.Shared           0x000000010c8f2493 -[WBSParsecSearchClient _locationThread] + 43
6   com.apple.Foundation             0x00007fff95596e92 __NSThread__main__ + 1345
7   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
8   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
9   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 17:: Safari: SafeBrowsingManager
0   libsystem_kernel.dylib           0x00007fff987ca4de mach_msg_trap + 10
1   libsystem_kernel.dylib           0x00007fff987c964f mach_msg + 55
2   com.apple.CoreFoundation         0x00007fff8b0e1eb4 __CFRunLoopServiceMachPort + 212
3   com.apple.CoreFoundation         0x00007fff8b0e137b __CFRunLoopRun + 1371
4   com.apple.CoreFoundation         0x00007fff8b0e0bd8 CFRunLoopRunSpecific + 296
5   com.apple.Safari.framework       0x000000010b7facf5 Safari::MessageRunLoop::threadBody() + 147
6   com.apple.Safari.framework       0x000000010b7fae95 void* std::__1::__thread_proxy<std::__1::tuple<Safari::MessageRunLoop::createThreadIfNeeded()::$_0> >(void*) + 90
7   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
8   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
9   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 18:
0   libsystem_kernel.dylib           0x00007fff987cf94a __workq_kernreturn + 10
1   libsystem_pthread.dylib           0x00007fff905b33dd start_wqthread + 13

Thread 19:
0   libsystem_kernel.dylib           0x00007fff987cf94a __workq_kernreturn + 10
1   libsystem_pthread.dylib           0x00007fff905b33dd start_wqthread + 13

Thread 20:
0   libsystem_kernel.dylib           0x00007fff987cf94a __workq_kernreturn + 10
1   libsystem_pthread.dylib           0x00007fff905b33dd start_wqthread + 13

Tony Lid · Sep 29, 2016

Code:

Thread 21:
0   libsystem_kernel.dylib           0x00007fff987cf48a __semwait_signal + 10
1   libc++.1.dylib                   0x00007fff96decd28 std::__1::this_thread::sleep_for(std::__1::chrono::duration<long long, std::__1::ratio<1l, 1000000000l> > const&) + 75
2   com.apple.JavaScriptCore         0x000000010c6d4998 bmalloc::Heap::scavenge(std::__1::unique_lock<bmalloc::StaticMutex>&, std::__1::chrono::duration<long long, std::__1::ratio<1l, 1000l> >) + 280
3   com.apple.JavaScriptCore         0x000000010c6d4564 bmalloc::Heap::concurrentScavenge() + 68
4   com.apple.JavaScriptCore         0x000000010c6d632d bmalloc::AsyncTask<bmalloc::Heap, void (bmalloc::Heap::*)()>::entryPoint() + 93
5   com.apple.JavaScriptCore         0x000000010c6d62c9 bmalloc::AsyncTask<bmalloc::Heap, void (bmalloc::Heap::*)()>::pthreadEntryPoint(void*) + 9
6   libsystem_pthread.dylib           0x00007fff905b605a _pthread_body + 131
7   libsystem_pthread.dylib           0x00007fff905b5fd7 _pthread_start + 176
8   libsystem_pthread.dylib           0x00007fff905b33ed thread_start + 13

Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x0000000000000000  rbx: 0x00007fff546ba320  rcx: 0x0000000000000030  rdx: 0x0000000010f0fffe
  rdi: 0x0000000000000def  rsi: 0x0000000000000000  rbp: 0x00007fff546b9e60  rsp: 0x00007fff546b9e40
   r8: 0x0000000000000de0   r9: 0x0000000110f00000  r10: 0x000000010c763086  r11: 0x000000010d0eaf2f
  r12: 0x000000011737b6f0  r13: 0x0000000000000000  r14: 0x000000000000001b  r15: 0x00007fff546b9e98
  rip: 0x000000010c09c982  rfl: 0x0000000000010206  cr2: 0x0000000000000000

Logical CPU:     0
Error Code:      0x00000006
Trap Number:     14


Binary Images:
       0x10b543000 -        0x10b543fff  com.apple.Safari (9.1.3 - 10601.7.8) <C8B24E04-FB26-3570-9B2C-0A1B6076BCBC> /Applications/Safari.app/Contents/MacOS/Safari
       0x10b54a000 -        0x10bc21ff7  com.apple.Safari.framework (10601 - 10601.7.8) <AF05FECE-1625-305B-97BD-52613A660201> /System/Library/StagedFrameworks/Safari/Safari.framework/Versions/A/Safari
       0x10c099000 -        0x10c73dff7  com.apple.JavaScriptCore (10601 - 10601.7.8) <17834A55-08B2-3BD5-84A5-9F150E6A52D4> /System/Library/StagedFrameworks/Safari/JavaScriptCore.framework/Versions/A/JavaScriptCore
       0x10c8dd000 -        0x10c8defff  libsysmon.dylib (78.10.1) <FAA22A2A-55A7-39A3-A293-3C566931CA6B> /usr/lib/libsysmon.dylib
       0x10c8e6000 -        0x10cc57ff7  com.apple.Safari.Shared (10601 - 10601.7.1) <CE69BCE4-5E03-30A2-A6AD-302DD7164CAA> /System/Library/PrivateFrameworks/SafariShared.framework/Versions/A/SafariShared
       0x10cd6c000 -        0x10d0affff  com.apple.WebKit (10601 - 10601.7.8) <158B919D-3FD1-3704-9704-6885B7E84606> /System/Library/StagedFrameworks/Safari/WebKit.framework/Versions/A/WebKit
       0x10d429000 -        0x10d583ffb  com.apple.WebKitLegacy (10601 - 10601.7.8) <B913B5B3-B8F1-3C44-8A96-94599AAEC985> /System/Library/StagedFrameworks/Safari/WebKitLegacy.framework/Versions/A/WebKitLegacy
       0x10d68d000 -        0x10e767ff3  com.apple.WebCore (10601 - 10601.7.5) <BFF99F5A-2DB2-3322-9BDF-DDB6B16028A1> /System/Library/StagedFrameworks/Safari/WebCore.framework/Versions/A/WebCore
       0x10f25e000 -        0x10f26bfff  libGPUSupport.dylib (11.1.6) <84EBD26B-5C9B-305F-BA3E-7D293330140C> /System/Library/PrivateFrameworks/GPUSupport.framework/Versions/A/Libraries/libGPUSupport.dylib
       0x10f2a6000 -        0x10f2a6ffe +cl_kernels (???) <4FF154C3-33EA-4D5A-8342-05DA2E3B6E0A> cl_kernels
       0x10f2aa000 -        0x10f2aafff +cl_kernels (???) <CD2713CA-A23D-4881-B97A-1472C2EB33C8> cl_kernels
       0x110bd0000 -        0x110bdafff +librooksmce.dylib (0) <ACDBB2E1-3D74-3ED4-AB02-0FCACFB0C921> /Library/Rapport/*/librooksmce.dylib
       0x111000000 -        0x111076ff7 +librooksbas.dylib (0) <65129648-C7E7-3C71-A0A7-50B82C2A63E3> /Library/Rapport/*/librooksbas.dylib
       0x1110dc000 -        0x111109ff7 +RapportDaishi.dylib (0) <2817D0FA-5E71-347F-B1E7-581B4E24CAFD> /Library/Rapport/*/RapportDaishi.dylib
       0x11112b000 -        0x1111d1fff +trf.dylib (0) <735A0AB9-9EA5-36B6-81D0-2194B42BD569> /Library/Rapport/*/trf.dylib
       0x111b3e000 -        0x111dedfff +RapportUtil1.dylib (0) <4D547AF9-10B1-398F-8207-3E5AB211DBB6> /Library/Rapport/*/RapportUtil1.dylib
       0x113f2c000 -        0x113f32ff7  com.apple.SymptomReporter (1.0 - 1) <3191E395-6284-3C5F-BDA2-BB061CF00B51> /System/Library/PrivateFrameworks/Symptoms.framework/Frameworks/SymptomReporter.framework/SymptomReporter
       0x114a83000 -        0x114a95fff  com.apple.webcontentfilter.framework (5.1 - 5.1) <975CC7A3-3D88-3015-9A60-277F9985CB33> /System/Library/PrivateFrameworks/WebContentAnalysis.framework/WebContentAnalysis
       0x114aab000 -        0x114aabff5 +cl_kernels (???) <8CD22F92-A9F8-4AE9-97E4-24E977F4DF54> cl_kernels
       0x114ab0000 -        0x114ab0fff +cl_kernels (???) <CD2713CA-A23D-4881-B97A-1472C2EB33C8> cl_kernels
       0x1152d2000 -        0x11562dfff  com.apple.driver.AppleIntelHDGraphicsGLDriver (10.0.35 - 10.0.0) <8F125073-B855-3123-8BBF-0239E74B1A08> /System/Library/Extensions/AppleIntelHDGraphicsGLDriver.bundle/Contents/MacOS/AppleIntelHDGraphicsGLDriver
       0x1195fc000 -        0x119d9efff  libclh.dylib (4.0.3 - 4.0.3) <A15CE219-3A04-3B7F-BC98-F70FEBE71B35> /System/Library/Extensions/GeForceTeslaGLDriver.bundle/Contents/MacOS/libclh.dylib
       0x11a127000 -        0x11a1daff7  com.apple.NetworkExtension (1.0 - 1) <B1CA6A34-59EE-37F4-BCBB-E7D8A4087B8F> /System/Library/Frameworks/NetworkExtension.framework/NetworkExtension
       0x11aca4000 -        0x11ad8afef  unorm8_bgra.dylib (2.4.5) <9980365E-FADF-36CB-97CC-2530BB70BA8A> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/ImageFormats/unorm8_bgra.dylib
       0x11b143000 -        0x11b14bfff  com.apple.SyncedDefaults (2.0 - 212.3) <CC9A4CFA-7B0F-3D7A-888C-18AD35735F3F> /System/Library/PrivateFrameworks/SyncedDefaults.framework/SyncedDefaults
       0x11b231000 -        0x11b231ffe +cl_kernels (???) <4FF154C3-33EA-4D5A-8342-05DA2E3B6E0A> cl_kernels
       0x11b26a000 -        0x11b34aff7  unorm8_rgba.dylib (2.4.5) <6FB16659-64C4-3D3C-B33F-7B8F073B4A16> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/ImageFormats/unorm8_rgba.dylib
       0x11ba57000 -        0x11ba88fff  com.apple.LookupFramework (1.1 - 160) <F7FA886B-82DC-36F6-950D-4E72425377C9> /System/Library/PrivateFrameworks/Lookup.framework/Lookup
       0x11d800000 -        0x11e08ffff  com.apple.GeForceTeslaGLDriver (10.0.35 - 10.0.0) <C8B4F069-90F9-3F53-BBDB-AC0A82A1BB78> /System/Library/Extensions/GeForceTeslaGLDriver.bundle/Contents/MacOS/GeForceTeslaGLDriver
    0x7fff672ba000 -     0x7fff672f092f  dyld (353.2.4) <708E385E-50C6-32A3-983C-42E97BEE4346> /usr/lib/dyld
    0x7fff8965e000 -     0x7fff89843ff7  libicucore.A.dylib (531.50) <CAA7ACE0-4012-3A13-864D-2B56B4B072FD> /usr/lib/libicucore.A.dylib
    0x7fff89844000 -     0x7fff8984cfff  libsystem_dnssd.dylib (576.50.2) <9EC5AF92-D0D2-3BDE-92B6-D3730D3865C8> /usr/lib/system/libsystem_dnssd.dylib
    0x7fff8984d000 -     0x7fff89866ff7  com.apple.CalendarAgentLink (8.0 - 250) <0F3CCA9C-645D-3A1A-A959-F4F8D31F9B1A> /System/Library/PrivateFrameworks/CalendarAgentLink.framework/Versions/A/CalendarAgentLink
    0x7fff89867000 -     0x7fff898f3fef  libsystem_c.dylib (1044.40.3) <2E673D96-E334-37D2-833A-E57383BBA377> /usr/lib/system/libsystem_c.dylib
    0x7fff898f4000 -     0x7fff898f7ff7  libdyld.dylib (353.2.4) <224F35C5-6E35-3EC4-A97C-80949CE444E7> /usr/lib/system/libdyld.dylib
    0x7fff8990b000 -     0x7fff8990bff7  liblaunch.dylib (559.40.1) <4F81CA3A-D2CE-3030-A89D-42F3DAD7BA8F> /usr/lib/system/liblaunch.dylib
    0x7fff8990c000 -     0x7fff8990cfff  com.apple.Accelerate (1.10 - Accelerate 1.10) <F1B96A61-7E4B-31BD-A35B-BA7EF1F16EF4> /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate
    0x7fff8990d000 -     0x7fff899a4fff  com.apple.CoreMedia (1.0 - 1562.240) <CCAF850F-B2E8-3F3B-9DE9-2BB469403EDF> /System/Library/Frameworks/CoreMedia.framework/Versions/A/CoreMedia
    0x7fff899c6000 -     0x7fff89a65e27  com.apple.AppleJPEG (1.0 - 1) <6627DDD9-A8FE-3968-B23A-B6A29AA3919A> /System/Library/PrivateFrameworks/AppleJPEG.framework/Versions/A/AppleJPEG
    0x7fff89a66000 -     0x7fff89d68ffb  com.apple.GeoServices (1.0 - 1077.0.18) <2BBF8B44-DD46-3432-8C84-6D6AA004C233> /System/Library/PrivateFrameworks/GeoServices.framework/Versions/A/GeoServices
    0x7fff89d6c000 -     0x7fff89d6efff  com.apple.OAuth (25 - 25) <EE765AF0-2BB6-3689-9EAA-689BF1F02A0D> /System/Library/PrivateFrameworks/OAuth.framework/Versions/A/OAuth
    0x7fff89d6f000 -     0x7fff89d79fff  com.apple.IntlPreferences (2.0 - 150.1) <74180438-8082-3407-B373-7A7899D7B0C2> /System/Library/PrivateFrameworks/IntlPreferences.framework/Versions/A/IntlPreferences
    0x7fff89d7a000 -     0x7fff89d7bffb  libremovefile.dylib (35) <3485B5F4-6CE8-3C62-8DFD-8736ED6E8531> /usr/lib/system/libremovefile.dylib
    0x7fff89d8b000 -     0x7fff89e20ff7  com.apple.ColorSync (4.9.0 - 4.9.0) <9150C2B7-2E6E-3509-96EA-7B3F959F049E> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSync.framework/Versions/A/ColorSync
    0x7fff89f6a000 -     0x7fff89f97ff7  com.apple.Accounts (113 - 113) <17D8868C-7079-354F-8F37-B8346960D94B> /System/Library/Frameworks/Accounts.framework/Versions/A/Accounts
    0x7fff89fc8000 -     0x7fff8a08bff7  libvMisc.dylib (516) <21497A28-8DCB-3EB8-BDAC-93C93382B0AA> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib
    0x7fff8a08c000 -     0x7fff8a0ccff7  libGLImage.dylib (11.1.6) <D6DDC014-2C74-34B3-970A-26F211FF76EF> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib
    0x7fff8a0cd000 -     0x7fff8a141ffb  com.apple.securityfoundation (6.0 - 55126) <344401F5-4016-3AEB-BFDC-CE8E5546D39F> /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation
    0x7fff8a142000 -     0x7fff8a14dfff  com.apple.AppSandbox (4.0 - 238.20.2) <BEFAB7F2-B189-391B-9B2D-FFF3EE2B77B6> /System/Library/PrivateFrameworks/AppSandbox.framework/Versions/A/AppSandbox
    0x7fff8a171000 -     0x7fff8a191ff7  com.apple.MultitouchSupport.framework (264.6 - 264.6) <1539F1F6-6334-37F3-9C52-02EFFBF4835D> /System/Library/PrivateFrameworks/MultitouchSupport.framework/Versions/A/MultitouchSupport
    0x7fff8a193000 -     0x7fff8a1aefff  com.apple.PackageKit.PackageUIKit (3.0 - 438) <B2328377-7E17-3994-865D-8BE372323C5C> /System/Library/PrivateFrameworks/PackageKit.framework/Frameworks/PackageUIKit.framework/Versions/A/PackageUIKit
    0x7fff8a24c000 -     0x7fff8a264fff  com.apple.CalendarStore (8.0 - 1479) <B80CF66C-EA3D-37CD-9233-01CC0550D386> /System/Library/Frameworks/CalendarStore.framework/Versions/A/CalendarStore
    0x7fff8a28e000 -     0x7fff8a3a7ffb  com.apple.CoreText (454.11 - 454.11) <7E5228C8-8657-3B6C-B3A4-98B79A3041EA> /System/Library/Frameworks/CoreText.framework/Versions/A/CoreText
    0x7fff8a3a8000 -     0x7fff8a68fffb  com.apple.CoreServices.CarbonCore (1108.6 - 1108.6) <8953580E-7857-33B2-AA64-98296830D3A8> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore
    0x7fff8a690000 -     0x7fff8a79fff3  com.apple.desktopservices (1.9.3 - 1.9.3) <FEE11342-5BC4-37A7-8169-DA48BE17B9C9> /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv
    0x7fff8a876000 -     0x7fff8a884fff  com.apple.AddressBook.ContactsFoundation (9.0 - 1579) <34ED9046-0157-399F-9742-2FC2D098E368> /System/Library/PrivateFrameworks/ContactsFoundation.framework/Versions/A/ContactsFoundation
    0x7fff8a885000 -     0x7fff8a89fff7  com.apple.Kerberos (3.0 - 1) <7760E0C2-A222-3709-B2A6-B692D900CEB1> /System/Library/Frameworks/Kerberos.framework/Versions/A/Kerberos
    0x7fff8a8a0000 -     0x7fff8a8a2fff  com.apple.SecCodeWrapper (4.0 - 238.20.2) <C6C126F0-6BF4-3E29-A9B7-7BAD8D17EE4F> /System/Library/PrivateFrameworks/SecCodeWrapper.framework/Versions/A/SecCodeWrapper
    0x7fff8a8a3000 -     0x7fff8abd6ff7  libmecabra.dylib (666.7) <0ED8AE5E-7A5B-34A6-A2EE-2B852E60E1E2> /usr/lib/libmecabra.dylib
    0x7fff8abd7000 -     0x7fff8abdbfff  com.apple.LoginUICore (3.2 - 3.2) <417954C5-1675-31A8-9631-6B56E9AA3E93> /System/Library/PrivateFrameworks/LoginUIKit.framework/Versions/A/Frameworks/LoginUICore.framework/Versions/A/LoginUICore
    0x7fff8abdc000 -     0x7fff8ac97ff7  com.apple.DiscRecording (9.0 - 9000.4.2) <4655B4B8-523D-3AE6-92A0-8486A2258B3B> /System/Library/Frameworks/DiscRecording.framework/Versions/A/DiscRecording
    0x7fff8ac98000 -     0x7fff8ac9aff7  libsystem_coreservices.dylib (9) <41B7C578-5A53-31C8-A96F-C73E030B0938> /usr/lib/system/libsystem_coreservices.dylib
    0x7fff8ac9b000 -     0x7fff8ad19fff  com.apple.CoreServices.OSServices (640.4 - 640.4) <9D175CD9-B27F-3529-8269-66D8AA83582E> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices
    0x7fff8ad1a000 -     0x7fff8afe9ff3  com.apple.CoreImage (10.3.5) <0224F5A6-636A-374B-B46C-13E066596725> /System/Library/Frameworks/QuartzCore.framework/Versions/A/Frameworks/CoreImage.framework/Versions/A/CoreImage
    0x7fff8afea000 -     0x7fff8b03dffb  libAVFAudio.dylib (118.6) <2441D4C1-D8FB-3DA9-9DD7-914E03413882> /System/Library/Frameworks/AVFoundation.framework/Versions/A/Resources/libAVFAudio.dylib
    0x7fff8b03e000 -     0x7fff8b05afff  com.apple.GenerationalStorage (2.0 - 209.11) <9FF8DD11-25FB-3047-A5BF-9415339B3EEC> /System/Library/PrivateFrameworks/GenerationalStorage.framework/Versions/A/GenerationalStorage
    0x7fff8b063000 -     0x7fff8b06efff  libGL.dylib (11.1.6) <38B3FF9A-5660-3080-9DB8-1CAE0E8CD739> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib
    0x7fff8b06f000 -     0x7fff8b407ff7  com.apple.CoreFoundation (6.9 - 1153.18) <5C0892B8-9691-341F-9279-CA3A74D59AA0> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
    0x7fff8b408000 -     0x7fff8b4fcff7  libFontParser.dylib (134.10) <6CF434A2-91CA-3477-BDE2-124508EDA05D> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontParser.dylib
    0x7fff8b4fd000 -     0x7fff8b641ff7  com.apple.QTKit (7.7.3 - 2890.9) <993AF630-272B-3AE6-97A5-946C4283485A> /System/Library/Frameworks/QTKit.framework/Versions/A/QTKit
    0x7fff8b642000 -     0x7fff8b66dff7  com.apple.DictionaryServices (1.2 - 229.1) <62EC3E1B-5A28-3252-90FF-C2E9999C2A2A> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/DictionaryServices.framework/Versions/A/DictionaryServices
    0x7fff8b67d000 -     0x7fff8b6b8fff  com.apple.QD (301 - 301) <C4D2AD03-B839-350A-AAF0-B4A08F8BED77> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD
    0x7fff8b6b9000 -     0x7fff8b6b9fff  com.apple.SafariDAVNotifier (1.1.1 - 1) <21D4673A-52C7-391D-AF7C-F77D368D34AE> /System/Library/PrivateFrameworks/BookmarkDAV.framework/Versions/A/Frameworks/SafariDAVNotifier.framework/Versions/A/SafariDAVNotifier
    0x7fff8b6ba000 -     0x7fff8b6d4ff3  com.apple.Ubiquity (1.3 - 313) <DF56A657-CC6E-3BE2-86A0-71F07127724C> /System/Library/PrivateFrameworks/Ubiquity.framework/Versions/A/Ubiquity
    0x7fff8c11c000 -     0x7fff8c529ff7  libLAPACK.dylib (1128) <F9201AE7-B031-36DB-BCF8-971E994EF7C1> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib
    0x7fff8c52a000 -     0x7fff8c52efff  libspindump.dylib (182.4) <929670EB-4963-3496-AD24-8B50E388803C> /usr/lib/libspindump.dylib
    0x7fff8c52f000 -     0x7fff8c53afff  libcommonCrypto.dylib (60061.30.1) <E789748D-F9A7-3CFF-B317-90DF348B1E95> /usr/lib/system/libcommonCrypto.dylib
    0x7fff8c53b000 -     0x7fff8c572ffb  com.apple.LDAPFramework (2.4.28 - 194.5) <CAFB9695-000F-34EA-8DF5-09996929C26A> /System/Library/Frameworks/LDAP.framework/Versions/A/LDAP
    0x7fff8c573000 -     0x7fff8c723ff3  com.apple.QuartzCore (1.10 - 361.19) <E59000AA-DC30-3F73-A103-0240576C9556> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7fff8c724000 -     0x7fff8c72dfff  libGFXShared.dylib (11.1.6) <CB24B5DA-CB17-3A0B-94E1-5A58DADC3FBD> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGFXShared.dylib
    0x7fff8d6f2000 -     0x7fff8d6f7fff  com.apple.DiskArbitration (2.6 - 2.6) <0DFF4D9B-2AC3-3B82-B5C5-30F4EFBD2DB9> /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration
    0x7fff8d6f8000 -     0x7fff8d9fdff3  com.apple.HIToolbox (2.1.1 - 758.7) <B1188DED-5E71-3AB4-9E57-67F84C116ECE> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox
    0x7fff8df14000 -     0x7fff8df15ff7  com.apple.AddressBook.ContactsData (9.0 - 1579) <FF9C31DD-7839-35FB-AE66-21AEF63583EF> /System/Library/PrivateFrameworks/ContactsData.framework/Versions/A/ContactsData
    0x7fff8df16000 -     0x7fff8df24fff  libIASAuthReboot.dylib (924.1) <53C72645-DFA7-37D6-93E8-CF3CD4FBC3B4> /usr/lib/libIASAuthReboot.dylib
    0x7fff8dfa3000 -     0x7fff8dfd0fff  com.apple.CoreVideo (1.8 - 145.1) <18DB07E0-B927-3260-A234-636F298D1917> /System/Library/Frameworks/CoreVideo.framework/Versions/A/CoreVideo
    0x7fff8dfd1000 -     0x7fff8e250ff7  com.apple.CoreData (111 - 526.3) <5A27E0D8-5E5A-335B-B3F6-2601C7B976FA> /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData
    0x7fff8e251000 -     0x7fff8e282fff  libtidy.A.dylib (15.15) <37FC944D-271A-386A-9ADD-FA33AD48F96D> /usr/lib/libtidy.A.dylib
    0x7fff8e290000 -     0x7fff8e4faff7  com.apple.imageKit (2.6.1 - 850) <612201FE-768E-386B-82E3-764038B40120> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/ImageKit.framework/Versions/A/ImageKit
    0x7fff8e4fb000 -     0x7fff8e526fff  libc++abi.dylib (125) <88A22A0F-87C6-3002-BFBA-AC0F2808B8B9> /usr/lib/libc++abi.dylib
    0x7fff8e527000 -     0x7fff8e52dff7  libsystem_networkextension.dylib (167.40.3) <BA58B30B-8377-3B0A-8AE3-4F84021D9D4E> /usr/lib/system/libsystem_networkextension.dylib
    0x7fff8e52e000 -     0x7fff8e695ffb  com.apple.audio.toolbox.AudioToolbox (1.12 - 1.12) <5678FC94-456A-3F5F-BA9A-10EB6E462997> /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox
    0x7fff8e696000 -     0x7fff8e6bbff7  libPng.dylib (1247) <77D01ED0-F237-3616-B3F5-63F2FB2918AB> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib
    0x7fff8e6bc000 -     0x7fff8e70aff7  com.apple.ImageCaptureCore (6.3 - 6.3) <75B5043C-9EF0-3CD2-875D-12813F0A73D3> /System/Library/Frameworks/ImageCaptureCore.framework/Versions/A/ImageCaptureCore
    0x7fff8e742000 -     0x7fff8e771ff7  com.apple.CoreServicesInternal (221.7.2 - 221.7.2) <B93D4775-149C-3698-B38C-9C50673D455C> /System/Library/PrivateFrameworks/CoreServicesInternal.framework/Versions/A/CoreServicesInternal
    0x7fff8e789000 -     0x7fff8e78bff7  com.apple.securityhi (9.0 - 55006) <15D38919-9697-3E3A-BCB9-4E3271BC2C7E> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SecurityHI.framework/Versions/A/SecurityHI
    0x7fff8e78c000 -     0x7fff8e7afff7  com.apple.framework.familycontrols (4.1 - 410) <E491AFDB-2E12-37D0-B093-6E93091019C4> /System/Library/PrivateFrameworks/FamilyControls.framework/Versions/A/FamilyControls
    0x7fff8e7b8000 -     0x7fff8e7bffff  com.apple.NetFS (6.0 - 4.0) <C263C8F8-F284-3101-AC82-A97A81716063> /System/Library/Frameworks/NetFS.framework/Versions/A/NetFS
    0x7fff8e7c0000 -     0x7fff8e7d5ff7  com.apple.AppContainer (4.0 - 238.20.2) <2AA2EF49-9F38-31F6-8B08-8CC7C26F57F3> /System/Library/PrivateFrameworks/AppContainer.framework/Versions/A/AppContainer
    0x7fff8e80c000 -     0x7fff8e814ff3  com.apple.CloudServices (1.0 - 1) <EEC11E55-5969-3459-B032-4ACFA93E0344> /System/Library/PrivateFrameworks/CloudServices.framework/Versions/A/CloudServices
    0x7fff8e815000 -     0x7fff8e826fff  libcmph.dylib (1) <46EC3997-DB5E-38AE-BBBB-A035A54AD3C0> /usr/lib/libcmph.dylib
    0x7fff8e827000 -     0x7fff8e82affb  libCGXType.A.dylib (788.3.5) <BACC8191-0745-3043-867A-76EE91F6542E> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGXType.A.dylib
    0x7fff8e82b000 -     0x7fff8e838ff3  com.apple.ProtocolBuffer (1 - 228.0.1) <3429EB06-9F0E-355F-B9AB-F72879177398> /System/Library/PrivateFrameworks/ProtocolBuffer.framework/Versions/A/ProtocolBuffer
    0x7fff8e839000 -     0x7fff8e83bfff  libsystem_sandbox.dylib (358.20.5) <3F5E973F-C702-31AC-97BC-05F5C195683C> /usr/lib/system/libsystem_sandbox.dylib
    0x7fff8e8f6000 -     0x7fff8e922fff  libsandbox.1.dylib (358.20.5) <6EC9EB0E-5231-3786-8F84-D60B0AD0F025> /usr/lib/libsandbox.1.dylib
    0x7fff8e923000 -     0x7fff8e92aff7  libCGCMS.A.dylib (788.3.5) <F5193CE4-C3A8-3E77-9CB9-2F5234383600> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libCGCMS.A.dylib
    0x7fff8e92b000 -     0x7fff8e964fff  com.apple.AirPlaySupport (2.0 - 215.18) <A7730005-A538-30E8-815B-727957D74C89> /System/Library/PrivateFrameworks/AirPlaySupport.framework/Versions/A/AirPlaySupport
    0x7fff8e965000 -     0x7fff8e969fff  libCoreVMClient.dylib (79.1) <201EF6DF-5074-3CB7-A361-398CF957A264> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreVMClient.dylib
    0x7fff8e9ab000 -     0x7fff8e9bdff7  com.apple.ImageCapture (9.0 - 9.0) <7FB65DD4-56B5-35C4-862C-7A2DED991D1F> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/ImageCapture.framework/Versions/A/ImageCapture
    0x7fff8e9be000 -     0x7fff8e9fffff  libGLU.dylib (11.1.6) <4BC6579D-A6D0-3A19-880E-E29FAEA698E7> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib
    0x7fff8ea00000 -     0x7fff8ea4dff3  com.apple.CoreMediaIO (601.0 - 4760) <546B03BF-A687-36E1-AAFA-58D4B1A732D4> /System/Library/Frameworks/CoreMediaIO.framework/Versions/A/CoreMediaIO
    0x7fff8ea4e000 -     0x7fff8eae2fff  com.apple.ink.framework (10.9 - 213) <8E029630-1530-3734-A446-13353F0E7AC5> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink
    0x7fff8eae3000 -     0x7fff8ed61fff  com.apple.RawCamera.bundle (6.05 - 806) <21725AF6-40DA-3753-8556-114692B675E0> /System/Library/CoreServices/RawCamera.bundle/Contents/MacOS/RawCamera
    0x7fff8edb1000 -     0x7fff8edd5ff7  com.apple.facetimeservices (10.0 - 1000) <E2AB7900-5171-3DE0-9DBF-2CC14512B40A> /System/Library/PrivateFrameworks/FTServices.framework/Versions/A/FTServices
    0x7fff8edd6000 -     0x7fff8eddeff3  com.apple.CoreServices.FSEvents (1210.20.1 - 1210.20.1) <84F79D3E-7B5E-3C93-8479-35794A3F125E> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/FSEvents.framework/Versions/A/FSEvents
    0x7fff8eddf000 -     0x7fff8ede8ff7  libsystem_notify.dylib (133.1.1) <61147800-F320-3DAA-850C-BADF33855F29> /usr/lib/system/libsystem_notify.dylib
    0x7fff8edfd000 -     0x7fff8edfefff  liblangid.dylib (117) <B54A4AA0-2E53-3671-90F5-AFF711C0EB9E> /usr/lib/liblangid.dylib
    0x7fff8edff000 -     0x7fff8ee03fff  com.apple.CommonPanels (1.2.6 - 96) <F9ECC8AF-D9CA-3350-AFB4-5113A9B789A5> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CommonPanels.framework/Versions/A/CommonPanels
    0x7fff8ee04000 -     0x7fff8ee2eff7  libdispatch.dylib (442.50.1) <A61E703C-784A-3698-B513-75DD12AAD6DC> /usr/lib/system/libdispatch.dylib
    0x7fff8eedf000 -     0x7fff8eeecfff  libxar.1.dylib (255) <7CD69BB5-97BA-3858-8A8B-2F33F129E6E7> /usr/lib/libxar.1.dylib
    0x7fff8ef07000 -     0x7fff8ef07fff  com.apple.quartzframework (1.5 - 1.5) <26C982A3-2FC3-3F50-B5F4-3C545C3BAC10> /System/Library/Frameworks/Quartz.framework/Versions/A/Quartz
    0x7fff8ef08000 -     0x7fff8ef0afff  libquarantine.dylib (76.20.1) <7AF90041-2768-378A-925A-D83161863642> /usr/lib/system/libquarantine.dylib
    0x7fff8ef0b000 -     0x7fff8ef0cfff  com.apple.TrustEvaluationAgent (2.0 - 25) <2D61A2C3-C83E-3A3F-8EC1-736DBEC250AB> /System/Library/PrivateFrameworks/TrustEvaluationAgent.framework/Versions/A/TrustEvaluationAgent
    0x7fff8ef1d000 -     0x7fff8ef48ffb  libarchive.2.dylib (30.50.1) <C140763F-5470-3302-B3E0-651B4B5930ED> /usr/lib/libarchive.2.dylib
    0x7fff8ef49000 -     0x7fff8ef4aff7  libodfde.dylib (22) <52D0ABCD-F464-362C-86EA-ACA10993F556> /usr/lib/libodfde.dylib
    0x7fff8ef73000 -     0x7fff8efeafff  com.apple.ShareKit (1.0 - 329) <C0691058-76FF-39A7-A7A5-48356DD7CF2C> /System/Library/PrivateFrameworks/ShareKit.framework/Versions/A/ShareKit
    0x7fff8efeb000 -     0x7fff8f036fff  com.apple.DiskManagement (7.2 - 847.8) <AC5F075C-BC03-3A29-8235-450CD243565D> /System/Library/PrivateFrameworks/DiskManagement.framework/Versions/A/DiskManagement
    0x7fff8f16c000 -     0x7fff8f1c9fff  com.apple.QuickLookFramework (5.0 - 675.43) <506D60B4-B188-3D0A-9187-0404A60A9B06> /System/Library/Frameworks/QuickLook.framework/Versions/A/QuickLook
    0x7fff8f1ca000 -     0x7fff8f1e1fff  com.apple.login (3.0 - 3.0) <D96185A0-6DA4-31F7-B524-5099DC6935F5> /System/Library/PrivateFrameworks/login.framework/Versions/A/login
    0x7fff8f1e2000 -     0x7fff8f1f1ff7  com.apple.ToneLibrary (1.0 - 1) <179C7D61-CB88-3CE3-9F06-4D60D13D616C> /System/Library/PrivateFrameworks/ToneLibrary.framework/Versions/A/ToneLibrary
    0x7fff8f1f2000 -     0x7fff8f29efd7  com.apple.PackageKit (3.0 - 438) <4A8C2873-57FC-3E69-B88E-A94268F7521B> /System/Library/PrivateFrameworks/PackageKit.framework/Versions/A/PackageKit
    0x7fff8f29f000 -     0x7fff8f328ff7  com.apple.CoreSymbolication (3.1 - 57020.2) <FDAF88F6-7D11-37BC-B758-4B835FA657BA> /System/Library/PrivateFrameworks/CoreSymbolication.framework/Versions/A/CoreSymbolication
    0x7fff8fc89000 -     0x7fff8fcaafff  com.apple.framework.Apple80211 (10.3 - 1030.71.6) <C0A17391-5C8B-34B1-BD46-8D644AB57DE0> /System/Library/PrivateFrameworks/Apple80211.framework/Versions/A/Apple80211
    0x7fff8fcab000 -     0x7fff8fcd5fff  GLRendererFloat (11.1.6) <EB135987-0B93-393F-9139-CAB7F6FEBB12> /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLRendererFloat.bundle/GLRendererFloat
    0x7fff8fcd6000 -     0x7fff8fd5aff7  com.apple.ViewBridge (105.1 - 105.1) <98E9733F-D863-30CE-BF25-E6768C73AF21> /System/Library/PrivateFrameworks/ViewBridge.framework/Versions/A/ViewBridge
    0x7fff8fd5b000 -     0x7fff8fdc9ff3  com.apple.Heimdal (4.0 - 2.0) <8D1667CF-D454-3E07-A58E-E15591B5A95E> /System/Library/PrivateFrameworks/Heimdal.framework/Versions/A/Heimdal
    0x7fff8fdca000 -     0x7fff8fe19ff7  libcurl.4.dylib (83.40.2) <AE97ED1E-A58F-3EF0-8E88-DDC6AD409BCE> /usr/lib/libcurl.4.dylib
    0x7fff8fe1a000 -     0x7fff8fe22ff7  com.apple.AppleSRP (5.0 - 1) <68F0C577-ED96-34F2-B701-CE3023367D4D> /System/Library/PrivateFrameworks/AppleSRP.framework/Versions/A/AppleSRP
    0x7fff8fe2e000 -     0x7fff8fe5bff3  com.apple.SystemConfiguration.EAP8021X (14.0.0 - 14.0) <6649D29A-6240-3909-8539-4D353D9D09AE> /System/Library/PrivateFrameworks/EAP8021X.framework/Versions/A/EAP8021X
    0x7fff8fe5c000 -     0x7fff8fe81ff7  libJPEG.dylib (1247) <CF4C9F4F-9113-3FD0-8A91-C65F9BBFA439> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib
    0x7fff8fe8f000 -     0x7fff8fe9aff7  com.apple.CrashReporterSupport (10.10 - 631) <C44259AC-0A1C-3EC5-99AC-48CB520A709D> /System/Library/PrivateFrameworks/CrashReporterSupport.framework/Versions/A/CrashReporterSupport
    0x7fff8fe9b000 -     0x7fff90132ff7  com.apple.AOSKit (1.06 - 217) <92537A36-DF3F-3ABC-834C-FC723318A8A3> /System/Library/PrivateFrameworks/AOSKit.framework/Versions/A/AOSKit
    0x7fff90133000 -     0x7fff9016dffb  com.apple.DebugSymbols (115 - 115) <6F03761D-7C3A-3C80-8031-AA1C1AD7C706> /System/Library/PrivateFrameworks/DebugSymbols.framework/Versions/A/DebugSymbols
    0x7fff9016e000 -     0x7fff9016efff  com.apple.ApplicationServices (48 - 48) <5BF7910B-C328-3BF8-BA4F-CE52B574CE01> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices
    0x7fff9016f000 -     0x7fff90216fff  com.apple.PDFKit (3.1 - 3.1) <D410CE57-6227-31D8-9F39-92583E552EA8> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/PDFKit.framework/Versions/A/PDFKit
    0x7fff903b4000 -     0x7fff903b4ff7  libunc.dylib (29) <5676F7EA-C1DF-329F-B006-D2C3022B7D70> /usr/lib/system/libunc.dylib
    0x7fff903b5000 -     0x7fff904ddff7  com.apple.coreui (2.1 - 308.6) <9E0E9C6A-68F5-34C1-A17C-96226D401D4D> /System/Library/PrivateFrameworks/CoreUI.framework/Versions/A/CoreUI
    0x7fff904de000 -     0x7fff904e0fff  libCVMSPluginSupport.dylib (11.1.6) <F82BF8C4-12D3-3EAD-AEDE-533AC08AEB4A> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCVMSPluginSupport.dylib
    0x7fff904e1000 -     0x7fff904f0fd3  com.apple.AppleFSCompression (68.30.1 - 1.0) <FC7A4084-8DBF-31DD-A2A4-97F719AA4F23> /System/Library/PrivateFrameworks/AppleFSCompression.framework/Versions/A/AppleFSCompression
    0x7fff904f1000 -     0x7fff905b1ff7  com.apple.backup.framework (1.6.5 - 1.6.5) <86396038-33EA-3046-9F70-093A3D6407D4> /System/Library/PrivateFrameworks/Backup.framework/Versions/A/Backup
    0x7fff905b2000 -     0x7fff905bbfff  libsystem_pthread.dylib (105.40.1) <ACE90967-ECD0-3251-AEEB-461E3C6414F7> /usr/lib/system/libsystem_pthread.dylib
    0x7fff905bc000 -     0x7fff906f9fff  com.apple.ImageIO.framework (3.3.0 - 1247) <B5EAE608-E1F2-3B8F-ACE2-D756AC0DB698> /System/Library/Frameworks/ImageIO.framework/Versions/A/ImageIO
    0x7fff906fa000 -     0x7fff90714ff7  liblzma.5.dylib (7) <1D03E875-A7C0-3028-814C-3C27F7B7C079> /usr/lib/liblzma.5.dylib
    0x7fff90715000 -     0x7fff90730fff  com.apple.AppleVPAFramework (1.4.5 - 1.4.5) <B21714FD-3F2E-36D8-996E-EC74676F933F> /System/Library/PrivateFrameworks/AppleVPA.framework/Versions/A/AppleVPA
    0x7fff90731000 -     0x7fff90823ffb  libxml2.2.dylib (26.11) <A9452FC8-D30D-3155-BCF0-EE548DD6A2C5> /usr/lib/libxml2.2.dylib
    0x7fff90824000 -     0x7fff90c54fff  com.apple.vision.FaceCore (3.1.6 - 3.1.6) <C3B823AA-C261-37D3-B4AC-C59CE91C8241> /System/Library/PrivateFrameworks/FaceCore.framework/Versions/A/FaceCore
    0x7fff90c62000 -     0x7fff90caeff7  libcups.2.dylib (408.2) <E8AD18F9-61E4-3791-B840-504468C25556> /usr/lib/libcups.2.dylib
    0x7fff90caf000 -     0x7fff90cc1ff7  com.apple.CoreDuetDaemonProtocol (1.0 - 1) <CE9FABB4-1C5D-3F9B-9BB8-5CC50C3E5E31> /System/Library/PrivateFrameworks/CoreDuetDaemonProtocol.framework/Versions/A/CoreDuetDaemonProtocol
    0x7fff90cc2000 -     0x7fff90d27ff7  com.apple.ids (10.0 - 1000) <B7FB9598-02E5-341D-A019-3F20AE7E1B4D> /System/Library/PrivateFrameworks/IDS.framework/Versions/A/IDS
    0x7fff90d28000 -     0x7fff90d57fff  com.apple.securityinterface (10.0 - 55058) <21F38170-2D3D-3FA2-B0EC-379482AFA5E4> /System/Library/Frameworks/SecurityInterface.framework/Versions/A/SecurityInterface
    0x7fff90d70000 -     0x7fff90d8eff7  com.apple.addressbook.vCard (9.0 - 1579) <C4CDDC8B-AE35-39B8-820A-763E9C5D1794> /System/Library/PrivateFrameworks/vCard.framework/Versions/A/vCard
    0x7fff90d8f000 -     0x7fff90de0fff  com.apple.audio.CoreAudio (4.3.0 - 4.3.0) <8E6AE326-9F3E-3182-BD9E-FDF561211E2E> /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio
    0x7fff90e29000 -     0x7fff90e47fff  com.apple.frameworks.preferencepanes (16.0 - 16.0) <C763B730-D6BC-31D3-951A-898BB49C5A3E> /System/Library/Frameworks/PreferencePanes.framework/Versions/A/PreferencePanes
    0x7fff90e48000 -     0x7fff90e50fe7  libcldcpuengine.dylib (2.4.5) <CC1C07D1-21E0-36FA-87DA-351B7A8B17F9> /System/Library/Frameworks/OpenCL.framework/Versions/A/Libraries/libcldcpuengine.dylib
    0x7fff90e64000 -     0x7fff90e69fff  libsystem_stats.dylib (163.30.2) <63CD5437-6C35-3024-86DB-BB2FDF269456> /usr/lib/system/libsystem_stats.dylib
    0x7fff90e6a000 -     0x7fff90ed9fff  com.apple.SearchKit (1.4.0 - 1.4.0) <80883BD1-C9BA-3794-A20E-476F94DD89A9> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit
    0x7fff90eda000 -     0x7fff90f4cfff  com.apple.framework.IOKit (2.0.2 - 1050.20.2) <09C0518C-90DF-3FC3-96D6-34D35F72C8EF> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
    0x7fff90f4d000 -     0x7fff90f4fff7  com.apple.diagnosticlogcollection (10.0 - 1000) <1DB05D1A-636A-3672-BCB6-E3759852F5E2> /System/Library/PrivateFrameworks/DiagnosticLogCollection.framework/Versions/A/DiagnosticLogCollection
    0x7fff90f5a000 -     0x7fff90f5cfff  com.apple.CoreDuetDebugLogging (1.0 - 1) <9A6E5710-EA99-366E-BF40-9A65EC1B46A1> /System/Library/PrivateFrameworks/CoreDuetDebugLogging.framework/Versions/A/CoreDuetDebugLogging
    0x7fff90f68000 -     0x7fff90f7dffb  libCGInterfaces.dylib (294.1) <1A6AADE6-09EC-3054-85F9-E6A3607EBA70> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/Libraries/libCGInterfaces.dylib
    0x7fff90f7e000 -     0x7fff90fefffb  com.apple.ApplicationServices.ATS (360 - 375.4) <888FE0B1-835C-30B1-80AD-5066CADB0364> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS
    0x7fff90ff0000 -     0x7fff9102bfff  com.apple.Symbolication (1.4 - 56045) <D64571B1-4483-3FE2-BD67-A91360F79727> /System/Library/PrivateFrameworks/Symbolication.framework/Versions/A/Symbolication
    0x7fff9102c000 -     0x7fff91077ff7  com.apple.CloudDocs (1.0 - 321.10) <A8221290-A2A5-3767-BB26-CC57AC18D4DC> /System/Library/PrivateFrameworks/CloudDocs.framework/Versions/A/CloudDocs
    0x7fff91078000 -     0x7fff9114eff3  com.apple.DiskImagesFramework (10.10.5 - 398) <37291661-BCB2-3F95-B446-5E5DB1D1E472> /System/Library/PrivateFrameworks/DiskImages.framework/Versions/A/DiskImages
    0x7fff9114f000 -     0x7fff9115bff7  com.apple.commonutilities (8.0 - 900) <E5E018A7-FB3C-37A2-9769-49AFAC89FDE8> /System/Library/PrivateFrameworks/CommonUtilities.framework/Versions/A/CommonUtilities
    0x7fff9115c000 -     0x7fff9118bff7  com.apple.CommerceKit (1.2.0 - 376.29) <FC810A52-983A-3F19-89C0-3EBB464990C4> /System/Library/PrivateFrameworks/CommerceKit.framework/Versions/A/CommerceKit
    0x7fff91a15000 -     0x7fff91a15fff  com.apple.Accelerate.vecLib (3.10 - vecLib 3.10) <B92888D0-ED3F-3430-8F3A-6E56FD16C5F1> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib
    0x7fff91a16000 -     0x7fff91a31ff7  libCRFSuite.dylib (34) <D64842BE-7BD4-3D0C-9842-1D202F7C2A51> /usr/lib/libCRFSuite.dylib
    0x7fff92394000 -     0x7fff92396ff7  libutil.dylib (38) <471AD65E-B86E-3C4A-8ABD-B8665A2BCE3F> /usr/lib/libutil.dylib
    0x7fff92397000 -     0x7fff924aefe7  libvDSP.dylib (516) <DFEDB210-49D1-3803-88A2-C61DB6A45C3D> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib
    0x7fff924af000 -     0x7fff924b5fff  com.apple.speech.recognition.framework (5.0.9 - 5.0.9) <BB2D573F-0A01-379F-A2BA-3C454EDCB111> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition
    0x7fff929b3000 -     0x7fff929ebfff  com.apple.RemoteViewServices (2.0 - 99) <C9A62691-B0D9-34B7-B71C-A48B5F4DC553> /System/Library/PrivateFrameworks/RemoteViewServices.framework/Versions/A/RemoteViewServices
    0x7fff929ec000 -     0x7fff92b4dfff  com.apple.avfoundation (2.0 - 889.210) <20132E07-6AF0-378A-B7E2-56696D53C879> /System/Library/Frameworks/AVFoundation.framework/Versions/A/AVFoundation
    0x7fff92b4e000 -     0x7fff92b53ff7  libmacho.dylib (862) <126CA2ED-DE91-308F-8881-B9DAEC3C63B6> /usr/lib/system/libmacho.dylib
    0x7fff92b54000 -     0x7fff92b65ff3  libsystem_coretls.dylib (35.40.1) <155DA0A9-2046-332E-BFA3-D7974A51F731> /usr/lib/system/libsystem_coretls.dylib
    0x7fff92b66000 -     0x7fff92b68fff  com.apple.loginsupport (1.0 - 1) <DAAD7013-A19D-3858-BFF7-DE1DAF664401> /System/Library/PrivateFrameworks/login.framework/Versions/A/Frameworks/loginsupport.framework/Versions/A/loginsupport
    0x7fff92b69000 -     0x7fff92ba1fff  libsystem_network.dylib (412.20.3) <6105C134-6722-3C0A-A4CE-5E1261E2E1CC> /usr/lib/system/libsystem_network.dylib
    0x7fff92ba2000 -     0x7fff92d31fff  libGLProgrammability.dylib (11.1.6) <5A56E484-5A99-3BD7-99C0-B43D74F2C91C> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLProgrammability.dylib
    0x7fff92e33000 -     0x7fff92e56ff7  com.apple.idsfoundation (10.0 - 1000) <79DAA5F6-E054-3CC9-B317-65044A95B567> /System/Library/PrivateFrameworks/IDSFoundation.framework/Versions/A/IDSFoundation
    0x7fff92f16000 -     0x7fff932edfe7  com.apple.CoreAUC (211.1.0 - 211.1.0) <12645629-E065-388E-A6B5-094A240578CE> /System/Library/PrivateFrameworks/CoreAUC.framework/Versions/A/CoreAUC
    0x7fff93370000 -     0x7fff93394ff7  com.apple.Sharing (328.17 - 328.17) <AD5E243A-B79F-3D7B-800B-A2C99A1CFEF1> /System/Library/PrivateFrameworks/Sharing.framework/Versions/A/Sharing
    0x7fff93395000 -     0x7fff93433fff  com.apple.Metadata (10.7.0 - 917.36) <00C4CB5D-E723-3612-84E0-439098392CDD> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata
    0x7fff93436000 -     0x7fff9345cfff  com.apple.ChunkingLibrary (2.1 - 163.6) <29D4CB95-42EF-34C6-8182-BDB6F7BB1E79> /System/Library/PrivateFrameworks/ChunkingLibrary.framework/Versions/A/ChunkingLibrary
    0x7fff9345d000 -     0x7fff937c8fff  com.apple.VideoToolbox (1.0 - 1562.240) <BEBDEB83-618F-38BE-B7A7-5E096B428DFA> /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox
    0x7fff937c9000 -     0x7fff937e3ff7  libextension.dylib (55.2) <3BB019CA-199A-36AC-AA22-14B562138545> /usr/lib/libextension.dylib
    0x7fff937e4000 -     0x7fff937e7fff  libScreenReader.dylib (390.104) <72768FDB-5D0B-3A17-8F31-6A5F972731EF> /usr/lib/libScreenReader.dylib
    0x7fff937e8000 -     0x7fff93879ff7  libCoreStorage.dylib (471.30.1) <9D95399F-1AC5-325F-8337-6E13AD99E44B> /usr/lib/libCoreStorage.dylib
    0x7fff93889000 -     0x7fff938a4ff7  com.apple.aps.framework (4.0 - 4.0) <EAC8C347-55F4-3769-995E-B140C95553F6> /System/Library/PrivateFrameworks/ApplePushService.framework/Versions/A/ApplePushService
    0x7fff938a5000 -     0x7fff9398fff7  com.apple.QuickLookUIFramework (5.0 - 675.43) <011DEB49-0FB3-3E44-9D99-D89ADD59A3CC> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuickLookUI.framework/Versions/A/QuickLookUI
    0x7fff93990000 -     0x7fff941f3ffb  com.apple.CoreGraphics (1.600.0 - 788.3.5) <8F7DF585-9DC9-3594-A656-63FA205EDC71> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics
    0x7fff941f4000 -     0x7fff941f8fff  libcache.dylib (69) <45E9A2E7-99C4-36B2-BEE3-0C4E11614AD1> /usr/lib/system/libcache.dylib
    0x7fff941f9000 -     0x7fff94218fff  com.apple.CoreDuet (1.0 - 1) <36AA9FD5-2685-314D-B364-3FA4688D86BD> /System/Library/PrivateFrameworks/CoreDuet.framework/Versions/A/CoreDuet
    0x7fff94219000 -     0x7fff942fdfff  libcrypto.0.9.8.dylib (52.40.1) <D123FC57-E2EB-3E08-A51B-6C317EA83EB5> /usr/lib/libcrypto.0.9.8.dylib
    0x7fff942fe000 -     0x7fff94358ff7  com.apple.accounts.AccountsDaemon (113 - 113) <7488E4A5-5BE9-3D9E-991E-8AEC62411CE8> /System/Library/PrivateFrameworks/AccountsDaemon.framework/Versions/A/AccountsDaemon
    0x7fff9438c000 -     0x7fff94397fff  com.apple.CommerceCore (1.0 - 376.29) <1058502F-8C78-36E1-914A-6403A2231FBA> /System/Library/PrivateFrameworks/CommerceKit.framework/Versions/A/Frameworks/CommerceCore.framework/Versions/A/CommerceCore
    0x7fff94398000 -     0x7fff9439dff7  com.apple.MediaAccessibility (1.0 - 61) <00A3E0B6-79AC-387E-B282-AADFBD5722F6> /System/Library/Frameworks/MediaAccessibility.framework/Versions/A/MediaAccessibility
    0x7fff9439e000 -     0x7fff943abff7  com.apple.SpeechRecognitionCore (2.1.2 - 2.1.2) <551322E2-C1E4-3378-A218-F362985E3E3C> /System/Library/PrivateFrameworks/SpeechRecognitionCore.framework/Versions/A/SpeechRecognitionCore
    0x7fff943ac000 -     0x7fff943aefff  libRadiance.dylib (1247) <362E86E1-A6C2-3B0D-94BF-D1C864E618A7> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib
    0x7fff943af000 -     0x7fff943b5ff7  com.apple.XPCService (2.0 - 1) <AA4A5393-1F5D-3465-A417-0414B95DC052> /System/Library/PrivateFrameworks/XPCService.framework/Versions/A/XPCService
    0x7fff943b6000 -     0x7fff943d2ff7  com.apple.DistributionKit (700 - 924.1) <497524C8-8FE5-3B81-A594-D1322F238FB6> /System/Library/PrivateFrameworks/Install.framework/Frameworks/DistributionKit.framework/Versions/A/DistributionKit
    0x7fff943d3000 -     0x7fff944f7ff7  com.apple.LaunchServices (644.56 - 644.56) <20AABB1C-9319-3E4D-A024-51B0DD5FCD3B> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices
    0x7fff944f8000 -     0x7fff9463bfff  libsqlite3.dylib (168.2) <BCB1F77E-2484-3EC4-A1D5-1AE90A407A23> /usr/lib/libsqlite3.dylib
    0x7fff9463c000 -     0x7fff946defff  com.apple.Bluetooth (4.3.6 - 4.3.6f3) <16970DB9-B0F4-3987-B751-C8702110E950> /System/Library/Frameworks/IOBluetooth.framework/Versions/A/IOBluetooth
    0x7fff946e7000 -     0x7fff946e7fff  com.apple.AOSMigrate (1.0 - 1) <6893B495-188D-3F88-81E7-8FAFDD53323D> /System/Library/PrivateFrameworks/AOSMigrate.framework/Versions/A/AOSMigrate
    0x7fff947e2000 -     0x7fff947f0ff7  com.apple.opengl (11.1.6 - 11.1.6) <DB9F2798-F31F-335E-90A9-992C3AA7ECA8> /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL
    0x7fff947f1000 -     0x7fff947f4ff7  com.apple.AppleSystemInfo (3.1.5 - 3.1.5) <BCC15965-7869-34F4-9019-9D0A41DD6AFF> /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/AppleSystemInfo
    0x7fff94811000 -     0x7fff95392ff7  com.apple.AppKit (6.9 - 1348.17) <E485D56D-3E72-34B7-99BB-BFDEE2D07BF5> /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit
    0x7fff95393000 -     0x7fff95414ff7  com.apple.CoreUtils (1.1 - 110.1) <3808CBC5-1DF1-3821-8AAE-57C30D4F514B> /System/Library/PrivateFrameworks/CoreUtils.framework/Versions/A/CoreUtils
    0x7fff95415000 -     0x7fff95464ff7  com.apple.opencl (2.4.2 - 2.4.2) <590504FA-E5D2-37C2-91A7-09F5F039F971> /System/Library/Frameworks/OpenCL.framework/Versions/A/OpenCL
    0x7fff95465000 -     0x7fff954affff  com.apple.HIServices (1.22 - 523) <99ADA325-53C8-368E-A5FA-3F913CD2245A> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices
    0x7fff954b0000 -     0x7fff954c0ff7  libbsm.0.dylib (34) <A3A2E56C-2B65-37C7-B43A-A1F926E1A0BB> /usr/lib/libbsm.0.dylib
    0x7fff954c1000 -     0x7fff954f1ff3  com.apple.CoreAVCHD (5.7.5 - 5750.4.1) <3E51287C-E97D-3886-BE88-8F6872400876> /System/Library/PrivateFrameworks/CoreAVCHD.framework/Versions/A/CoreAVCHD
    0x7fff954f2000 -     0x7fff95557fff  com.apple.framework.internetaccounts (2.1 - 210) <9EDA465B-A856-398D-85D9-A9F6ADA26D48> /System/Library/PrivateFrameworks/InternetAccounts.framework/Versions/A/InternetAccounts
    0x7fff95558000 -     0x7fff95889fff  com.apple.Foundation (6.9 - 1154) <49EE64E1-9F53-35D1-A481-2EFE2789B254> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
    0x7fff9588a000 -     0x7fff958f1ffb  com.apple.datadetectorscore (6.0 - 396.1.2) <E5A147AE-66B5-3D31-A2E0-D3FAB8417E1F> /System/Library/PrivateFrameworks/DataDetectorsCore.framework/Versions/A/DataDetectorsCore
    0x7fff958f2000 -     0x7fff95903ff7  libz.1.dylib (55) <88C7C7DE-04B8-316F-8B74-ACD9F3DE1AA1> /usr/lib/libz.1.dylib
    0x7fff95904000 -     0x7fff95934ff3  com.apple.GSS (4.0 - 2.0) <97F2A028-44CF-3188-B863-F4EEB39CBDBD> /System/Library/Frameworks/GSS.framework/Versions/A/GSS
    0x7fff95966000 -     0x7fff959acfff  com.apple.sociald.Social (87 - 87) <DDA7309A-4056-3BFB-B96D-C09CDE6F1F8D> /System/Library/Frameworks/Social.framework/Versions/A/Social
    0x7fff95a8f000 -     0x7fff95a94ff7  libunwind.dylib (35.3) <BE7E51A0-B6EA-3A54-9CCA-9D88F683A6D6> /usr/lib/system/libunwind.dylib
    0x7fff95a95000 -     0x7fff95ab2ffb  libresolv.9.dylib (57) <26B38E61-298A-3C3A-82C1-3B5E98AD5E29> /usr/lib/libresolv.9.dylib
    0x7fff95ab3000 -     0x7fff95acfff7  libsystem_malloc.dylib (53.30.1) <DDA8928B-CC0D-3255-BD8A-3FEA0982B890> /usr/lib/system/libsystem_malloc.dylib
    0x7fff95afc000 -     0x7fff95b07ff7  com.apple.DirectoryService.Framework (10.10 - 187) <F5B30ACE-57D9-31EA-82F9-98F175B277D1> /System/Library/Frameworks/DirectoryService.framework/Versions/A/DirectoryService
    0x7fff95b08000 -     0x7fff95b0afff  com.apple.marco (10.0 - 1000) <F8551365-5638-3012-B8CB-B87A80695EAC> /System/Library/PrivateFrameworks/Marco.framework/Versions/A/Marco
    0x7fff95b0b000 -     0x7fff95b1dff7  libsasl2.2.dylib (194.1) <35371406-75EF-304A-A073-956C40373555> /usr/lib/libsasl2.2.dylib
    0x7fff95b1e000 -     0x7fff95b5aff7  com.apple.AOSAccounts (1.3.1 - 1.8.42) <2EE10E64-F9F9-3822-B1C9-76F8972DD612> /System/Library/PrivateFrameworks/AOSAccounts.framework/Versions/A/AOSAccounts
    0x7fff95e92000 -     0x7fff95e9efff  com.apple.HelpData (2.1.4 - 90) <02C6B7E6-1CC4-30E8-AD04-2794BECCF99C> /System/Library/PrivateFrameworks/HelpData.framework/Versions/A/HelpData
    0x7fff95e9f000 -     0x7fff95eb8ff3  com.apple.openscripting (1.6.4 - 162.2) <BF79207B-C762-346D-8FF0-3DDCECC9E9E2> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/OpenScripting.framework/Versions/A/OpenScripting
    0x7fff95eb9000 -     0x7fff95f47fff  com.apple.CorePDF (4.0 - 4) <19F4CB03-189E-3271-8F7A-A7D0DB3ACE49> /System/Library/PrivateFrameworks/CorePDF.framework/Versions/A/CorePDF
    0x7fff96040000 -     0x7fff96493fc7  com.apple.vImage (8.0 - 8.0) <33BE7B31-72DB-3364-B37E-C322A32748C5> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage
    0x7fff96494000 -     0x7fff9649dfff  com.apple.DisplayServicesFW (2.9 - 372.1) <30E61754-D83C-330A-AE60-533F27BEBFF5> /System/Library/PrivateFrameworks/DisplayServices.framework/Versions/A/DisplayServices
    0x7fff9649e000 -     0x7fff9649efff  com.apple.Cocoa (6.8 - 21) <EAC0EA1E-3C62-3B28-A941-5D8B1E085FF8> /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa
    0x7fff9649f000 -     0x7fff96715fff  com.apple.security (7.0 - 57031.40.8) <FB238FFF-AA3B-3AB3-80F8-2DA8D2ADA15A> /System/Library/Frameworks/Security.framework/Versions/A/Security
    0x7fff96716000 -     0x7fff96722fff  com.apple.speech.synthesis.framework (5.3.11 - 5.3.11) <DFC7FD85-F1B0-317C-8513-722570CB8FB9> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis
    0x7fff96723000 -     0x7fff96853fff  com.apple.UIFoundation (1.0 - 1) <466BDFA8-0B9F-3AB0-989D-F9779422926A> /System/Library/PrivateFrameworks/UIFoundation.framework/Versions/A/UIFoundation
    0x7fff96854000 -     0x7fff96855fff  libDiagnosticMessagesClient.dylib (100) <2EE8E436-5CDC-34C5-9959-5BA218D507FB> /usr/lib/libDiagnosticMessagesClient.dylib
    0x7fff96856000 -     0x7fff96858fff  com.apple.EFILogin (2.0 - 2) <3BA837D8-94F5-3240-9CF7-E40DC2808446> /System/Library/PrivateFrameworks/EFILogin.framework/Versions/A/EFILogin
    0x7fff96859000 -     0x7fff96892ff3  com.apple.datadetectors (5.0 - 286.13) <F2EC0715-1AD3-39C3-9B2D-D45336C73BFC> /System/Library/PrivateFrameworks/DataDetectors.framework/Versions/A/DataDetectors
    0x7fff96893000 -     0x7fff968c5ff3  com.apple.frameworks.CoreDaemon (1.3 - 1.3) <C6DB0A07-F8E4-3837-BCA9-225F460EDA81> /System/Library/PrivateFrameworks/CoreDaemon.framework/Versions/B/CoreDaemon
    0x7fff968c6000 -     0x7fff96ac046f  libobjc.A.dylib (647) <759E155D-BC42-3D4E-869B-6F57D477177C> /usr/lib/libobjc.A.dylib
    0x7fff96ac1000 -     0x7fff96ac2fff  libsystem_secinit.dylib (18) <581DAD0F-6B63-3A48-B63B-917AF799ABAA> /usr/lib/system/libsystem_secinit.dylib
    0x7fff96ac3000 -     0x7fff96ac3ff7  libkeymgr.dylib (28) <77845842-DE70-3CC5-BD01-C3D14227CED5> /usr/lib/system/libkeymgr.dylib
    0x7fff96ac4000 -     0x7fff96acafff  libsystem_trace.dylib (72.20.1) <840F5301-B55A-3078-90B9-FEFFD6CD741A> /usr/lib/system/libsystem_trace.dylib
    0x7fff96b5e000 -     0x7fff96d0dfff  GLEngine (11.1.6) <8AD12D78-85C6-3B9C-BB0A-153A66236A56> /System/Library/Frameworks/OpenGL.framework/Versions/A/Resources/GLEngine.bundle/GLEngine
    0x7fff96d0e000 -     0x7fff96d7afff  com.apple.framework.CoreWLAN (5.0 - 500.35.2) <03697149-1CDD-32FF-B564-1C1EF5E9E5C3> /System/Library/Frameworks/CoreWLAN.framework/Versions/A/CoreWLAN
    0x7fff96d7b000 -     0x7fff96d9bfff  com.apple.IconServices (47.1 - 47.1) <E83DFE3B-6541-3736-96BB-26DC5D0100F1> /System/Library/PrivateFrameworks/IconServices.framework/Versions/A/IconServices
    0x7fff96d9c000 -     0x7fff96da5ff3  com.apple.CommonAuth (4.0 - 2.0) <9A484EE6-0003-3AB1-AE4F-AA543BBBF53F> /System/Library/PrivateFrameworks/CommonAuth.framework/Versions/A/CommonAuth
    0x7fff96da6000 -     0x7fff96dfafff  libc++.1.dylib (120) <1B9530FD-989B-3174-BB1C-BDC159501710> /usr/lib/libc++.1.dylib
    0x7fff96e43000 -     0x7fff96f35ff7  libiconv.2.dylib (42) <2A06D02F-8B76-3864-8D96-64EF5B40BC6C> /usr/lib/libiconv.2.dylib
    0x7fff96f36000 -     0x7fff96f5efff  libsystem_info.dylib (459.40.1) <2E16C4B3-A327-3957-9C41-143911979A1E> /usr/lib/system/libsystem_info.dylib
    0x7fff96f5f000 -     0x7fff96fd7ff7  com.apple.SystemConfiguration (1.14.4 - 1.14) <3DFFD7F7-BD23-3F4C-A209-C4A0D99F6573> /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration
    0x7fff96fd8000 -     0x7fff97033ff7  libTIFF.dylib (1247) <4932887D-3DD9-3724-84D3-8E7C2EF69E38> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib
    0x7fff97034000 -     0x7fff9703eff7  com.apple.NetAuth (5.2 - 5.2) <2BBD749A-8E18-35B8-8E48-A90347C1CCA7> /System/Library/PrivateFrameworks/NetAuth.framework/Versions/A/NetAuth
    0x7fff9703f000 -     0x7fff97058ff7  com.apple.CFOpenDirectory (10.10 - 187) <F1805A0F-D5CC-35A8-9349-042D58D128B0> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/Frameworks/CFOpenDirectory.framework/Versions/A/CFOpenDirectory
    0x7fff9709a000 -     0x7fff9709dfff  com.apple.IOSurface (97.4 - 97.4) <AE11CFBC-4D46-30F3-BEEC-4C8131079391> /System/Library/Frameworks/IOSurface.framework/Versions/A/IOSurface
    0x7fff9709e000 -     0x7fff970a6fff  com.apple.xpcobjects (103 - 103) <A202ACEF-7A3D-303E-BB07-29FF49DE279D> /System/Library/PrivateFrameworks/XPCObjects.framework/Versions/A/XPCObjects
    0x7fff970a7000 -     0x7fff970aaff7  com.apple.Mangrove (1.0 - 1) <6326024D-5C8D-3F59-9468-ACA1E01BC70C> /System/Library/PrivateFrameworks/Mangrove.framework/Versions/A/Mangrove
    0x7fff970ab000 -     0x7fff970d3fff  libxpc.dylib (559.40.1) <5C829202-962E-3744-8B50-00D38CC88E84> /usr/lib/system/libxpc.dylib
    0x7fff970d4000 -     0x7fff970eaff7  com.apple.CoreMediaAuthoring (2.2 - 951) <C3E7D4C1-400D-34FA-9FE1-8C68C03CE969> /System/Library/PrivateFrameworks/CoreMediaAuthoring.framework/Versions/A/CoreMediaAuthoring
    0x7fff970eb000 -     0x7fff9714afff  com.apple.AE (681.5 - 681.7) <2BF39455-1CDD-392C-824A-9972C6B1FB57> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE
    0x7fff9714b000 -     0x7fff9714bfff  com.apple.Carbon (154 - 157) <9BF51672-1684-3FDE-A561-FC59A2864EF8> /System/Library/Frameworks/Carbon.framework/Versions/A/Carbon
    0x7fff972b4000 -     0x7fff972faff7  libauto.dylib (186) <A260789B-D4D8-316A-9490-254767B8A5F1> /usr/lib/libauto.dylib
    0x7fff972fb000 -     0x7fff972fefff  com.apple.help (1.3.3 - 46) <CA4541F4-CEF5-355C-8F1F-EA65DC1B400F> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Help.framework/Versions/A/Help
    0x7fff972ff000 -     0x7fff97332fff  com.apple.MediaKit (16 - 757.2) <2912E5C2-085F-3FE2-8531-23B6E894B0F0> /System/Library/PrivateFrameworks/MediaKit.framework/Versions/A/MediaKit
    0x7fff97333000 -     0x7fff97333fff  com.apple.CoreServices (62 - 62) <C69DA8A7-B536-34BF-A93F-1C170E2C6D58> /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices
    0x7fff97334000 -     0x7fff97338fff  libpam.2.dylib (20) <E805398D-9A92-31F8-8005-8DC188BD8B6E> /usr/lib/libpam.2.dylib
    0x7fff97339000 -     0x7fff97393ff7  com.apple.LanguageModeling (1.0 - 1) <ACA93FE0-A0E3-333E-AE3C-8EB7DE5F362F> /System/Library/PrivateFrameworks/LanguageModeling.framework/Versions/A/LanguageModeling
    0x7fff97394000 -     0x7fff9739cfff  libMatch.1.dylib (24) <C917279D-33C2-38A8-9BDD-18F3B24E6FBD> /usr/lib/libMatch.1.dylib
    0x7fff9739d000 -     0x7fff973b4ff7  libLinearAlgebra.dylib (1128) <E78CCBAA-A999-3B65-8EC9-06DB15E67C37> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLinearAlgebra.dylib
    0x7fff973b5000 -     0x7fff978a5fff  com.apple.MediaToolbox (1.0 - 1562.240) <756EDFE0-6D9E-3482-AE40-6D2E6A7042F1> /System/Library/Frameworks/MediaToolbox.framework/Versions/A/MediaToolbox
    0x7fff978c0000 -     0x7fff978c3fff  com.apple.xpc.ServiceManagement (1.0 - 1) <A95A15CD-3B21-3513-AFF8-1D7DE3DBFA12> /System/Library/Frameworks/ServiceManagement.framework/Versions/A/ServiceManagement
    0x7fff978c4000 -     0x7fff978d3fff  com.apple.LangAnalysis (1.7.0 - 1.7.0) <D1E527E4-C561-352F-9457-E8C50232793C> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis
    0x7fff978ea000 -     0x7fff97a1cff7  com.apple.MediaControlSender (2.0 - 215.18) <88726256-A71E-33A8-A56C-ABA208951C92> /System/Library/PrivateFrameworks/MediaControlSender.framework/Versions/A/MediaControlSender
    0x7fff97a1d000 -     0x7fff97a41fff  com.apple.speech.LatentSemanticMappingFramework (2.11.6 - 2.11.6) <5AB4EF58-829E-382D-9E4E-BCD2085C47CC> /System/Library/Frameworks/LatentSemanticMapping.framework/Versions/A/LatentSemanticMapping
    0x7fff97a42000 -     0x7fff97a4fff7  libbz2.1.0.dylib (36) <2DF83FBC-5C08-39E1-94F5-C28653791B5F> /usr/lib/libbz2.1.0.dylib
    0x7fff97a80000 -     0x7fff97a84fff  com.apple.TCC (1.0 - 1) <CCA42EE2-3400-3444-9486-BC454E60D944> /System/Library/PrivateFrameworks/TCC.framework/Versions/A/TCC
    0x7fff97a85000 -     0x7fff97c95ff7  com.apple.CFNetwork (720.5.7 - 720.5.7) <A47D7DD2-5903-39D0-8D27-5A7E2D119D84> /System/Library/Frameworks/CFNetwork.framework/Versions/A/CFNetwork
    0x7fff97c96000 -     0x7fff97ce7ff7  com.apple.AppleVAFramework (5.0.31 - 5.0.31) <17C35538-7C2B-3735-A1B3-E8487EED0668> /System/Library/PrivateFrameworks/AppleVA.framework/Versions/A/AppleVA
    0x7fff97ce8000 -     0x7fff97cf3ff7  libcsfde.dylib (471.30.1) <A62AE3D8-E2A6-314A-BF45-804003BE0AC9> /usr/lib/libcsfde.dylib
    0x7fff97d51000 -     0x7fff97e10fff  com.apple.imcore (10.0 - 1000) <76E1F208-D13C-3773-9004-22B2A844CC97> /System/Library/PrivateFrameworks/IMCore.framework/Versions/A/IMCore
    0x7fff97e11000 -     0x7fff97e41fff  libsystem_m.dylib (3086.1) <1E12AB45-6D96-36D0-A226-F24D9FB0D9D6> /usr/lib/system/libsystem_m.dylib
    0x7fff97e42000 -     0x7fff97ea1fff  com.apple.StoreFoundation (1.0 - 1) <99E79FBF-1EC6-3DD0-B065-0F46C22790BF> /System/Library/PrivateFrameworks/StoreFoundation.framework/Versions/A/StoreFoundation
    0x7fff97ea2000 -     0x7fff97f1bfe7  libcorecrypto.dylib (233.30.1) <5779FFA0-4D9A-3AD4-B7F2-618227621DC8> /usr/lib/system/libcorecrypto.dylib
    0x7fff97f27000 -     0x7fff97fbdff7  com.apple.cloudkit.CloudKit (283.67.4 - 283.67.4) <EA6E4B2C-A3AA-3636-B9C3-F61D3EFFB82B> /System/Library/Frameworks/CloudKit.framework/Versions/A/CloudKit
    0x7fff97fbe000 -     0x7fff97fc0ff3  com.apple.SafariServices.framework (10601 - 10601.7.8) <30DFAB8D-AA6F-39E6-A766-BD962794C9C4> /System/Library/PrivateFrameworks/SafariServices.framework/Versions/A/SafariServices
    0x7fff97fc1000 -     0x7fff97fccff7  libkxld.dylib (2782.50.6) <8B8C4C0B-B226-3762-A478-A8403FDEA769> /usr/lib/system/libkxld.dylib
    0x7fff97fcd000 -     0x7fff97fcffff  libsystem_configuration.dylib (699.40.2) <56F94DCE-DBDE-3615-8F07-DE6270D9F8BE> /usr/lib/system/libsystem_configuration.dylib
    0x7fff97fd0000 -     0x7fff980c3ff7  libJP2.dylib (1247) <CDAE0FD0-EC44-3370-BD54-BEED0791E9CB> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib
    0x7fff980c4000 -     0x7fff980c5ff7  libsystem_blocks.dylib (65) <9615D10A-FCA7-3BE4-AA1A-1B195DACE1A1> /usr/lib/system/libsystem_blocks.dylib
    0x7fff980c6000 -     0x7fff980cdff7  com.apple.phonenumbers (1.1.1 - 105) <AE39B6FE-05AB-3181-BB2A-4D50A8B392F2> /System/Library/PrivateFrameworks/PhoneNumbers.framework/Versions/A/PhoneNumbers
    0x7fff980ce000 -     0x7fff9813aff3  com.apple.MMCS (1.3 - 327.5) <FC998246-ED60-334D-9E94-453F35EF9C78> /System/Library/PrivateFrameworks/MMCS.framework/Versions/A/MMCS
    0x7fff98154000 -     0x7fff98178ff7  com.apple.quartzfilters (1.10.0 - 1.10.0) <1AE50F4A-0098-34E7-B24D-DF7CB94073CE> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzFilters.framework/Versions/A/QuartzFilters
    0x7fff98179000 -     0x7fff981e3fff  com.apple.imfoundation (10.0 - 1000) <842F39B6-0BE2-3B9B-9166-D40031C80C89> /System/Library/PrivateFrameworks/IMFoundation.framework/Versions/A/IMFoundation
    0x7fff981e4000 -     0x7fff981f6ff7  com.apple.CloudPhotoServicesConfiguration (1.0.1 - 215.65.0) <EFC324A2-2F60-3EE0-ADD8-20A2C40462D7> /System/Library/PrivateFrameworks/CloudPhotoServices.framework/Versions/A/Frameworks/CloudPhotoServicesConfiguration.framework/Versions/A/CloudPhotoServicesConfiguration
    0x7fff981f7000 -     0x7fff981ffffb  libcopyfile.dylib (118.1.2) <0C68D3A6-ACDD-3EF3-991A-CC82C32AB836> /usr/lib/system/libcopyfile.dylib
    0x7fff98200000 -     0x7fff9823dff3  com.apple.bom (14.0 - 193.6) <3CE5593D-DB28-3BFD-943E-6261006FA292> /System/Library/PrivateFrameworks/Bom.framework/Versions/A/Bom
    0x7fff9823e000 -     0x7fff98246fff  libsystem_platform.dylib (63) <64E34079-D712-3D66-9CE2-418624A5C040> /usr/lib/system/libsystem_platform.dylib
    0x7fff98247000 -     0x7fff98770ff7  com.apple.QuartzComposer (5.1 - 332.1) <64399385-0768-3590-B4EF-1BD0F8A35CB3> /System/Library/Frameworks/Quartz.framework/Versions/A/Frameworks/QuartzComposer.framework/Versions/A/QuartzComposer
    0x7fff98771000 -     0x7fff98771fff  libOpenScriptingUtil.dylib (162.2) <D6A2216D-ADB2-3F24-AD30-F6D00829F545> /usr/lib/libOpenScriptingUtil.dylib
    0x7fff98772000 -     0x7fff987b8ff7  libFontRegistry.dylib (134.1) <CE41D8C2-BEED-345C-BC4F-3775CC06C672> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontRegistry.dylib
    0x7fff987b9000 -     0x7fff987d6fff  libsystem_kernel.dylib (2782.50.6) <B12EAF58-6BFD-37DB-9763-EC7F3F8B71A6> /usr/lib/system/libsystem_kernel.dylib
    0x7fff987d7000 -     0x7fff9886aff7  com.apple.SoftwareUpdate.framework (6 - 744.13) <EB6173C8-FC15-3A05-83FA-C152569A82F5> /System/Library/PrivateFrameworks/SoftwareUpdate.framework/Versions/A/SoftwareUpdate
    0x7fff9886b000 -     0x7fff98872fff  com.apple.network.statistics.framework (1.2 - 1) <61B311D1-7F15-35B3-80D4-99B8BE90ACD9> /System/Library/PrivateFrameworks/NetworkStatistics.framework/Versions/A/NetworkStatistics
    0x7fff98873000 -     0x7fff9888fff7  com.apple.pluginkit.framework (1.0 - 1) <D1A7F6E5-091B-30E7-852B-E866BF38A5AB> /System/Library/PrivateFrameworks/PlugInKit.framework/Versions/A/PlugInKit
    0x7fff98890000 -     0x7fff98a1efff  libBLAS.dylib (1128) <497912C1-A98E-3281-BED7-E9C751552F61> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
    0x7fff98a1f000 -     0x7fff98aa3fff  com.apple.PerformanceAnalysis (1.0 - 1) <095E6B1C-DC20-38DC-8931-16041B0489C7> /System/Library/PrivateFrameworks/PerformanceAnalysis.framework/Versions/A/PerformanceAnalysis
    0x7fff98aa4000 -     0x7fff98aacff7  com.apple.icloud.FindMyDevice (1.0 - 1) <9CE67F85-2BA8-3093-97BA-07BF5C04A5D6> /System/Library/PrivateFrameworks/FindMyDevice.framework/Versions/A/FindMyDevice
    0x7fff98aad000 -     0x7fff98aadfff  com.apple.audio.units.AudioUnit (1.12 - 1.12) <E5335492-7EFE-31EA-BE72-4A9CEE68D58E> /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit
    0x7fff98aae000 -     0x7fff98ad5fff  com.apple.shortcut (2.14 - 2.14) <0E9228EC-E688-3E83-9516-5211FFEA923E> /System/Library/PrivateFrameworks/Shortcut.framework/Versions/A/Shortcut
    0x7fff98bf1000 -     0x7fff98bf5ff7  libGIF.dylib (1247) <75A521D0-BC1F-31DC-AC2B-D0B697BB3E6F> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib
    0x7fff98bf6000 -     0x7fff98c0cff7  libsystem_asl.dylib (267) <F153AC5B-0542-356E-88C8-20A62CA704E2> /usr/lib/system/libsystem_asl.dylib
    0x7fff98c0d000 -     0x7fff98c39fff  com.apple.framework.SystemAdministration (1.0 - 1.0) <9F77597C-BAB8-3D86-B6CC-96D54D89E6AE> /System/Library/PrivateFrameworks/SystemAdministration.framework/Versions/A/SystemAdministration
    0x7fff98c3a000 -     0x7fff98ca1ff7  com.apple.framework.CoreWiFi (3.0 - 300.4) <19269C1D-EB29-384A-83F3-7DDDEB7D9DAD> /System/Library/PrivateFrameworks/CoreWiFi.framework/Versions/A/CoreWiFi
    0x7fff98ca2000 -     0x7fff98ccbff3  libxslt.1.dylib (13.12) <19B2D915-DC29-3F79-9756-D7EB9051FEFF> /usr/lib/libxslt.1.dylib
    0x7fff98d12000 -     0x7fff98f57ff7  com.apple.AddressBook.framework (9.0 - 1579) <A31956C5-AA13-35E6-B553-6BDF33F35103> /System/Library/Frameworks/AddressBook.framework/Versions/A/AddressBook
    0x7fff98f59000 -     0x7fff98f5afff  libquit.dylib (182.4) <C8E6E06A-0D28-3084-B97A-76EF28DD7F7C> /usr/lib/libquit.dylib
    0x7fff98f5b000 -     0x7fff98f83fff  libRIP.A.dylib (788.3.5) <0FCFD07B-9BEB-37E4-82F6-F58CD1E86745> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/Resources/libRIP.A.dylib
    0x7fff99060000 -     0x7fff99061ff7  com.apple.print.framework.Print (10.0 - 265) <3BC4FE7F-78A0-3E57-8F4C-520E7EFD36FA> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Print.framework/Versions/A/Print
    0x7fff99062000 -     0x7fff99075ff7  com.apple.CoreBluetooth (1.0 - 1) <8D7BA9BA-EB36-307A-9119-0B3D9732C953> /System/Library/Frameworks/CoreBluetooth.framework/Versions/A/CoreBluetooth
    0x7fff99105000 -     0x7fff99151fff  com.apple.corelocation (1486.17 - 1615.24) <8825B3E2-E053-3E01-AE31-793443962D06> /System/Library/Frameworks/CoreLocation.framework/Versions/A/CoreLocation
    0x7fff99152000 -     0x7fff99159ff7  libcompiler_rt.dylib (35) <BF8FC133-EE10-3DA6-9B90-92039E28678F> /usr/lib/system/libcompiler_rt.dylib
    0x7fff991aa000 -     0x7fff991bffff  com.apple.ToneKit (1.0 - 1) <25D0FF56-B802-359D-9CA1-D530F4890D87> /System/Library/PrivateFrameworks/ToneKit.framework/Versions/A/ToneKit
    0x7fff991c0000 -     0x7fff9920dff7  com.apple.print.framework.PrintCore (10.3 - 451.1) <DE992474-0841-38A1-B4F6-46D653E454D5> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore
    0x7fff9920e000 -     0x7fff9920fff3  libSystem.B.dylib (1213) <4B24B5BE-45F2-355A-9A35-D438A516D140> /usr/lib/libSystem.B.dylib
    0x7fff99210000 -     0x7fff99215ffb  libheimdal-asn1.dylib (398.40.1) <7D2BE3DE-60F7-3A6E-A92E-DA0EF9D3417E> /usr/lib/libheimdal-asn1.dylib
    0x7fff99216000 -     0x7fff9921bfff  com.apple.ServerInformation (2.0 - 1) <C1F1F227-A170-3693-A918-ACCEA3988A22> /System/Library/PrivateFrameworks/ServerInformation.framework/Versions/A/ServerInformation
    0x7fff9921c000 -     0x7fff9924dff7  com.apple.ProtectedCloudStorage (1.0 - 1) <9D76F2E0-C28A-3DBC-A91F-E87888D46BF0> /System/Library/PrivateFrameworks/ProtectedCloudStorage.framework/Versions/A/ProtectedCloudStorage
    0x7fff992b2000 -     0x7fff992beff7  com.apple.OpenDirectory (10.10 - 187) <22FF4721-03D8-381B-AA83-2B07D690C777> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/OpenDirectory

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 14
    thread_create: 2
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 629
    thread_create: 7
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=319.7M resident=291.0M(91%) swapped_out_or_unallocated=28.6M(9%)
Writable regions: Total=1.2G written=39.5M(3%) resident=77.3M(6%) swapped_out=0K(0%) unallocated=1.1G(94%)

REGION TYPE                        VIRTUAL
===========                        =======
Activity Tracing                     2048K
CG backing stores                     336K
CG image                              264K
CG shared images                      304K
CoreAnimation                         968K
CoreImage                              72K
CoreUI image data                     152K
Foundation                              4K
IOKit                                15.0M
IOKit (reserved)                        4K        reserved VM address space (unallocated)
Image IO                              228K
JS JIT generated code               128.0M
JS JIT generated code (reserved)    896.0M        reserved VM address space (unallocated)
Kernel Alloc Once                       8K
MALLOC                              135.3M
MALLOC (admin)                         32K
Mach message                            8K
Memory Tag 242                         12K
Memory Tag 251                          8K
OpenCL                                 40K
OpenGL GLSL                           256K
SQLite page cache                    1792K
STACK GUARD                          56.1M
Stack                                18.2M
VM_ALLOCATE                          19.4M
WebKit Malloc                        20.7M
__DATA                               48.8M
__GLSLBUILTINS                       2588K
__IMAGE                               528K
__LINKEDIT                           92.1M
__TEXT                              227.6M
__UNICODE                             552K
mapped file                         219.1M
shared memory                           4K
===========                        =======
TOTAL                                 1.8G
TOTAL, minus reserved VM space      990.2M

keysofanxiety · Sep 29, 2016

Tony Lid said:
Exception Codes: KERN_INVALID_ADDRESS at 0x0000000000000000

@talisto knows what he's talking about. It could well/most likely be the graphics as your model has a documented issue. As he suggested, you could try to download GFXCardStatus from here: Download gfxCardStatus v2.3

This won't actually install anything on your Mac. You can just run the application by double-clicking the downloaded file. On the top menu bar, near the time and date, you'll then see a new icon appear which either shows 'd' or 'i'.

Click this. Force it to run from the integrated graphics only, then continue to test your machine. Does it do the same thing on integrated only? If not, force it to run from the dedicated graphics only. Does the issue only persist with the dGPU, or happens on both?

We're doing this because the problem is almost certainly hardware. If it's not the Logic Board, it's the RAM. Going through the above troubleshooting steps (possibly over the next few days, depending on how frequently the issue occurs) should help isolate if we're just talking about a $20 RAM stick you can fit within minutes, or a $400 Logic Board replacement.

Please keep us up to speed and advise if the problem occurs on the dGPU only, iGPU, or happens on both.

Thank you again for your patience and time.

Tony Lid · Sep 29, 2016

keysofanxiety said:
@talisto knows what he's talking about. It could well/most likely be the graphics as your model has a documented issue. As he suggested, you could try to download GFXCardStatus from here: Download gfxCardStatus v2.3

This won't actually install anything on your Mac. You can just run the application by double-clicking the downloaded file. On the top menu bar, near the time and date, you'll then see a new icon appear which either shows 'd' or 'i'.

Click this. Force it to run from the integrated graphics only, then continue to test your machine. Does it do the same thing on integrated only? If not, force it to run from the dedicated graphics only. Does the issue only persist with the dGPU, or happens on both?

We're doing this because the problem is almost certainly hardware. If it's not the Logic Board, it's the RAM. Going through the above troubleshooting steps (possibly over the next few days, depending on how frequently the issue occurs) should help isolate if we're just talking about a $20 RAM stick you can fit within minutes, or a $400 Logic Board replacement.

Please keep us up to speed and advise if the problem occurs on the dGPU only, iGPU, or happens on both.

Thank you again for your patience and time.

I have been doing this tonight with my mouse turned off & my blue tooth also turned off. Just using the the pad, scrolling etc with no problems at all. Following a local repair shop advice. Should I be switching it all back on to do this?
Tony

keysofanxiety · Sep 29, 2016

Tony Lid said:
I have been doing this tonight with my mouse turned off & my blue tooth also turned off. Just using the the pad, scrolling etc with no problems at all. Following a local repair shop advice. Should I be switching it all back on to do this?
Tony

Hi Tony,

I'd suggest leaving them turned off, even though they wouldn't be contributing to the issue. From a simple troubleshooting mentality: the less things are running, the easier the problem is to definitively isolate.

Just run it vanilla with iGPU (Intel graphics). If that seems OK, try vanilla with dGPU (NVIDIA 320M). See if the issue occurs again on both, only one, or neither.

Search

Search

Help! Mid 2010 MBP keeps rebooting

Tony Lid

macrumors newbie

keysofanxiety

macrumors G3

Tony Lid

macrumors newbie

keysofanxiety

macrumors G3

Tony Lid

macrumors newbie

keysofanxiety

macrumors G3

talisto

macrumors newbie

Tony Lid

macrumors newbie

Tony Lid

macrumors newbie

keysofanxiety

macrumors G3

Tony Lid

macrumors newbie

keysofanxiety

macrumors G3

Our Staff
