GuettaMan

macrumors newbie
Original poster
Oct 4, 2014
4
0
Hello,

I have purchased my first Macbook Pro (13.5 inch, has a Retina Display and the model is A1502) and included in the package came a charger (a 60W Magsafe 2 Power Adapter) Now I am new to Mac, I am not sure how this charger works so I have been looking online and it came with a manual itself but I am still unsure on how I can charge my Mac and it is almost out of charge since my first use.

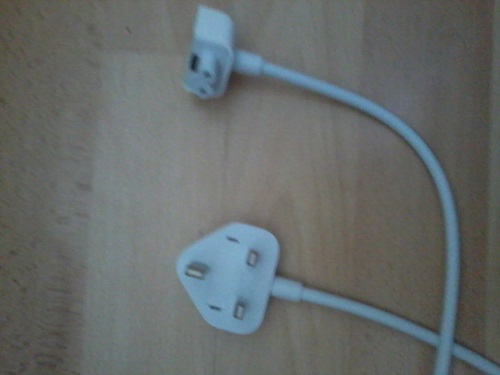

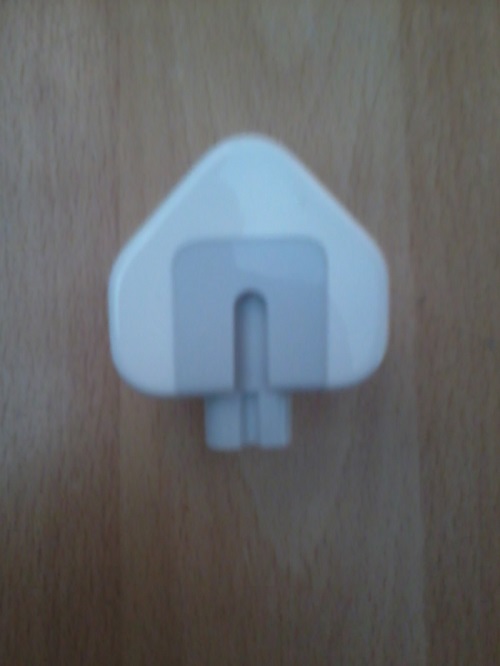

I've attached some images of the charger that came with my Mac, and was wondering if someone could perhaps direct me how to do it? Any help is much appreciated, sorry if this is such an obvious thing, lol.

Thanks!

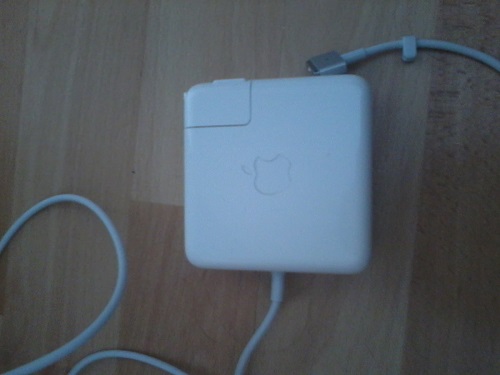

Remove the cover from the power block (photo 2 top left). Then insert one of the two plugs into adapter, which one you use is up to you.
