Mac Mini A1283 3.1 unknown Socket

[monkeyisland]

Hello i get over ebay ads germany a Mac Mini A1283 2,66 GHz.
So we every Mini i get i disassembled the machine to renew the cooling paste.
I see two socket connectors
Can anybody say for what this sockets are ?

i changed pictures and marked red...

Thank you..



[MBAir2010]

my Mac mini 2012 has an empty socket as well, near the fan socket
on Mini's there are 2 ports-sockets for hard drives, fan, and one for the light-bluetooth something then the power.

everything works though, eh?



[monkeyisland]

my Mac mini 2012 has an empty socket as well, near the fan socket
on Mini's there are 2 ports-sockets for hard drives, fan, and one for the light-bluetooth something then the power.

everything works though, eh?

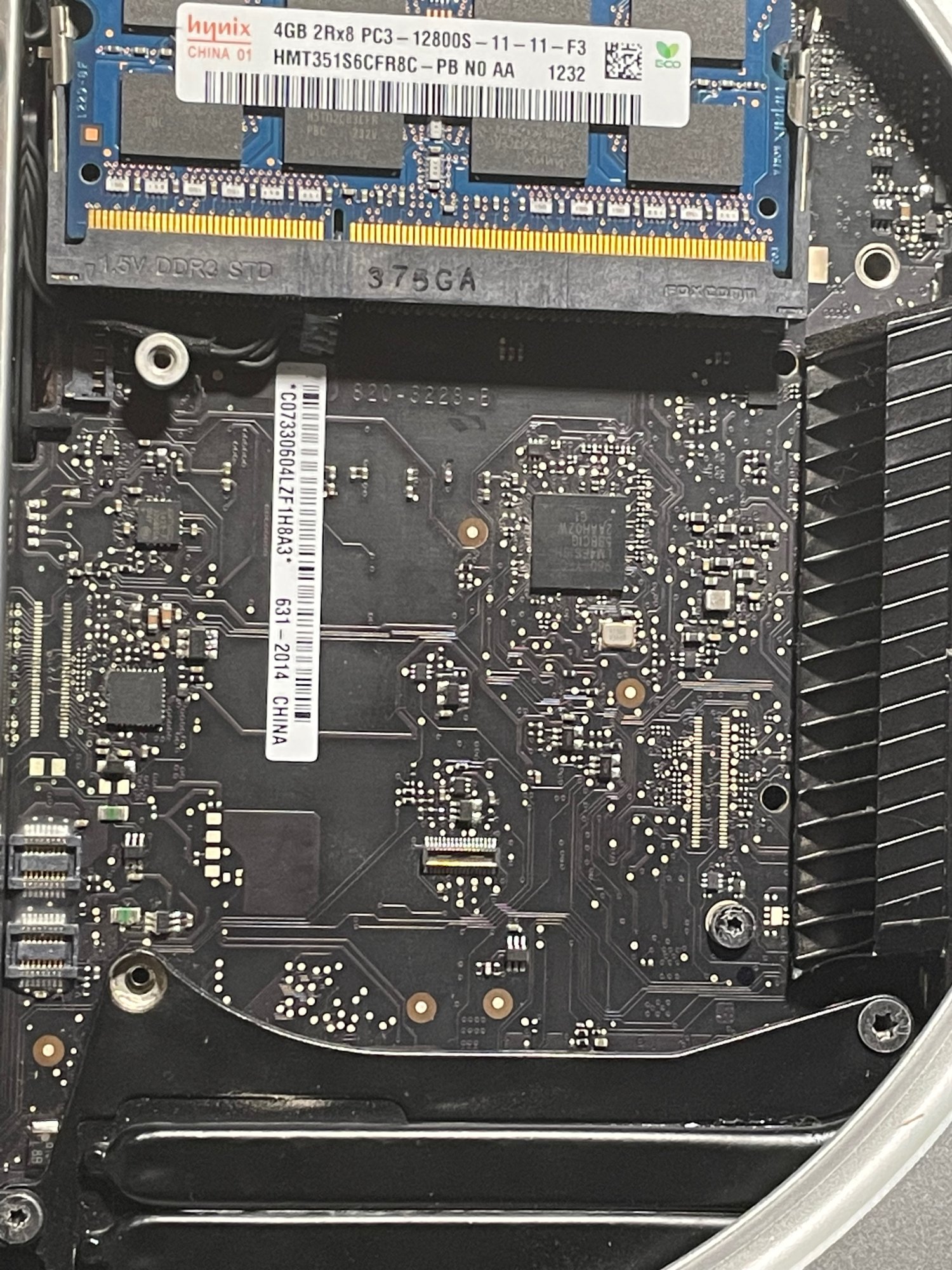

The sockets are under the Windtunnel near the cpu cooler an one is right nehr the end of the platine.



[MBAir2010]

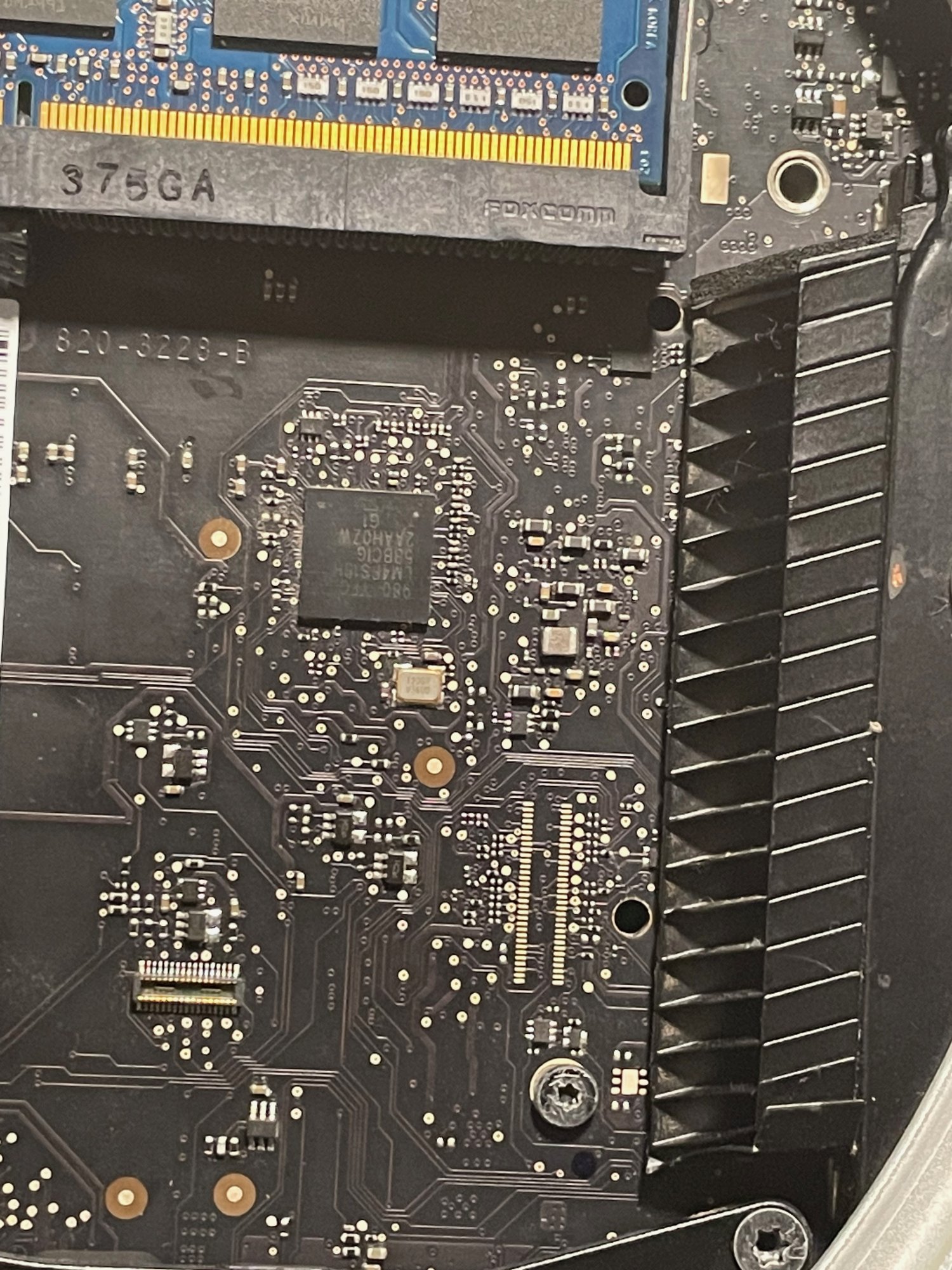

here is my Mac mini if this helps



[monkeyisland]

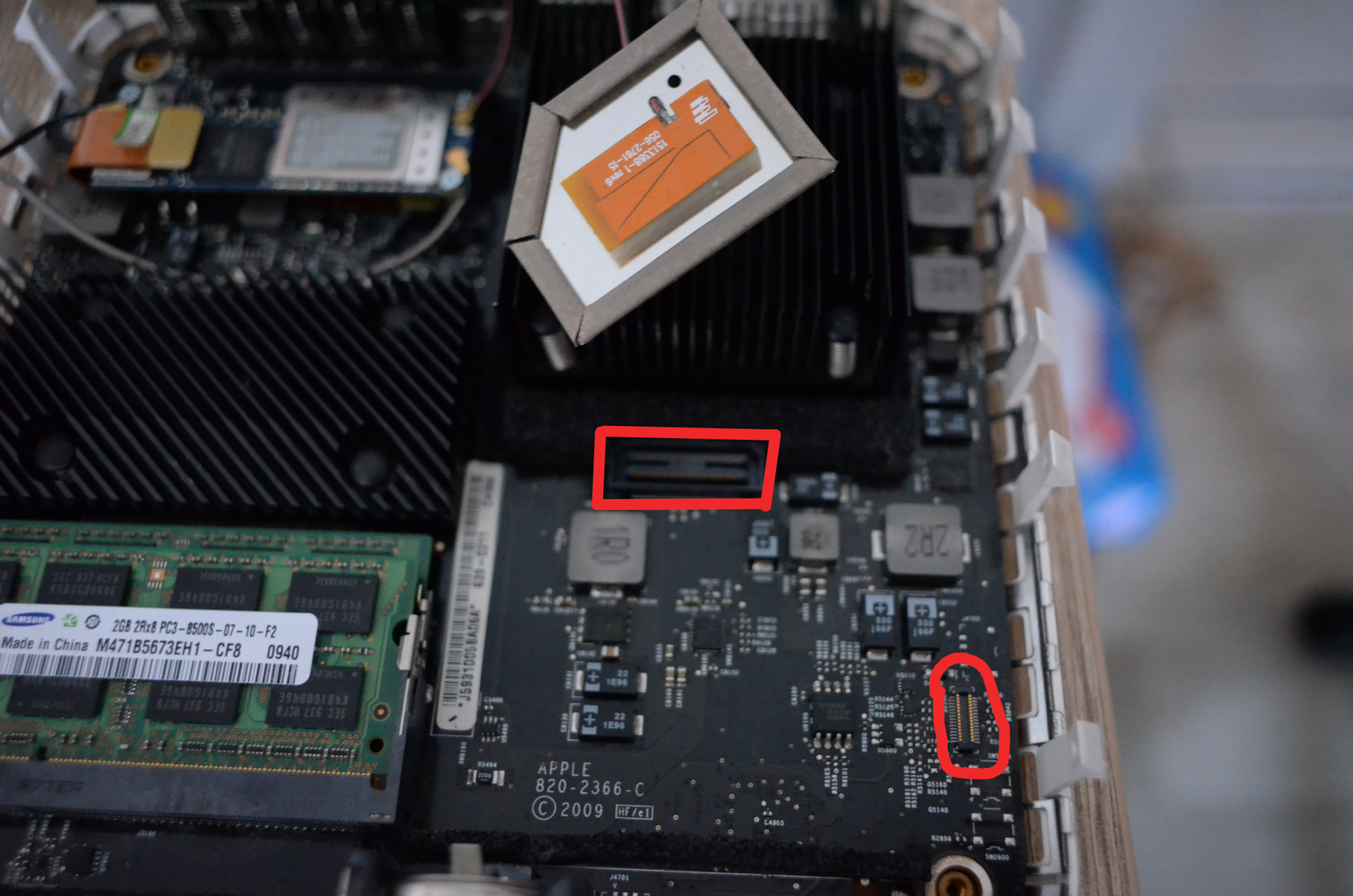

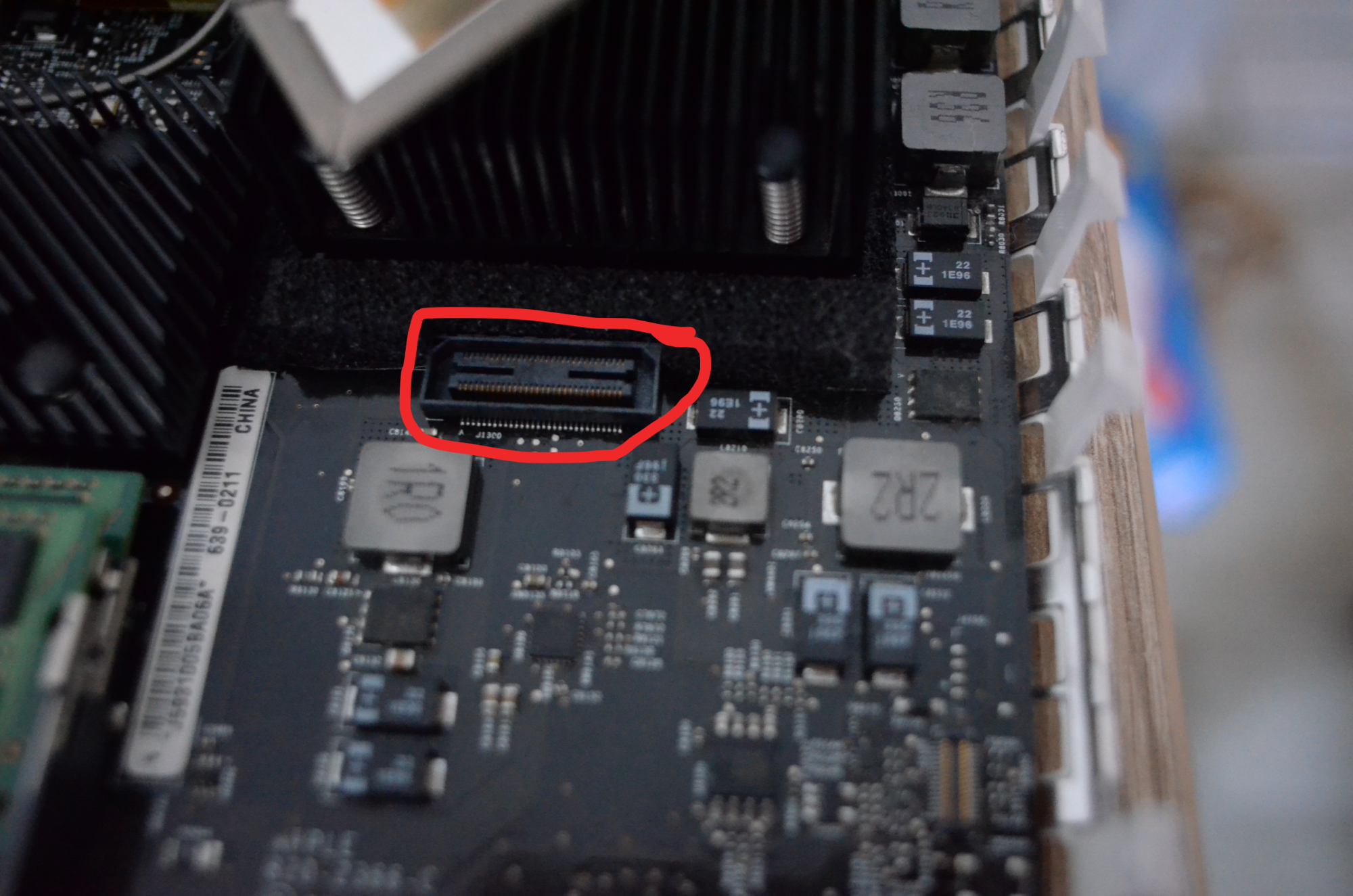

i attached new pictures... The machine is complete okay i dissambled much mac minis i seen the right connector always i a machine A1283 with 2,0 GHZ CPU. But the other sockect is strange near the cpu... for what is this ?



[Needleroozer]

Hello i get over ebay ads germany a Mac Mini A1283 2,66 GHz.
So we every Mini i get i disassembled the machine to renew the cooling paste.
I see two socket connectors
Can anybody say for what this sockets are ?

i changed pictures and marked red...

Thank you..View attachment 2136464View attachment 2136468

I couldn’t find schematics for a 2010 Mac Mini, but the connector by the CPU is an Intel XDP connector that’s used for JTAG debugging of the system.
I don’t know for sure what the other connector is, but my guess is that it can be used to reprogram the SPI flash chip that holds the BIOS or override it with a “Matt Card” daughterboard that carries an alternate flash chip.
