MP 6,1 Mac Pro damaged Pin on RAM Slot

[3PR]

Hi,
I have a damaged pin on one of my Mac pro Ram slots.
Causes crashes when RAM is seated.
What are my options for fixing?
Thanks



[Hasbro1]

Best call Apple Support. Hope you bought that AppleCare.



[3PR]

It was purchased 2013, Applecare long expired.



[Hasbro1]

It was purchased 2013, Applecare long expired.

whoops. 6,1. sorry.



[opeter]

Well, I would say you need a new logicboard ...

If you live somewhere in the US, maybe you can contact them:

Rossmann Repair Group: Professional Data Recovery & MacBook Repair

Expert data recovery and component-level repair in Austin, TX. No diagnostic fees, no data = no charge. Featured in Wall Street Journal, Business Insider, CBC News.

rossmanngroup.com

[automerge]1581354715[/automerge]



[DPUser]

Use fewer, larger DIMMs?



[AlexMaximus]

It was purchased 2013, Applecare long expired.

Can you post a photo up close ??



[3PR]

Can you post a photo up close ??

I will try to post one up later. Thanks



[AlexMaximus]

I will try to post one up later. Thanks

Perfect. In the meantime watch some Ram slot repair videos on YouTube such as this.
This will give you a primer.



[Slash-2CPU]

Page 3 of this pdf shows DDR# pinout. https://media.digikey.com/pdf/Data Sheets/Micron Technology Inc PDFs/MT8JTF(128,256)64A_RevB.pdf

If it's VSS, VTT, VDD(not VDDSPD), or VREF, you can remove the pin and it will *probably* function ok. Preferable option is to repair the pin. Last resort is remove pin and try. Odds are 40-50% that it's a redundant pin.



[3PR]

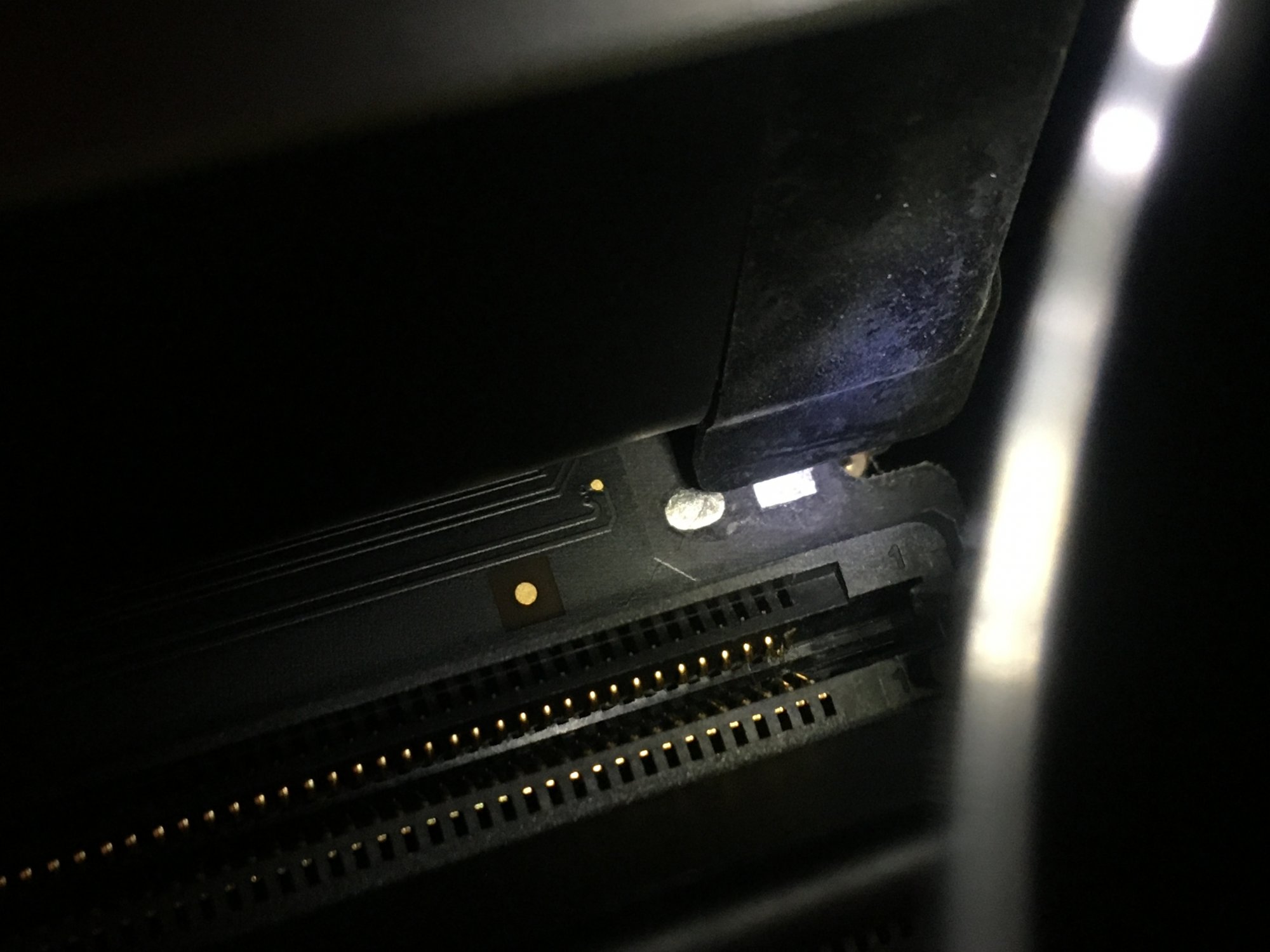

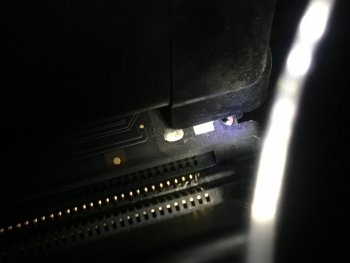

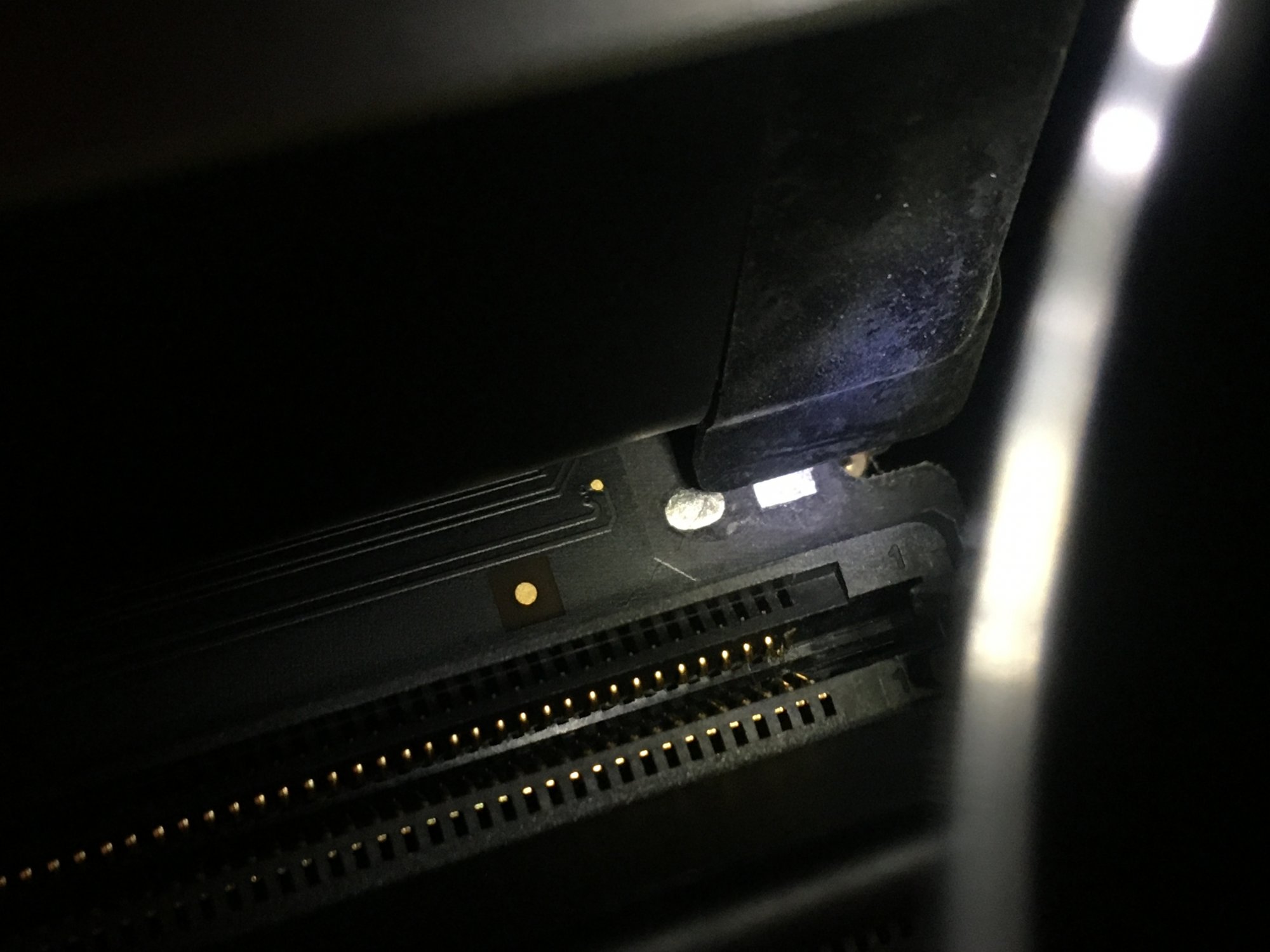

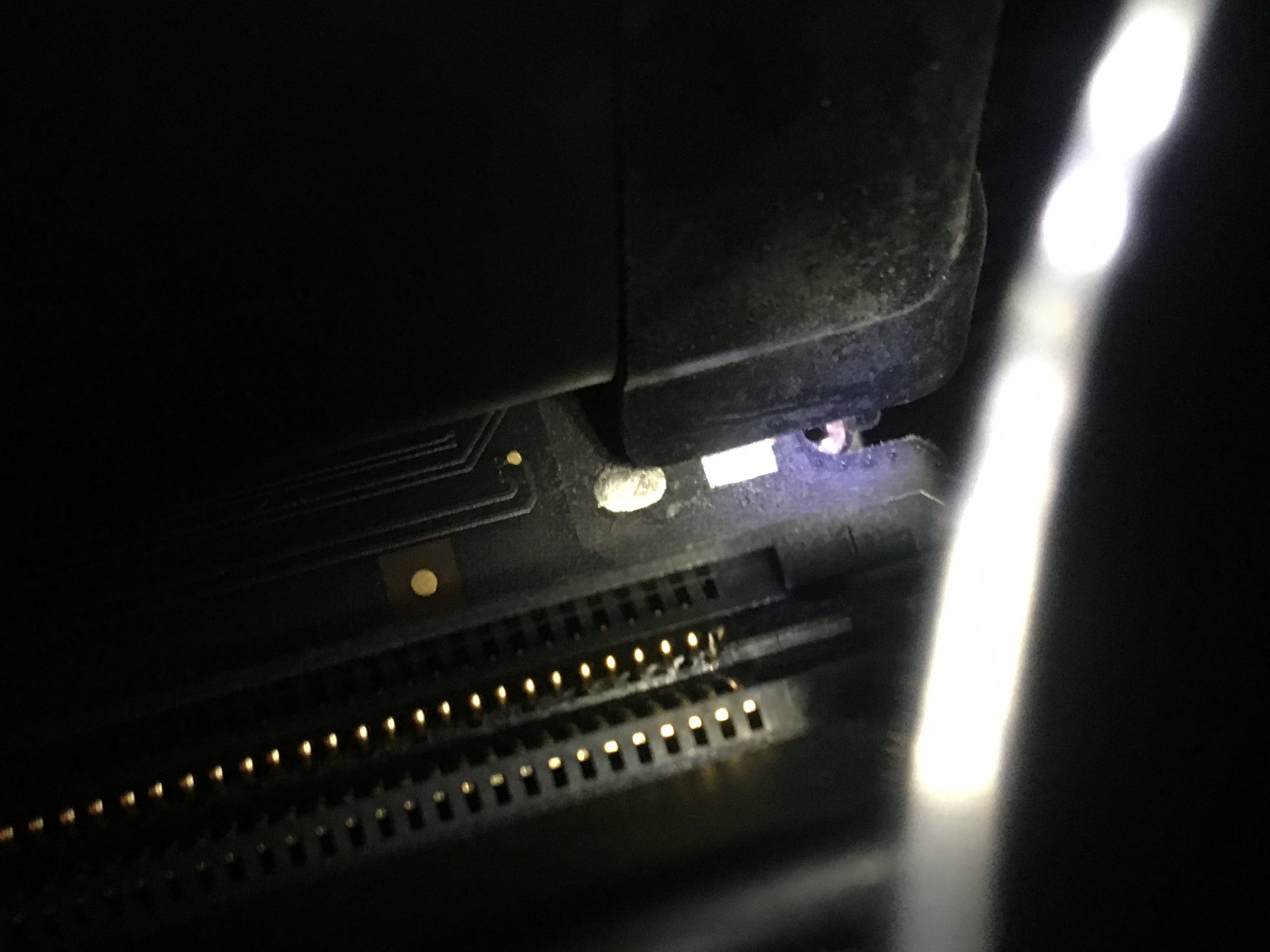

Its the last pin, bent backwards. Looks like that would be VTT, which might be safe to remove?



[Slash-2CPU]

Try to fix. If you can't fix, pull the pin out.
