macbook 3.1 optibay

[tcid]

Hello.
I want to replace my optic drive for another hard drive, can someone help me telling wich material to buy? do i need a pata or sata optibay? My optic drive is a matisha cw-8221.
Thanks in advance!



[Hellhammer]

Can you take a screenshot of your System Profiler? I can't remember is it PATA or SATA but I would guess it's SATA.



[tcid]



[tcid]

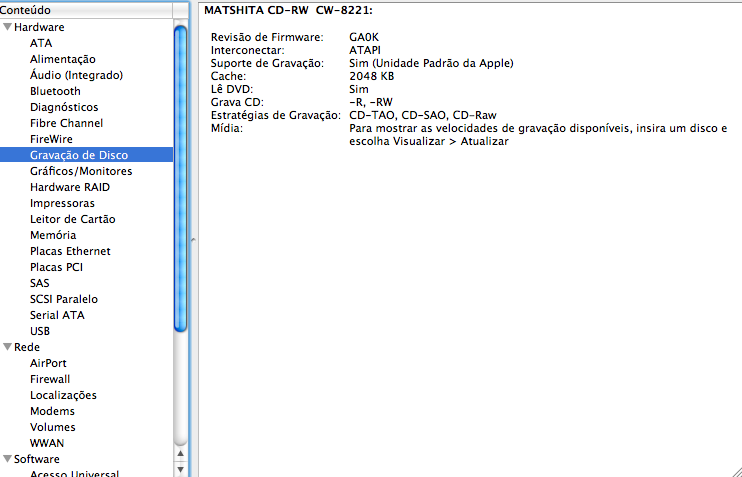

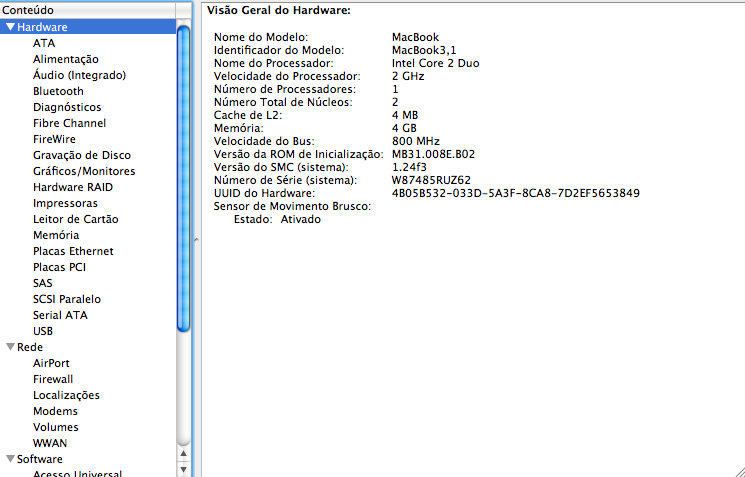

View attachment 274047

View attachment 274046

is this what you've asked?



[Hellhammer]

is this what you've asked?

Yes. Appears that it uses PATA.



[tcid]

so can u suggest me what kind of material should i buy to replace my optic drive, and with that can i still put it a sata harddrive in the optibay? thanks



[Capt Underpants]

I went through hell trying to get a macbook 3,1 optibay.

Make sure you get a 9.5mm tall optibay with a PATA connector.

edit: This is what you need.



[tcid]

thank u2 for your help
Can i use an ssd in the optibay or is better to use it in the normal hard drive place? thanks again



[Hellhammer]

thank u2 for your help
Can i use an ssd in the optibay or is better to use it in the normal hard drive place? thanks again

Pretty much all SSDs are SATA so I would put it in the HD slot. SATA 1.5Gb/s is also a bit faster than PATA 133MB/s.
