Macbook A1286 820-2915B i7 late 2011 no backlight

D

drickko

macrumors newbie
Original poster
Feb 28, 2015
2
0

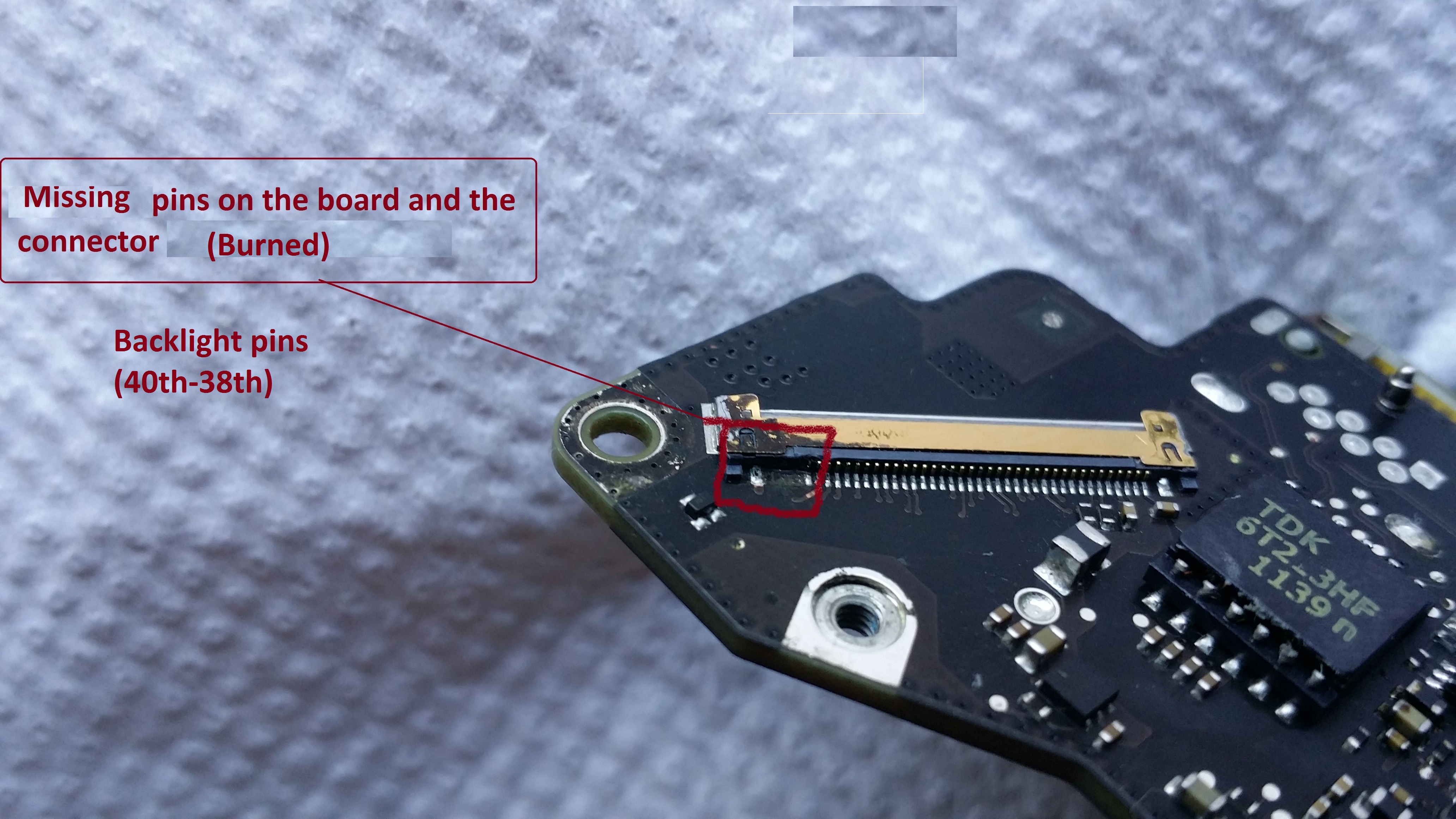

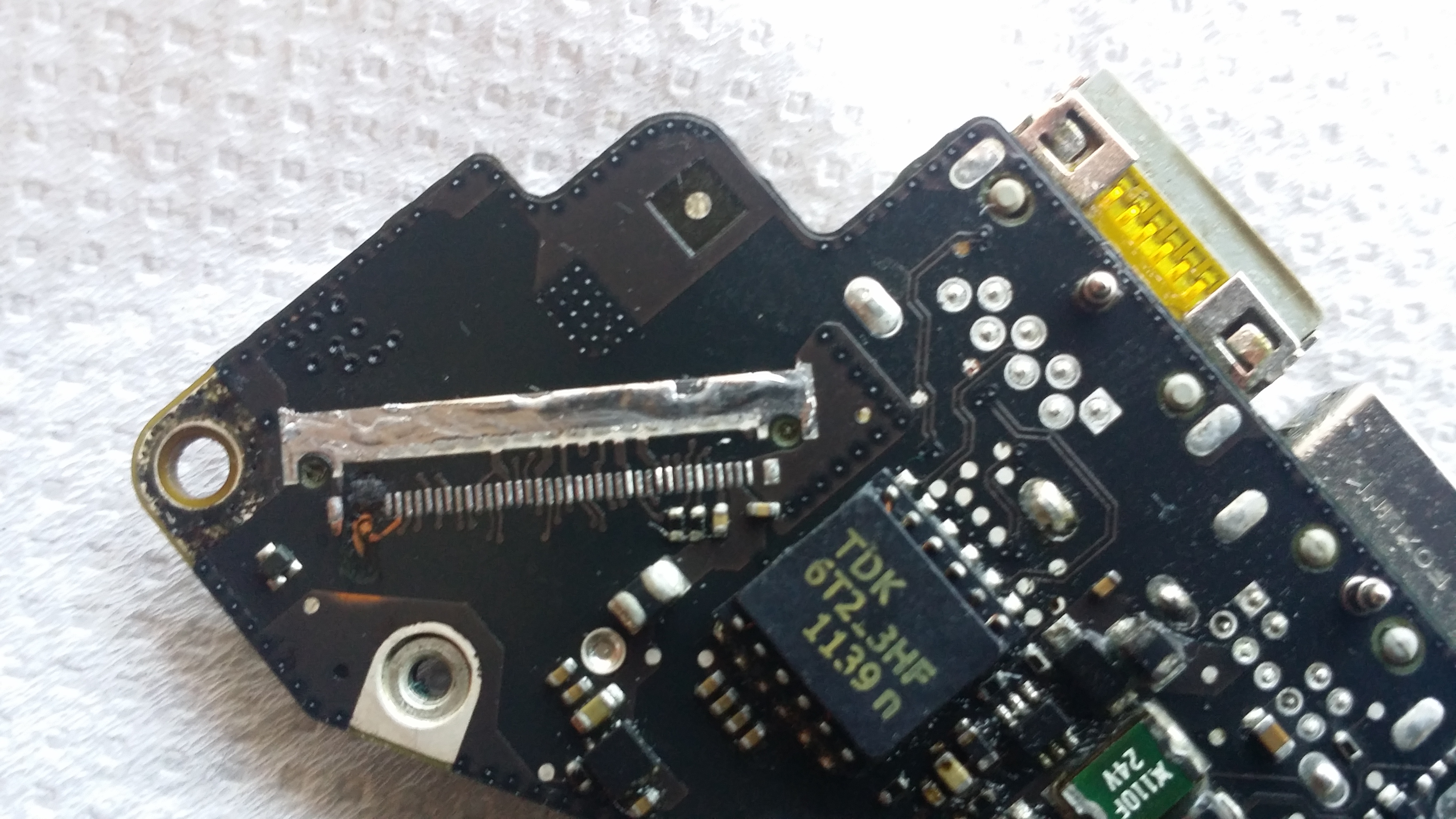

Hi, Is anyone can help me? I have a macbook A1286 emc 2563 logic board 820-2915B which power on and we can ear the shime but no video and backlight. After looking at very well the lcd connector I saw that there are some pins (about 3 or 4: 40th-38th) on missing on the logic board and the pins maybe burned I don't know why. Please I need the pinout of these missing pins to fix it when i'll change this connector by a new one.

Regards


Attachments

  • 2015-02-27 16.49.59.jpg
    2015-02-27 16.49.59.jpg
    2.1 MB · Views: 66
  • 2015-02-28 14.26.08.jpg
    2015-02-28 14.26.08.jpg
    2.6 MB · Views: 89

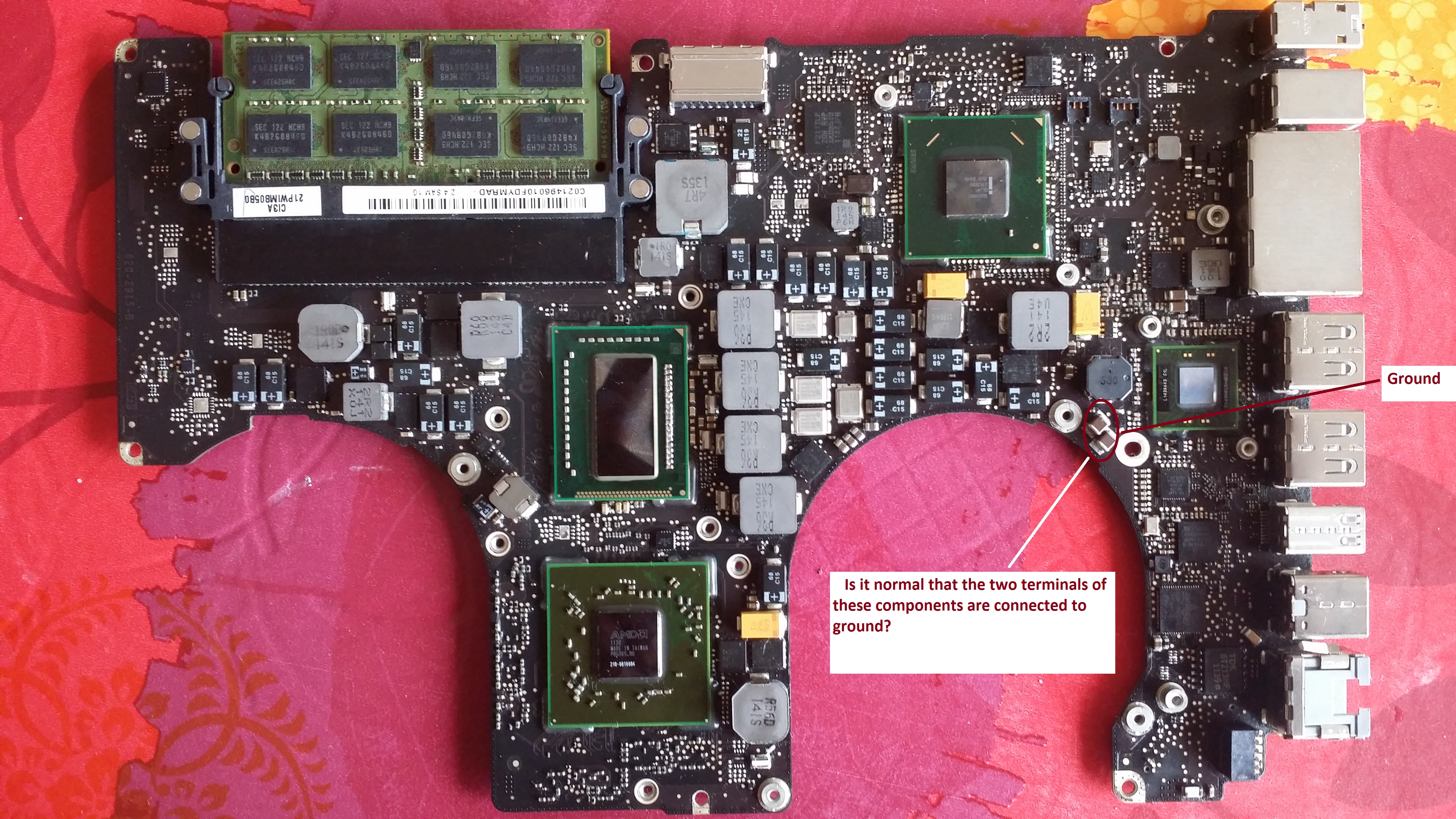

  • 2015-02-24 12.40.24 (1).jpg
    2015-02-24 12.40.24 (1).jpg
    3.1 MB · Views: 124
