Hi!
I need help with a macbook air a1369 I Believe its a 820-3023 motherboard.

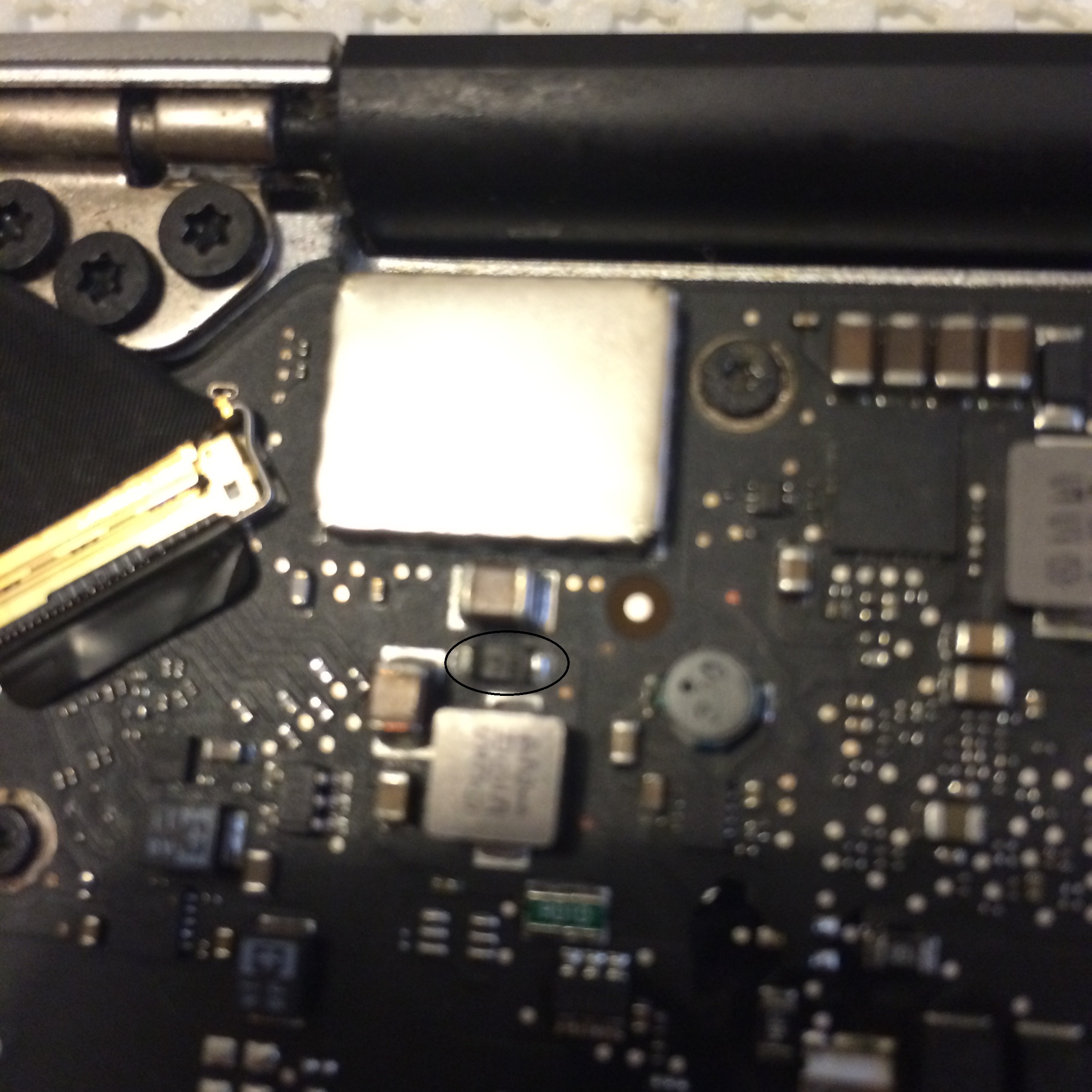

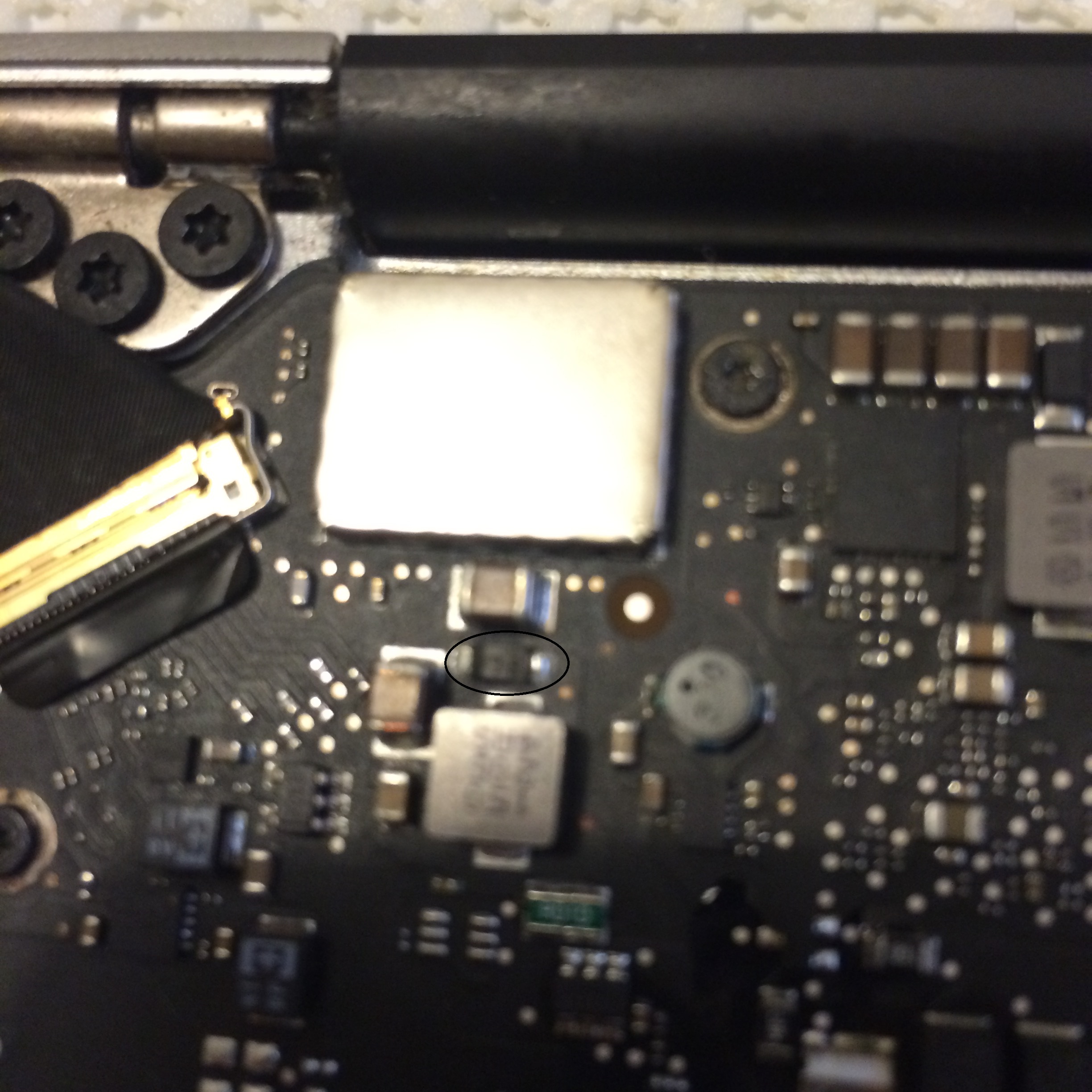

I have measured and found something wrong but dont know what the Component is called.

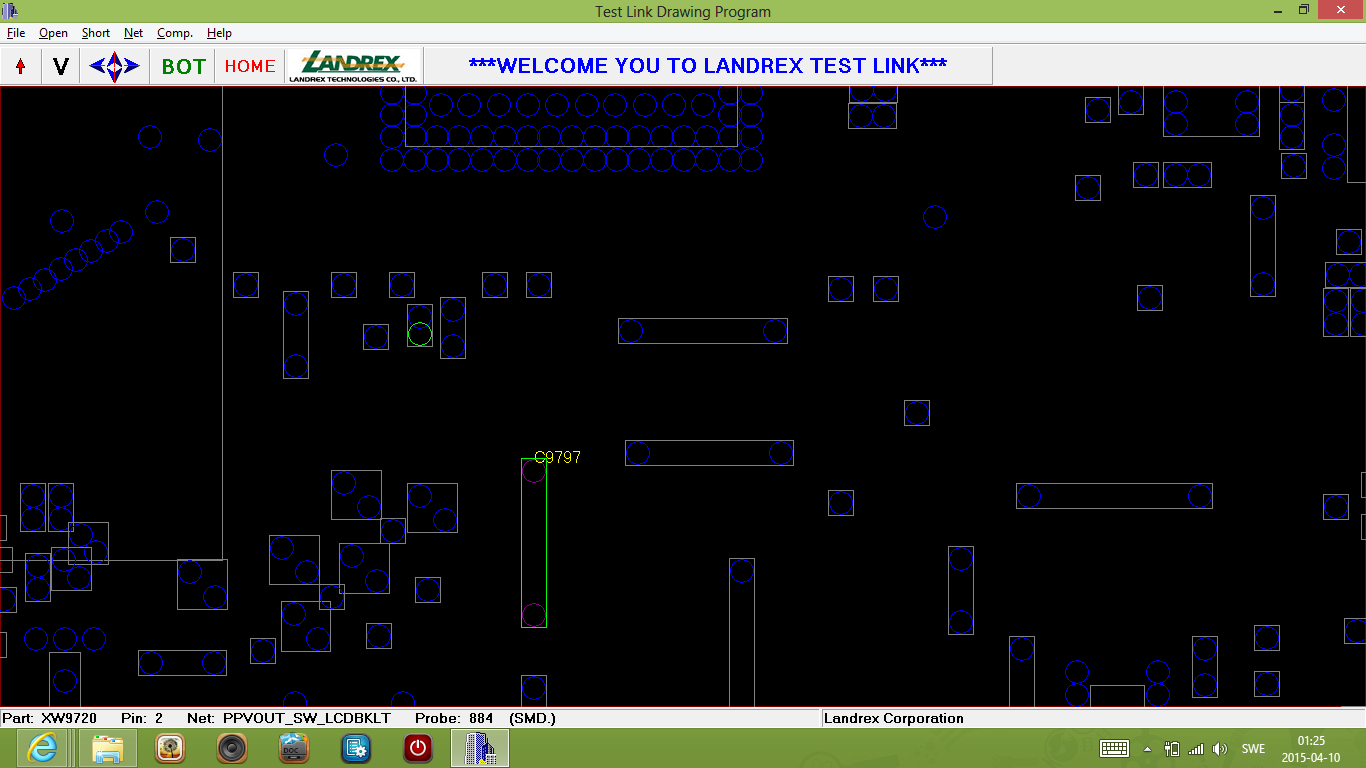

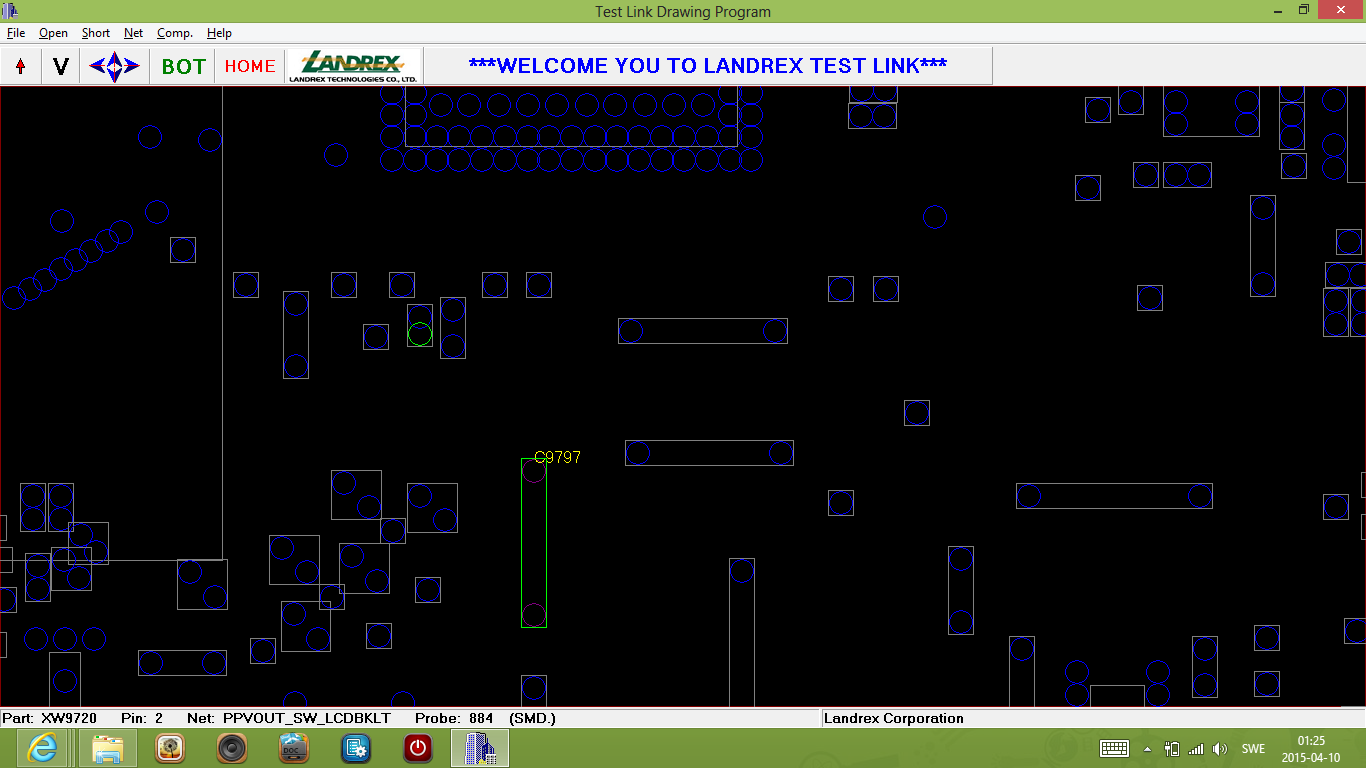

In the board view there is no Component there but I suspect it is xw9720 is ut true?

It is shorting in one side so I need to replace do anybody know where I can buy it?


Attachments

  • IMG_0091.JPG
    863.1 KB · Views: 307
  • testo.png
    86 KB · Views: 278
I Think it is the D9701 but not shore. Can somebody show me the xw since I cant find it on the board to. in schematics D9701 is RB160M-60G
