Hello. Sorry I'm not good speak english, but I'm try explain about my problem.

So: my mbp 13,a1278 mid 2010, 2 days ago stoping charger battery end no any light on charger connector. pram reset not help, I'm try disconnect battery hold power button connect again olso not help. Try to sister computer install battery working, power adapter also working witch sister computer.

coconutbattery:

battery status : Good
battery failure : none
charging with : 0.0 watts if disconnect power connector end connect again battery usage 2.2 wats about 10s
power adapter : (null) watts

Also without battery no start.

i little check logic board power without battery


Attachments

  • IMG_0116.JPG
    2.5 MB · Views: 1,060
  • IMG_0115.JPG
    2.3 MB · Views: 1,438
  • IMG_0114.JPG
    2.5 MB · Views: 2,423
i forget tell testing witch ASD is passed no found faults

Last edited:
hi again. Techtotal pro 7 show:

Power: AC Power. Battery Fully charger

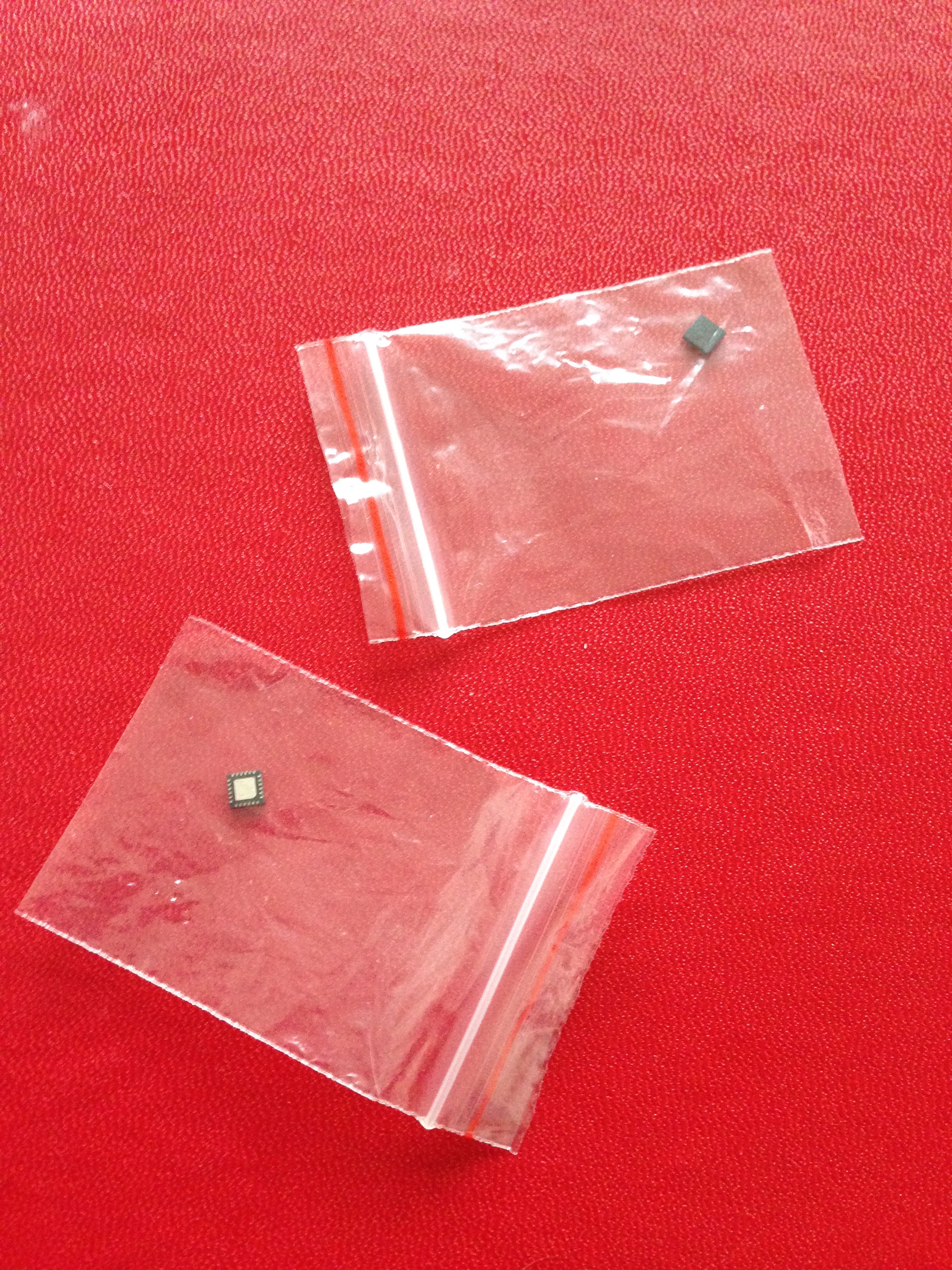

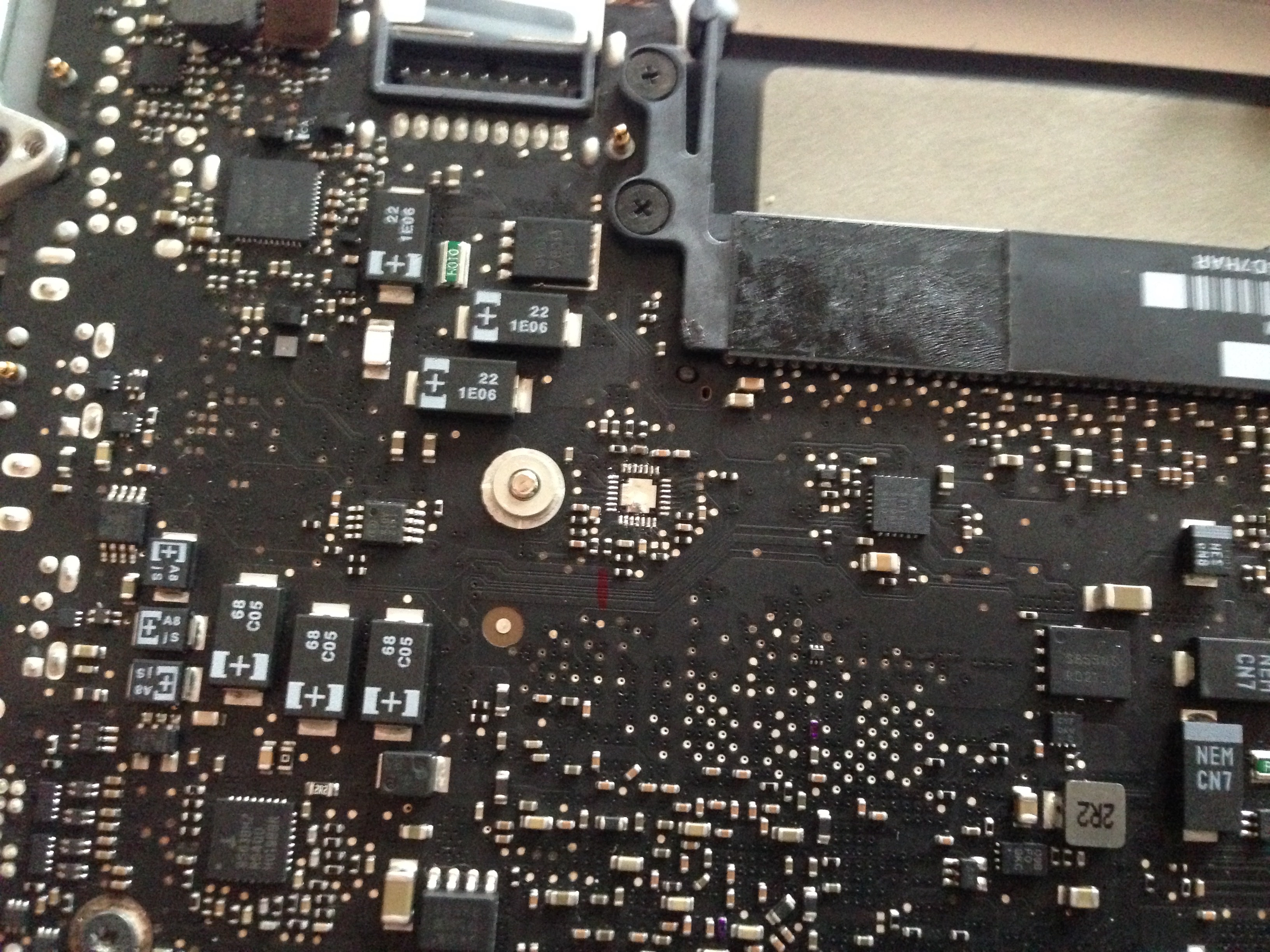

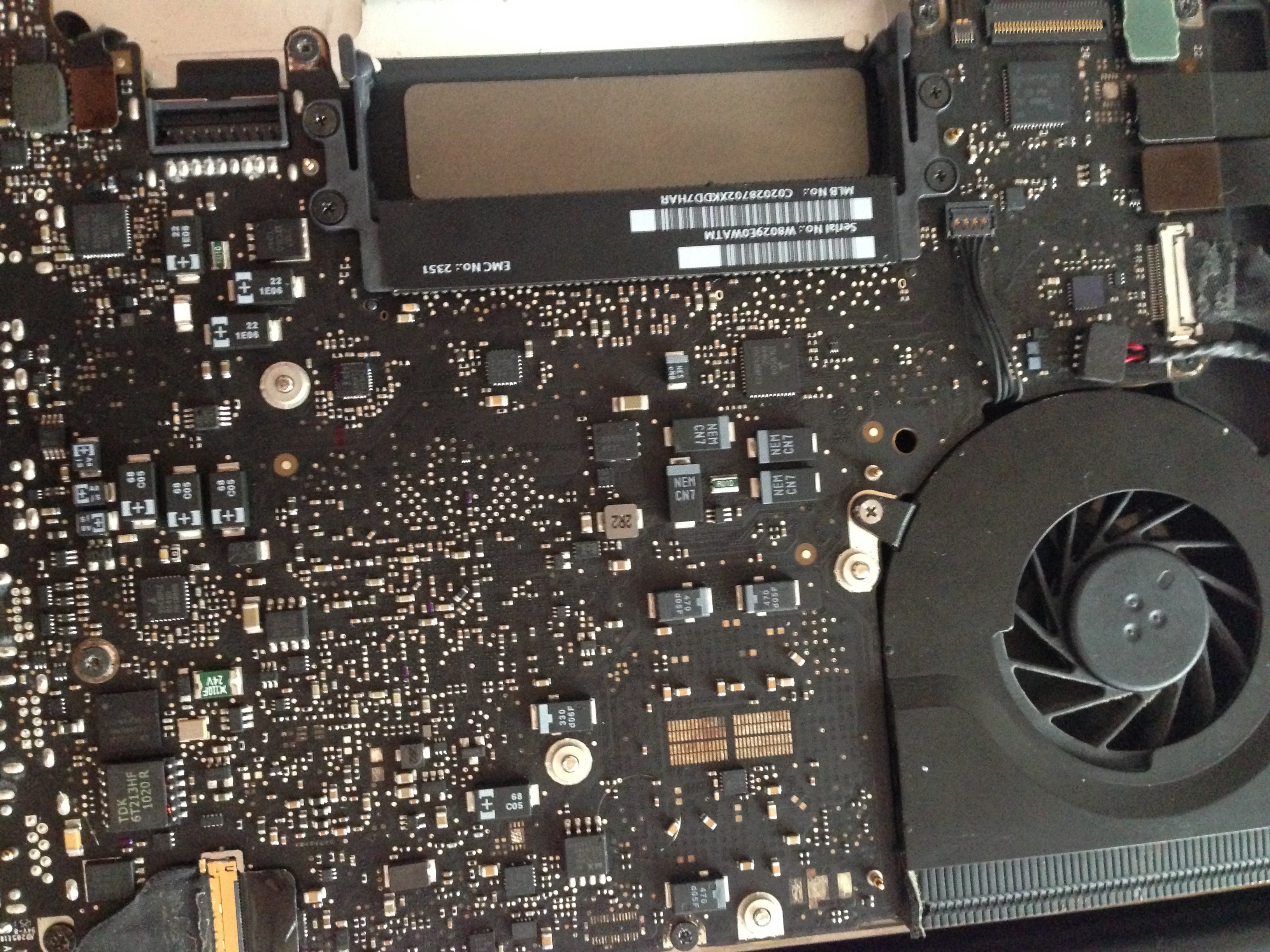

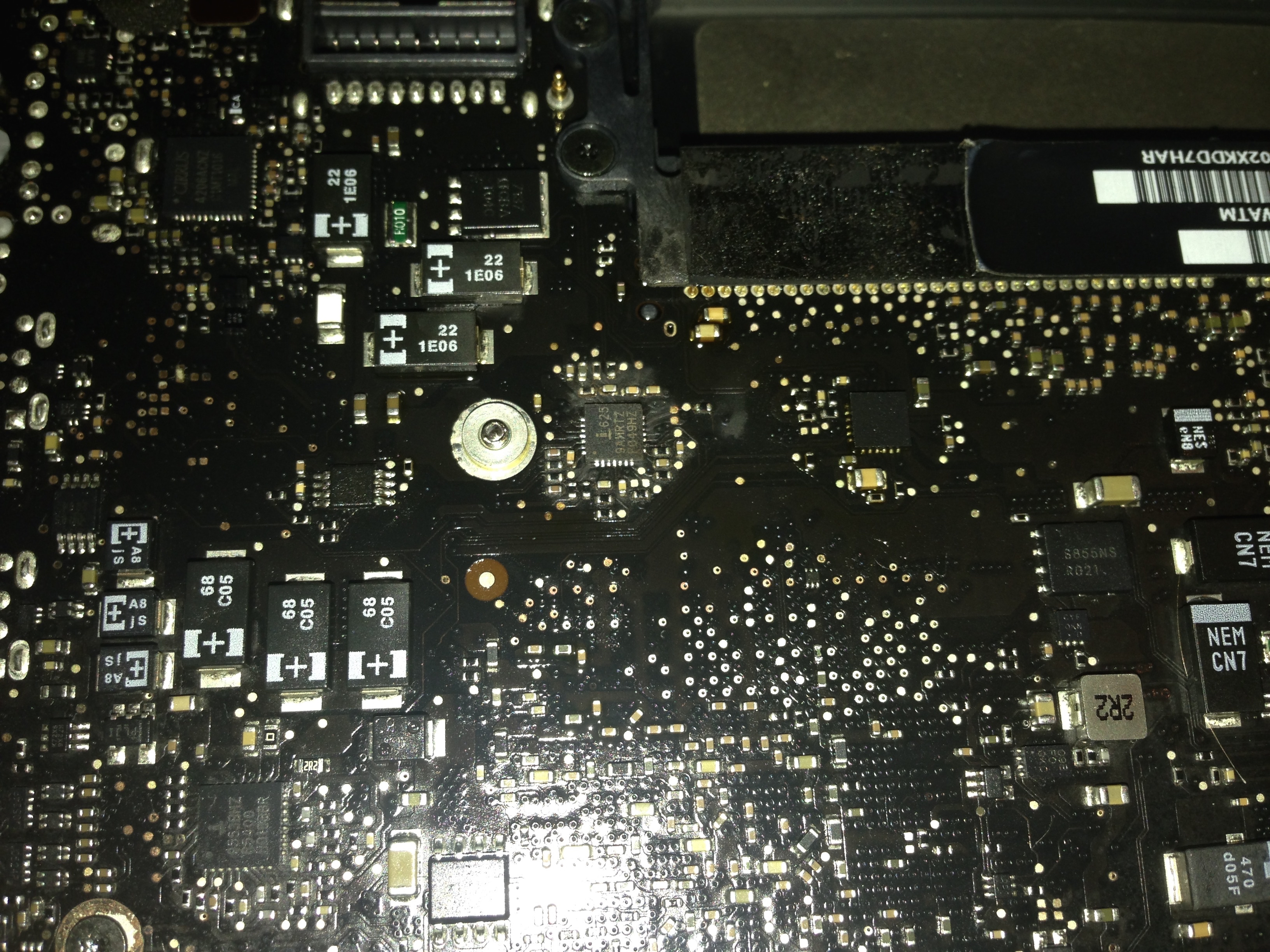

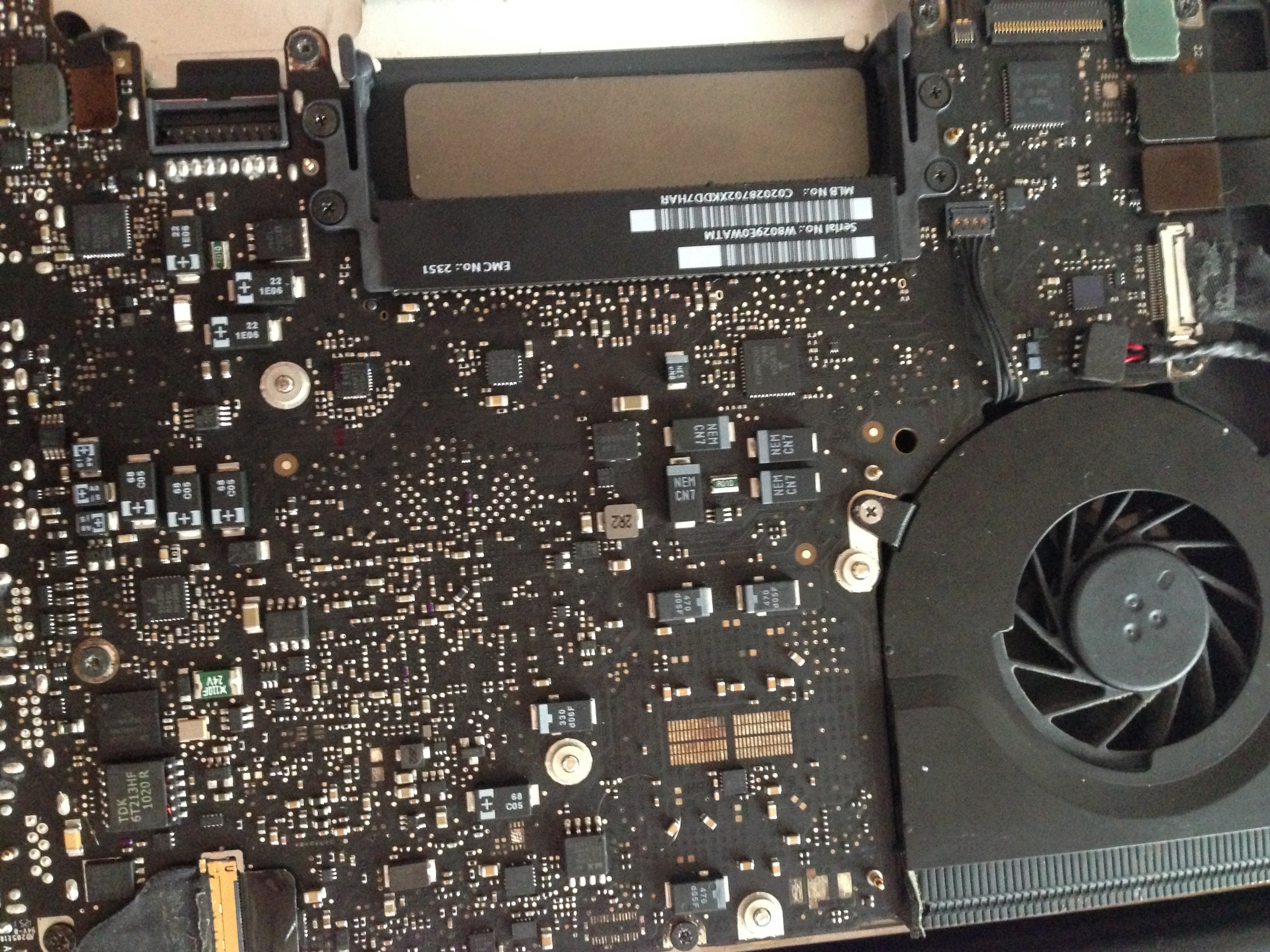

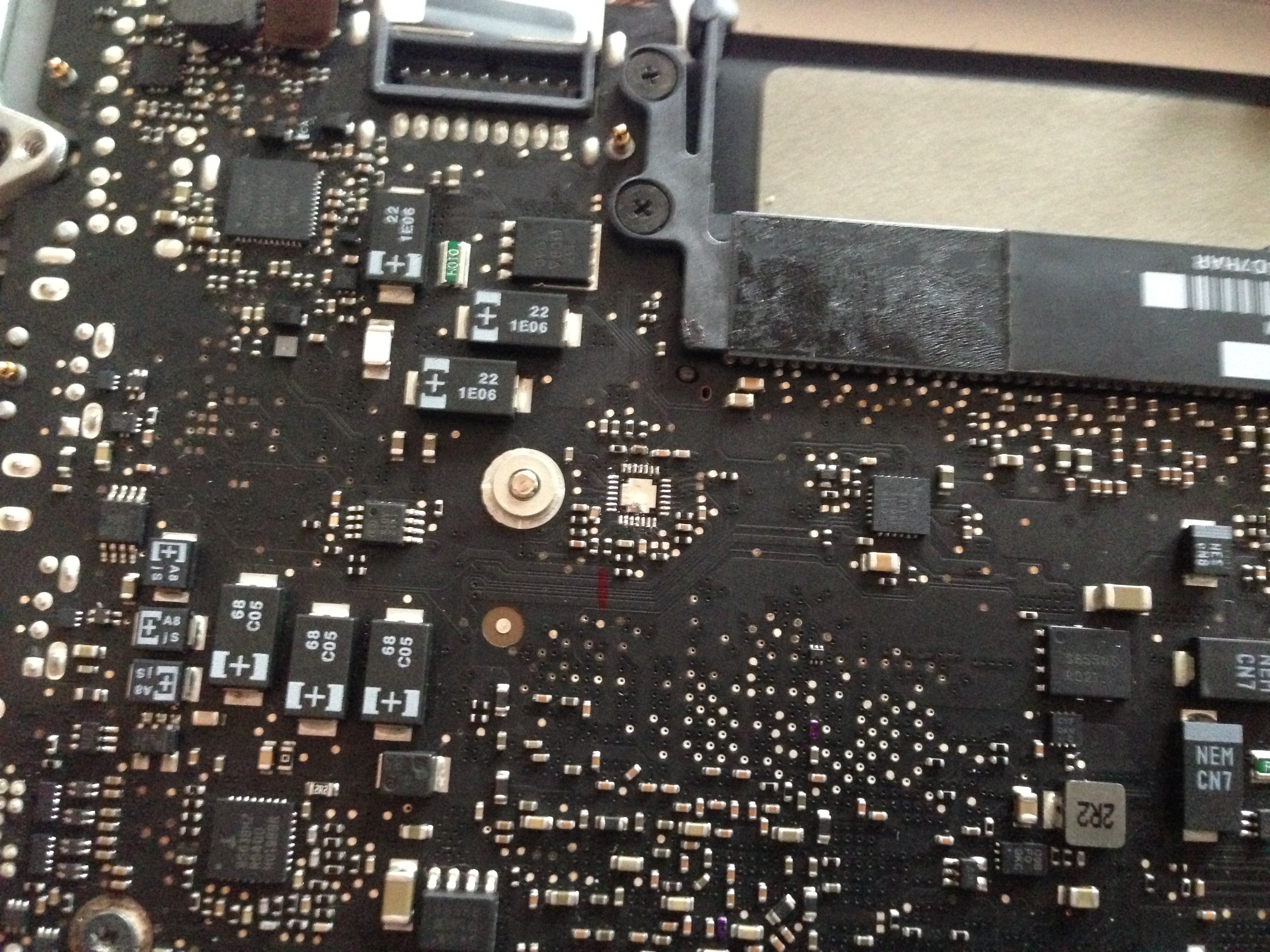

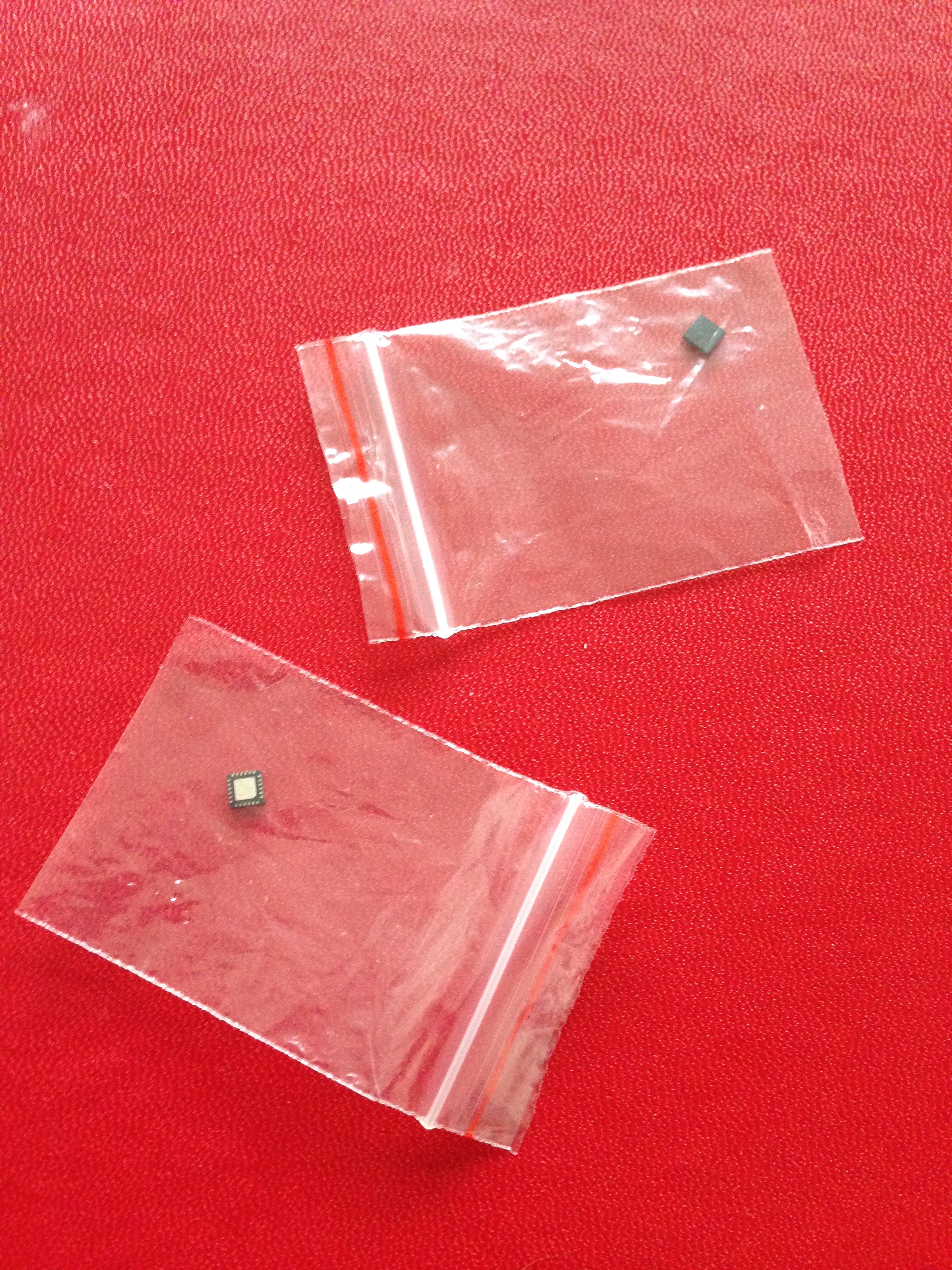

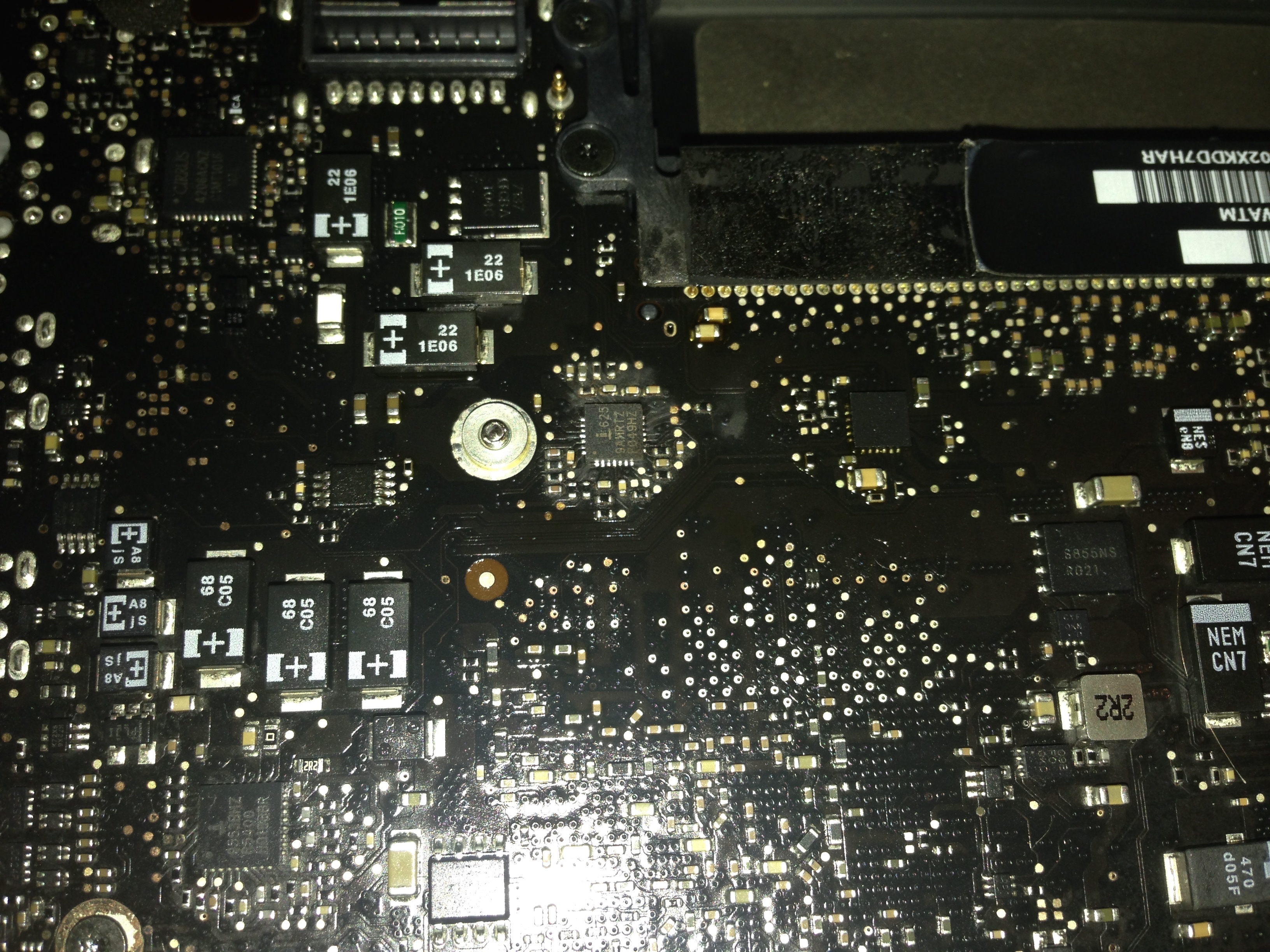

hello again. today try change power & charger chip. when chip take out gone power to battery connector show 0.00/0.00/0.00 after change new chip power same to old chip and still no light or charger battery :( same one can help where looking problem ?


Attachments

  • IMG_0125.jpg
    2.6 MB · Views: 607
  • IMG_0126.jpg
    2.5 MB · Views: 1,047
  • IMG_0127.jpg
    2.8 MB · Views: 342
  • IMG_0123.jpg
    3.6 MB · Views: 355
prolem fixed :)

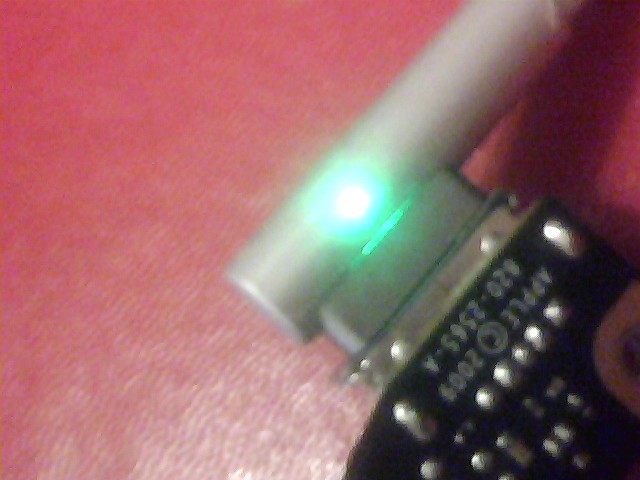

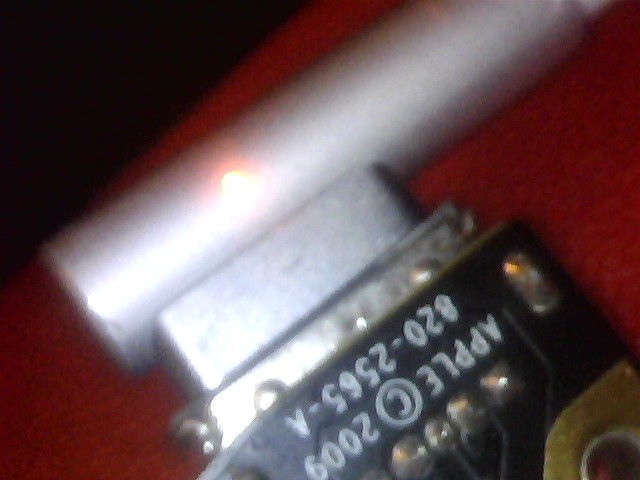

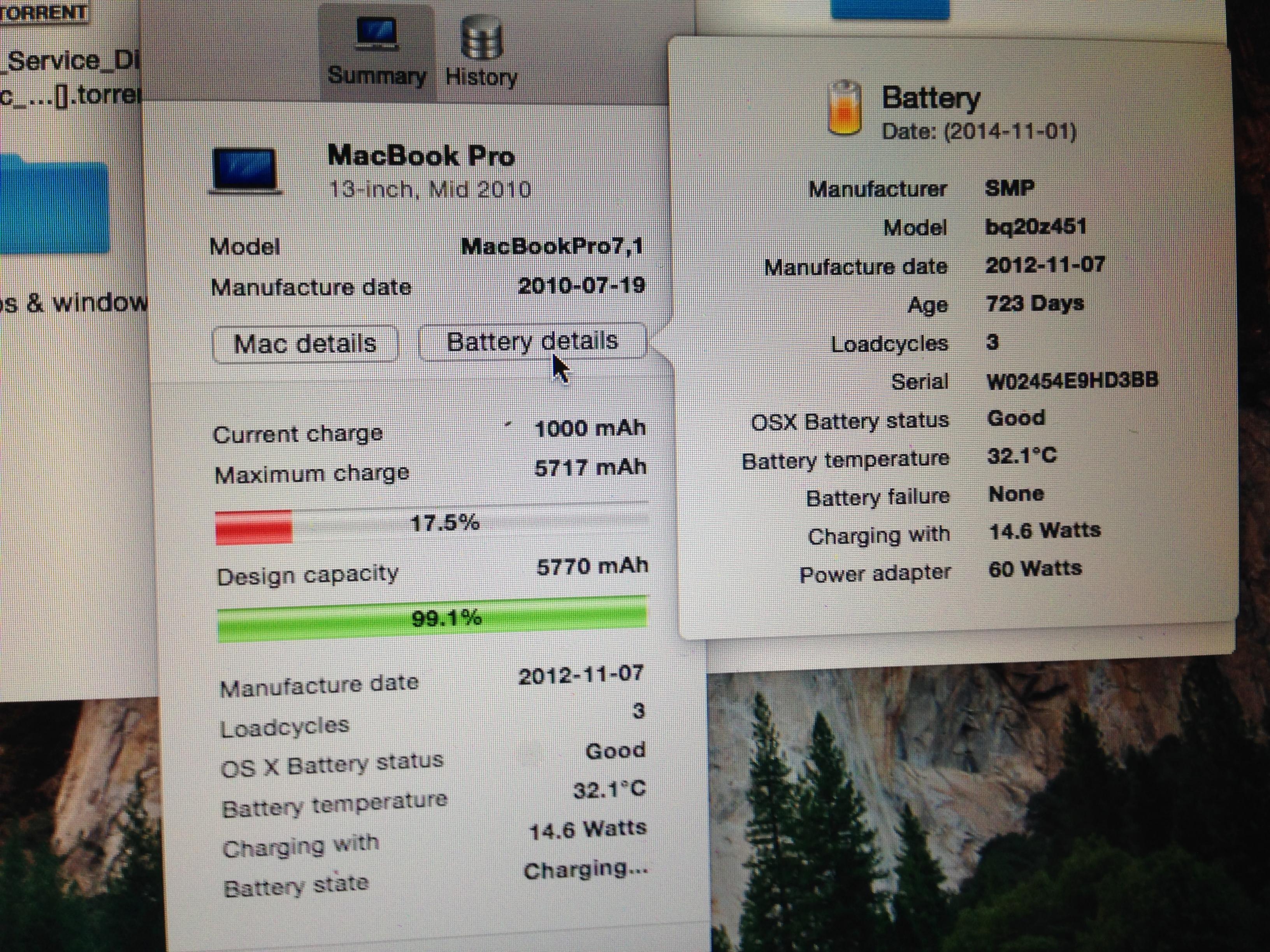

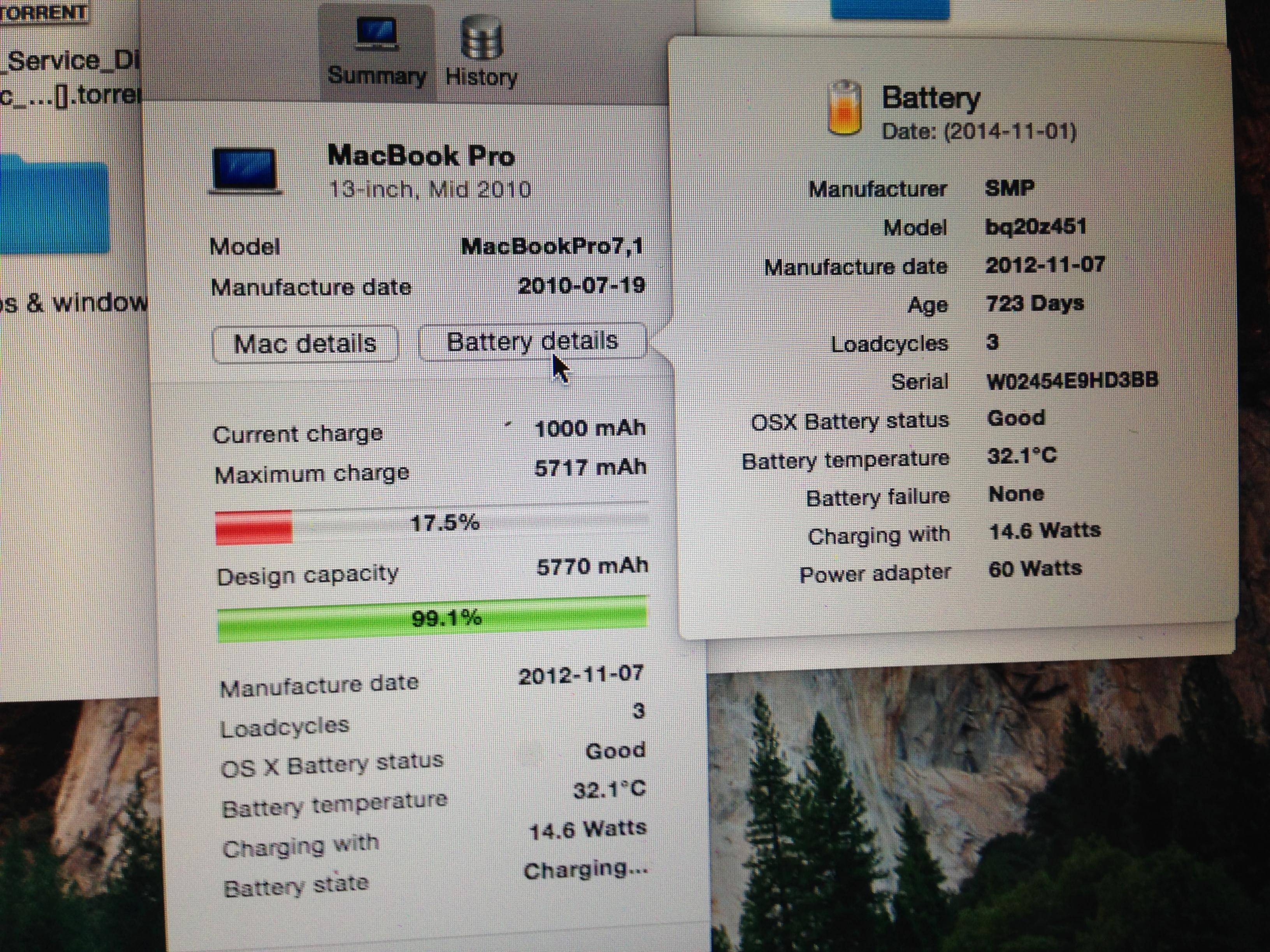

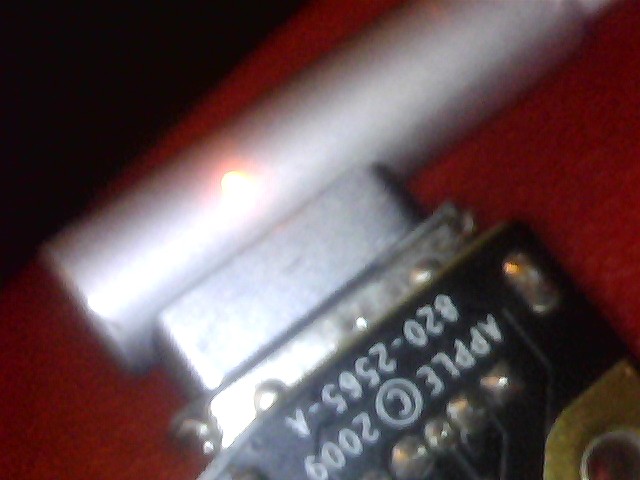

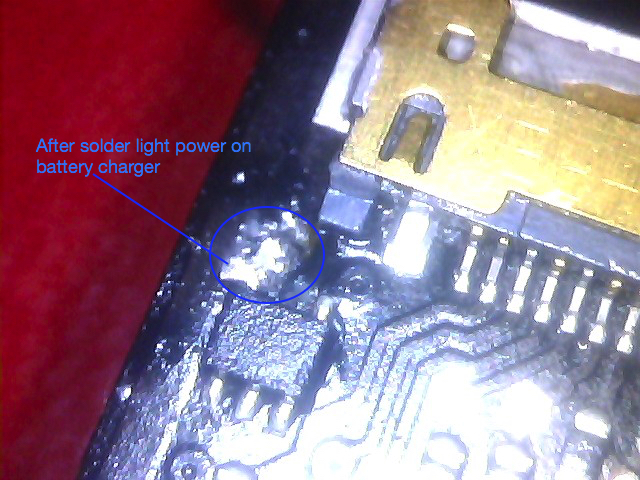

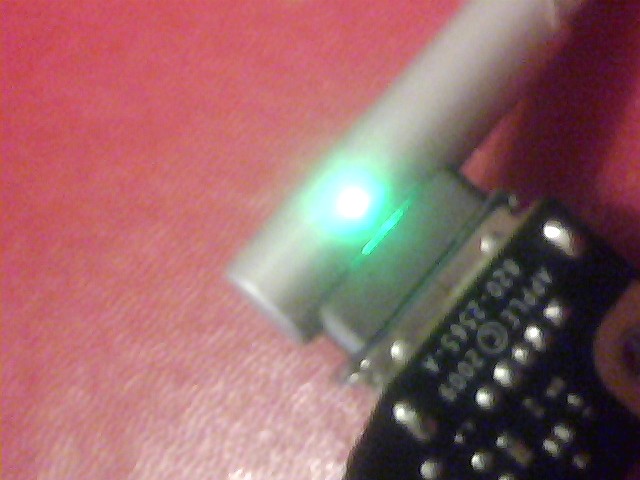

hello. my problem fixed light come on battery charger :)


Attachments

  • 20141101065311.jpg
    57.2 KB · Views: 286
  • 20141101065402.jpg
    51.8 KB · Views: 250
  • IMG_0129.jpg
    1.4 MB · Views: 289
where problem

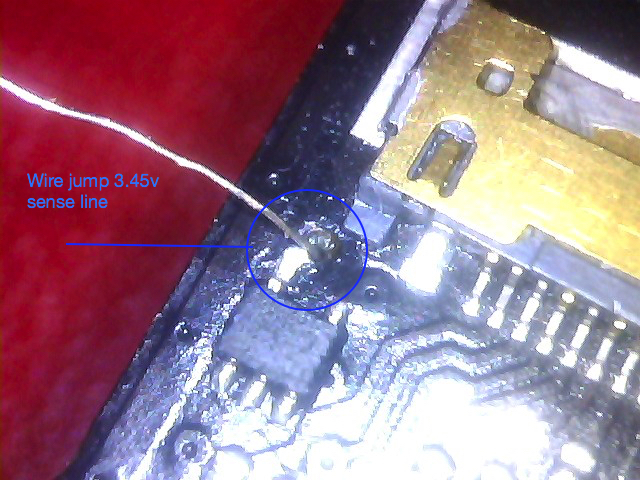

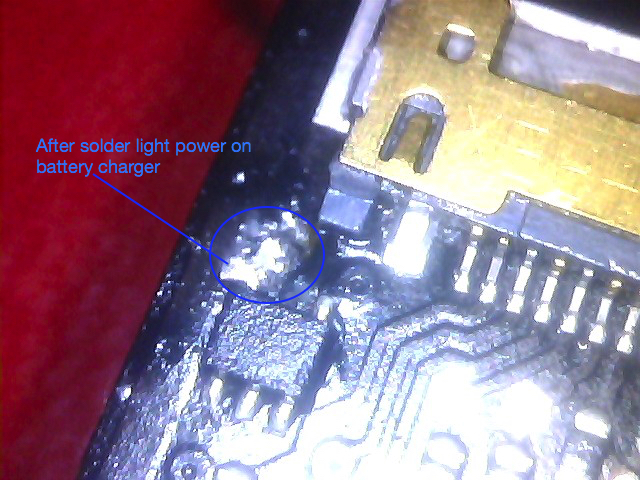

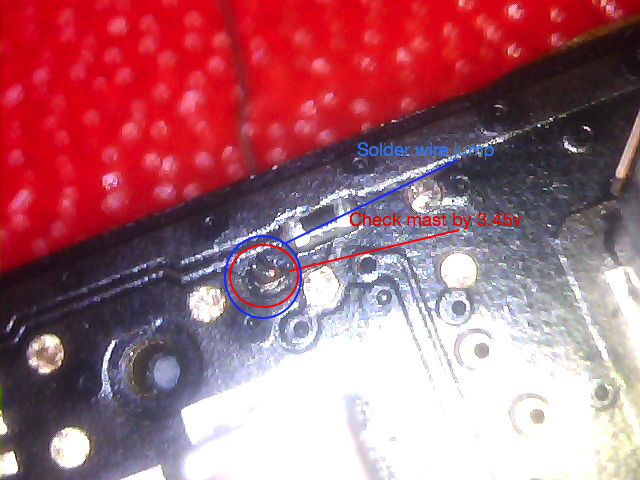

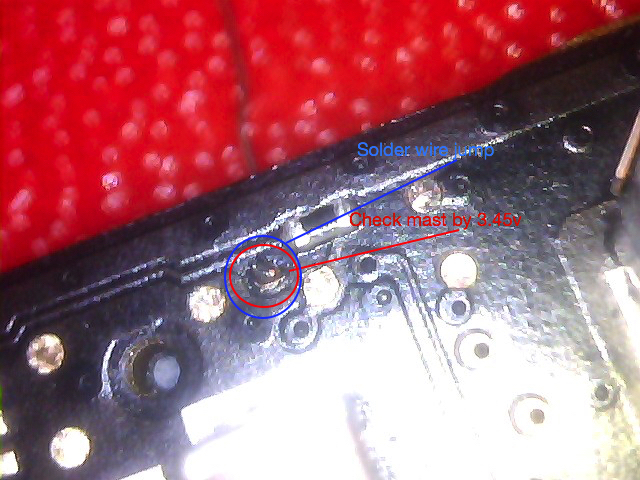

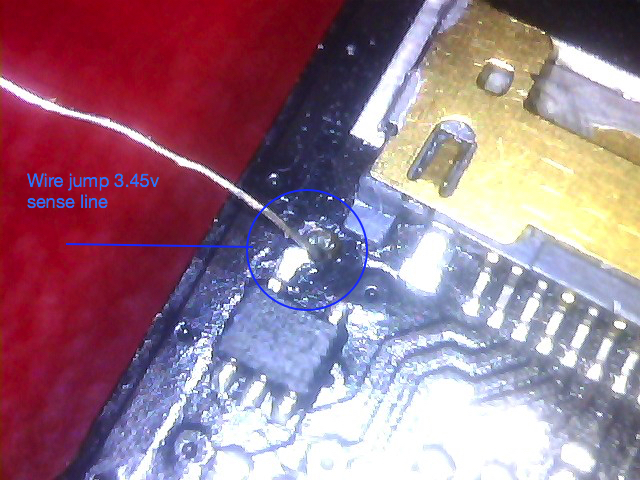

Problem sense line no 3.45v power, need wire jump. I hope help same one fixed problem no light no charger battery. ;)


Attachments

  • 20141101064546.jpg
    356.8 KB · Views: 393
  • 20141101064641.jpg
    376.9 KB · Views: 405
  • 20141101065125.jpg
    383.1 KB · Views: 413
