MDD 1.25Ghz DP 1MB L3 per CPU or 2MB L3 per CPU?

[DearthnVader]

Did the DP MDD 1.25Ghz have 1 Megabyte L3 per CPU or 2 Megabytes L3 per CPU?



[Dronecatcher]

Did the DP MDD 1.25Ghz have 1 Megabyte L3 per CPU or 2 Megabytes L3 per CPU?

2002 DP MDD had 2Mb L3 per CPU - 2003 model had 1Mb.



[DearthnVader]

2002 DP MDD had 2Mb L3 per CPU - 2003 model had 1Mb.

Thanks, that's what I wanted to know.



[for this]

2003 model had 1Mb.

I believe you meant the 1.25 SP.

In 2003, there was a 1.25 DP version available as well. And it had 2MB L3.

I think it's easier to classify MDD Macs by FireWire version rather than year.

All "FW400" 1.25 DP processor cards had 2MB L3. The only FW800 processor card that had 2MB L3 was the 1.42 DP. 2MB L3 cache was reserved for only top of the line MDD (1.25 DP for FW400 and 1.42 DP for FW800).

You can easily ID a FW800 1.25GHz DP vs the FW400 by the number of the coils on the processor card. The FW800 has three coils while the FW400 has just two.

The specs of (2003) 1.25 DP is in the Build-to-Order Options

Apple - Power Mac G4 - Technical Specifications



[Dronecatcher]

In 2003, there was a 1.25 DP version available as well. And it had 2MB L3.

This chap has the 2003 SP but with the custom DP option and he says it has 1Mb:

#1,816



[for this]

This chap has the 2003 SP but with the custom DP option and he says it has 1Mb:

#1,816

I think he missed/overlooked that.



[for this]

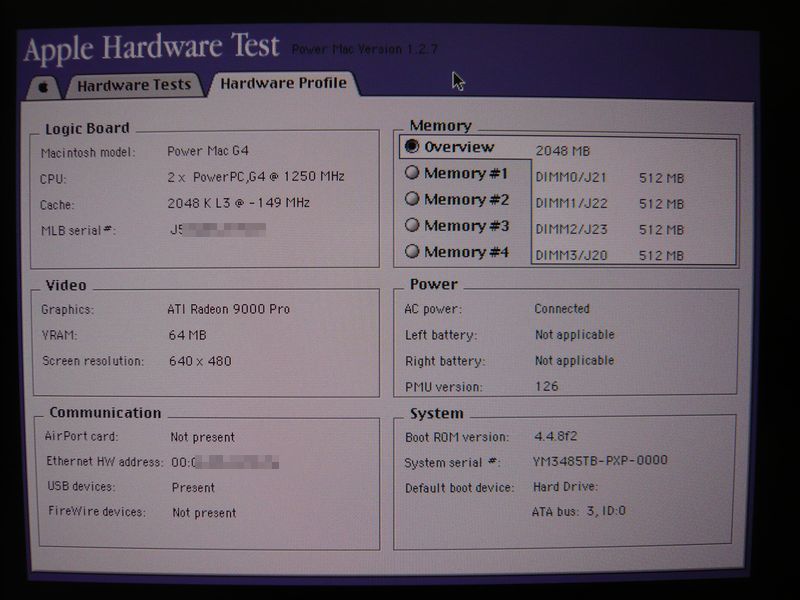

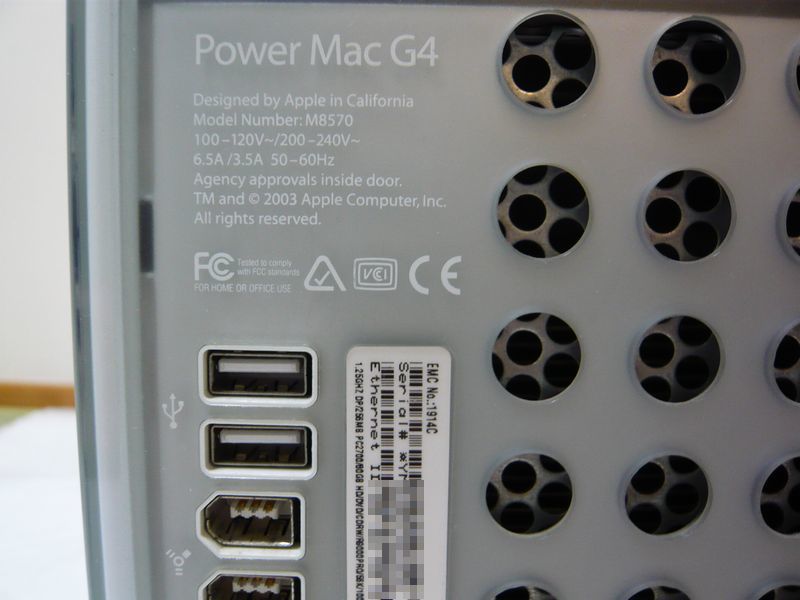

This is from an owner of 2003 1.25 DP MDD.
